Viking Installation Guide

Free-Standing Side Panel,

Top Panel and Grille Installation

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

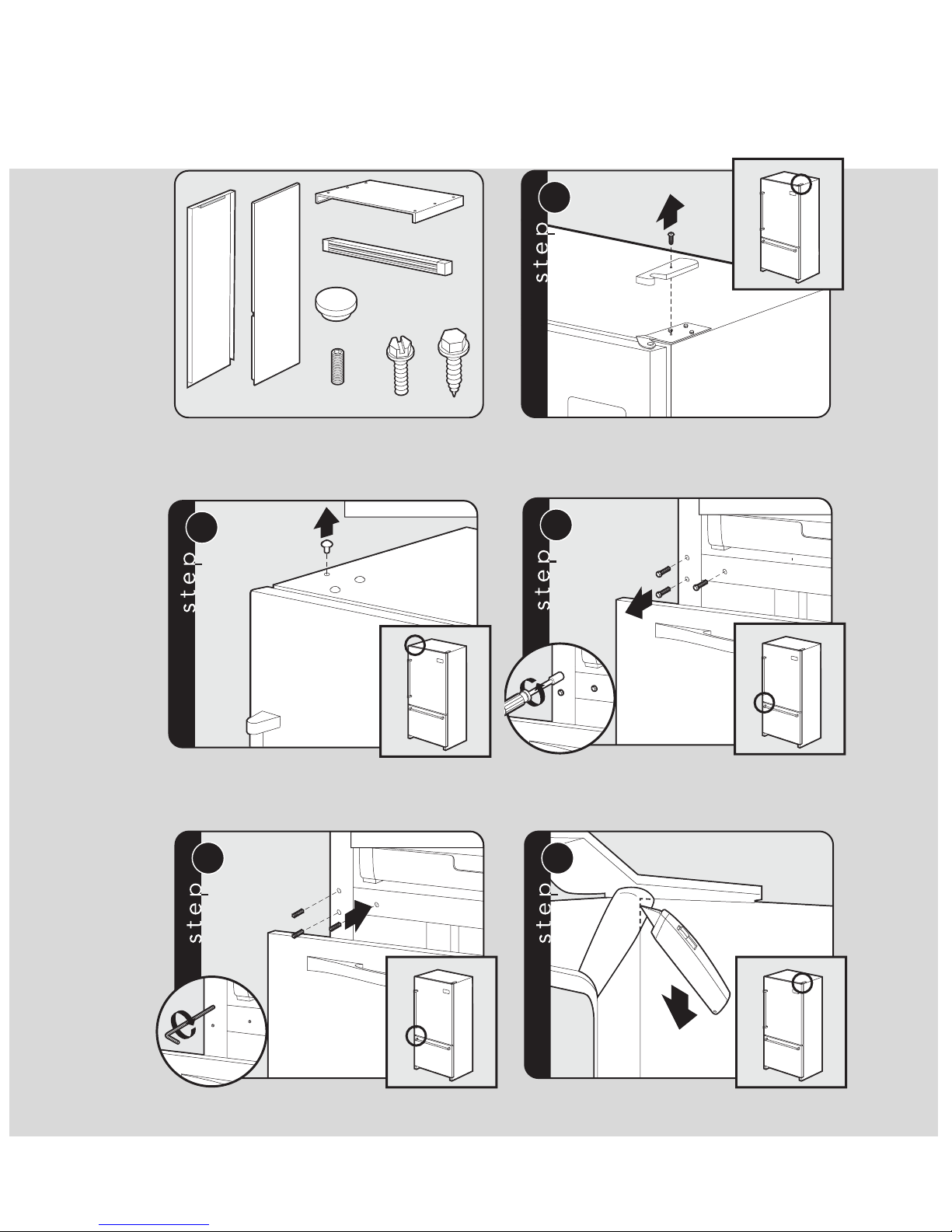

Required Components Remove and discard screw and hinge cover.

(Repeat if two hinges are used.)

Remove and discard plug button from hole on

non-hinge side.

Remove three screws from mullion area opposite the

center hinge.

Install set screws from bag into holes from

previous step.

Remove edge of corner cover.

Left Panel Right Panel

Top Panel

Front Grille

Caps

Screws

Set

Screws

Bottom Mount Model Only

Installation

Bottom Mount Model Only

French Door and Side-by-Side Dispenser Models only

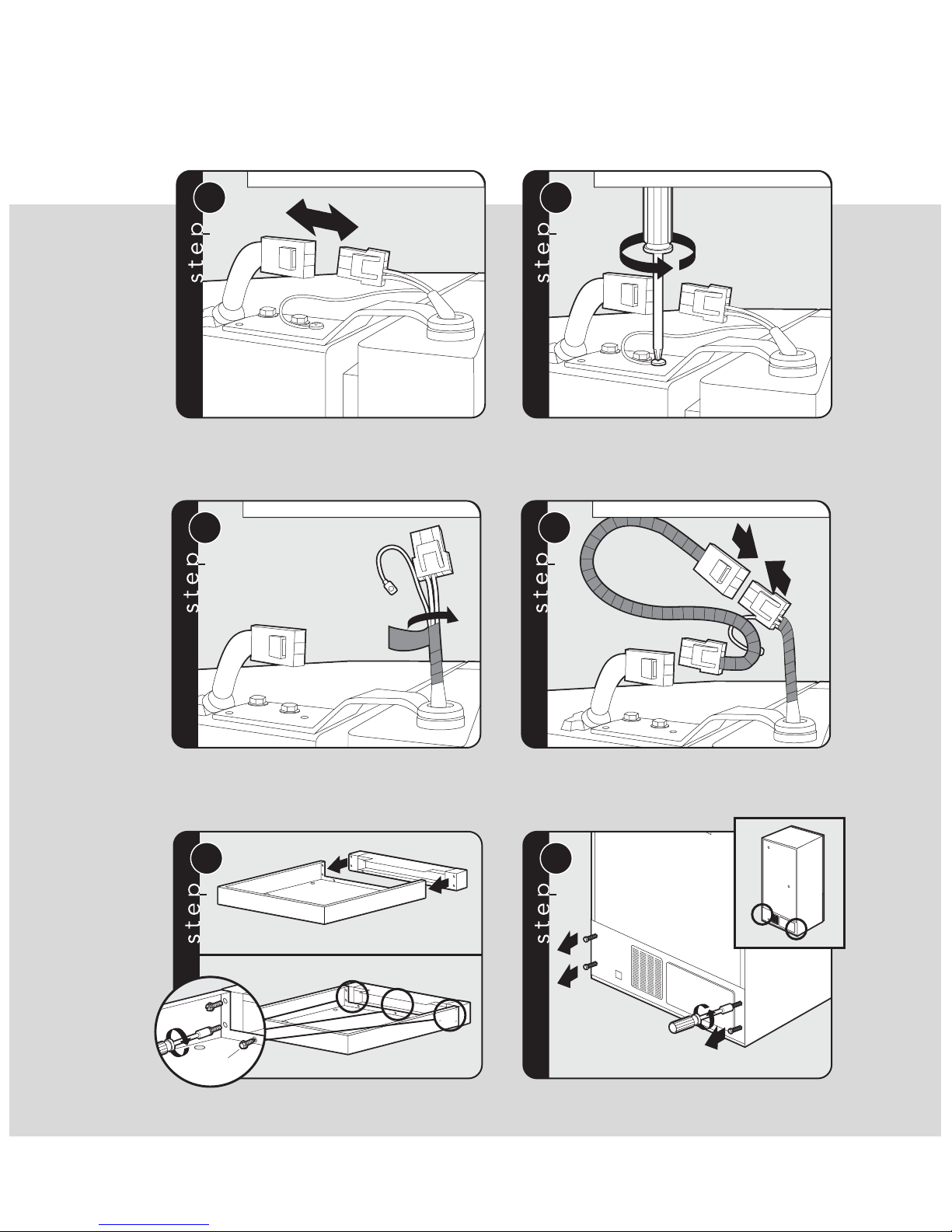

Unplug harnesses on door. Remove ground screw from hinge on door. Hold for

replacement.

French Door and Side-by-Side Dispenser Models only

Apply electrical tape to harnesses and ground wire

coming from door.

Plug in proper harness kit to the harness extension

coming from the door.

A - Designer Series

B - Pro Series

With top panel and grille upside down, position grille

assembly in front of top panel. Secure top panel to grille

assembly via four outer holes and three inner holes.

Remove screws on lower back machine cover.

Hold for replacement.

Remove adhesive backing from the side panel. Fit the

side panel to the front of the unit first. With a center

hinge, the side panel will have a cutout.

Pull the machine cover off and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Remove adhesive backing from other side panel. Fit the

side panel to the front of the unit first. Spacer on top of

side panel needs to sit on top of refrigerator cabinet.

Pull the machine cover and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Install machine cover screws back into

refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

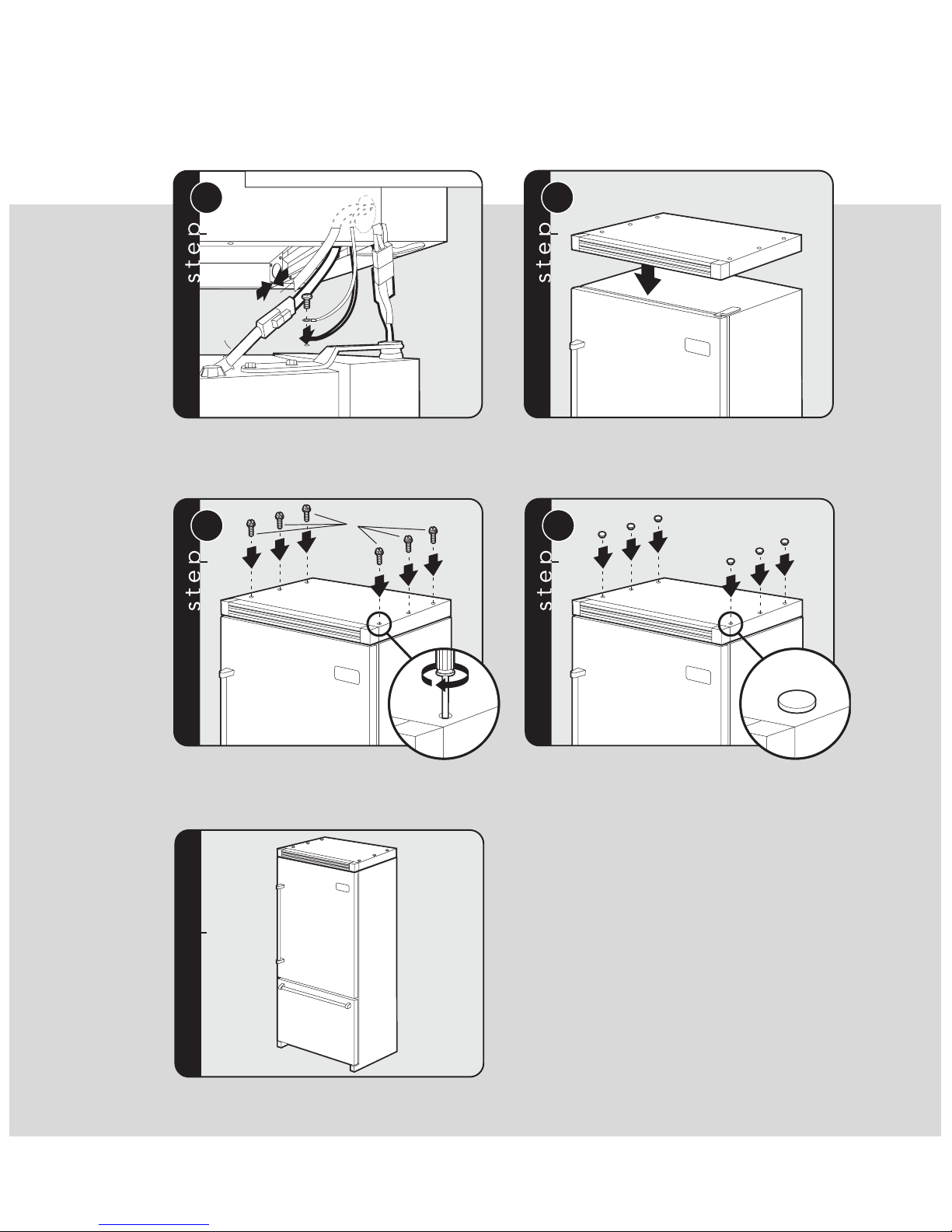

Feed wire harness and ground wire through the bottom

of the endcap and out through the hole in the rear of

the grille.

French Door and Side-by-Side Dispenser Models only

Connect wire harness to wire harness extension

in cabinet. Connect ground screw. Secure wire harness

to top of the cabinet with a piece of tape.

Align top panel and grille assembly to front door and

position top panel and grille on top of unit.

Insert screws through holes of top panel into side

panel.

Insert cap covers into holes.

complete

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-VIKING1 (845-4641)

or visit the Viking Web site at

vikingrange.com

F20424 (PS0605VR)
