Viking 5 Series Bedienungsanleitung

Installation

GUIDE

5 SERIES

Side-by-Side Refrigerator/Freezer

VCSB5423 / VCSB5483 / FDSB5423 / FDSB5483

CVCSB5423 / CVCSB5483 / FDSB5423 / CFDSB5483

Table of Contents

Warnings and Important Information _______________________________________________3

Tipping and Door Swing _________________________________________________________5

Dimensions & Specications (Professional 42” & 48”)__________________________________ 8

Dimensions & Specications (Professional 42” & 48” with

ush mount trim) _________________________________________________________10

Cutout Dimensions (42”) ________________________________________________________12

Anti-Tip Dimensions (42”) _______________________________________________________13

Cutout Dimensions (48”) _______________________________________________________ 14

Anti-Tip Dimensions (48”) ______________________________________________________ 15

Cabinet Information___________________________________________________________ 16

Cabinet Information (with ush mount trim) _______________________________________ 17

Custom Side Panel Dimensions ___________________________________________________18

Custom Side Panel Dimensions (with ush mount trim) ______________________________ 19

Custom Door Panel Dimensions __________________________________________________20

Custom Door Panel Installation ___________________________________________________21

General Information___________________________________________________________ 22

Unpacking & Moving __________________________________________________________ 25

Flush Mount Side Trim Installation _______________________________________________ 26

Installation __________________________________________________________________ 27

Hinge Adjustment_________________________________________________________ 27

Kickplate Installation_______________________________________________________ 28

Door Stop Adjustment _____________________________________________________ 29

Final Installation __________________________________________________________ 30

Performance Checklist _________________________________________________________ 31

Control Panels________________________________________________________________ 32

Service & Registration _________________________________________________________ 33

IMPORTANT – Please Read and Follow!

• Make sure that incoming voltage is the

same as unit rating. An electric rating

plate specifying voltage, frequency,

wattage, amperage, and phase is attached

to the product.

• To reduce the risk of re, electrical shock,

or injury to persons, installation work and

electrical wiring must be done by a

qualied technician in accordance with all

applicable codes and standards, including

re-rated construction.

• The installer should leave these

instructions with the consumer who should

retain them for local inspector’s use and

for future reference.

DANGER

WARNING

You will be killed or seriously injured if

you don't follow instructions.

You can be killed or seriously injured if

you don't follow instructions.

All safety messages will identify the

hazard, tell you how to reduce the chance

of injury, and tell you what can happen if

the instructions are not followed.

Your safety and the safety of others is

very important.

We have provided many important safety

messages in this manual and on your

appliance. ALWAYS read and obey all

safety messages.

This is the safety alert symbol. This

symbol alerts you to hazards that

can kill or hurt you and others.

All safety messages will be preceded

by the safety alert symbol and the word

“DANGER” or “WARNING.” These

words mean:

IMPORTANT – Please Read and Follow!

WARNING

TIP OVER HAZARD

Appliance is top heavy

and tips easily when not

completely installed. Keep

doors closed until appliance

is completely installed and secured per

installation instructions.

Use two or more people to move and

install appliance. Failure to do so can

result in death or serious injury.

WARNING

ELECTRICAL SHOCK

HAZARD

Disconnect power or turn

power disconnect switch to

OFF position before removing top grille.

Failure to do so can result in death or

electrical shock.

Most of the unit’s weight is at the top. Extra

care is needed when moving the unit to prevent

tipping. Use cardboard shipping material or

plywood under unit until it is installed in the

operating position to protect ﬂoor surface.

A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local

ordinances.

• The required use of a GFI is normally related to the location of a receptacle with respect to

any signicant sources of water or moisture.

• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not

installed properly or do not meet the requirements below.

If the use of a GFI is required, it should be:

• Of the receptacle type (breaker type or portable type NOT recommended)

• Used with permanent wiring only (temporary or portable wiring NOT recommended)

• On a dedicated circuit (no other receptacles, switches or loads in the circuit)

• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT

recommended)

• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)

• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations)

• Protected from moisture (water, steam, high humidity) as much as reasonably possible

It is your responsibility to:

• comply with installation specications and dimensions.

• properly install unit.

• remove any moldings or decorative panels that prevent the unit from being serviced.

• make sure that you have these materials (not provided with your unit), which are necessary

for proper installation:

• 1/4” (6 mm) copper tubing with shuto valve

• 6– #8 x 3” (7.6 cm) wood screws (longer screws may be required)

• 1– Saddle valve (do not use self-piercing feature of the valve)

• assure that oor will support unit, door panels and contents (approximately

1200 pounds [540 kg]).

• provide a properly grounded electrical outlet.

• assure that location will permit appliance doors to open 90º minimum.

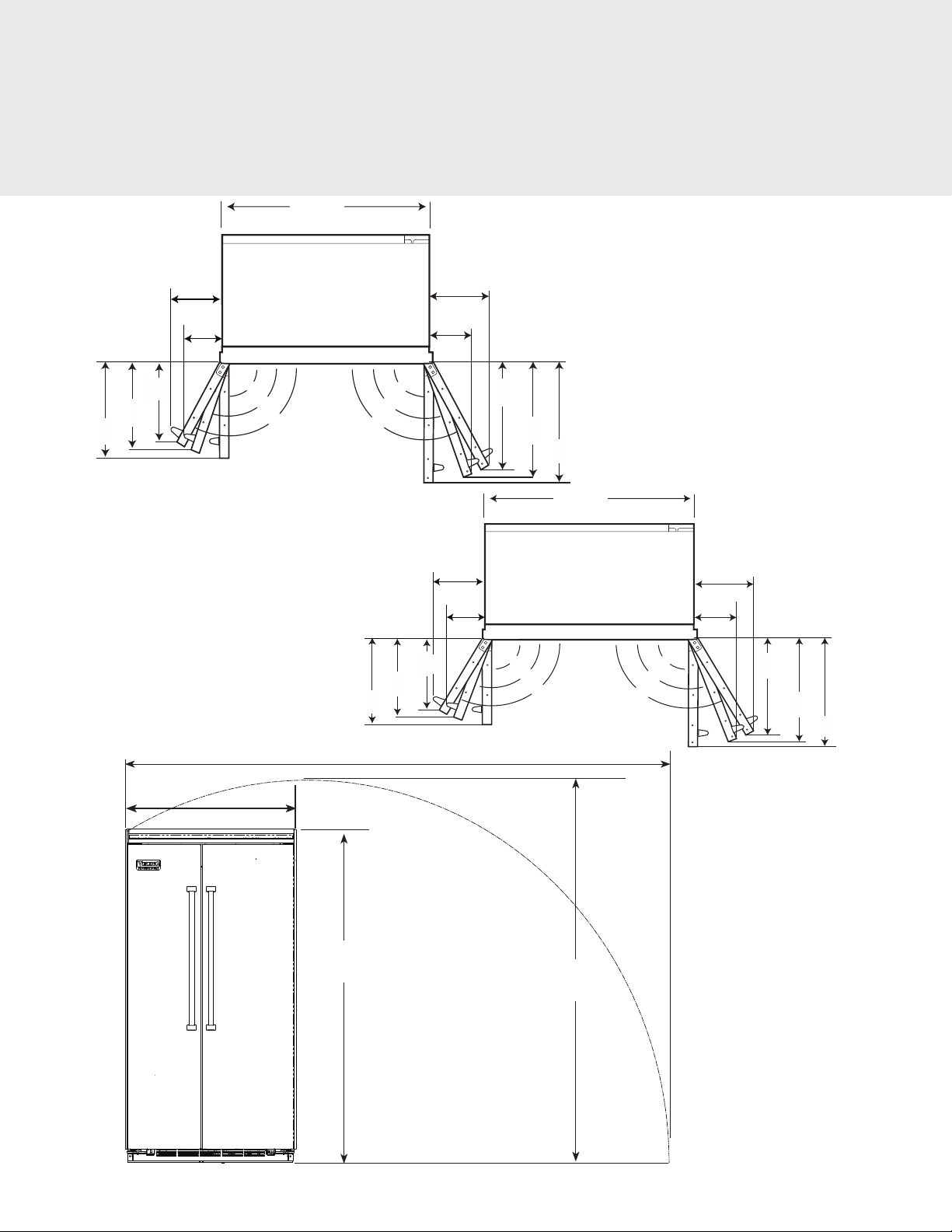

Tipping Radius - Door Swing

42" Door Swing

48" Door Swing

42" Side Tip

90° 90°

110° 110°

120° 120°

42”

(106.7 cm)

16-1/3”

(41.5 cm)

17 1/16”

(43.3 cm)

20-11/16”

(52.5 cm)

19-3/16”

(48.7 cm)

(38.4 cm)

15-1/8”

9-1/16”

(23.0 cm)

6-5/16”

(16.0 cm)

7-7/8”

(20.0 cm)

11-3/8”

(28.9 cm)

(55.1 cm)

21-11/16”

90° 90°

110° 110°

120° 120°

48”

(121.9 cm)

17”

(43.2 cm)

17 3/4”

(45.1 cm)

24-1/16”

(61.1 cm)

26”

(66.0 cm)

27-3/8”

(69.5 cm)

(40.0 cm)

15-3/4”

9-5/8”

(23.7 cm)

6-1/2”

(16.5 cm)

14-1/8”

(35.9 cm)

9-3/4”

(24.8 cm)

125 1/8" (317.8 cm)

82 3/4"

(210.1 cm) 92 15/16"

(236.1 cm)

42"

(106.7 cm)

Tipping Radius - Door Swing

48" Side Tip

Back Tip

82 3/4"

(210.1 cm)

85 1/2"

(217.2 cm)

86 1/8"

(218.8 cm)

24" (61.0 cm)

131 1/8" (330.1 cm)

48" (121.9 cm)

82 3/4"

(210.1 cm) 95 7/8"

(243.5 cm)

Headline

Dimensions (Side-By-Side)

26-1/4”

(66.7 cm)

41”

(104.1 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

42”

(106.7 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23–7/8”

(60.6 cm)

24-5/8”

(62.6 cm)

26-1/4”

(66.7 cm)

47”

(119.4 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

48”

(121.9 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23–7/8”

(60.6 cm)

1–1/2”

(3.8 cm)

24-5/8”

(62.6 cm)

29-3/16”

(74.1 cm)

1–1/2”

(3.8 cm)

29-3/16”

(74.1 cm)

42” Side-By Side

48” Side-By Side

Top View

23-7/8”

(60.6 cm)

26-1/4”

(66.7 cm)

29-3/16”

(74.1 cm)

Headline

Specications (Side-By-Side)

48” Side-By-Side

Description VCSB/CVCSB

Overall width 48” (121.9 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 23-3/4 (60.3 cm)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 47-5/8” (121.0 cm) min. to 47-3/4” (121.3 cm) max.

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.

Standard Cutout depth 24” (61.0 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

19.49 cu. ft. (552 liters)

9.56 cu. ft. (271 liters)

29.05 cu. ft. (823 liters)

Approximate shipping weight 580 lbs. (263 kg)

42” Side-By-Side

Description VCSB/CVCSB

Overall width 42” (106.7 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 23-3/4 (60.3 cm)

To front of top grille: 26-1/4”(66.7cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 41-5/8” (105.7 cm) min. to 41-3/4” (106 cm) max.

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.

Standard Cutout depth 24” (61.0 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

15.76 cu. ft. (446 liters)

9.56 cu. ft. (271 liters)

25.32 cu. ft. (717 liters)

Approximate shipping weight 525 lbs. (238 kg)

Headline

Dimensions

(Flush Mount Trim and Custom Door Overlay)

42” Side-By Side

with Flush Mount Trim

26-1/4”

(66.7 cm)

41”

(104.1 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

42”

(106.7 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23-7/8”

(60.6 cm)

24–5/8”

(62.6 cm)

26-1/4”

(66.7 cm)

47”

(119.4 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

48”

(121.9 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23-7/8”

(60.6 cm)

1–1/2”

(3.8 cm)

24–5/8”

(62.6 cm)

29-3/16”

(74.1 cm)

1–1/2”

(3.8 cm)

29-3/16”

(74.1 cm)

48” Side-By Side

with Flush Mount Trim

Top View

25-1/2”

(64.8 cm)

26-1/4”

(66.6 cm)

29-3/16”

(74.1 cm)

Headline

Specications

(Flush Mount Trim and Custom Door Overlay)

48” Side-By-Side Flush Mount Trim and Custom Door Overlay

Description VCSB/CVCSB Flush Mount FDSB/CFDSB

Overall width 48” (121.9 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 25-1/5" (64.8 cm)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 48” (121.9 cm)

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.

Flush Mount Cutout depth 26-1/2” (67.3 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

19.49 cu. ft. (552 liters)

9.56 cu. ft. (271 liters)

29.05 cu. ft. (823 liters)

Maximum Panel WT

Freezer

Refrigerator

N/A

30 lbs (13.6 kg)

48 lbs (21.8 kg)

Approximate shipping weight 580 lbs. (263 kg)

42” Side-By-Side Flush Mount Trim and Custom Door Overlay

Description VCSB/CVCSB Flush Mount FDSB/CFDSB

Overall width 42” (106.7 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 25-1/2" (64.8)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 42” (106.7 cm)

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.

Flush Mount Cutout depth 26-1/2” (67.3 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

15.76 cu. ft. (446 liters)

9.56 cu. ft. (271 liters)

25.32 cu. ft. (717 liters)

Maximum Panel WT

Freezer

Refrigerator

N/A

30 lbs (13.6 kg)

38 lbs (17.2 kg)

Approximate shipping weight 525 lbs. (238 kg)

Andere Handbücher für 5 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viking Kühlschrank Handbücher

Viking

Viking Designer DDRB364 Bedienungsanleitung

Viking

Viking VCFF236%20with%20grill Bedienungsanleitung

Viking

Viking Side-By-Side & Bottom-Mount... Bedienungsanleitung

Viking

Viking BRTGK72SS Bedienungsanleitung

Viking

Viking F20394E EN Bedienungsanleitung

Viking

Viking Professional VCFB304 Bedienungsanleitung

Viking

Viking Quiet Cool VCFB5301 Bedienungsanleitung

Viking

Viking RDDFF236SS Bedienungsanleitung

Viking

Viking FBI7360 Bedienungsanleitung

Viking

Viking VCBF136 Series Bedienungsanleitung

Viking

Viking VUAR140T Technisches Handbuch

Viking

Viking Built-in French Door Bottom-Freezer... Bedienungsanleitung

Viking

Viking Designer DUAR140R Bedienungsanleitung

Viking

Viking 15"W Bedienungsanleitung

Viking

Viking Designer DFRD144D Montageanleitung

Viking

Viking Designer DDSB423 Bedienungsanleitung

Viking

Viking VURD140 Bedienungsanleitung

Viking

Viking DFRB536L Montageanleitung

Viking

Viking DDBB536RSS Bedienungsanleitung

Viking

Viking VCFF136D Bedienungsanleitung

Viking

Viking Vcbb536rss Bedienungsanleitung

Viking

Viking DFRB364L Bedienungsanleitung

Viking

Viking Professional VIRB304 Bedienungsanleitung

Viking

Viking Designer DFBB536 Benutzerhandbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
