Instructions manual
21553
Multimedia video touch screen 10in Full Flat.
1
Indice
1. DESCRIPTION……………………………………………………………………………………………………… 2
1.1 Caratteristiche principali ……………………………………………………………………………………… 2
2. MAIN MENÙ………………………………………………………………………………………………………… 3
2.1 Notices ………………………………………………………………………………………………………… 4
3. SETTINGS…………………………………………………………………………………………………………… 5
3.1 General ………………………………………………………………………………………………………… 5
3.2 Vimar Web Server IP network ………………………………………………………………………………… 12
3.3 Video door entry system ……………………………………………………………………………………… 14
3.4 User Management ……………………………………………………………………………………………… 58
3.5 Update ………………………………………………………………………………………………………… 65
3.6 Procedure for Installing Applications from Market Vimar Group …………………………………………… 67
5. INSTALLATION RULES ………………………………………………………………………………………… 70
4. REGULATORY COMPLIANCE …………………………………………………………………………………… 70
2
1. DESCRIPTION
In a By-me automation system in which the web server is installed, the multimedia video touch screen enables
complete control of lights, roller shutters, HVAC, speaker system, scenarios, event programs, load control, power
consumption management (Energy Guard) and intrusion detection alarm system. The multimedia video touch screen
can moreover also be used as a video door entry unit and it manages all the functions of the Due Fili (Two Wire)
video door entry system (displays images from panel and from video cameras, voice communication with speech
unit, audio door entry units and call buttons, opening electrical lock, etc.). The connection with the web server will
enable not only supervising and controlling the entire home automation system (automation, intrusion detection
alarm system and video door entry system) but also browsing certain websites (weather forecasts, news, RSS feed
reader, web radio), displaying video or photographs, listening to music (mp3 files), writing notes and linking them to an
acoustic alarm signal (date and time), creating graphic notes with real drawings thanks to the "blackboard" function.
1.1 Main characteristics.
Description
Display
CBA A: SDHC port
B: ON/OFF button
C: USB port
ON/OFF button:
• ON: with the device switched off, press once to turn on the video touch screen.
• With the device switched on, press once to display the context menu.
• OFF: with the device switched on, press and keep pressed until the video touch screen displays the off icon.
Video backlighting lifetime: 10,000 hours (at 25°C)
The lifetime is defined as the estimated time for the brightness to fall to 50% of the initial value.
3
Main Menu
2. MAIN MENU
To display all the other icons, scroll horizontally with your finger over the area covering them.
4
IMPORTANT: The default passwords, namely the ones to use when first switching on, are the following:
- Administrator password:
admin
- Installer password: inst
For all the details on user management (Administrator, Installer, etc.) and the associated functions please see
chap. 3.4 on page 58.
2.1 Notices.
In case of special settings or events (for example video door entry call, alarm silencing, etc.) the multimedia video
touch screen will display the following warnings:
- : User absent
- : Ringtone off
- : "Door open" indicator
- : SD card not inserted
- : SD card inserted 51-75%
- : SD card inserted 76-100%
- : Indicator for "lost call" (video door entry system) and "new note" (blackboard)
Main Menu
5
3. SETTINGS
From the main menu, touching the icon takes you to the Settings menu.
3.1 General.
Touching the icon displays the following options:
- System info;
- Reserved System info;
- Date and Time;
- Language and Unit of Measurement;
- Energy Saving;
- Line Out;
- Configuration Save - Restore.
Settings
6
• System info
Touching the icon displays the software release and the main features of the multimedia video
touch screen.
Settings
• Date and Time
By touching the icon it is possible to adjust the time and date displayed.
By touching the relevant icons it will be possible to select Automatic or Manual mode, viewing the time in AM/PM
or 24h mode, the time zone and set the current date.
7
Automatic:
Manual:
Settings
8

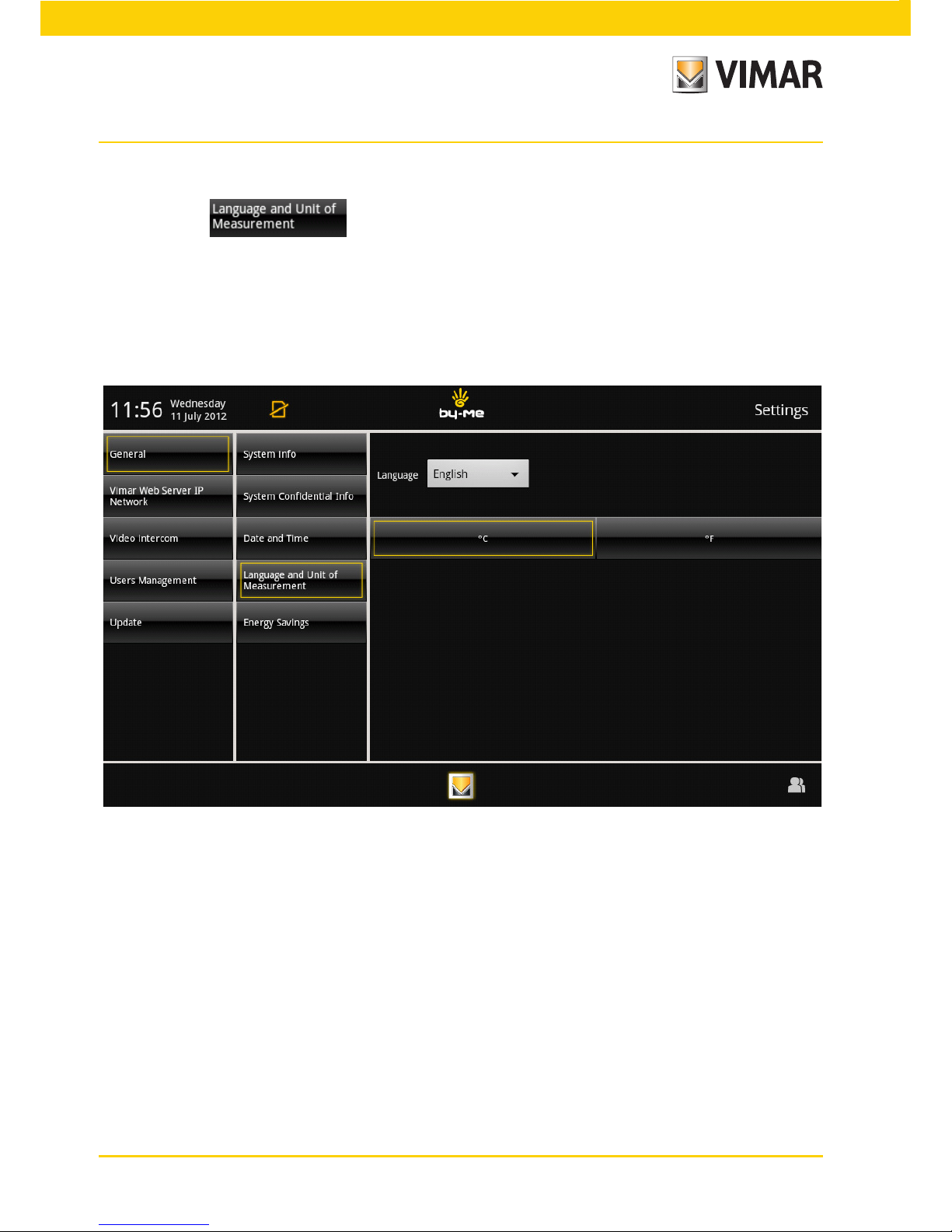

• Language and Unit of Measurement
By touching the icon it is possible to select the language in which all the words will be
displayed and the unit of measurement with which the multimedia video touch screen will display the temperature
of the various system environments.
Touch the drop-down menu on "Language" and select the desired one.
Touch the icon corresponding to the unit of measurement for the temperature in *C or °F; the set unit of measure-
ment will then be used in the Weather application.
Settings
