Vip-Vision NVR8PROPACK2 Bedienungsanleitung

MODEL: NVR8PROPACK2
Professional IP Surveillance Pack
Network Video Recorder with 8 Security Cameras
‘QUICK INSTALLATION GUIDE’
NVR 8 x IP Day/Night Cameras
-Advanced H.264 Video Compression Technology - High Quality 1.3MP CMOS Image sensor
-Multiplex Operation - IR Night view range of 20 metres
-Long Recording Duration - 720p Resolution
-Intelligent Video Motion Detection Recording In-Built POE Network Switch
-Remote Network Surveillance & Backup Functions - Centralise your cameras away from your NVR
-Easy to operate with USB Mouse or IR Remote. - Power and video over the same cable
-System Auto recovery after power loss (blackout) - View over the internet via Smartphone or PC
N517
www.vip-vision.com

1
Package Contents (Before installation, please ensure you have all the parts listed below).s
1 x Network Video Recorder with 2TB Hard Disk Drive
● Advanced H.264 Video Compression Technology for High Quality Images
● Easy to Operate
● Can be Connected to a PC Network for Remote Viewing & Backup (Software on Disc)
4 x Day/Night Weatherproof Bullet Cameras with Infrared LEDs - 20m Range
● IR LEDs for Viewing in Total Darkness up to 20m (B&W Mode)
● 720p Resolution, 1.3 Megapixels
● Ideal for use Indoors and Out
● Power and video over one cable
4 x Day/Night Weatherproof Dome Cameras with Infrared LEDs - 20m Range
● IR LEDs for Viewing in Total Darkness up to 20m (B&W Mode)
● 720p Resolution, 1.3 Megapixels
● Ideal for use Indoors and Out
● Power and video over one cable
9 x Ethernet Cables
● Combined DC Power and Video Leads
● Pre-terminated - Allowing Simple Plug-in Connection – No Tools Required
● 1 x 1.5m, 4 x 10m, 2x 20m, 2 x 30m Leads Supplied
1 x HDMI Connection Cable
● Connect the NVR to a HDMI ready TV or Monitor
1 x USB Mouse
● To operate the NVR
1 x IR Remote Control with batteries
● To operate the NVR
2 x Switch Mode Low Voltage Power Supplies
● 1 x 12v Power Supply for use with the NVR
● 1 x 48v Power Supply for use with in-built POE Network Switch
●Advanced Switch Mode Technology

2
Installation
Before installing this unit, please read through the following points:
•Do not place cords from the AC adapter where they can be pinched or stepped on.
•Leave at least 50mm of space between the NVR and other objects to allow air circulation.
•Do not expose the NVR or Cameras to excessive heat, cold, or moisture.
•Never immerse any component in water, and do not spray cleaners of solvents on the unit. Unplug
units before cleaning. When cleaning, use a damp, lint-free cloth only.
•Do not place heavy objects on cords, or cover cords with rugs or carpet.
•Service should be handled only by qualified technicians.
Rear Panel
1 “DC48V” Connect to 48V power supply.
2 “POE PORTS” Powered Ethernet ports to connect to supplied cameras.
3 “VIDEO OUT” BNC Analogue Video Out connection.
4 “MIC” BNC Analogue Audio In/Out connection.
5 “RS323”RS323 connector for optional terminal configuration.
6 “ALARM INPUT”
Alarm input panel, see User Manual or Included CD for more
information.
7 “POWER” Switch on/off to supply power to the device.
8 “USB PORT” Connect USB Mouse.
9 “WAN PORT” Connect to Network/Internet for remote monitoring.
10 “HDMI” Connect to Digital Monitor with supplied HDMI cable.
11 “VGA” Connect to monitor using VGA cable. (Not Supplied)
12 “DC12V” Connect to 12V power supply.
13 “GROUND” Alarm input ground end.
1 2 3 4 5 6 7
8 9 10 11 12 13

3
Connection Guide
1. Mount the 8 Cameras as required and connect them to the in-built POE Network Switch using
the supplied Network Cables.
2. Connect the 48V Power Supply to the in-built POE Network Switch portion.
3. Connect the 12V Power Supply to the NVR portion.
4. Plug both power adaptors into a Power-point.
5. Switch NVR on from back of device. Hold Power button for 3 seconds.
6. The power LED at the front of the NVR should now be illuminated and the unit will make a loud
beep sound to indicate it is powered.
7. Connect the included mouse to the USB port on the front or back.
Front Panel
1,5 “NUMERALS”
Buttons marked with numbers can be used to enter numeric data
when in numeric text entry mode (See “SHIFT”)
1 “PLAYBACK” Playback controls used when viewing recorded footage.
2 “CAMERA LIGHTS” Displays recording cameras. (Unit limited to four maximum)
3 “STATUS LIGHTS” Shows device is powered/reading HDD/connected to network.
4 “REC” Manually start/stop recording.
5 “DIRECTION CONTROLS”
Used to select and enter options in menus.
6 “ESC”Go to previous menu/cancel current operation.
7 “POWER” Hold for three seconds to power on/off device.
8 “SHIFT” Switch between text entry modes. (Numerals, English, Capitals, etc.)
9 “FN” Various auxiliary functions.
10 “USB PORT” Connect USB storage device or USB Mouse.
1 2 3
10
4 6
8 9
5 7

4
Main Screen
Once booted, you will be presented with the screen below.
Each camera view will have one or more symbols from below:
1
Currently Recording
3
Video Loss
2
Motion Detected
4
Camera Lock
System Menu
•Right Clicking anywhere on the screen will bring up the System Login screen.
•Once Logged In, right clicking again will bring up a menu.
•Selecting “MAIN MENU” will show the system menu.
•Right click or press the ESC button to return to previous menus, click on the icon to enter menus.
Channel View Menu
Moving the mouse to the top of each channel in the live view screen will show a menu.
From left to right:
•Playback: Show, in live view, the past few minutes of footage.
•Search tag: Turn on search tag.
•Save: Save the currently displayed file to USB device.
•Camera Source:Change the IP Device for this feed.
•Close: Close the channel view menu.
NVR8PROPACK2 only supports eight cameras.

5
Set the Time and Date
When using your NVR for the first time, you will have to set the SYSTEM TIME.
•Right clicking anywhere on the screen will bring up the password menu.
Use the mouse to enter the NVR admin password with the on-screen keypad.
•Right click to open the menu and select “MAIN MENU”.
•Select “SETTING”
•Select “GENERAL”
•Set System Time, Date Format and DST (Daylight Saving Time) for your region.
•Click Save before clicking OK
Default:
The default username is admin, the password is also admin.
(Users can alter the password later. Please refer to the Advanced set up guide CD)
Important:
If you change the date or time on your NVR after the recording function is activated, the recorded data may be
deleted. After setting the date and time, it’s recommended to clear all HDD data, and start recording again.

6
To Connect Cameras
•Right click to open the menu and select “MAIN MENU”.
•Select “SETTING”
•Select “REMOTE DEVICE”
Adding new Cameras
1. Click IP Search, this will list all cameras connected in the upper panel.
2. Click on the camera you wish to connect and click ‘Add’
Manual Adding
1. Click Manual Add
2. Enter the information about the camera, if you do not know this information, you must manually
setup the camera on another network before connecting.
NOTE:
The NVR will most likely automatically configure the IP address of a camera connected to the
dedicated POE Ports on the back of the device.

7
To Set Up Recording Rates
•Right click to open the menu and select “MAIN MENU”.
•Select “SETTING”
•Select “ENCODE”
We recommend:
That each camera be set to H.264 with a maximum of 1280x720 resolution, 15fps, Bit Rate: VBR of
2048. While any of the cameras may be set higher, please be aware that it will reduce the total recording
time to less than 2 weeks.
You may also set individual encoding options for Regular, Motion Detect and Alarm Recording
To Begin Recording
Once you have successfully set the Date and Time, exit the Menu by right clicking or pressing the ESC
button. By default, the NVR will begin recording when it is properly connected to the cameras and has an
installed HDD. If it is recording, the recording icon “ ”will be displayed on screen.
Overwriting View:
When the system is in Overwrite recording mode, the oldest recorded data will be
overwritten automatically. This NVR System is set to Overwrite by factory default.
You may set this option in the “GENERAL” Menu.
Record Times:
The NVR8PROPACK2 system is capable of storing 2 weeks of recorded footage based on 2Tb of
storage and the 8 included 1.3MP Cameras set to 720P @ 15fps and VBR @ Quality 5.

8

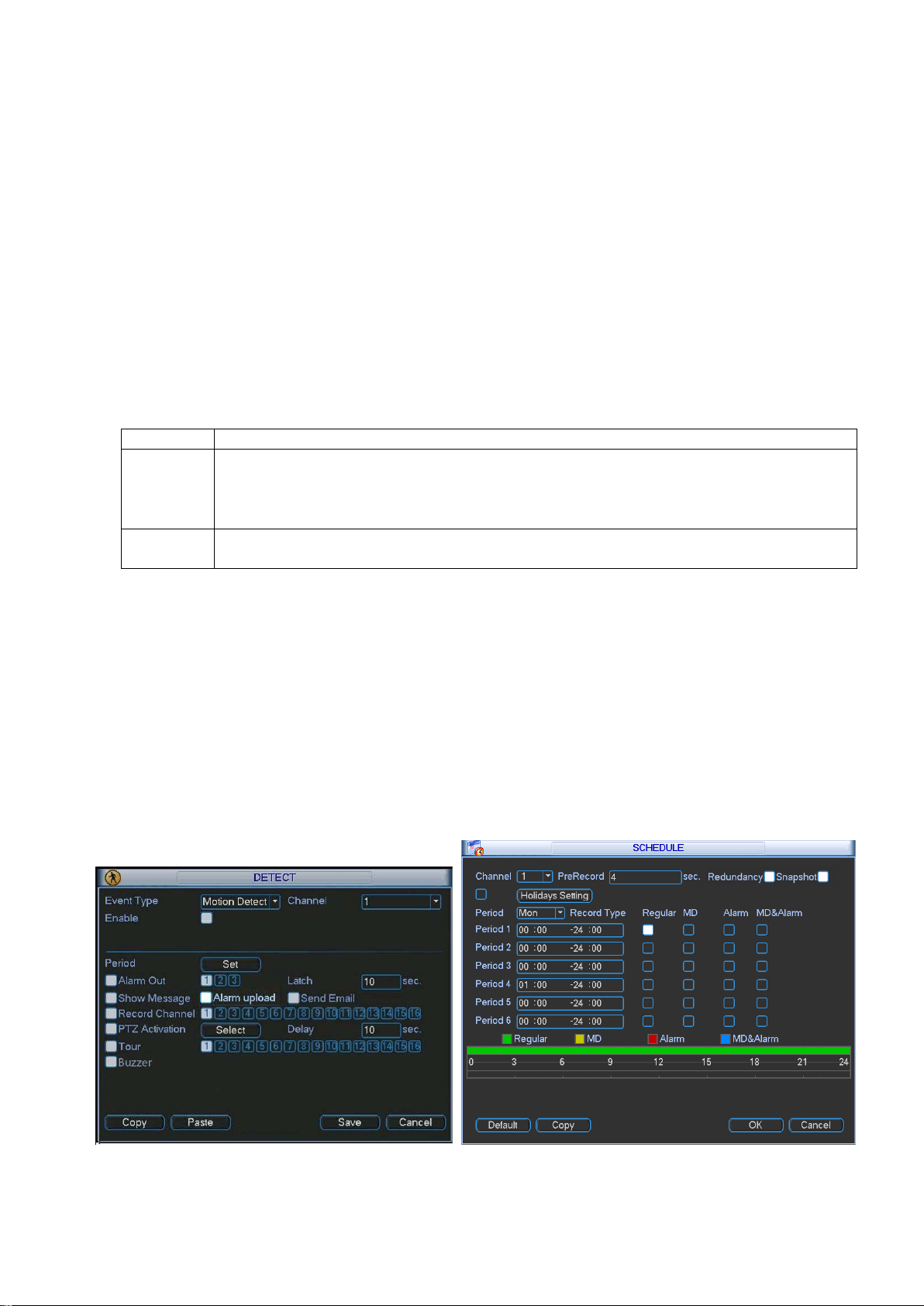

Motion Detection
Motion detect recording is set per camera, per time period and can also be set to detect in
certain portions of the screen.
•Right click to open the menu and select “MAIN MENU”.
•Select “SETTING”
•Select “DETECT”
•Select ‘Motion Detect’ from Event Type
•Select channel from Channel drop down
•Check the Enable box
•Ensure Record Channel is checked, and a Region has been selected.
•Click Save.
More Settings:
Latch
Time to wait after motion is detected, before checking for motion again.
Region
Select
Select region of feed within which motion detection will occur.
Click and drag with the mouse to arm/disarm areas of the feed.
Motion detected in red areas will cause recording, motion will not be detected in
grey areas. Press “ENTER” to save.
Sensitivity
Select from 1 to 6 the sensitivity of the recording, 6 being the most sensitive to
movement.
•Right click to open the menu and select “MAIN MENU”.
•Select “SETTING”
•Select “SCHEDULE”
•Select a channel.
•Choose a period and set the time options to the period you wish to motion record, bearing in
mind system uses 24 hour time.
•Check MD for this period.
•Click OK to save.

9
Playback
•Right click to open the menu and select “MAIN MENU”.
•Select “SEARCH”
1. Playback Controls
•Click to begin playback, pressing it again will pause playback.
•Click to stop playback.
•Click to begin backwards playback
•Click or to skip to the next session, or while paused to skip backward/forward a single
frame.
•Click during playback to play slower.
•Click during playback to play faster.
•Click to do a smart search.
•Use to control the volume.
•Click to take a snapshot of the current frame (In fullscreen mode).
