INTRODUCTION
Your new Dual 4K Docking Station can connect to any host with USB A or Type C connectors
providing a fully backward-compatible and future-proof docking solution. Allowing you to
connect up to two additional monitors through a single USB cable.
The Dual 4K Docking Station Software allows full conguration of all additional USB displays,
including:
• Support for up to 6 additional USB Displays (Windows)
• Support for up to 4 additional USB Displays (Mac OS X)
• Expand USB 3.0 connectivity
• Supports dual DP or dual HDMI display
• Gigabit Ethernet
• Mic In and Audio out
• Extended, Mirrored, Primary Display
• Extend left, right, above, or below
• Rotation
• Layout of displays
• Color Depth
3
FEATURES
CONTENTS
• Compatible with both Type-C and Type-A Laptops and Desktop Computers
• Supports resolutions up to 5K (5120 x 2880@60Hz) when using dual DP ports
simultaneously
• Dual 4K HDMI/Dual 4K DisplayPort/4K HDMI + 4K DisplayPort output
• Supports Extend and Mirror Display Mode
• Supports 5.1 Channel Surround Sound
• Built-in USB 3.0 GPU, Plug and Display
• Separate microphone input and audio output
• SuperSpeed USB 3.0, speeds up to 5Gbps and backward compatible with 2.0/1.1
• Built-in 10/100/1000 BASE-T Gigabit Ethernet RJ45 for increased network performance
• VT4000 does not support laptop charging, VT4500 supports laptop charging of up to 60W,
VT4510 up to 100W over USB Type-C connection
Note: If an HDMI display (either Display 1or 2) and a DisplayPort display are connected at the
same time, the DisplayPort display will be the primary display.
• VT4000 / VT 4500 / VT4510 Dual Display Docking Station
• AC Power Adapter - (40W - VT4000, 100W - VT4500, 130W - VT4510)
• USB-C to USB-C Cable (1M)
• USB 3.0 A to USB-C Cable (1M)
• Quick Start Guide
4
SYSTEM REQUIREMENTS
DisplayLink USB Graphics Software for Windows
Windows 7 (32-bit and 64-bit editions)
Windows 8 (32-bit and 64-bit editions)
Windows 8.1 Update 2015 (32-bit and 64-bit editions)
Windows 10 (32-bit and 64-bit edition)
Windows XP SP2 and Vista are supported by older version of the DisplayLink software:
http://www.displaylink.com/downloads
DisplayLink USB Graphics Software for macOS
Big Sur 11
Catalina 10.15
Mojave 10.14
High Sierra 10.13
Sierra 10.12
El Capitan 10.11
Yosemite 10.10
Mavericks 10.9
Mountain Lion 10.8
Lion 10.7
Snow Leopard 10.6
5
DOCKING STATION CONFIGURATION
Step 1
Connect the USB-C to USB-C / USB-A to USB-C cable to the Docking Station. Plug the USB cable
into your Laptop/Desktop Computer, Connect the power adapter and turn it on.
DISPLAY1 DISPLAY2
Kensington
Lock
Power
Switch
Gigabit
Ethernet
HDMI DisplayPort HDMI DisplayPort USB 3.0 USB-C
VT4000 - No PD
VT4500 - 60W PD
VT4510 100W PD
Power
Port PC
6
DOCKING STATION CONFIGURATION (Continued)
Step2
Connect your displays to the Docking Station
DISPLAY1 DISPLAY2
HDMI Cable
(Not Included)
Connect to HDMI Monitor
DisplayPort Cable
(Not Included)
Connect to DisplayPort Monitor
OR
HDMI Cable
(Not Included)
Connect to HDMI Monitor
DisplayPort Cable
(Not Included)
Connect to DisplayPort Monitor
OR
HDMI DisplayPort HDMI DisplayPort
7
DRIVER INSTALLATION (Windows)
Step 1
The following section shows you how to install the Docking Station software on dierent
operating systems.

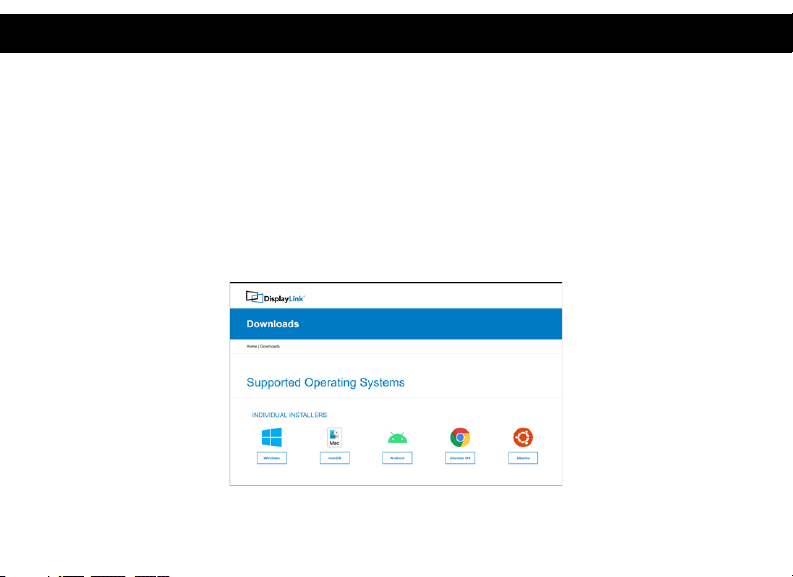

Download and install the latest Displaylink software. Select the driver according to your operating
system.
Please visit displaylink.com/downloads and download the latest drivers. Displaylink-provided
drivers are always compatible with the USB Docking Station.
8
DRIVER INSTALLATION (Windows Continued)
Step2
Select the downloaded le double click to begin the DisplayLink software installer
Step3
Once the installer begins a window will pop up and verify that your system is compatible with
DisplayLink USB Graphics.
9
Step4
Click ”Install”
DRIVER INSTALLATION (Windows Continued)
