VisionTek VT8000 Bedienungsanleitung

QUAD DISPLAY DOCK

VT8000

USER MANUAL

lntroduction ............................................................................

Features ...................................................................................

Contents ..................................................................................

System Requirements ...........................................................

Docking Station Conguration ...........................................

Driver Installation (Windows)...............................................

Windows Setup ......................................................................

Driver Installation (macOS) ..................................................

Managing Multiple Displays (macOS) ...............................

Conguring Displays from the Menu Bar (macOS) .........

Warranty ..................................................................................

TABLE OF CONTENTS

INTRODUCTION

Your new Quad 4K Docking Station can connect to any host with USB A or Type C connectors

providing a fully backward-compatible and future-proof docking solution. Allowing you to

connect up to four additional monitors through a single USB cable.

The Quad 4K Docking Station Software allows full conguration of all additional USB displays,

including:

• Support for up to 4 additional USB Displays (Windows)

• Support for up to 4 additional USB Displays (Mac OS X)

• Expand USB 3.0 connectivity

• Supports 4 Displays

• 2.5 Gigabit Ethernet

• Mic In and Audio out

• Extended, Mirrored, Primary Display

• Extend left, right, above, or below

• Rotation

• Layout of displays

• Color Depth

FEATURES

CONTENTS

• Compatible with both Type-C and Type-A Laptops and Desktop Computers

• Supports 2 displays at resolutions up to 5K (5120 x 2880@60Hz) when using dual DP ports

simultaneously

• Quad 4K Output

• Supports Extend and Mirror Display Mode

• Supports 5.1 Channel Surround Sound

• Built-in USB GPU, Plug and Display

• Combo microphone input and audio output

• SuperSpeed USB 3.0, speeds up to 5Gbps and backward compatible with 2.0/1.1

• SuperSpeed+ USB 3.1 Gen2 port up to 10Gbps

• Built-in 2.5 Gigabit Ethernet RJ45 for increased network performance

• Power Delivery up to 100W over USB Type-C connection

• USB-C 30W charging port for phones and tablets

• VT8000 Docking Station

• Power Adapter 180W

• USB-C to USB-C Cable (1M)

• USB-C to USB-A 3.0 Adapter

• USB-C Cable Screw Adapter

• Quick Start Guide

SYSTEM REQUIREMENTS

DisplayLink USB Graphics Software for Windows

Windows 7 (32-bit and 64-bit editions)

Windows 8 (32-bit and 64-bit editions)

Windows 8.1 Update 2015 (32-bit and 64-bit editions)

Windows 10 (32-bit and 64-bit edition)

DisplayLink USB Graphics Software for macOS

Big Sur 11

Catalina 10.15

Mojave 10.14

High Sierra 10.13

Sierra 10.12

El Capitan 10.11

Yosemite 10.10

Mavericks 10.9

Mountain Lion 10.8

Step 1

Connect the USB-C to USB-C cable to the Docking Station. Plug the USB cable into your Laptop/

Desktop Computer, Connect the power adapter and turn it on.

DOCKING STATION CONFIGURATION

Display 1

DP, HDMI

Display 3

DP, HDMI

Display 4

DP, HDMI

2.5 G

Ethernet

USB-C

To System

Power In Kensington

Lock

Display 2

DP, HDMI

Video Stream A

DP++

HDMI HDMI HDMI HDMI

DP++ DP++ DP++

Video Stream B Video Stream C Video Stream D

PowerUSB 3.0

DOCKING STATION CONFIGURATION (Continued)

Step2

Connect your displays to the Docking Station

Each Video Stream supports 1 display up to 4K @ 60Hz for a total of 4 displays

HDMI Cable

(Not Included)

Connect to HDMI Monitor

DisplayPort Cable

(Not Included)

Connect to DisplayPort Monitor

Per Video Stream

HDMI DisplayPort

DOCKING STATION CONFIGURATION (Continued)

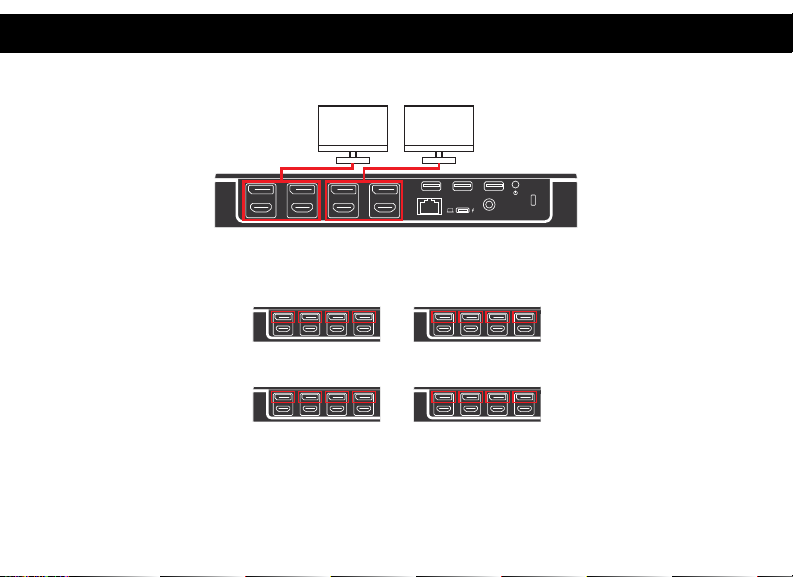

Monitor 2Monitor 1

Correct way to connect 5K displays

Wrong ways to connect 5K displays

1212

1221

2112

2121

Note:

You can only connect either the left two DP ports or right two, you cannot

interconnect them randomly.

Step 1

The following section shows you how to install the Docking Station software on dierent

operating systems.

Download and install the latest Displaylink software. Select the driver according to your operating

system.

Please visit displaylink.com/downloads and download the latest drivers. Displaylink-provided

drivers are always compatible with the USB Docking Station.

Step2

Select the downloaded le double click to begin

the DisplayLink software installer

Step3

Once the installer begins a window will pop up

and verify that your system is compatible with

DisplayLink USB Graphics.

DRIVER INSTALLATION (Windows)

Step4

Click ”Install”

DRIVER INSTALLATION (Windows Continued)
