VisionxIP VxIP 9611 Bedienungsanleitung

VxIP 9611 – VxIP 9612

3GPP IR Network Camera

User’s Manual

Version 1.0

Mail: info@visionxip.com

Web: www.visionxip.com

Contents

Contents .........................................................................................................................2

Package Contents...........................................................................................................3

System Requirements.....................................................................................................4

Introduction....................................................................................................................5

Features and Advantages................................................................................................5

System Introduction.......................................................................................................6

Hardware Installation.....................................................................................................8

Camera Settings.............................................................................................................9

Camera Setting from a Router .....................................................................................11

Change the Internet Explorer Setting...........................................................................12

Enter the Main Page.....................................................................................................13

Camera Main Page.......................................................................................................15

System Settings............................................................................................................25

Basic Settings...............................................................................................................25

Basic Setting > System (System info) ...............................................................25

Basic Setting >Video/Image...............................................................................27

Basic Setting > Audio (Sound) ..........................................................................34

Basic Setting > User(User) ................................................................................35

Basic Setting > Network (Network Settings)...................................................37

Basic Setting > Network > Network (cable network setting page) .............37

Basic Setting > Network > PPPoE (dial-up networking setting).................39

Basic Setting > Network > DDNS (Dynamic Domain Name Server Setting)

......................................................................................................................42

Basic Setting > Network > UPnP (Universal Plug and Play)......................44

Basic Setting > Network > SMTP Server (mail server setting)...................47

Basic Setting > Network > Samba...............................................................49

Basic Setting > Date/Time (date/time setting).................................................52

Basic Setting > IPFilter.....................................................................................53

Application Setting ......................................................................................................54

Application Setting > Event (event trigger setting page) ...............................54

Application Setting > Motion Detection...........................................................62

Application Setting > Firmware upgrade........................................................63

Application Setting > Factory Default .............................................................66

Application Setting > Reboot............................................................................69

Attachment A: Bandwidth Estimation .........................................................................70

Attachment B: Troubleshooting and FAQs..................................................................71

Mail: info@visionxip.com

Web: www.visionxip.com

Package Contents

The 30 M / 25M IR Network Camera is provided with the following accessories.

Please contact your dealer if any one of the following is missing.

1. 30 M / 25M IR Network Camera 2. 12V DC Power Supply

(Only available for 25M IR model)

3. CDROM

(Including User Manual / ip finder / NVR setup /

NVR manual/ Quick Guide)

4. Quick Guide

Mail: info@visionxip.com

Web: www.visionxip.com

System Requirements

30 M / 25M IR Network Camera

Internet Environment

LAN 10/100M Ethernet

Wireless LAN 802.11b or 802.11g

Monitor System Requirements

OS support Windows 2000 Professional SP4, XP Home SP2

Browser support Internet Explorer 6.x or later

Hardware CPU: Pentium 4 2.4 GHz or later

Memory: 256 MB (512 MB recommended)

VGA card resolution: 800 x 600 or higher

Mail: info@visionxip.com

Web: www.visionxip.com

Introduction

The 30 M / 25M IR Network Camera is a multi-functional stand-alone IR CCD

Network Camera that can connect to Ethernet, LAN, or any broad-band networks.

Equipped with 12/8 High-light & long life LED, the camera can provide up to 20,000

hours IR function. The 30 M / 25M IR Network Camera carries a rating of IP 66,

keeping the electronic equipment dust-tight and dry in the strongest storms to provide

maximum security against equipment damage. The camera uses SONY CCD sensor

provides vivid image for your best surveillance purpose. Unlike traditional CCTV

cameras, the 30 M / 25M IR Network Camera has a built-in CPU and webpage server

to provide users with a mechanism for home security or remote office monitoring

applications. The 30 M / 25M IR Network Camera supports 3GPP real-time video

streams that allow you to control the home or office environment using a 3G mobile

phone. The 30 M / 25M IR Network Camera is easy to install and use. The built-in

webpage server enables you to control the security and property of your home or

offices remotely and easily from anywhere there is a networked computer.

Features and Advantages

The 30 M / 25M IR Network Camera is a stand-alone IR CCD Network Camera. It

can operate smoothly without the need to install additional software or hardware. All

that is needed is a PC equipped with IE browser (6.0 or above) connected to the

Internet Camera via the network to monitor pre-set places remotely. The 30 M / 25M

IR Network Camera provides great remote accessibility of personal, home, and assets

just as though you were really there.

The 30 M / 25M IR Network Camera features:

z1/3"Sony CCD color image sensor to ensure clear and vivid imaging effect;

zMPEG4/MJPEG dual video compression mode and dual coding mechanism for

multiple applications;

z12/8 pcs High-light & long life LED, the camera can provide up to 20,000 hours

IR function.

zUse international IP66 housing standard for providing maximum security against

equipment damage.

zSupport of 3GPP real-time video streams that allow you to control home or

office environments using a 3G mobile phone;

zBuilt-in smart motion detection to monitor abnormal situations automatically and

transmit real-time according to pre-set trigger commands;

zBuilt-in webpage server that allows easy control via the Internet;

zDynamic IP domain name support for use of the product at locations where a

fixed IP is not available;

zAccess setting by level to ensure security and protection of life and property;

zElegant style suitable for homes, studios, offices, clinics, and retail shops;

Mail: info@visionxip.com

Web: www.visionxip.com

System Introduction

1. AC power cable: The AC input connector has a socket to connect the product to a

power source.

2. Ethernet connector: An RJ-45 connector is provided for connection to the

10Base-T Ethernet cable or 100 Base-T High Speed Ethernet cable. This port can

automatically detect or coordinate the transmission rate of the network.

3. Use a video/audio output cable for external video/audio transmission if required.

The video source use BNC connector, you can purchase the connector from your

nearby electric material shop.

4. RS-485 port: If an additional rotary stage is required, please use this product at

the rotary stage from the RS-485 port. This product supports rotary stages using

Pelco P and Pelco D protocols.

30 M IR Network Camera Connecting Diagram

25M IR Network Camera Connecting Diagram

Mail: info@visionxip.com

Web: www.visionxip.com

AC Power

Plug the power cable in the power socket on the product.

Video Output

Plug the video output cable into the monitor or recording equipment.

LAN Socket

Connect the LAN cable into the LAN socket.

RS-485 port

If you have a rotary stage using a RS-485 interface, please connect it to the product

with an RS-485 cable. For detailed information, please refer to PTZ chapter for more

description.

30 M IR CAM Power Connection 25 M IR CAM Power Connection

Mail: info@visionxip.com

Web: www.visionxip.com

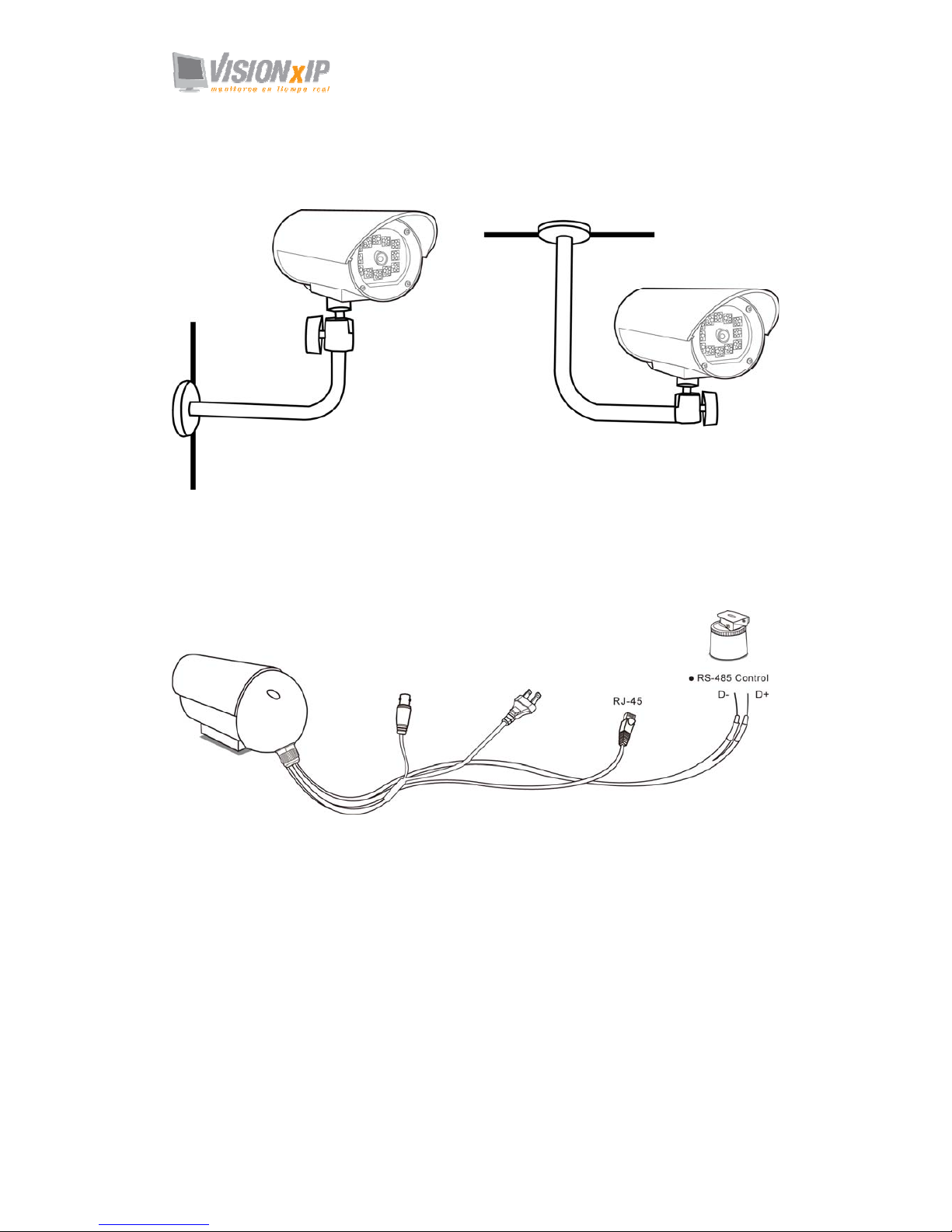

Hardware Installation

a. Product location: You can install the product on the holder and hang it on the wall

or ceiling. Please do not install this product in locations of poor ventilation. This

will result in poor operation.

b. If you have an RS-485 rotary stage, please connect this product to the stage from

the RS-485 port. Please make sure the poles must be correctly connected.

1. Connecting to LAN

Please connect the camera to your network with a LAN cable from the LAN

Socket.

2. Connect to the power source

Plug one end of the attached power cable in the power socket of the product and

connect the other end to the AC power source.

Note: After connecting the product a power supply, you can check if it is on from the Status LED

on the front.

Mail: info@visionxip.com

Web: www.visionxip.com

Camera Settings

After the hardware has been installed, insert the supplied CD in the computer and

execute the file IP FINDER.EX following the steps below to search for and change

the IP address of the camera.

1. Start the machine.

Execute the IP Finder.exe from the supplied CD.

2. Find the camera (Search)

Search for the product from your LAN. The factory IP setting 192.168.0.20

appears on the screen.

3. Changing the IP address and related settings for the network environment

When you find the camera, click it and the settings will appear on the right side.

Change the settings for the new network environment you need.

※ You must enter new settings in the IP, Netmask and Gateway fields and keep

the settings in other fields unchanged.

4. Submit data (Submit)

Click Submit to validate new settings.

1. Click Search to

find the IPCAM on

the LAN.

2. Enter the settings for the

new network environment

you need.

Mail: info@visionxip.com

Web: www.visionxip.com

5. Confirmation

When all changes have been confirmed, click “Exit” to quit.

Notes:

1. The IP FINDER can only find the IP addresses of cameras that share the same hub on the LAN.

For information about finding IP addresses on the Internet, refer to the “DDNS Setting”, or “UpnP

Setting”.

2. All of our camera/network server products can be found and changed using the IP FINDER

software.

3. If the IP FINDER software cannot be executed, check your antivirus software or firewall to

remove the block.

4. Field description: You can give a name to your camera (such as “PT_IP” or “PT-IP”). No spaces

allowed (such as “PI IP”).

You can change the settings for IP, Gateway Address and Network Mask to meet the requirements

of your network environment. The product uses HTTP Port1 and does not support Port2 settings.

MAC: Factory default network identity of the machine.

3. Click Submit to

validate new settings.

4. When all changes

have been confirmed,

click Exit to

uit.
