D-303503 MKP-160 User's Guide 1
MKP-160
Touch Screen Keyprox
User’s Guide
Table of Contents
Table of ContentsTable of Contents
Table of Contents
1. INTRODUCTION..............................................................................................................2
2. INSTALLATION................................................................................................................3
2.1 Inserting Battery..........................................................................................................3
2.2 Closing Battery Compartment Cover ..........................................................................3
2.3 Wall Mounting Options................................................................................................4
2.4 Enrolling the MKP-160................................................................................................9
2.5 Configuring the MKP-160 Parameters ........................................................................9
2.6 Enrolling Proximity Tags ...........................................................................................10
3. USING THE TOUCH SCREEN KEYPROX....................................................................12
3.1 Arming and Disarming the System ...........................................................................12
3.2 Initiating Alarms ........................................................................................................13
3.3 System Status and Indications .................................................................................13
3.4 Bypassing Zones ......................................................................................................16
3.5 Controlling Home Automation Devices .....................................................................16
3.6 Other Functions ........................................................................................................17
APPENDIX A: SPECIFICATIONS ......................................................................................18
APPENDIX B: COMPLIANCE WITH STANDARDS...........................................................19
2 D-303503 MKP-160 User's Guide
1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
MKP-160 is a 2-way wireless PowerCode touch screen keyprox for the PowerMax family
control panels. The MKP-160 enables most common everyday user functions:
•Arm and Disarm the alarm system.
•Initiate Emergency, Fire and Panic alarms.
•Control home automation devices.
•Review system status.
•Perform programmable predefined functions.
MKP-160 is operated by proximity tags. When authorization is required the user presents a
valid proximity tag to the built-in tag reader.
In addition, the MKP-160 supports panels featuring Partitions. Partitioning allows you to
select up to three controllable areas; each partition can be armed and disarmed
independently regardless of the status of the other two partitions by the same or different
users (see keys marked "7" in the "Quick Reference Guide").
The MKP-160 can be wall-mounted using the supplied bracket or be used as a desktop unit.
For compliance with various international standards, the MKP-160 is equipped with two
tamper switches that can be defined to detect when the cover of the battery compartment is
removed or when the unit is removed from its mounting bracket.
Other features of the MKP-160 include:
•Easy-to-use intuitive graphical touch user interface
•Employees can use their standard RFID access cards with the MKP-160.
•Proximity-tag operated, no need for user to remember codes
•Allows all users' every day actions
•Panel can be installed in hidden location
•2 per system, suitable for any installation
•Status, Alarm, Memory, Trouble and Ready indications.
•Automatic reporting of low battery.
•Back lighting.
•Audible and visual exit/entry warning beeps
•MKP-160 enables using proximity tags regardless of whether or not the control panel has
a proximity tag reader.
•Long battery life expectancy (for typical use).
•Trouble beeps
D-303503 MKP-160 User's Guide 3
2
22
2. INSTALLATION
. INSTALLATION. INSTALLATION
. INSTALLATION
2.1 Insert ng Battery
CAUTION!
Risk of explosion if
battery is replaced
by an incorrect type.
Dispose of used
battery according to
manufacturer's
instructions.
Figure 1 – Battery Insertion
Insert two 1.5V batteries in each slot while ensuring battery polarity.
2.2 Clos ng Battery Compartment Cover
Desktop Installat on (Us ng Battery Cover w thout Tamper Hole)
1
2
Figure 2 - Battery Cover Mounting (part a)
4 D-303503 MKP-160 User's Guide
Wall-mounted Installat on [V a Battery Cover w thout Tamper Hole (see "A")]
Figure 3 - Battery Cover Mounting (part b)
A. Tamper B. DC Power Connection – use supplied cable in addition to batteries
C. Wiring channel for wall installation
Note: The DC cable is available in specific models
2.3 Wall Mount ng Opt ons
The MKP-160 unit mounting options are illustrated in the following drawings.
Wall Mounting
Figure 4 – Wall Mounting
1. Drill 3 mounting holes 3. Attach the unit to the bracket
2. Position the bracket and secure with 3 screws 4. Secure the unit with the screw
A. Hole for DC power source cable installed in wall
D-303503 MKP-160 User's Guide 5
Wall Mounting with External DC Cable
1. Hold the power source cable from the wall and
thread it through its hole in the bracket
2. Drill 2 mounting holes and then
secure bracket with 2 screws
A. Hole for DC power source cable installed in wall B. Hole for tamper
WARNING! The power source (optional) must be 5 - 12VDC.
6 D-303503 MKP-160 User's Guide
3. Insert screwdriver into slot and lift
upward to separate the battery
compartment cover from the front cover
4. Connect together the power source cable
and the DC cable connector (supplied).
Note: The DC cable connector is available in
specific models
C. DC Power Cable Connection
D-303503 MKP-160 User's Guide 7
5. Connect the DC cable connector to the
DC power connection.
Note: You can connect the DC cable
directly, as shown in the top drawing, or via
one of the wiring inlets indicated by the
arrows.
6. Align the bracket pins with their
respective slots.
8 D-303503 MKP-160 User's Guide

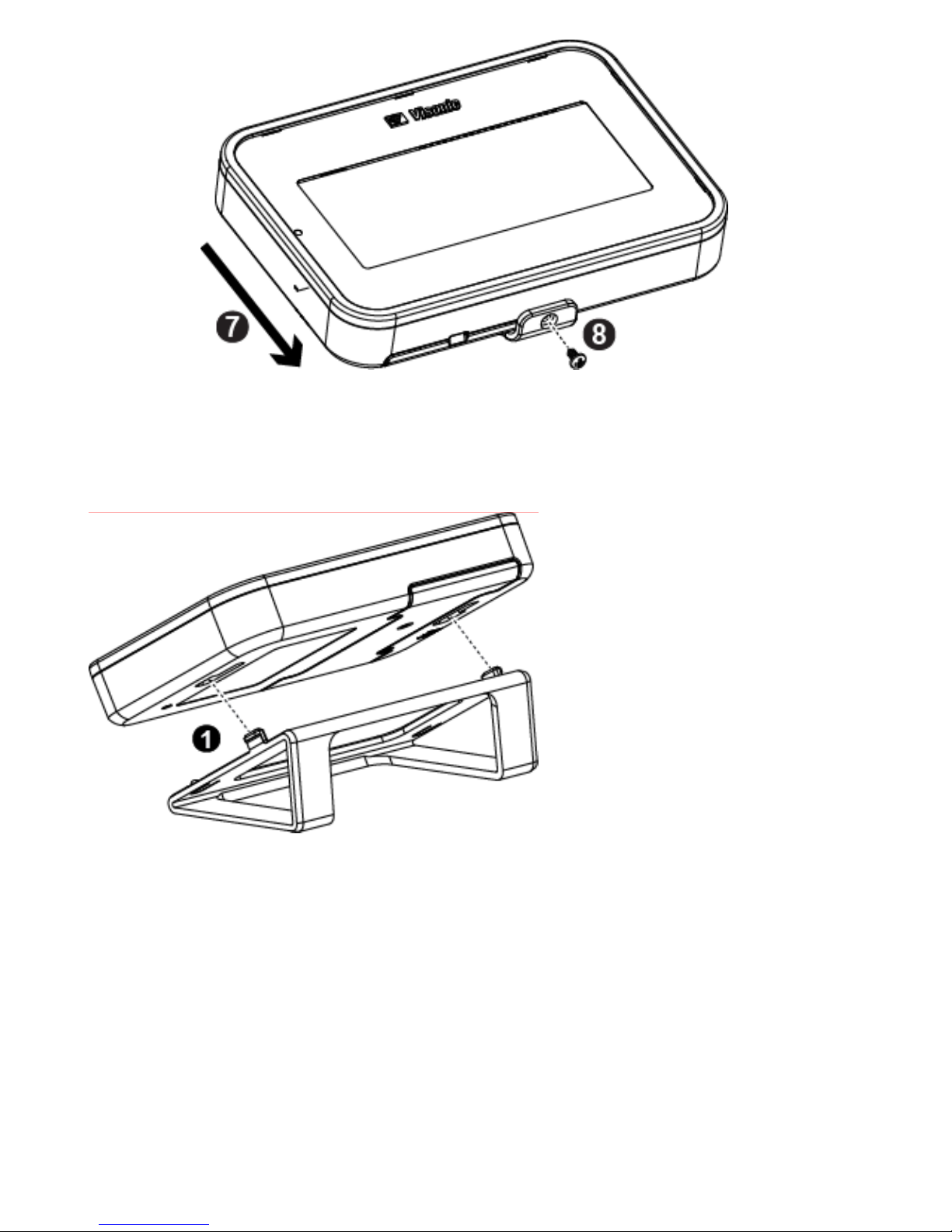

7. Push the MKP-160 unit downward on the
bracket
8. Secure the unit with the screw
Figure 5 – Wall Mounting with External DC Cable
Desk mount
1. Insert the bracket pins into
the corresponding slots.
Figure 6 – Desk mount installation
