AQUICK START

1. Install and wire host transformer to 120V service (no fixtures connected).

2. Locate and mount LCS controller within 100’ of host transformer and within

100’ of your WiFi network access point.

3. Using 12-15V output from host, connect min. 12-2 low voltage cable to

LCS input terminals.

4. Connect low voltage fixtures to three LCS output zones up to 150W total.

5. Energize host transformer output.

6. Locate LCS control switch - push to “ALL ON”

7. Ensure all field fixtures are on, then push switch to “APP” position.

8. Download VISTA CLOUD app to your device and follow on screen

instructions.

B LCS AND TRANSFORMER CONNECTION DETAIL

1. Confirm host transformer is connected to 120V source, the source is

energized, and its output circuit breaker is on.

2. LCS is a low voltage device. Connect host transformer output to LCS input.

For normal function, LCS input range must be 11-20VAC. CAUTION - Do

not connect line voltage! Controller damage will result and warranty void!

3. Ensure LCS front panel green input power LED is on.

4. With low voltage fixtures disconnected, test LCS output by switching

“ON/OFF/APP” rocker switch to ON. All three LCS green output LED’s

should be on and connected lamps should be on.

5. LCS front panel WiFi LED should be solid green indicating proper

connection to your local WiFi network. Unit will not function without a

strong network connection.

6. Lamps pulsating slowly? Your LCS may be overloaded. In the app, check

above the Zone group for an OVERLOAD indicator in RED. On the LCS

front panel, an amber input power LED will also appear. If either indicator

disappears after setting each Zone to HI or below, reduce load by

removing lamps or reducing their individual wattage.

7. Return switch to APP position for WiFi connected control and operation.

INSTALLATION INSTRUCTIONS

LCS

1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-Vista (8478) • FAX: (888) 670-Vista (8478) • [email protected] • www.Vistapro.com

Lighting Control System

CCREATING AN ACCOUNT

1. Using your smartphone or pad device, search and

download the free VISTA CLOUD app.

2. First time users must register - follow the steps to

3. After establishing a username and password, sign in.

DADDING AN LCS CONTROLLER TO YOUR ACCOUNT

In the VISTA CLOUD app screen, tap add controller. Add controller and

help link also found in the menu at the top right of the screen. In order to

add an LCS to your account, find it’s unique QR code label (on it’s packaging

and inside the product wiring compartment) and scan using your device as

directed. If unable to scan, it’s 10 character ID may be typed directly from the

QR label into the app.

ELCS NETWORKING

1. With power on, front panel input power LED will illuminate. Ensure

provided “ON/OFF/APP” rocker switch is in the “app” position. Press

firmly to change switch position beneath it’s protective cover.

2. For new installations “WiFi” LED indicator (front panel center) will blink red

slowly. Continue with the following:

Method one (auto):

1. Tap “add controller” within the app and follow the on-screen instructions.

Method two (in rare cases, manual connection below may be required):

1. Find button marked “WiFi connect switch”. Using pen or similar blunt

object, press in and hold for a full 5 seconds. Watch “WiFi status” LED

change from rapid blinking to solid red.

2. Using your device, navigate to your WiFi network screen in settings. A

device screen pull down (refresh) may be required to bring product

network to the list. Find and connect to the network labeled “LCS”.

3. A network portal screen will appear with three choices – ‘configuration’,

‘information’ or ‘exit portal’. If this screen does not appear, type “WiFi.

Urremote.Com” in your device browser address line while connected to

LCS.

4. Tap ‘configuration’, then tap your local WiFi network name from the list

(should be near the top and have the strongest signal).

5. Enter your SSID and WiFi password (make sure all upper and lower-case

letters and symbols are correct), then tap save.

6. Within 10 seconds, your LCS will reboot, causing the “WiFi” LED to turn

off, then become solid green. Your LCS is now connected to WiFi!

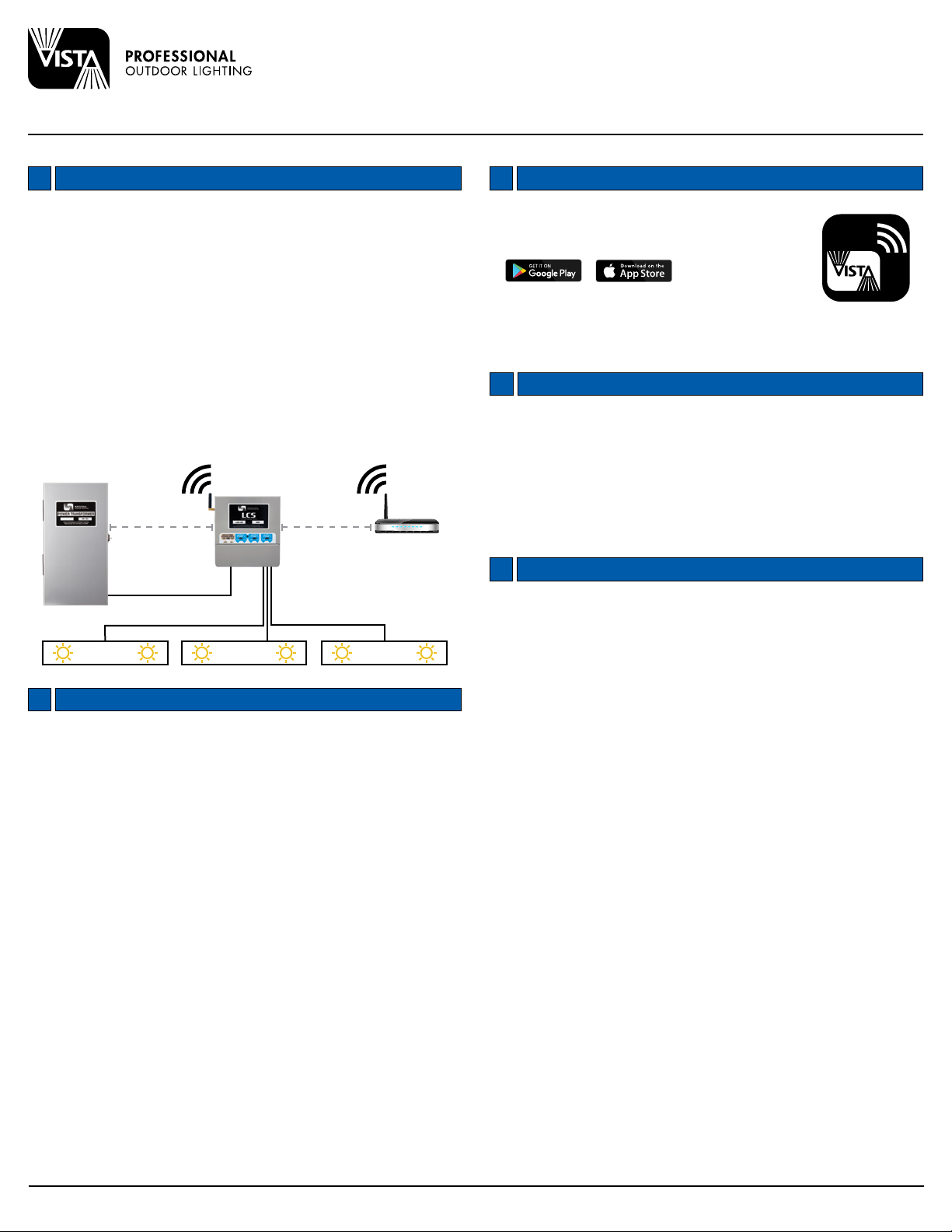

Transformer LCS

WiFi

Router

100’ max. 100’ max.

12-15V Supply to LCS

ZONE 1 ZONE 3ZONE 2

FNETWORKING NOTES

• To ensure a strong network signal, install a WiFi extender/booster if

required.

• Connect only to 2.4GHz WiFi network. Controller will not work with 5Ghz

networks.

• In the event of power loss, re-connection to designated WiFi is automatic

once power is restored, indicated by a red “WiFi status” LED, which will

turn solid green when connected.

• If WiFi signal only is lost, controller will continue with programed settings

for 1 hour, then turn off until WiFi is restored.

• Networking steps will need to be repeated if your WiFi password has

changed.

• For set-up and operating convenience, any controller may be scanned and

added to a new account/device.

• Only one account may add/control a given controller

• To remove any controller from your account, simply tap the settings icon

below any zone and select remove controller.

• After successful activation, the three zones of your new LCS should appear

by pulling down (refreshing) or scrolling your app screen. An unlimited

number of controllers may be added to your account screen.

GLCS IOS/ANDROID VISTA CLOUD APP FUNCTIONS

1. Download the VISTA CLOUD app and create your personal account.

2. Once a controller is added to your account and networked, allow the

group of three Zones to load. Each group represents one 3 Zone LCS

controller with unique serial number.

3. Below the photo of any Zone, an

on/off switch and settings icon is

available which include Controller and

one location photo and naming options

and brightness level controls.

4. Choose a Zone photo and tap it. A

Scheduling screen will appear. Each

Zone on/off and brightness level may

be programmed on a ‘time of day’ dial

for each or all nights of the week.

5. From scheduling screen, tap Add a

Schedule

6. Tap and drag ON lamp icon to desired

ON time. Time set is displayed on left.

ON brightness level may be set within

this box.

7. Tap and drag OFF lamp icon to desired

OFF time. Time set is displayed on

right.

LCS IOS/ANDROID VISTA CLOUD APP FUNCTIONS Cont.

8. Tap “+” between ON/OFF displays. Drag DIM lamp icon to desired dim

time. Dim level may be set within this box.

9. Controller Name - Change the name of each LCS on the property

10. Photo - Tap to add your own Zone photo

11. Brightness Levels - step control is provided, allowing fine adjustment of

LOW, MED, HI brightness selections. Once set to the desired brightness,

all levels may be saved, allowing ultimate control of Zone scheduling.

H TROUBLESHOOTING

1. Follow all steps in sections Aand Bbefore proceeding.

2. For device control, ensure 3-position rocker switch is in the APP position.

3. Once the APP is loaded, if scanned controller(s) (Zone Groups) do not

appear, refresh your device screen by slowly sweeping down from the top.

4. If WiFi LED is not solid green, hold WiFi connect switch for 5 seconds until

it turns solid RED, then repeat networking steps. Network connection status

is also displayed on the app main Zone screen. If a red cloud with diagonal

line appears below any Zone, refresh screen and /or repeat networking

steps. Still not connected? Perform “forget network” or switch in and out of

“airplane mode” on your device to bring “LCS” to the access point list.

5. Test your local WiFi networking signal strength by connecting your device

to WiFi (disable cellular network), then successfully loading any web page

while standing near the antenna of your LCS. Install WiFi booster/extender

if required.

6. Try the app and/or networking with a different smartphone/tablet. If you

are having issues with Android, try an iOS device, and visa-versa. Isolate

issues by changing the connecting device.

7. Make sure your VISTA CLOUD app and device operating system software

is the latest version from the App Store/Google Play Store. When in

doubt, you can always delete and reinstall the app on your device.

Go to SETTINGS, App Stores and always enable “Updates” under the

AUTOMATIC DOWNLOADS section.

8. Try unplugging the host transformer, waiting a few seconds, and plugging

it back in.

9. Power your smartphone/tablet completely off and back on again (reboot).

10. Try Remove Controller after selecting the settings icon ‘gear’ under any

Zone photo within a controller group screen. Re-scan QR code to add,

then refresh device screen for each controller.

1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-Vista (8478) • FAX: (888) 670-Vista (8478) • [email protected] • www.Vistapro.com

INSTALLATION INSTRUCTIONS

LCS

Lighting Control System

Vista Cloud Scheduling Screen

LT1858 11/18
