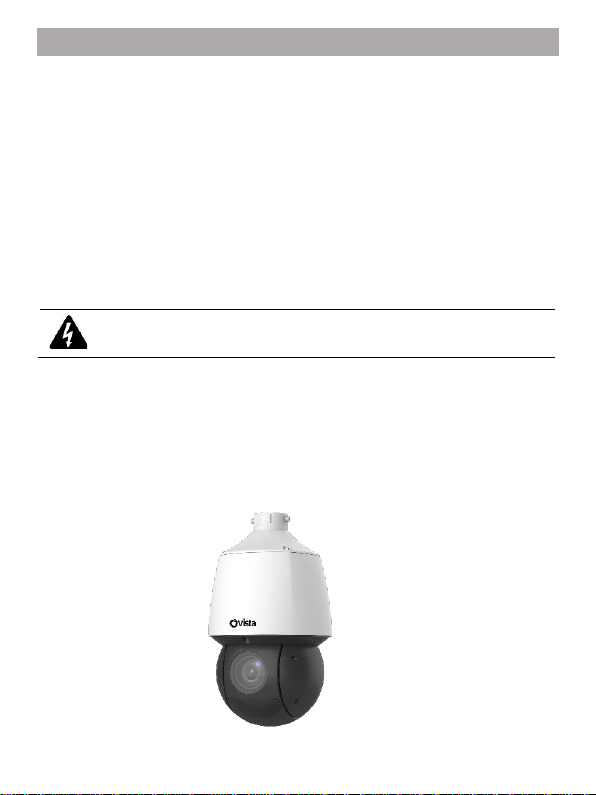

VIP Series External PTZ VIP-P4MPX25IRVRAUAL Quick Guide Ver 1.2 2023-01
IP External PTZ Camera
VIP-P4MPX25IRVRAUAL
1
Before You Begin
Please read this guide before installing or operating the product. You
must have knowledge of CCTV, IT and electrical wiring and products.
Technical Support
If you still have questions after referring to the guide, or require more
information, please contact Vista Technical Support or use the QR code.
Vista Technical Support +44 (0) 118 912 5125
Norbain SD, Inspired, Easthampstead Road,
Bracknell, Berkshire RG12 1YQ
* WARNING: Improper use can cause severe bodily injury or
equipment damage.
This guide may be intended for multiple product models. Illustrations and
descriptions, etc may vary from actual appearance.
External PTZ
VIP-P4MPX25IRVRAUAL
2
1. Packing List
Please contact Norbain if any items are missing or damaged and note
contents will vary according to each camera model number.
➢Camera
➢Power Adapter
➢This guide
➢Cable unit*
➢Cable unit sun shield*
➢ESD gloves
➢Bracket adapter
ring G1 ½ male
thread *
➢Waterproofing
components*
* Optional and supplied with certain models only and when required.
2. Safety & Maintenance Instructions
•Use only correctly rated PSU\PoE delivery devices meeting
requirements shown in section titled “Powering Up”.
•Keep lens cover in place until installation completed - prevent damage.
•Ensure Ethernet/power cable lengths are within specification for
correct operation to avoid power or data loss.
•Ensure wall, ceiling and fixings are adequate to support the weight of
the camera and any bracket.
•Remove dust from the lens gently using oil-free brush or blower.
•Do not use organic solvents (benzene\alcohol) to clean bubbles etc.
•Where waterproofing accessories are provided, please ensure they
are fitted and in the correct order. Also fit weather plugs to unused DC
power sockets (below)
DC interface
Plug
3
3. Drilling and Mounting - All Cameras
The VIP series PTZ range of cameras require the addition of a bracket
for installation according to your requirement. This should have been
specified when ordering your camera.
The examples show the wall bracket fixing –yours may vary.
1. Mark the positions of the fixing holes and cable entry by referring to
any template\instructions supplied with the bracket.
2. Drill the holes and knock-in relevant expansion bolts or plugs for the
surface (below).
Now refer to the section for your specific camera model number.
4
VIP-P4MPX25IRVRAUAL
Appearance and cable identification may vary between each model.
No.
Interface
Usage
1
VIDEO OUT
Video output - analogue signal to display device.
2
AUDIO IN
Audio input.
NOTE: Interface can be used for audio input and
two-way audio, but not the two functions at the
same time.
3
ALARM IN
Alarm input.
4
Power interface
12VDC 3A.
5
Optical interface
Not supported.
6
AUDIO OUT
Audio output.
7
Ethernet interface
RJ45, 1*10M/100M Base-TX Ethernet
PoE+(IEEE 802.3at) interface 21W.
8
RS485
Serial port. Control third-party devices –not
supported.
9
ALARM OUT
Alarm output.
Audio input
(Sound pickup)
Power adapter
Third-party device
connected through
RS485 interface
Alarm output
(Alarm indicator)
Ground
1
2
345678
9
IP Network
IP Network
Audio output
Alarm input
(Voice activated switch)
Display device
5
(Optional) Insert Micro SD Card
For cameras supporting Micro SD, insert card after opening the relevant
cover of the camera. Do not hot plug SD cards - power-down first!
1.Remove 4 screws on the back cover.
2.Insert micro SD card into slot.
3.Check that the sealing ring is in position.
4.Refit the back cover, tighten screws.
Note! You will need to format the Micro SD card before use via the
camera's Web interface page.
Screw
Back cover
Micro SD card
1
2
Slot 3
Slot 1
Slot 2
6
Using the wall bracket as an example for installing the PTZ;
1. Fix the bracket adapter ring (G1 ½ male thread) and secure to the
bracket adapter with the locking screw (below).
2. Attach the safety wire from the camera to the
bracket for safety! Now pass all leads of the
cameras cable through the bracket as
shown to the right.
7
3. Attach dome to the bracket adapter by aligning the two keys on the
top of the camera holder so that they engage into the inner tracks
of the bracket adapter. Once engaged, (below), push the camera
up, and then rotate the camera anti-clockwise until it makes
contact with the bracket adapter screw.
4. Lock the dome into place with two M5 screws (below).
Caution: Only lightly tighten M5 screws until they make
contact with the metal tube of the camera. Do not overtighten!
Camera
holder
Bracket
adapter
screw
Inner
track
M5
screw
8
5. Connect all required cables and apply and make use of any
supplied waterproofing grommets and\or seals. Now attach the
bracket to the wall with flat washers, spring washers and nuts
while feed-back all cable slack through the wall.
NOTE!
•When mounting the camera, please install the bracket adapter
ring to the bracket first and then mount the camera to the
bracket.
•Tighten all the screws to hold the dome securely.
•For waterproofing, apply sealant between the dome and the
bracket and cable outlets in the wall.
Now refer to section titled 4. Power-up and Access Camera
9
4. Power-up and Access Camera
After installing camera, connect either PoE Ethernet or Ethernet &
12VDC PSU with correct power rating for the camera. Refer to following
table for power details later in this guide.
The camera performs a self-test every time it’s powered up, including
pan, tilt and zoom operations. Please wait till the device completes self-
test before you operate the camera.
NOTE! If ambient temperature is below 0
℃
, the camera will preheat
automatically before running the self-test. This may take up to 30-
minutes, please be patient.
DHCP is enabled as default. However, if no DHCP server is found,
camera will default as below:
Default IP address = 192.168.1.13
Default login = admin/123456
Connect suitable laptop to same LAN\VLAN and either set to DHCP or
an IP address in the range 192.168.1.x (but not 192.168.1.13).
1. Either open Web browser on laptop and enter the camera's IP
address in the address bar, press Enter.
2. Or use the QR code provided
to download the Vizion
Discovery IP camera
discover tool onto the Laptop.
3. Follow on-screen instructions
to permit and instal any
required plug-in.
