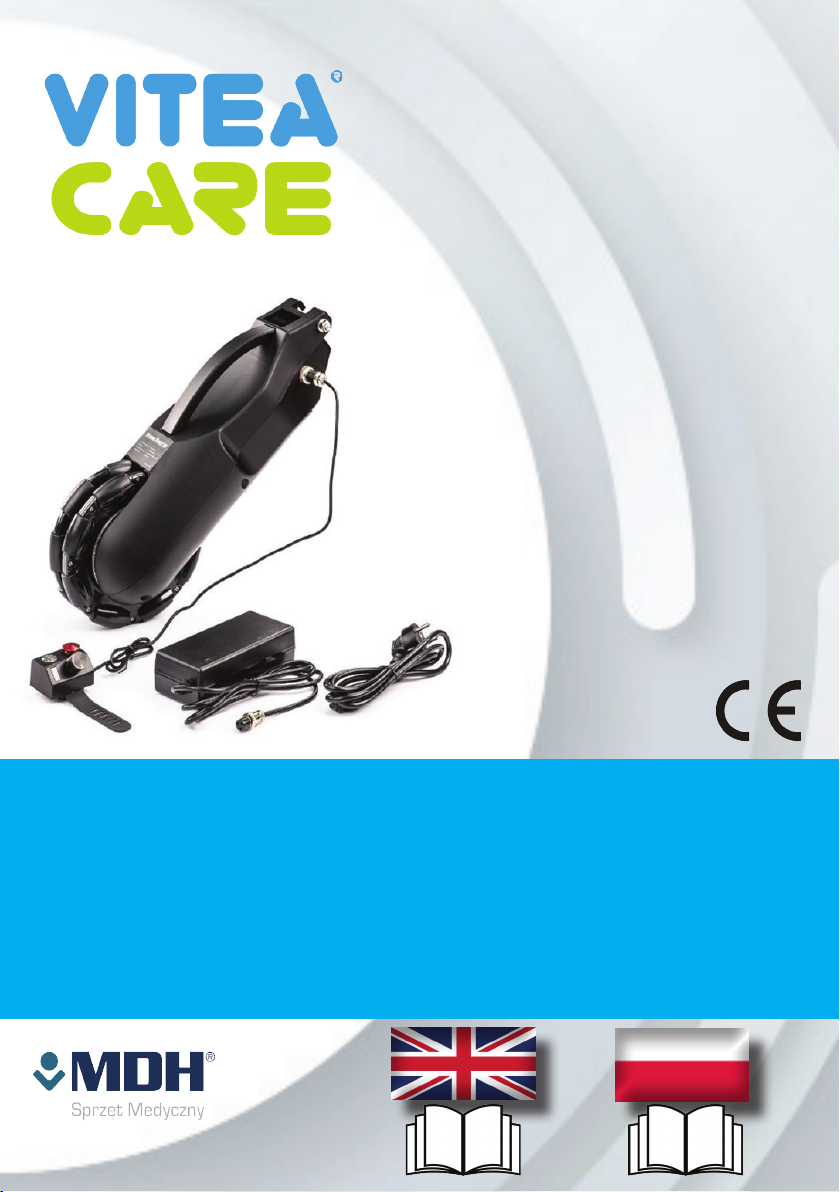

Vitea Care WAY Bedienungsanleitung

Instrukcja używania

Instructions for use

08.2021

WAY

REAR ASSIST DRIVE

WAY

MODUŁ NAPĘDOWY DO

WÓZKA MANUALNEGO

216

DRVK0M_PP

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08

2 VITEACARE.COM

Instructions for use

Always follow precautions according to the safety information provided below

when using the product. Read the entire manual carefully before use.

Keep this manual for future reference.

TABLE OF CONTENT

1. Introduction 3

1.1 Product description 3

2. Usage 5

2.1 Assembly - cross frame wheelchair 5

2.2Assembly-xedframewheelchair 6

2.3 Further assembly stages 6

3. Everyday use and maintenance 9

4. Drive module parameters and standards 10

5. Contact details 11

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08 VITEACARE.COM 3

1. INTRODUCTION

Thank you for choosing our product. We are deeply convinced that it will meet

yourexpectations.Pleasereadthisdocumentbeforeusingitforthersttime.

This manual is implemented to provide you with the necessary information on

the safe use of the device. Correct compliance with the recommendations will

signicantlycontributetoextendingthedurabilityandaestheticsoftheproduct.

We would like to point out that we are constantly trying to improve the quality

of our products, which may result in minor changes that are not included in the

manual.

1.1. PRODUCT DESCRIPTION

Fig. 1.

1. Placeofattachmenttotheaxisoftherearwheels/spreaderbar,

2. Control module socket,

3. Rear drive,

4. Charger,

5. Control module.

4 VITEACARE.COM

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08

List of items inside the package

Spreader bar

Fig. 4.

Rear drive, main unit

Fig. 2.

Two mounting brackets

Fig. 3.

Charger

Fig. 5.

Control module

Fig. 6.

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08 VITEACARE.COM 5

2. USAGE

• After unpacking the packaging, check that it contains all the parts according to the list of

components above.

• Make sure that all elements have no visible mechanical damage. If in doubt, contact the

manufacturer.

• The module should not be used until all components are properly assembled on the

wheelchair.

2.1 ASSEMBLY - CROSS FRAME

WHEELCHAIR

1. Attach the spreader bar (Fig. 4.) to the wheelchair.

a) Unfold the wheelchair and attach the spreader bar to the two vertical tubes on the

back of the wheelchair (Fig. 7.).

b) Select the appropriate width of the bar and tighten the bolt and eccentric clamps

(Fig. 8.).

• tighten the screws of the eccentric clamps

• tighten the eccentric screws.

Eccentric

clamp

Spreader bar for a

wheelchair, diameter

22 - 32mm

Tighten the screw

Eccentric

clamp

Vertical tube of the

wheelchair frame

Screw

Fig. 7.

Fig. 8.

6 VITEACARE.COM

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08

2.2 ASSEMBLY - FIXED FRAME

WHEELCHAIR

1. Select the appropriate mounting bracket depending on the thickness of the rear

wheelsaxleandthespreaderbar.

2. Installthehandleinthecenteroftheaxleandtightenit(Fig.9.).

a) Thecapofthehandleshouldbeabovetheaxis/bar.

b) Tighten the eccentric clamp 1, which is in the horizontal position when tightened.

c) Lock it by slightly tilting it backwards.

Fig. 9.

Rearwheelaxle

holder, diameter

22 - 40mm

Handle cap

Eccentric

clamp 1

Eccentric

clamp 2

2.3 FURTHER ASSEMBLY STAGES

3. Attach the rear module to the mounting bracket, then tighten the eccentric clamp 2

(Fig. 10.).

4. Check the stability and correct mounting of the rear drive.

Fig. 10.

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08 VITEACARE.COM 7

5. Dismantling the rear module

• Release eccentric clamp 2 and pull the drive out of the mounting bracket (Fig. 11.).

Fig. 11. Fig. 12.

6. Then connect the control module (Figure 13.) to the rear module. To do this, screw the

end of the cable with a pin to the control module socket on the right side of the module

(Figure 14.).

Fig. 13.

Control module

Fig. 14.

Charging

socket

Control module

socket

7. The control module should be attached to the wheelchair frame with a strap so that it

is within the user’s hand (Fig. 15.).

8 VITEACARE.COM

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08

Fig. 15

Fig. 16.

Strap

Rotary switch

Power display

Start button

Safety switch

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08 VITEACARE.COM 9

3. EVERYDAY USE AND MAINTENANCE

Usage:

• Themaximumloadcapacityis100kg.

• Connect the rear drive to the wheelchair and turn on the power switch, then turn the rotary

switch. When the switch is turned a third of the wheel, the module starts working.

Speed:0-7.5km/h

• CAUTION! If the wheelchair speed is too high, please press the safety switch on the control

module. Then hold the wheel of the wheelchair to stop the cart.

• When the rear drive is operational, the drive wheels no longer need to be turned and the

truck will travel in a straight line. It is recommended to constantly adapt the direction to road

conditions and surfaces.

• The rear drive can climb up to 8 degrees slopes.

• When the light is green, the module is working properly. When the light is red, please

charge it.

• The battery has been charged before leaving the factory. When charging the battery, please

insertthechargeroutputintothechargingsocketrst,thenconnecttheACinput.Redlight

means charging; green light means charging is over.

Comments:

• If you want to use the rear module, connect it to the wheelchair before turning on the

module.

• Tostopthemodule,pleaseturno󰀨thesafetybutton,settherotaryswitchtozerobefore

leaving the cart.

• Do not lean back hard - danger of tipping over.

• If the module is not used for a long time, charge it every 3 months.

Malfunctions:

• When the rear module fails to operate after turning on the rotary switch, this means that the

rear module has failed. Please contact the supplier.

Maintenance:

• The module should be cleaned with a damp cloth without the addition of detergents or other

similar agents.

• It is necessary to remove contamination, eg threads, hair, etc., from moving parts of the

wheelchair (wheels, footrests) on a regular basis.

• Tomaintaintheoperationalparametersoftheproduct,itisextremelyimportanttokeepall

its elements clean and the manner of storage.

• Storage in rooms with very high humidity (baths, laundries, etc.), or in the open air,

combined with the lack of hygiene, will result in a rapid loss of functional and aesthetic

parameters.

• Donotexposethemoduletoextremeweatherconditions(rain,snow,verystrongsun),as

some elements may change color.

10 VITEACARE.COM

MODEL: WAY

LANGUAGE: ENGLISH VERSION: 2021-08

Do not use:

• solvents,

• toilet cleaners,

• agents with chlorine content,

• sharp brushes and hard objects,

• caustic cleaning agents,

• do not clean the device with pressure or steam generators!

Repair:

• In the event of repairs being necessary, please contact the manufacturer or the distributor.

Customer service:

• If you have any questions or need help, please contact the manufacturer or distributor.

Weight 7 kg

Battery type litowy

Battery capacity 6.6Ah

Rated voltage of the control module 24V

Motor rated voltage 24V

Engine operating current < 3A

Charger input voltage 110V - 220V

Charger output voltage ± 0.2A

Working temperature -20ºC - +60ºC

Driving speed 0-7,5km/h

Podnapięciem 21 ± 0.5V

CE markings 2014/35/EULowVoltageDirective;

2014/30/EUelectromagneticcompatibility

Standards EN60335-1:2012/A11:2014;EN61000-6-1:2007;

EN61000-6-3:2007/A1:2011/AC:2012

4. DRIVE MODULE PARAMETERS AND

STANDARDS
