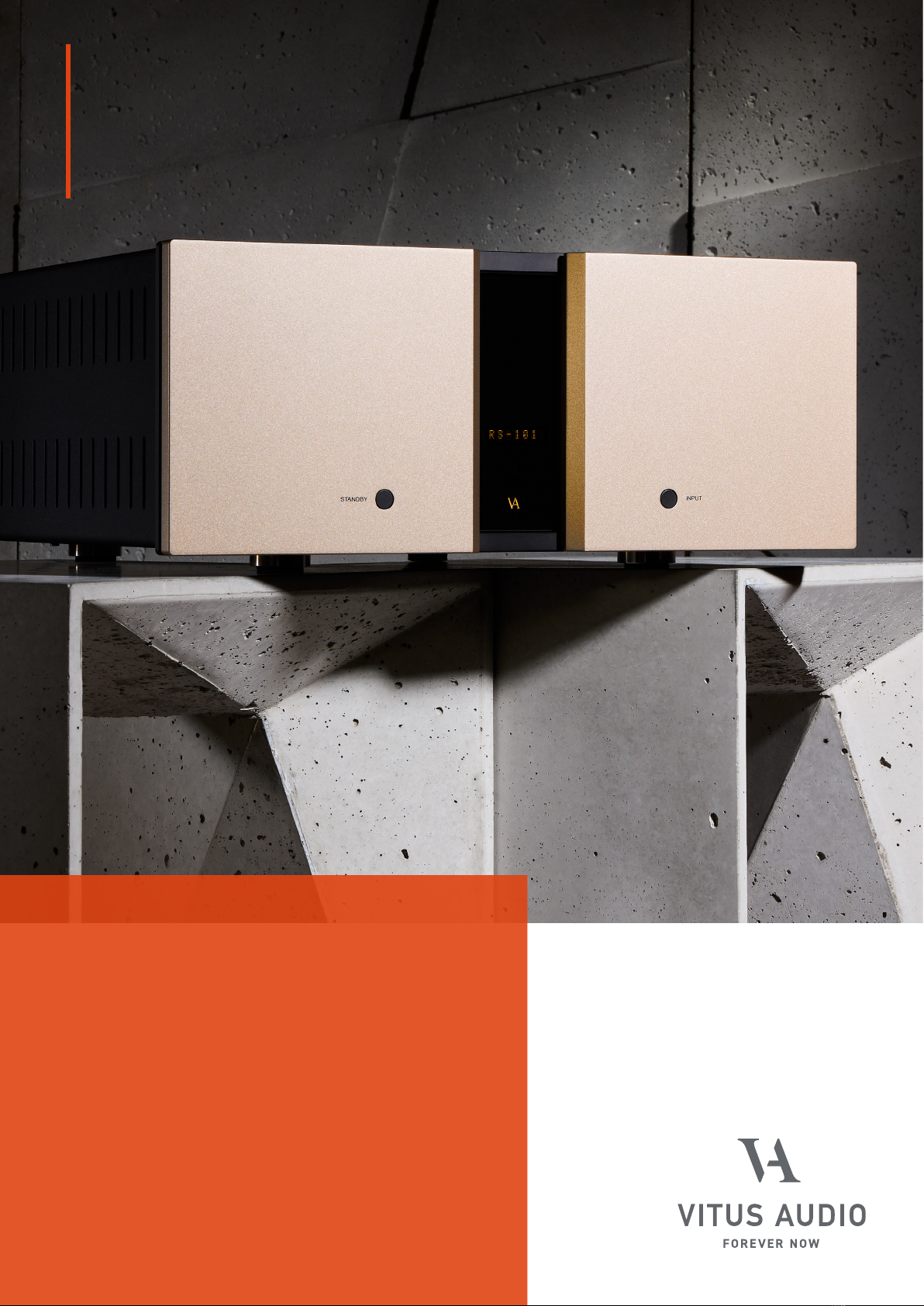

Vitus Audio Reference Series Bedienungsanleitung

REFERENCE

SERIES

RS–101

REFERENCE

STEREO AMPLIFIER

OWNER’S MANUAL

RS-101 Owner’s manual | 3

From the creator

Foreword 4-5

Introduction

About this manual 6

Introduction to the Reference Series 7

1. Getting started

What’s in the box, and how 8

to correctly unpack it

Heavy lifting – WARNING 8

What’s in the box 8

Device overview 9

The topology of the volume control 10

2. Connecting

Turning the RS-101 on and o 11

Connecting the RS-101 12

The rear panel 13

3. Operation

Operation modes 14-15

Functions – left front panel 16

Functions – right front panel 17

4. Operation and service

Maintenance 18

Mains supply voltage 18

Mains fuse 19

Fuse type 19

Replacing a blown fuse 20-21

5. Warranty

Warranty 22

6. Specications

RS-101 Specications 23

CONTENTS

2 | RS-101 Owner’s manual

4 | RS-101 Owner’s manual

FROM THE CREATOR

Foreword

First of all, thank you for choosing the Vitus Audio RS-101

Reference Stereo Amplier, we are sure you will enjoy it for many

years to come. When purchasing a Vitus Audio product, you are

guaranteed a musical performance, which exceeds the current

musical standards. Vitus Audio is dedicated to musical performance

rather than technical details and high performance measures.

At Vitus Audio everything works until proven not to. This way we

always try to push the limits and explore the unexplored. As a result

of this, many of the solutions we use today are considered to be

“impossible to ever get working”, however they have convinced

many people and reviewers world wide of the opposite. Before any

of our new topologies are implemented in our products, they are

carefully reviewed by our dedicated listening panel. This way we can

guarantee the correct level of musically performance and robustness.

Generally we’re after super neutral, super detailed and super dynamic

reproduction without “loosing” the nerve in the music which often

is a drawback of many high end ampliers. Our real strongholds are

complete silence, unbelievable depth and width in the soundstage

resulting in a far more open sound with higher resolution – you could

say, closer to the artist. As a result of the above, our ampliers do not

“focus” on any specic frequencies - i.e. no extension of top or bass,

which of course results in high clarity of the midrange since

it’s “naturally present”!

Hans Ole Vitus | Founder

RS-101 Owner’s manual | 5

INTRODUCTIONINTRODUCTION

This is your RS-101 owner’s manual. The following pages will,

as clearly as possible, describe how to get your RS-101 operating

quickly and easily. Although some operations are self-explanatory,

we strongly suggest you read this manual to avoid any damage to

the unit. The manual is designed to be helpful. If there are points you

feel we could cover better, or that we have missed out – please tell

us by sending an email with your nding to: sales@avagroup.nu

Reference Series is your entry point to the world of Vitus Audio.

The components in this series are cost-optimised versions of the

products in our Signature Series. Although the cost is lower, this

does not mean we have compromised on results. As with every Vitus

Audio product, the sound you experience remains breathtaking.

About this manual Introduction to the Reference Series

RS-101 Owner’s manual | 76 | RS-101 Owner’s manual

8 | RS-101 Owner’s manual

1. GETTING STARTED1. GETTING STARTED

What’s in the box, and how

to correctly unpack it

RS-101 device overview

Gently cut open the tape on the top of the box, making sure not

let the knife protrude too much. Open the box and remove the

foam top with all the included accessories. Next, remove the 4

foam corners from the front and back of the product. With two

people, carefully lift the amplier out of the box.

Store the empty box and protective foam for later use.

Box contents

Foam top 1

Vitus Audio Brochure

RS-101

USB with Manual & Brochure

Power Cable

Foam top 2

Foam Sides 6 pieces

Foam bottom

Box

This amplier is VERY heavy.

Make sure that you have at least

two people when unpacking and

moving the unit. You might damage

both your back and the amplier if

extra care is not taken. AVA Group

A/S cannot be held responsible

for any damage incurred as a result

of careless handling of the unit.

RS-101 Owner’s manual | 9

STANDBY INPUT

165 mm

170 mm 435 mm

35 mm

182 mm

435 mm

Material: Aluminium for body parts and hidden heat sinks

Dimensions (H x W x D): 182 x 435 x 470 (mm)

Total weight: 37kg

2. CONNECTING1. GETTING STARTED

Turning the RS-101 on and off

Always turn on the products beginning from the source:

Source Pre-amplier Power amplier

Always turn o your products in reverse order:

Power amplier Pre-amplier Source

Not following this procedure, may cause damage to any

of your products/speakers. Damage caused by not following

this procedure will invalidate the warranty.

10 | RS-101 Owner’s manual RS-101 Owner’s manual | 11

RS-101 Owner’s manual | 13

MODEL RS-100

SERIAL No.

100

VOLTS 50 / 60 Hz

115 230

GND / EARTH

Input 2 Input 1 Input 1 Input 2

This is a true balanced

under any circumstance

connect (-) speaker output

to ground.

Caution

This is a true balanced

under any circumstance

connect (-) speaker output

to ground.

Caution

hazard, do not expose this device

to rain and moisture

Warning

Use this connection with care

Connecting it to other units

with impropper GND may

damage this unit. Such

damage will not be covered

by warranty!

Caution

NEUTRIK

PUSH

NEUTRIK

PUSH

MAINS

hazard, do not expose this device

to rain and moisture

Warning

The rear panelConnecting the RS-101

Place the RS-101 on its shelf.

Connect the preamplier

to one of the inputs on the

RS-101 (labelled INPUT 1 or

INPUT 2 on the rear panel.)

Connect the Speaker output

of the RS-101

Lastly connect the mains to the

amplier, after you have

connected both inputs and

outputs.

ATTENTION: Never plug in/

unplug any cables within the

whole of the system while the

RS-101 is operational. Always

set the RS-101 into standby

mode before making any system

adjustments.

Outputs

Speaker left

Speaker right

Ground earth

Inputs

Input 2 XLR

Input 1 RCA

Power

Spade/Banana

3 pin XLR

RCA

C13/C15 IEC

Speaker out

Ground

Power

XLR in

RCA in

Fuse

2. CONNECTING2. CONNECTING

This is a true balanced amplier, DO NOT connect

the “–” output (Figure 3) to any ground source,

including chassis or signal ground, this will damage

the amplier and invalidate your warranty.

Figure 3 “–” output

12 | RS-101 Owner’s manual

RS-101 Owner’s manual | 15

3. OPERATION3. OPERATION

Operation modes

The RS-101 has 2 operation modes

1. NORMAL

This is the mode you use when listening to music.

2. STANDBY

In this mode the controls of the RS-101 are deactivated.

14 | RS-101 Owner’s manual

STANDBY INPUT STANDBY INPUT

3. OPERATION3. OPERATION

Functions –left front panel Functions –right front panel

Normal mode

In normal mode there are 1 basic function available on the left-hand

side at the front of the unit.

1. STANDBY

Switches in and out of “Standby Mode”

Accessing display brightness mode

The STANDBY button is used to access the display brightness mode.

Please see the guide on next page.

Normal mode

In normal mode there are 2 basic functions available on the right-

hand side at the front of the unit.

1. INPUT

Selects between the 2 inputs

2. MUTE

Mute the output by pressing and holding the INPUT button for 2

seconds.

16 | RS-101 Owner’s manual RS-101 Owner’s manual | 17

Display brightness mode

While in STANDBY mode, you access the display brightness function

by holding down the input button when turning ON the RS-101.

In the display brightness mode, the brightness level can be adjusted

by pressing the INPUT button.

When the desired brightness level has been chosen, press the

STANDBY button to exit the display brightness mode.

4. OPERATION AND SERVICE4. OPERATION AND SERVICE

Operation and service Operation and service

Maintenance and safety notice

Vitus Audio products are designed to run for many years without

the need for regular maintenance.

The Vitus Audio RS-101 contains no user serviceable parts except

from the mains fuse. Do not attempt to open the case as there are

potentially dangerous voltages present inside. Should your RS-101

show signs of malfunction, then please contact your dealer

or Vitus Audio.

Mains fuse

The mains fuse is accessible from the outside of the amplier. You

will nd the mains fuse, just below the power inlet. If the fuse blows,

you can easily replace it. The fuse only blows on the occurrence of

power surges or if there is a fault in the unit. Normally power surges

cause no other damage other than blowing the fuse. When the fuse

blows repeatedly on replacement, then the unit most likely has a

malfunction. In case of malfunction the unit must be returned to

Vitus Audio for repair.

Fuse type:

Physical size - 20 x 5mm

240V - 6.3A T (Time lag fuse)

230V - 6.3A T (Time lag fuse)

115V - 12A T (Time lag fuse)

100V - 12A T (Time lag fuse)

Replacing the fuse with a fuse of a type and rating dierent from

the original, might result in damage to the unit and injury to you

(the user). Damage to the unit as a result of incorrectly replacing

the mains fuse, will invalidate the warranty.

For an explanation of how to replace the fuse see chapter 4

“replacing a blown fuse”.

Mains supply voltage

Any unit may be set for operation in 100V, 115V, 230V or 240V AC.

The units shipped are set for the mains supply voltage of the

destination. The mains supply voltage can be changed in the product.

In some cases, this work can be performed by our authorised partners

around the world. In rare cases we would ask that the product is

returned to the Vitus Audio factory in Denmark for the conversion

to be done.

18 | RS-101 Owner’s manual RS-101 Owner’s manual | 19

Andere Handbücher für Reference Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vitus Audio Verstärker Handbücher

Vitus Audio

Vitus Audio Reference Series Bedienungsanleitung

Vitus Audio

Vitus Audio RI-101 Bedienungsanleitung

Vitus Audio

Vitus Audio Signature Series Bedienungsanleitung

Vitus Audio

Vitus Audio SM-101 Bedienungsanleitung

Vitus Audio

Vitus Audio SIA-030 Bedienungsanleitung

Vitus Audio

Vitus Audio scd-025 Bedienungsanleitung

Vitus Audio

Vitus Audio MP-L201 Bedienungsanleitung

Vitus Audio

Vitus Audio SIA-025 Bedienungsanleitung

Vitus Audio

Vitus Audio Masterpiece Series Bedienungsanleitung

Vitus Audio

Vitus Audio SIA-025 Bedienungsanleitung

Vitus Audio

Vitus Audio SS-025 Bedienungsanleitung

Vitus Audio

Vitus Audio RI-100 Bedienungsanleitung

Vitus Audio

Vitus Audio RI-100 Bedienungsanleitung

Vitus Audio

Vitus Audio Signature Series Bedienungsanleitung

Vitus Audio

Vitus Audio RS-101 Bedienungsanleitung

Vitus Audio

Vitus Audio RS-100 Bedienungsanleitung

Vitus Audio

Vitus Audio RL-102 Bedienungsanleitung

Vitus Audio

Vitus Audio RCD-100 Bedienungsanleitung

Vitus Audio

Vitus Audio SM-101 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
