Vivo STAND-SIT2W Bedienungsanleitung

Sit to Stand Dual Monitor Wall Mount Workstation -

Silver

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-sit2w

SKU: STAND-SIT2W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected]om, or call us at 309-278-5303.

A (x1)

Arm

B(x1)

Pole

C(x1)

Tray

J (x2)

Straps

D(x1)

Monitor Arm

E(x2)

Decorative Cover

F (x2)

M8x24

G(x1)

4mm Allen

Wrench

H (x1)

6mm Allen

Wrench

I (x1)

Mount

M-A (x8)

M4x12

M-C (x8)

M4x16

M-B (x8)

M5x12

M-D (x8)

M5x16

M-F (x8)

Spacer

M-E (x8)

D5 Washer

W-A (x7)

Screw

W-B (x7)

Anchor

W-C (x3)

Washer

ASSEMBLY STEPS

2.2-13.2lbs

(1-6kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

STEP 1

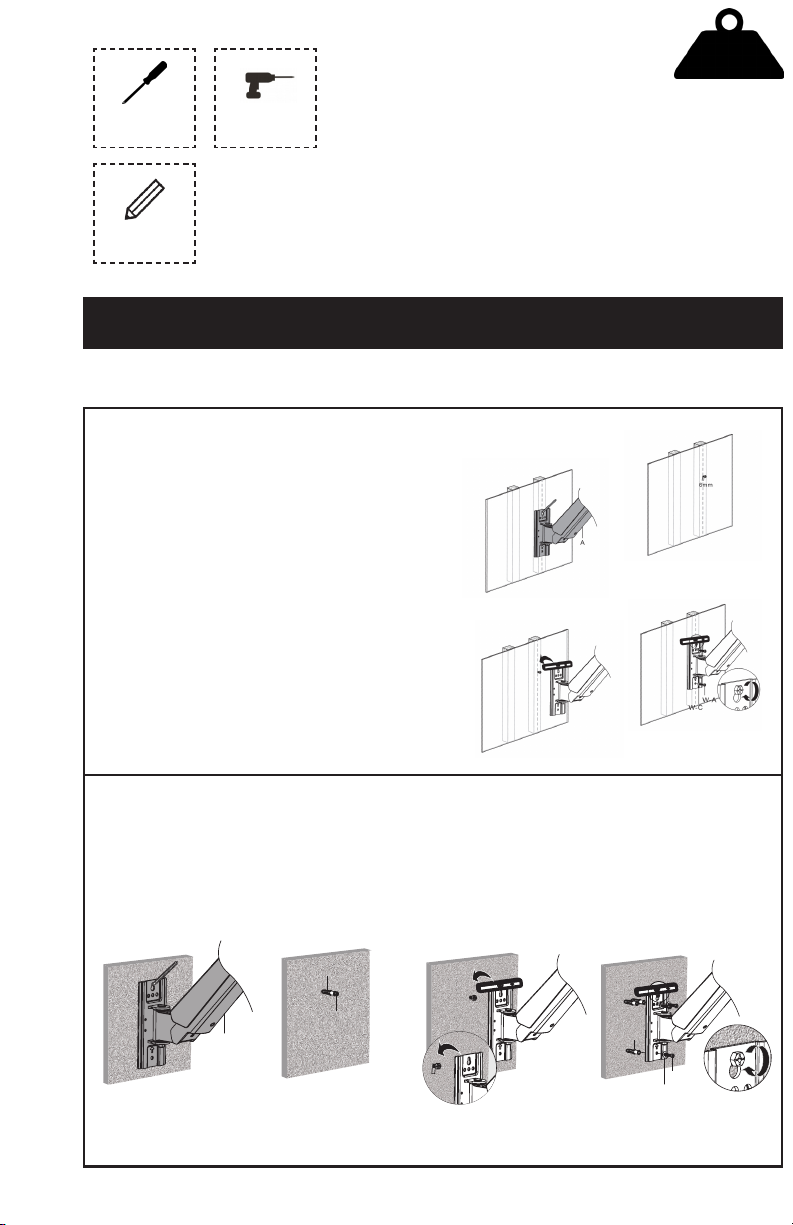

OPTION A: Wood Stud Installation

Hold arm (A) to wall where stud is located and mark

top hole location with a pencil. Drill 2.2” (55mm)

deep hole using a 3/16” (4.5mm) drill bit, and insert

screw (W-A) leaving 6mm of thread exposed. Hang

arm on screw, and making sure arm is level, mark

2 additional drilling locations using the vertically

aligned holes. Drill holes, then mount arm using

screws (W-A) with washers (W-C).

OPTION B: Concrete/Brick Installation

Hold arm (A) to wall where desired and mark top hole location with a pencil. Drill 2.4” (60mm) deep

hole using a 3/8” (10mm) drill bit, and insert anchor (W-B). Insert screw (W-A) leaving 6mm of thread

exposed. Hang arm on screw, and making sure arm is level, mark 3 additional drilling locations. Drill

holes, insert anchors (W-B), then mount arm using screws (W-A) with washers (W-C).

6m m

W-B

W-C

W-A

W- B

W- A

TOOLS NEEDED

Phillips

Screwdriver Drill

Pencil

PER SCREEN

STEP 2

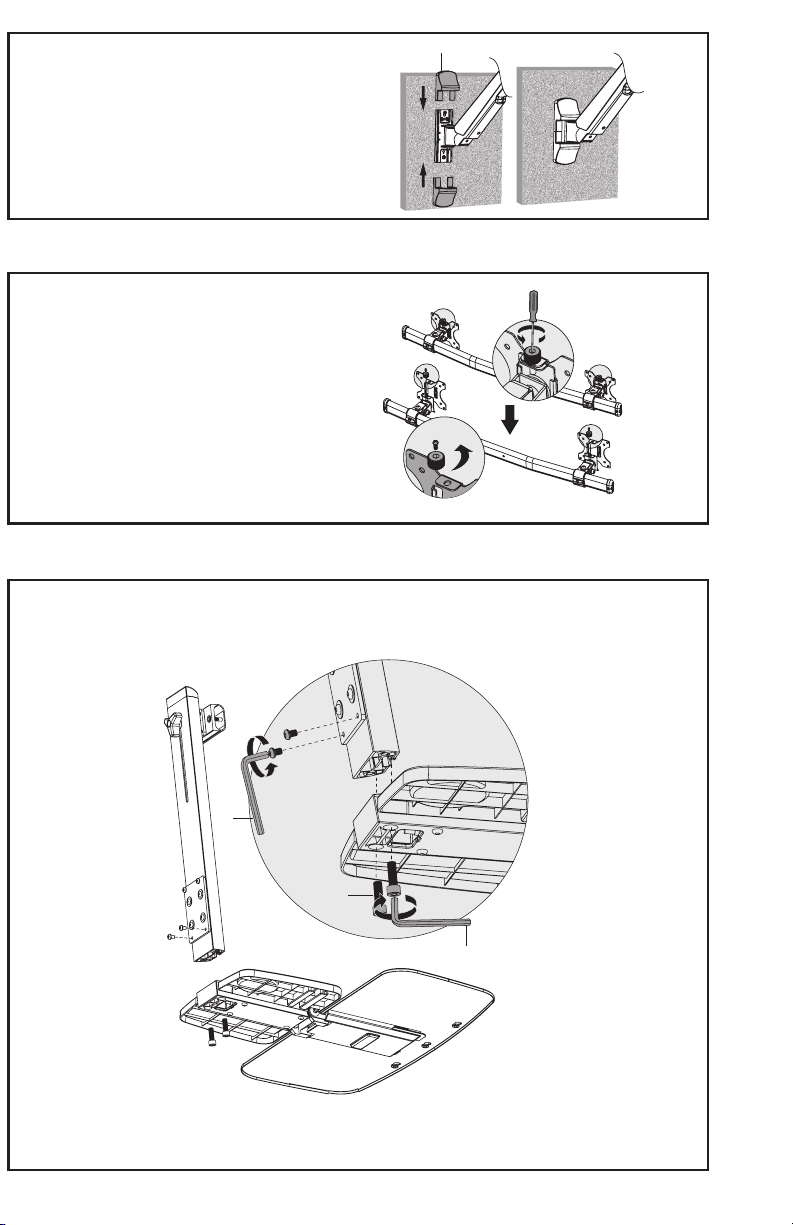

Remove two lower screws from back of pole (B) and set aside. Attach tray (C) to pole using M8x24

bolts (F), and tighten with 6mm Allen wrench (H).

STEP 4

Slide decorative covers (E) on arm (A).

STEP 3

Remove knobs and slide VESA plates o from

brackets. Set parts aside for later use.

Remove front bracket from arm mount at top of

pole (B) using 4mm Allen wrench (G) as shown.

Set parts aside.

STEP 5

STEP 6

Attach monitor arm (D) using previously removed

bracket and screws, making sure adjustment screws

on monitor brackets are facing up. Tighten with

4mm Allen wrench (G).

STEP 7

Loosen top two screws on back of pole (B) until 5mm of thread is exposed on each. Slide pole onto

mount of arm (A). Attach with previously removed screws, and tighten all screws with 4mm Allen

wrench (G).

5m m

1 2

STEP 9

Slide VESA plates with monitors onto mounting

brackets of arm (D) and secure with previously

removed knobs.

OPTION A: Flat Back Monitor

For flat back monitors, attach VESA plates using 12mm screws (M-A or M-B) with washers (M-E).

STEP 8

OPTION B: Curved Back Monitor

For curved or recessed back monitors, use 16mm

screws (M-C or M-D) with washers (M-E) and

spacers (M-F).

STEP 10

Adjust gas spring strength using 6mm Allen wrench

(H). Turning clockwise will decrease strength, and

counter-clockwise will increase strength.

NOTE: Tighten socket set screw if the joint makes a

popping noise.

M- A

M- B

M- E

M- C

M- D M- E

M- F

STEP 11

STEP 12

Adjust height of monitors using knob on back of pole (B). Correct individual monitor height by turning

the knob on each monitor bracket as shown. Use 6mm Allen wrench (H) if knobs are too sti to turn by

hand. Adjust rotation of tray (C) using 4mm Allen wrench (G) as shown if tray is not level.

To adjust tray to 10° tilt angle, first flip the tray up fully, then turn the supports in front of the hinge

upward. Set the keyboard tray back down. Allen wrenches (G, H) can be stored underneath the

keyboard tray as shown.

+15°

-15°

+4° -4°

0°

10° 10 °

LAST UPDATED: 05/11/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
