Vivo MOUNT-E-UP44 Bedienungsanleitung

Motorized TV Stand with Remote Control

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-up44

SKU: MOUNT-E-UP44

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

TOOLS NEEDED

110lbs

(50kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Motorized

Column

B(x1)

Support Bracket

C(x1)

Side Bracket

M-F (x4)

Washer

M-G (x8)

Small

Spacer

M-E (x4)

M8x50 Screw

M-A (x4)

M5x14 Screw

M-B (x4)

M6x14 Screw

M-C (x4)

M6x30 Screw

M-D (x4)

M8x30 Screw

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

D(x1)

Lid Support

E(x1)

TV Plate

F (x2)

VESA Bracket

G(x1)

Control Unit

H(x1)

AC Adapter

I(x1)

Adapter Bracket

J(x1)

Power Cable

M-H (x8)

Big

Spacer

K(x1)

Remote

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-E (x4)

M10 Nut

S-D (x4)

M10x20 Bolt

S-A (x16)

ST5.5x16 Screw

S-B (x2)

ST4.2x20 Screw

S-C (x12)

M6x12 Screw

T-A (x1)

4mm Allen

Wrench

T-B (x1)

6mm Allen

Wrench

T-C (x1)

Wrench

ASSEMBLY STEPS

STEP 1

Prepare the cabinet before installation. Make sure you have at least 50mm of space in the

front, top, and both sides of the TV inside of the cabinet. Plug Motorized Column (A) into

Control Unit (G).

STEP 2

Slide cable for AC Adapter (H) through Adapter Bracket (I). Plug AC Adapter (H) into Control Unit (G).

Plug Power Cable (J) into AC Adapter (H).

STEP 3

Mount Support Bracket (B) to Motorized Column (A) using

M6x12 Screws (S-C) and 4mm Allen Wrench (T-A).

STEP 4

Assemble Side Brackets (C) to Motorized Leg (A) using

M6x12 Screws (S-C) and 4mm Allen Wrench (T-A).

STEP 5

Secure Lid Support (D) to Side Brackets (C) using M6x12 Screws (S-C) and 4mm Allen Wrench (T-A).

S-C

T-A

S-C

T-A

S-C D

STEP 6

STEP 7

Mark drilling location inside of the cabinet using Motorized Column (A). Using a 3mm (1/8”) drill bit,

predrill holes approximately 15mm (0.6”) deep. Secure Motorized Column (A) to the cabinet using

ST5.5x16 Screws (S-A) using a Phillips screwdriver.

Note, pairing the Remote (K) maybe needed to continure. With the mount pluged in, if the mount will

not respond to the remote, please follow the pairing instructions found in the remote control manual

before proceeding.

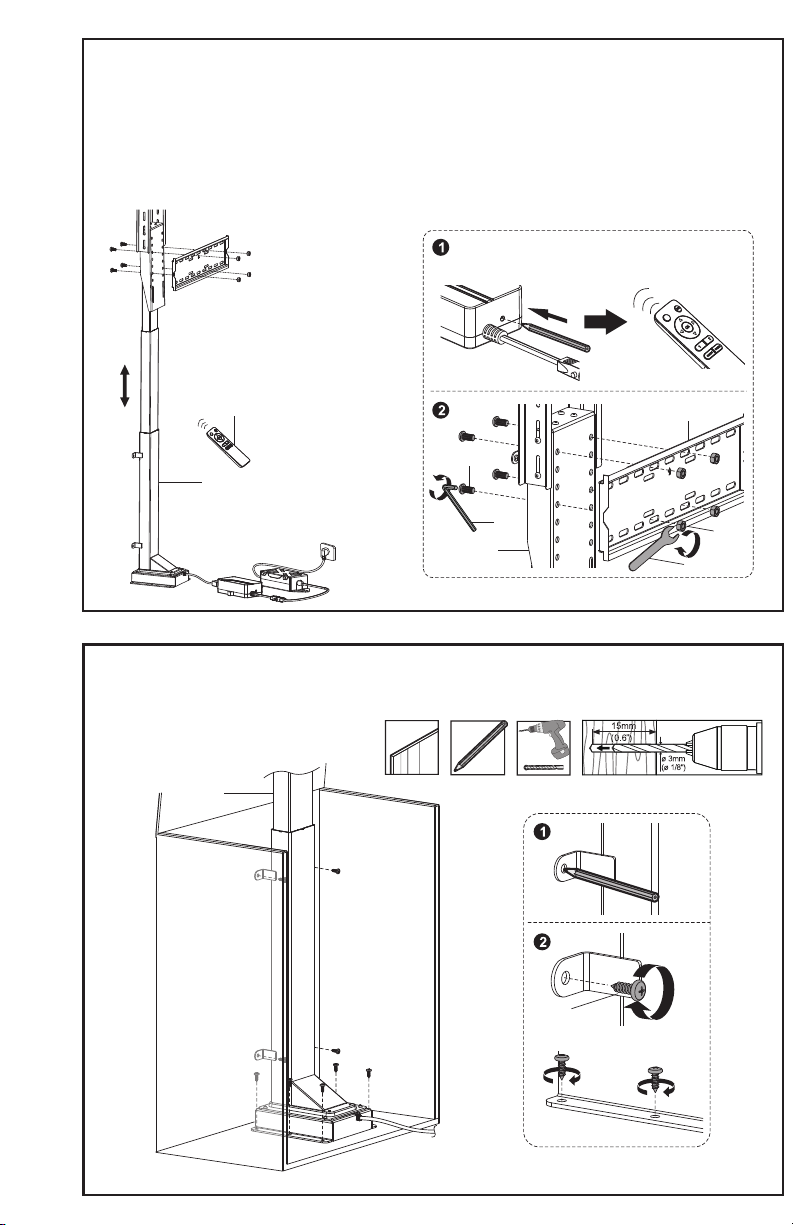

Use Remote (K) to raise Motorized Column (A) to the highest setting. Assemble TV Plate (E) to

Support Bracket (B) using M10x20 Bolts (S-D) and M10 Nuts (S-E). Tighten using 6mm Allen Wrench

(T-B) and Wrench (T-C).

T-B

S-D

S-E

T-C

S-A

STEP 8

Mark drilling location inside of the cabinet using Control Unit (G) and Adapter Bracket (I).

Using a 3mm (1/8”) drill bit, predrill holes approximately 15mm (0.6”) deep. Secure Control

Unit (G) using ST4.2x20 Screws (S-B) and Adapter Bracket (I) using ST5.5x16 Screws (S-A)

and a Phillips screwdriver.

STEP 9

Mark drilling locations on the underside

of the cabinet lid using Lid Support (D).

Using a 3mm (1/8”) drill bit, predrill holes

approximately 15mm (0.6”) deep. Secure

the lid to Lid Support (D) using ST5.5x16

Screws (S-A) and a Phillips screwdriver.

STEP 10

With the TV face down on a flat surface, secure VESA Brackets (F) to the TV using

Screws (M-A through M-E), Washers (M-F) and Spacers (M-G, M-H).

S-B S-A

S-A

M-A M-B M-C M-D

M-F M-F M-F M-F

M-G M-H

STEP 11

STEP 12

Operate mount using Remote (K).

Hang VESA Brackets (F) onto TV Plate (E) and secure by tightening security screws on the

underside of VESA Brackets (F) using a Phillips screwdriver.

LAST UPDATED: 10/11/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
