Vivo MOUNT-PC01W Bedienungsanleitung

White Under Desk and Wall PC Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pc01w

SKU: MOUNT-PC01W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

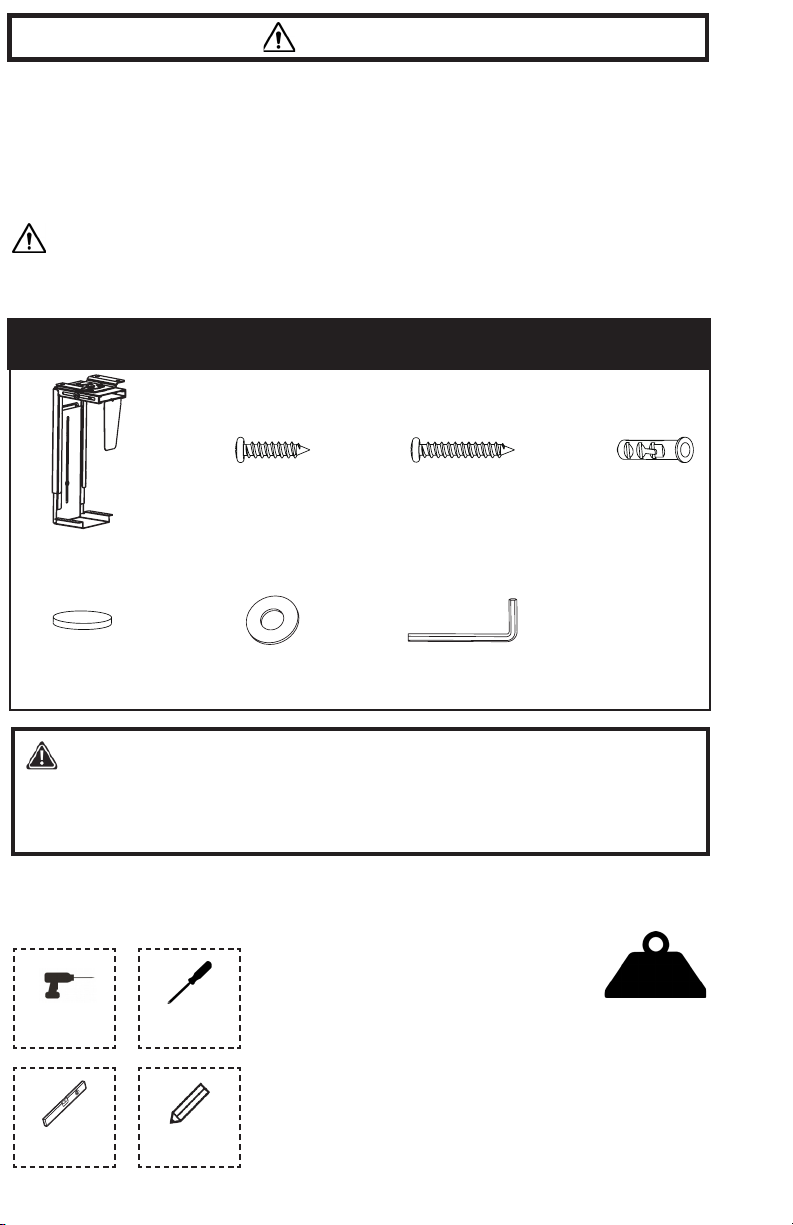

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

A1 (x1)

Mount

B(x4)

4.8x16

C (x4)

4.8x38

D (x4)

Anchor

E (x12)

Pad

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

Drill

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,

email at [email protected]om, or call us at 309-278-5303.

F(x4)

Washer

G (x1)

Allen Wrench

Level

22 lbs

(10 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Pencil

Phillips

Screwdriver

ASSEMBLY STEPS

STEP 1

Apply pads (E) to top, bottom, and side of the PC mount (A) as shown.

STEP 2A-1

OPTION A: Under Desk Installation

Secure PC mount (A) to bottom of desk using 4.6x16 screws (B) and washers (F).

STEP 2A-2

Loosen two screws on top of mount (one on each side) and slide side support bracket

out to maximum width.

STEP 2A-3

Loosen set screws for lower support using the Allen wrench (G) and slide the support

down. Place PC tower on mount, slide bottom support up until mount is fit vertically

to PC, and tighten set screws using the Allen wrench. Slide side bracket into place to

hold PC, and tighten screws using a Phillips screwdriver.

STEP 2B-1

OPTION B: Wood Wall Installation

Loosen two screws on top of mount (one on each side) and slide side support bracket out to maximum

width. Loosen set screws for lower support using the Allen wrench (G) and slide the support down.

STEP 2B-2A

3mm

ø3 5m

ø1 /8"

()

15mm

0.6”()

For solid wood wall, place mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm)

drill bit, drill holes 0.67” (15mm) deep. Insert two 4.8x16 screws (B) into top holes, leaving a 3mm

of thread exposed. Hang mount (A) over screws and insert two more 4.8x16 screws into lower holes.

Tighten screws with a Phillips screwdriver.

If wall has a wood stud frame, use a stud finder to locate the stud, then place mount against wall and

mark drilling locations for top and bottom holes on only one side of the mount. Using a 1/8” (3.5mm)

drill bit, drill holes 1.2” (35mm) deep. Insert a 4.8x38 screw (C) into top hole, leaving a 3mm of thread

exposed.

Hang mount (A) over screw

and insert another 4.8x38

screw into lower hole. Tighten

screws with a Phillips screw-

driver.

STEP 2B-2B

√

3m m

OPTION C: Concrete Wall Installation

For concrete wall installation, place PC mount (A) against the wall and mark locations with a pencil.

Drill 1.2” (35mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert anchors (D) into

holes, and insert two 4.8x38 screws (C) into top holes, leaving 3mm if thread exposed.

Hang mount over two screws in the wall. Secure with two additional 4.8x38 screws, and tighten

screws with a Phillips screwdriver.

STEP 2B-3

Place PC tower on mount, slide bottom support up until mount is fit vertically to PC, and tighten set

screws using the Allen wrench (G). Slide side bracket into place to hold PC, and tighten screws using a

Phillips screwdriver.

LAST UPDATED: 07/06/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
