Vivo MOUNT-PC10BU Bedienungsanleitung

Black Clamp-on Desk and Wall PC Mount with USB

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

SKU: MOUNT-PC10BU

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

https://vivo-us.com/products/mount-pc10bu

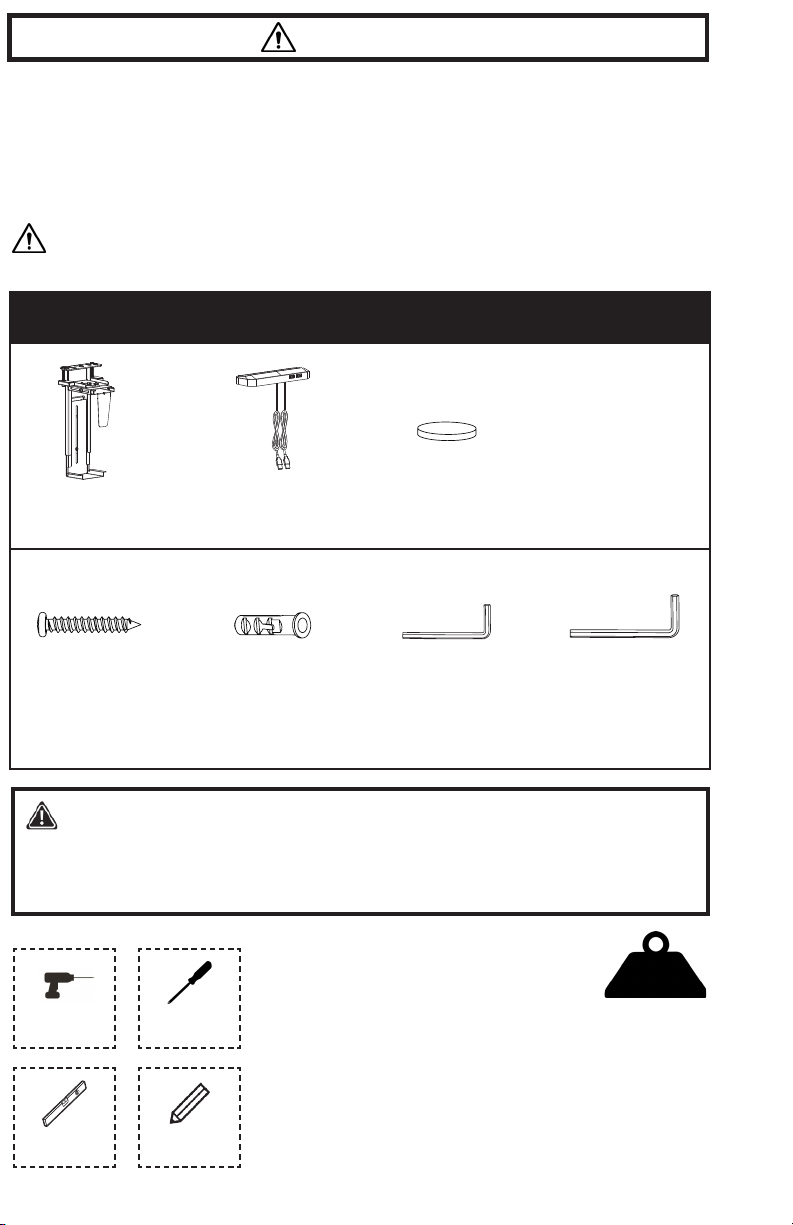

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

A (x1)

PC Mount

B(x1)

USB Cover

S-A (x4)

ST4.8x38 Screw

S-B (x4)

Concrete Anchor

C (x12)

Pad

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

Drill

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,

email at [email protected]om, or call us at 309-278-5303.

T-B (x1)

5mm Allen

Wrench

Level

22 lbs

(10 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Pencil

Phillips

Screwdriver

T-A (x1)

4mm Allen

Wrench

ASSEMBLY STEPS

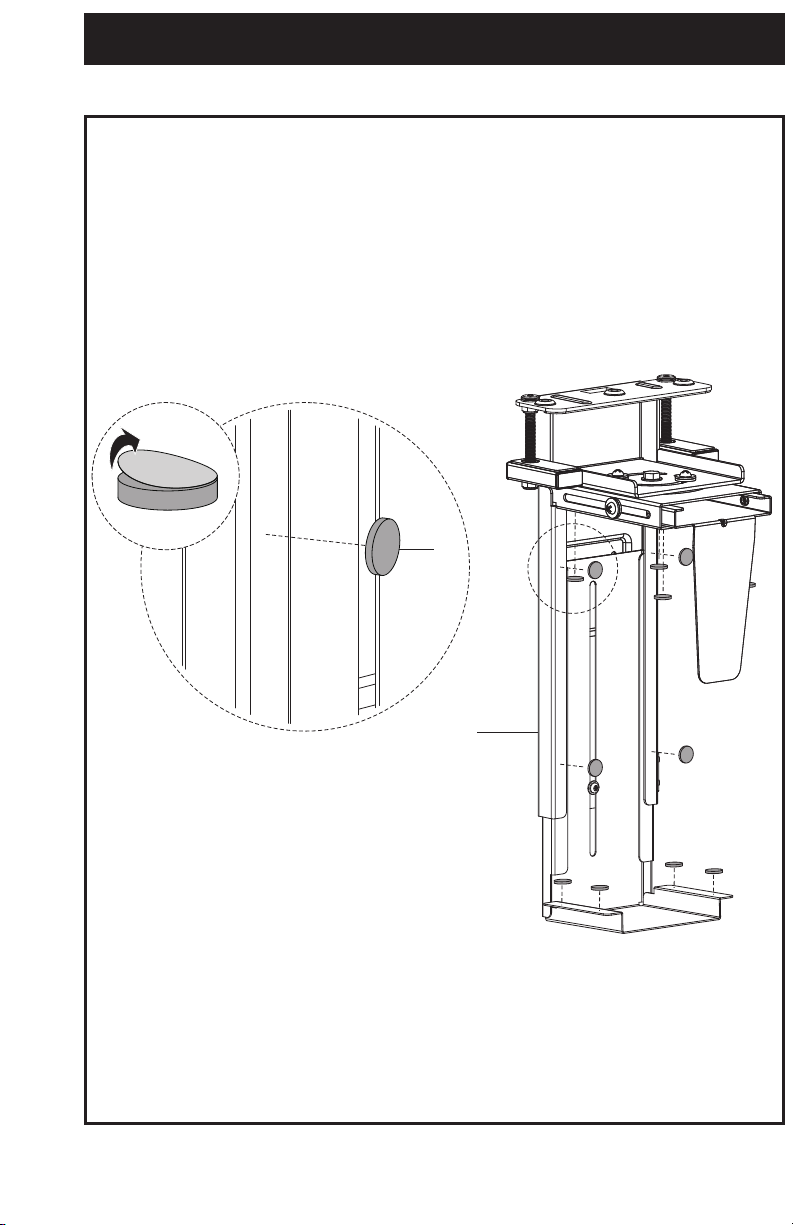

STEP 1

Apply Pads (C) to top, bottom, and side of PC Mount (A) as shown.

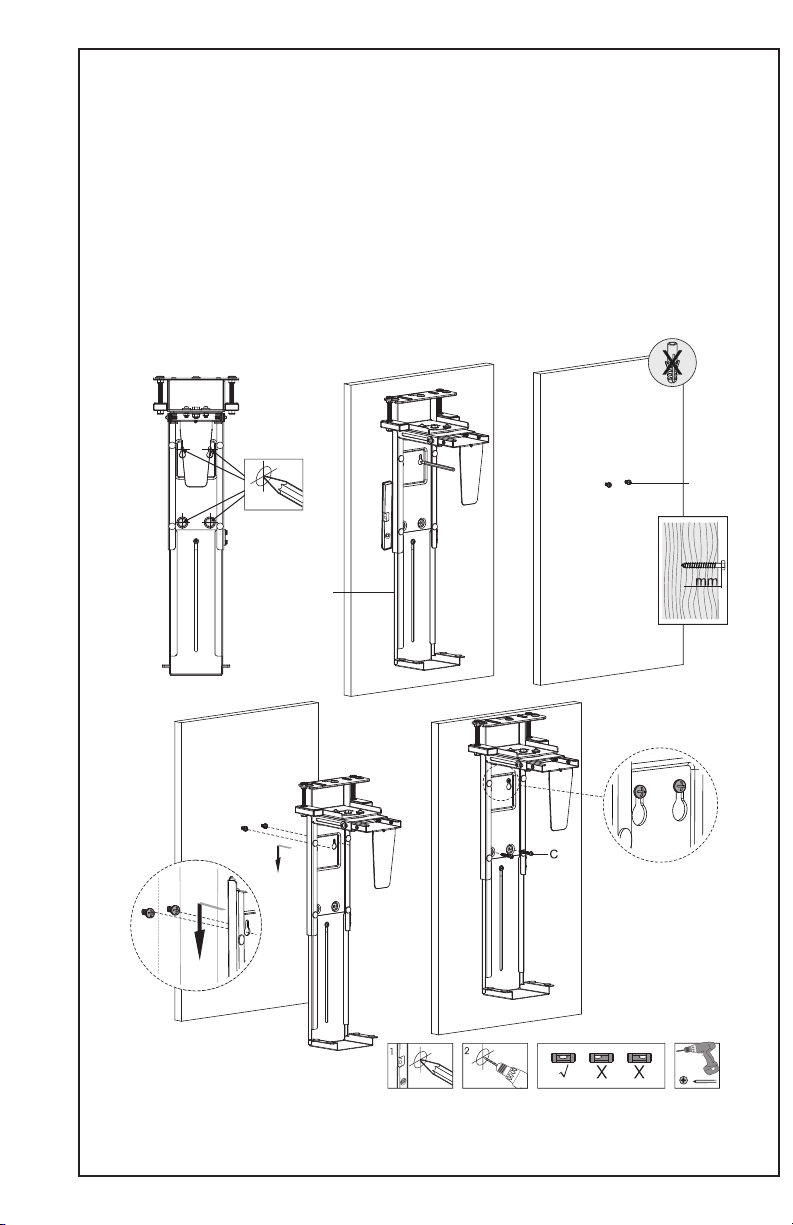

STEP 3 (Option A)

Clamp Mount Installation

Clamp PC Mount (A) to the desktop by tightening the set screws on top using 5mm Allen Wrench (T-B).

STEP 2

T-A

Loosen set screws for lower support using 4mm Allen wrench (T-A) and slide the support down.

Loosen two screws on top of PC Mount (A) (one on each side) and slide side support bracket out to

maximum width.

T-B

STEP 3 (Option B)

Solid Wood Wall Installation

For solid wood wall, place PC Mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm)

drill bit, drill holes 0.67” (15mm) deep. Insert two ST4.8x16 Screws (S-A) into top holes, leaving 3mm

of thread exposed. Hang PC Mount (A) over screws and insert two more ST4.8x16 Screws (S-A) into

lower holes. Tighten screws with a Phillips screwdriver.

Wood Stud Frame Installation

If wall has a wood stud frame, use a stud nder to locate the stud, then place mount against wall and

mark drilling locations for top and bottom holes on only one side of the mount. Using a 1/8” (3.5mm)

Hang PC Mount (A) over screw and insert another ST4.8x38 Screw (S-A) into lower hole. Tighten

screws with a Phillips screwdriver.

S-A

STEP 3 (Option C)

Concrete Wall Installation

For concrete wall installation, place PC Mount (A) against the wall and mark locations with a pencil.

Drill 1.2” (35mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert Concrete Anchors

(S-B) into holes, and insert two ST4.8x38 Screws (S-A) into top holes, leaving 3mm of thread exposed.

S-B

S-A

Hang mount over two screws in the wall. Secure with two additional ST4.8x38 Screws (S-A), and tighten

screws with a Phillips screwdriver.

S-A

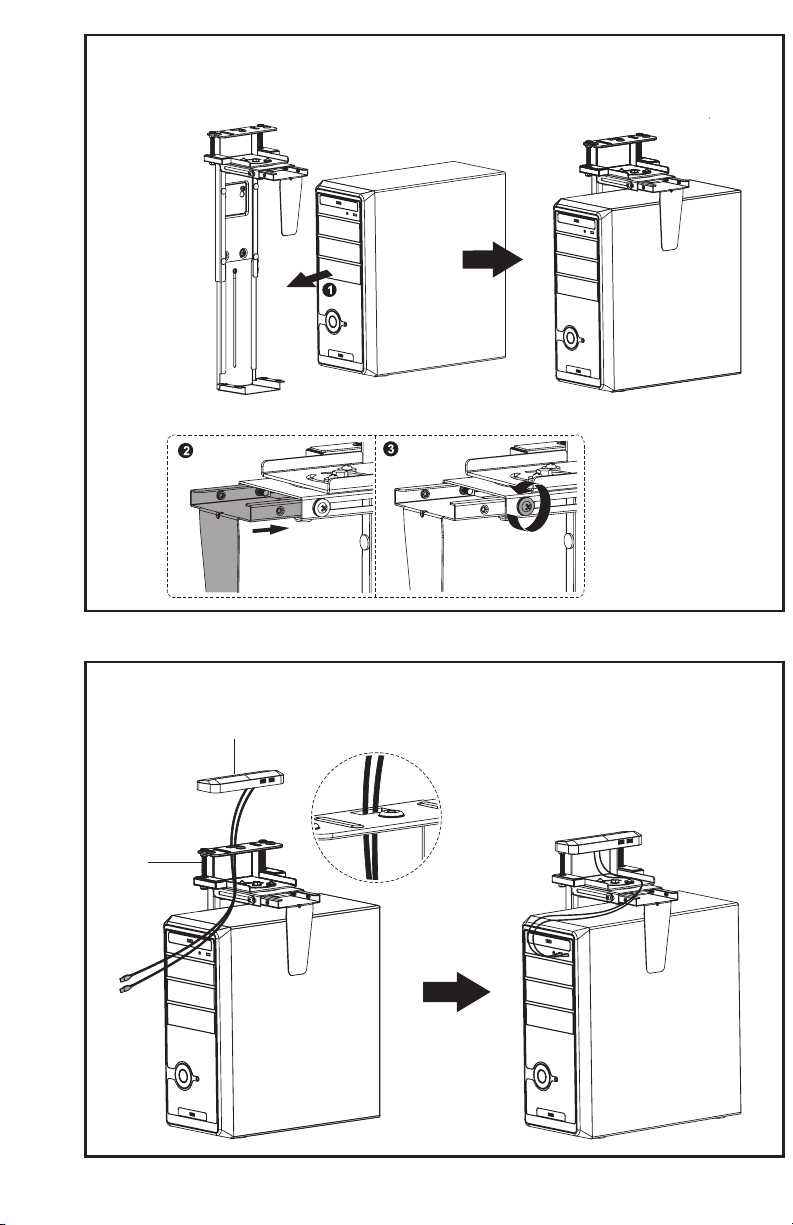

STEP 4

Place PC tower in PC Mount (A), slide bottom support up until mount is t vertically to PC, and tighten

set screws using the 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten

screws using a Phillips screwdriver.

STEP 5

Route cables from USB Cover (B) through PC Mount (A), and plug into PC tower. Secure USB Cover (B)

in place on PC Mount (A).

LAST UPDATED: 08/06/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
