Vivo MOUNT-VW01M Bedienungsanleitung

Single Monitor Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw01m

SKU: MOUNT-VW01M

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

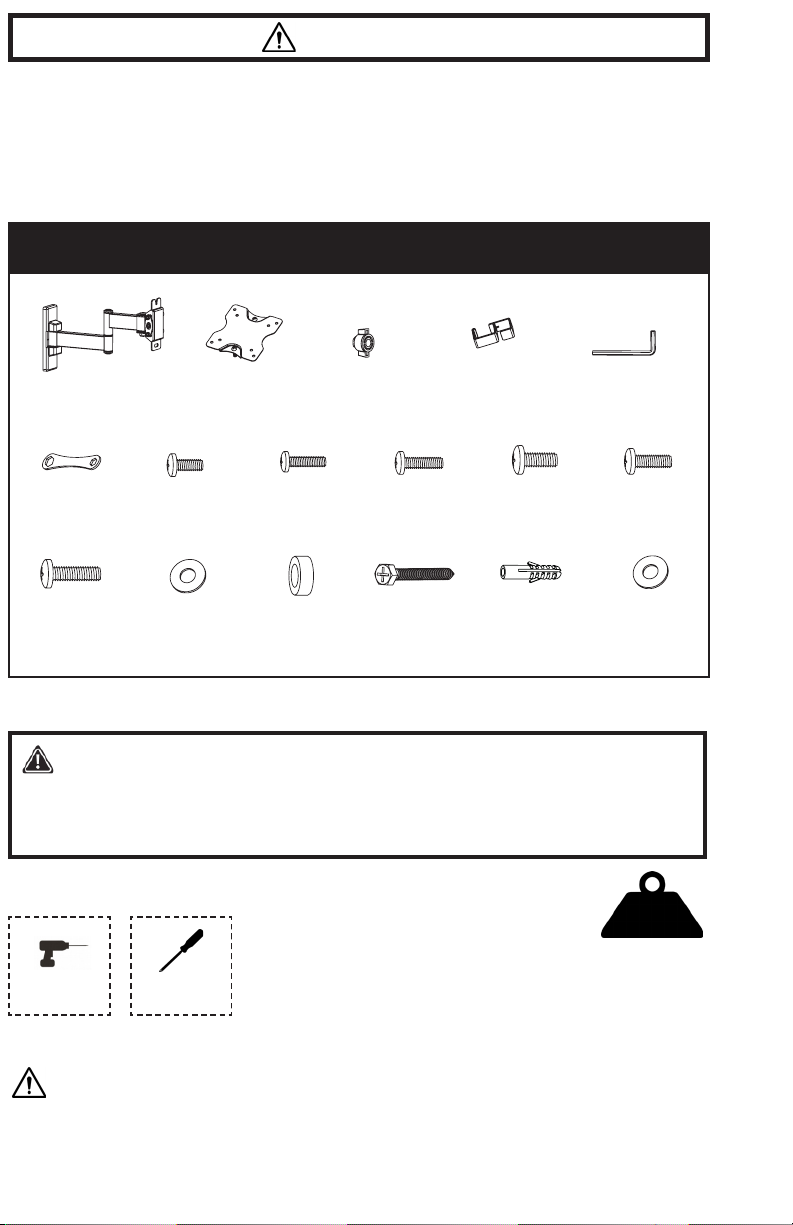

PACKAGE CONTENTS

TOOLS NEEDED 44lbs

(19.96kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

B(x1)

VESA Plate

C(x2)

M6 Nut

W-A (x3)

ST6.3x55

Screw

M-A (x4)

M4x12

M-B (x4)

M4x14

M-C (x4)

M4x16

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x3)

D6 Washer

W-B (x3)

Concrete

Anchor

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected]om, or call us at 309-278-5303.

D(x1)

Cable Clip

E(x1)

Allen Wrench

F (x1)

Wrench

A (x1)

Mount

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-D (x4)

M5x12

M-E (x4)

M5x14

M-F (x4)

M5x16

M-G (x4)

D5 Washer

M-H (x4)

5mm Spacer

ASSEMBLY STEPS

STEP 1

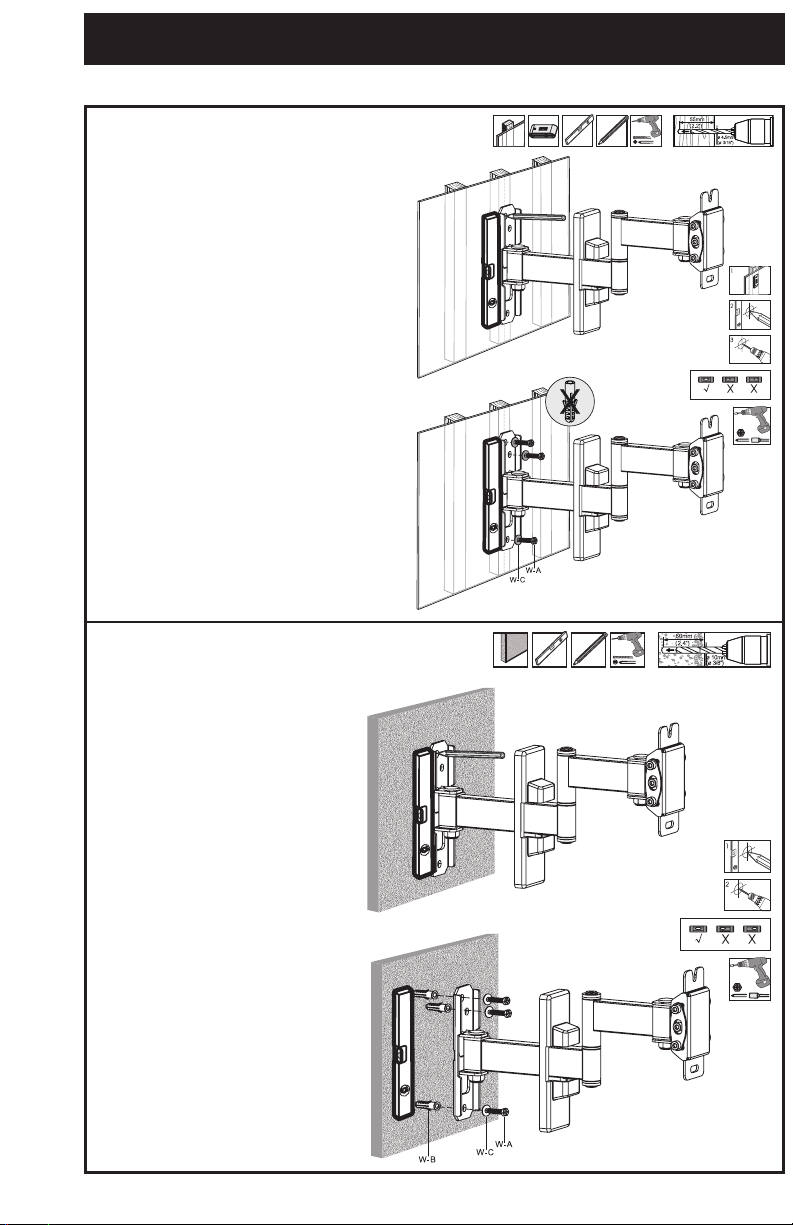

OPTION A: Wood Wall Installation

Use the mount (A) to mark drilling

locations on the wall where a stud is

located. Using a 3/16” bit, drill 2.2” deep

holes into marked locations. Secure the

mount (A) to the wall using ST6.3x55

screws (W-A) with washers (W-C).

OPTION B: Concrete/Brick Wall

Installation

Use the mount (A) to mark drilling

locations on the wall. Using a

3/8” bit, drill 2.4” deep holes into

marked locations. Insert concrete

anchors (W-B) into the holes and

secure the mount (A) to the wall

using ST6.3x55 screws (W-A) with

washers (W-C).

STEP 2

Attach the plastic cover to the wall plate of the mount (A).

STEP 3

Attach the cable clip (D) to the arm (A) as shown.

STEP 4

OPTION A: For Flat Back Displays

Install the VESA plate (B) to the back of

the TV/monitor using 12/14mm length

bolts (M-A, M-B, M-D or M-E) with D5

washers (M-G).

STEP 5

Partially install one M6 nut (C) to the top screw of the VESA plate (B) and hang

over the slot in the top of the mount (A). Install the second M6 nut, then tighten

both nuts.

OPTION B: For Curved / Recessed

Back Displays

Install the VESA plate (B) to the

back of the TV/monitor using

16mm length bolts (M-C or

M-F) with D5 washers (M-G)

and spacers (M-H).

STEP 6

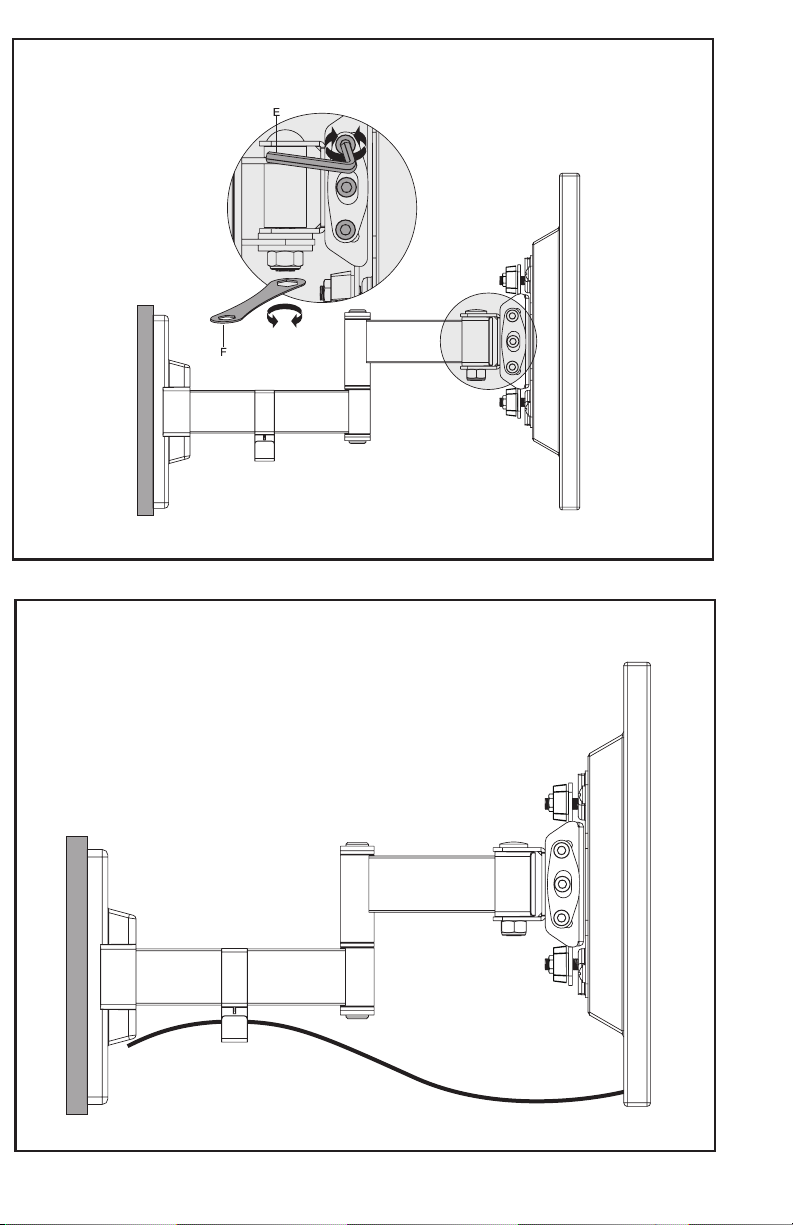

Adjust tilt support using the Allen wrench (E) and swivel joints using the wrench (F).

Organize cables using the cable clip (D).

STEP 7

Adjust as Desired

LAST UPDATED:01/06/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
