Vivo STAND-V003V Bedienungsanleitung

Triple Vertical Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v003v

SKU: STAND-V003V

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

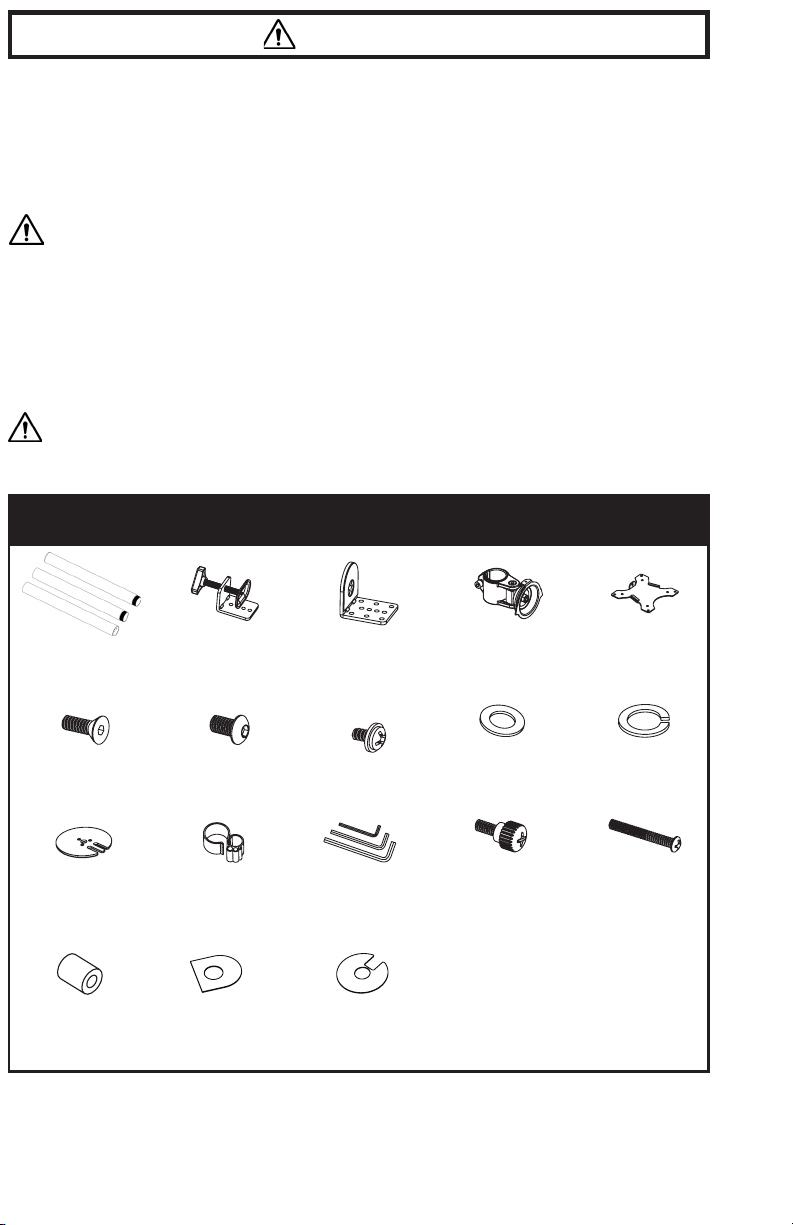

PACKAGE CONTENTS

A (x1)

Pole Set

B(x1)

Clamp

C(x1)

Clamp Brace

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x3)

Monitor

Bracket

E (x3)

VESA Plate

F (x3)

M5x14

G (x2)

M8x12

H (x3)

M4x6

I (x1)

M10 Washer

J (x1)

Spring Washer

K (x1)

Grommet Base

Plate

L (x3)

Wire Clip

M(x1)

Allen Key set

N (x12)

M4x12

Thumbscrew

O (x12)

M4x30

P (x12)

M4 Spacer

Q1 (x1)

So Pad

Q2 (x1)

So Pad

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

TOOLS NEEDED

Phillips

Screwdriver

PRE-ASSEMBLY

STEP 1

33 lbs

(15 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

Drill

Option A: Desk Clamp Install

1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.

2. Attach so pad (Q1) to the clamp brace (C) , see Figure 2.

3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The

thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the

Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.

Figure 1 Figure 2

Q1 B

Thread the Pole Set (A) together as shown below.

STEP 1 (Continued)

STEP 2

Install Monitor Bracket (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the

Wire Clip (L) to the pole (A).

Figure 4

t2 Figure 5

Figure 4

t2 Figure 5

Option B: Grommet Install

1. If desk does not have an existing grommet

hole, drill a 3/8” (10mm) diameter hole at the

desired position through the mounting surface.

2. Completely disassemble clamp (B) into

individual parts. Set knob (B1) and clamp

plate (B2) aside for later use. The L bracket,

bolt, washer and bushing will not be used.

3. Install grommet base plate (K) to the pole (A)

using x3 M5x14 bolts (F). See Figure 4.

4. Attach so pad (Q2) to the grommet base plate

(K), see Figure 5.

5. Position pole (A) on the mounting surface

and secure using the clamp plate (B2), spring

washer (J), M10 washer (I) and knob (B1). See

Figure 6.

STEP 3

OPTION A: Flat Back Monitor

OPTION B: Curved Back Monitor

For flat back monitor, install VESA Plate (E) to

monitor using thumbscrews (N).

NOTE: Hand tighten screws to avoid over

tightening.

For curved back monitor, install

VESA Plate (E) to monitor using bolts

(O) and spacers (P).

NOTE: Gently tighten using a screwdriver

STEP 4

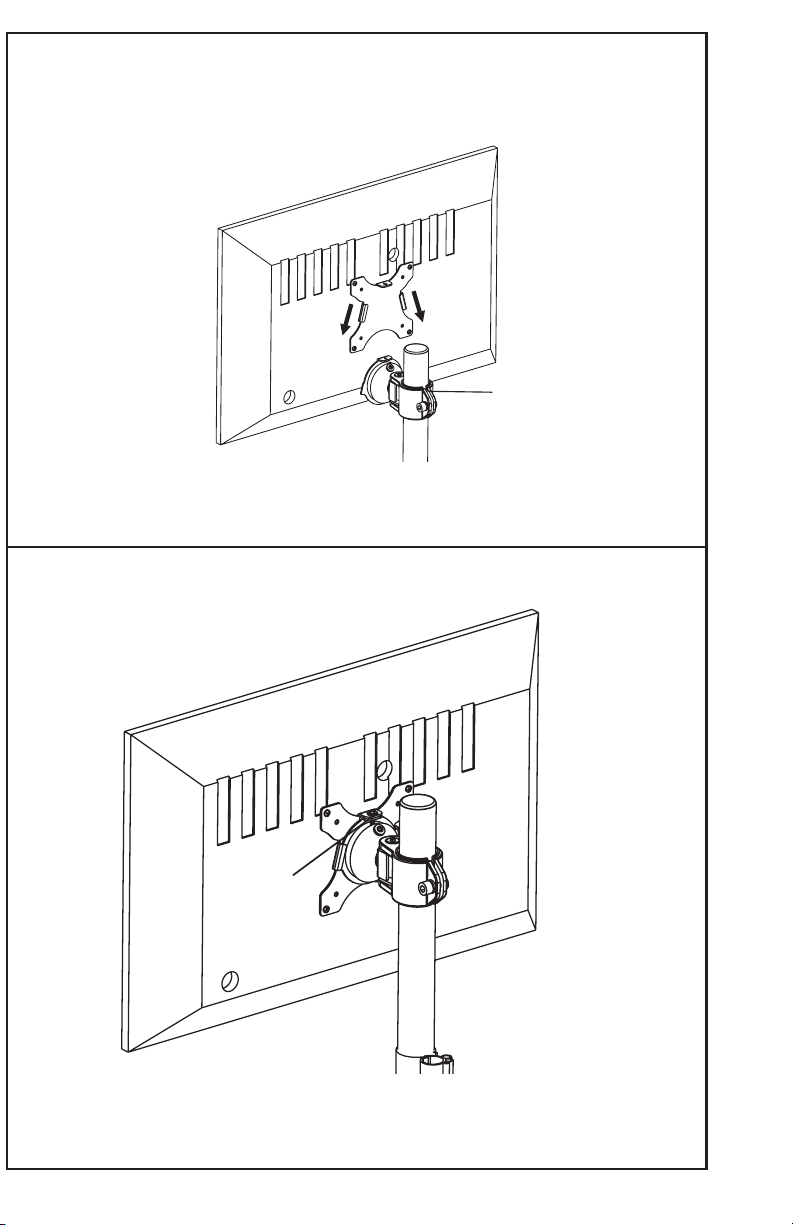

Slide the monitor onto the head of Monitor Bracket (D) as shown in the above diagram.

Install the M4x6 Bolt (H). Make sure the bolt is installed before you rotate the monitor.

STEP 5

Fasten the grub screw in Monitor Bracket to fix the tilting angle by provided Allen Key (M). Manage the

wires as shown in the diagram below.

grub

scre w

LAST UPDATED: 09/17/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
