Vivo STAND-V103 Bedienungsanleitung
Triple Monitor Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v103
SKU: STAND-V103
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
22 lbs
Per Arm
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
3

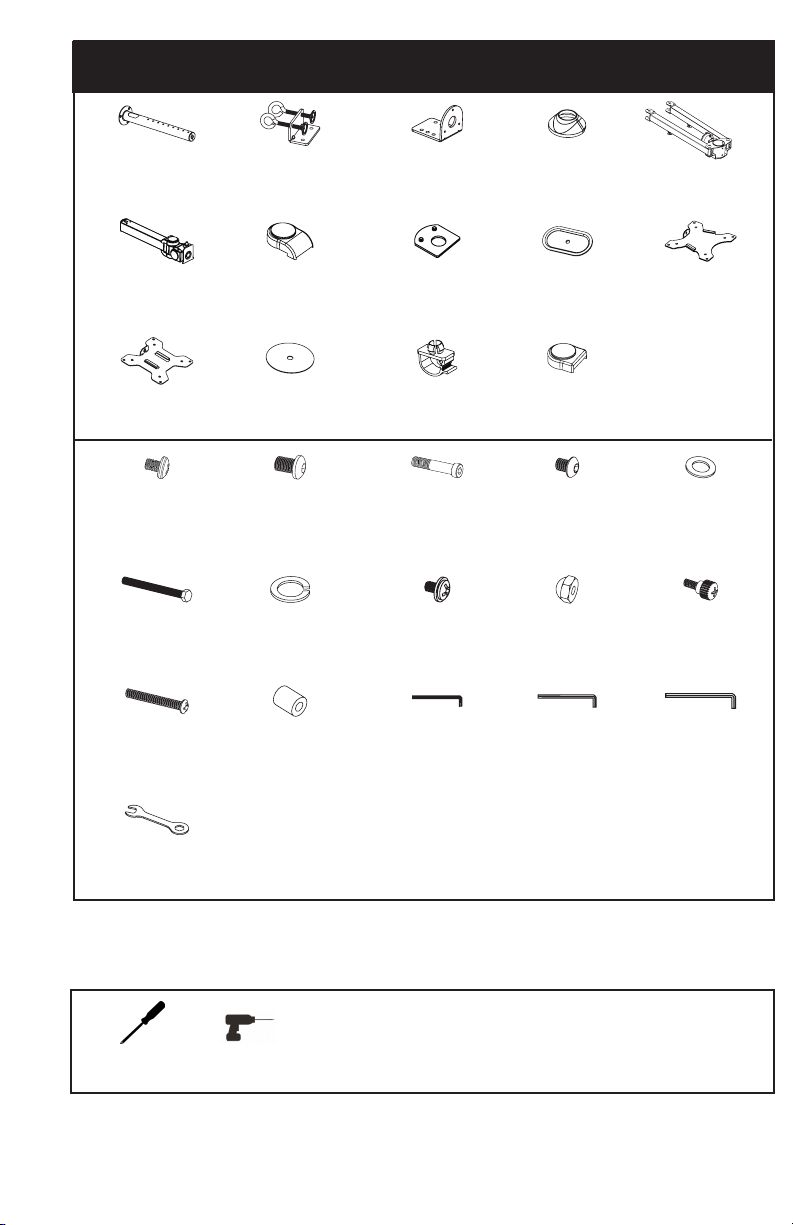

PACKAGE CONTENTS
A (x1)
Pole
B(x1)
Lower Clamp
C(x1)
Upper Clamp
D(x1)
Pole Cover
E(x1)
Arm
G (x4)
Joint Cover
H(x4)
Plastic Spacer
S-B (x2)
M10x15mm
Screw
S-D (x2)
M8x10mm
Screw
S-F (x1)
M10 Bolt
I (x1)
Support Plate
S-E (x1)
M10 Washer
S-G (x1)
Lock Washer
L (x1)
Grommet Pad
M-A (x12)
M4x12mm
Thumbscrew
M-B (x12)
M4x30mm
Screw
M-C (x12)
M4 Spacer
N (x2)
Spare Cap
T-D (x1)
Wrench
K (x2)
Side VESA Plate
J (x1)
Center VESA Plate
S-I (x2)
Cap Nut
S-H (x1)
M4x6mm
Screw
M (x4)
Cable Clip
F(x2)
Arm Extension
S-C (x2)
M10x47mm
Screw
S-A (x3)
M6x8mm
Screw
T-A (x1)
3mm Allen
Wrench
T-B (x1)
5mm Allen
Wrench
T-C (x1)
6mm Allen
Wrench
NOTE: SOME HARDWARE MAY NOT BE USED
TOOLS NEEDED
Phillips
Screwdriver Drill
4
ASSEMBLY STEPS
STEP 1 - Clamp Installation
Install Upper Clamp (C) to Pole (A) using M6x8mm Screws (S-A) and a Phillips screwdriver.
Assemble Lower Clamp (B) to Upper Clamp (C) using M10x15mm Screws (S-B) and 5mm
Allen Wrench (T-B). Secure the clamp assembly to the desktop be tightening to the hand
bolts on Lower Clamp (C). Install the Pole Cover (D) to Pole (A).
C
A
S-A
B
D
S-B
T-B
5

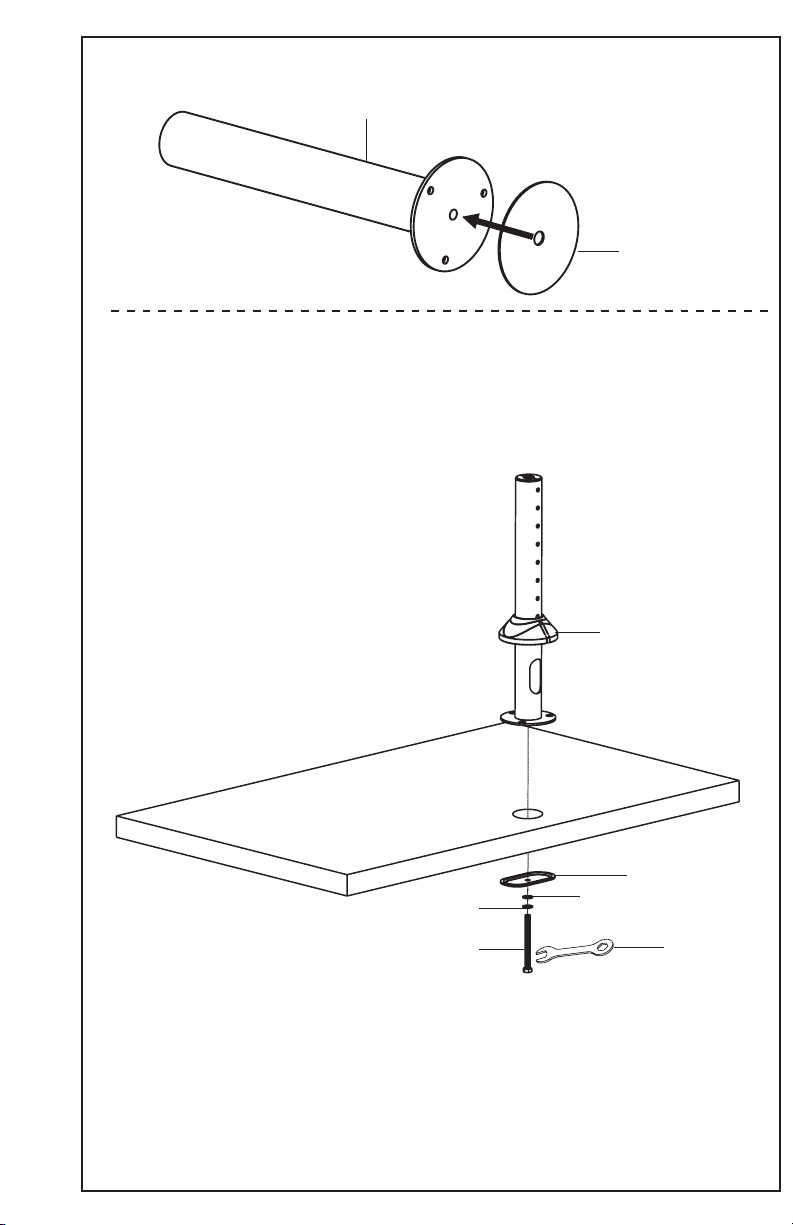

STEP 1 - Grommet Installation
Remove adhesive backing from Grommet Pad (L) and place on the bottom of Pole (A).
Install Pole (A) to existing grommet hole using Support Plate (I) with M10 Bolt (S-F),
M10 Washer (S-E) and Lock Washer (S-G). Tighten with Wrench (T-D). Install the Pole
Cover (D) to Pole (A).
S-E
S-G
T-D
S-F
L
A
D
I
If no grommet hole exists, drill a 3/8” (10mm) diameter hole through the mounting
surface.
6

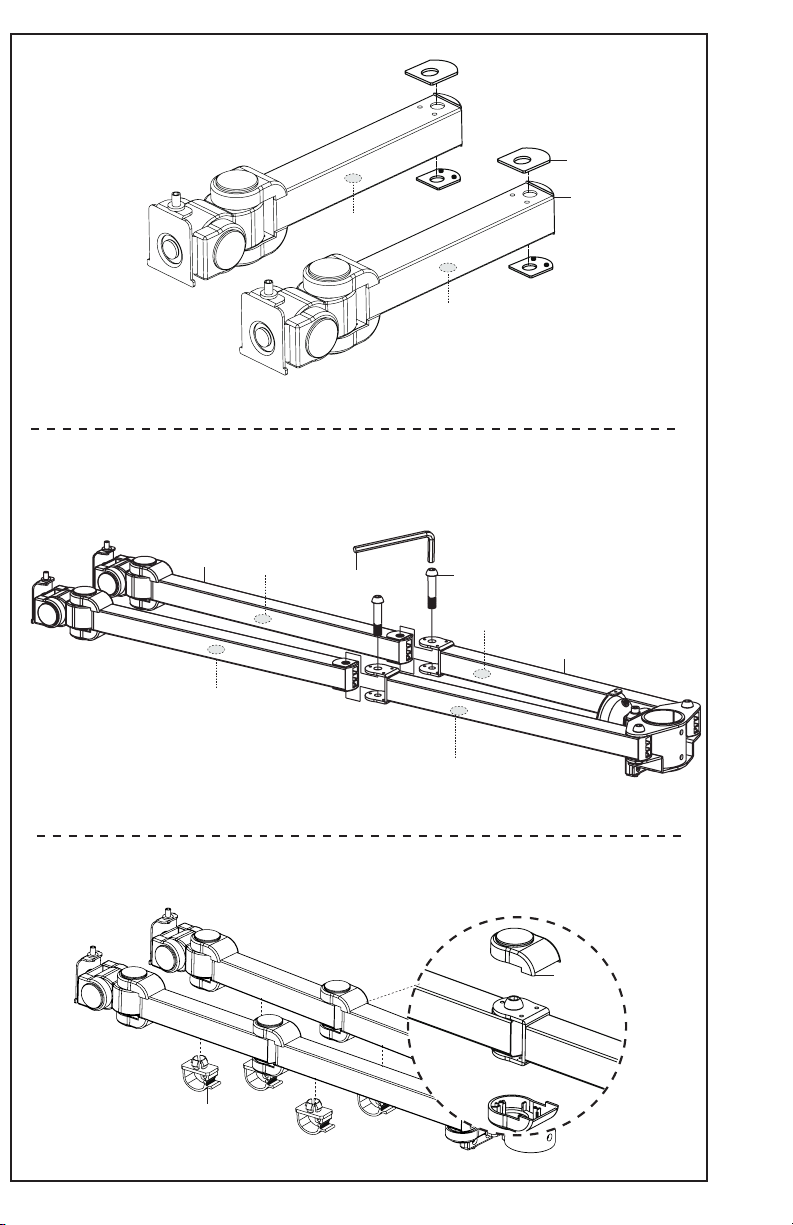

STEP 2
Align Arm and Arm Extension (E,F) so that the holes for the cable clips are facing
down. Insert Monitor Arms (E) into Arm Extension (F) as shown below. Secure using
M10x47mm Screws (S-C) and 6mm Allen Wrench (T-C).
Press Monitor Arm Covers (G) onto the top and bottom of arm joints. Place Cable Clips (M)
into wire clip holes
Cable Clip
Hole
Cable Clip
Hole
Cable Clip
Hole
NOTE: Transparent monitor arm image used to show wire
clip holes. Holes are on the underside of arms and are not
visable when arm is facing upright.
Cable Clip
Hole
Cable Clip
Hole
Cable Clip
Hole
Lay Arm (E) on flat surface with holes for cable clips facing down. Add Plastic Spacers
(H) to holes at ends of Arm (E).
NOTE: Transparent monitor arm image used to show cable clip holes. Holes are on the underside of
arms and are not visable when arm is facing upright.
H
E
S-C
T-C
E
G
M
F
7
STEP 3
Slide arm assembly onto Pole (A) at desired height and secure using M8x10mm
Screws (S-D) and 5mm Allen Wrench (T-B).
Center VESA Plate (K) Installation
STEP 4a - Flat Back Monitors
Side VESA Plate (J) Installation
Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of
the mount. Attach Side VESA Plates (J) to remaining monitors. Secure using M4x12mm
Screws (M-A).
M-A
M-A
J
K
NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
S-D
T-B A
8
STEP 4b - Curved/Recessed Back Monitors
Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of
the mount. Attach Side VESA Plates (J) to remaining monitors. Secure using M4 Spacers
(M-C), M4x30mm Screws (M-B) and a Phillips screwdriver.
Center VESA Plate (K) Installation Side VESA Plate (J) Installation
M-BM-B
K
M-C
M-C
J
STEP 5
C1
C
S-H
Slide the center monitor onto the Center Head (C1) of Monitor Arm (C). Install M4x6mm
Screws (S-E) to secure the monitor.
9
STEP 6
Slide the outer monitors onto Outer VESA Heads (C2).
Secure with Cap Nut (S-I).
C2
S-I
Adjust Monitor Tilt
Pry o Plastic Covers (C3) from the Outer VESA Heads (C2).
The exposed nut on the side is used to adjust the tilt. Tighten
the nut using Wrench (T-D) to adjust.
Replace Plastic Covers (C3).
To adjust center monitor swivel or tilt,
use 3mm Allen Wrench (T-A) to loosen
center set screw on the Center Head
(C1), as shown at le.
C3
T-D
C2
T-A
C1
10
Adjust Monitor Height
To adjust center monitor height, turn
the screw behind Center Head (C1)
using the 5mm Allen Wrench (T-B).
To level the side monitors,
remove the Cap Nut (S-I) and
turn the inner bolt with the 3mm
Allen Wrench (T-A) to raise or
lower the monitor. Replace Nut
aer the adjustment.
T-A
C1
T-A
Cable Management
Manage cables using Cable Clips (M) on assembled arms. Remove the split cap from the
Pole (A) and feed cables through, pulling ends out from the opening in back. Replace the
split cap when finished.
