Electric Flip Down Ceiling TV Mount

Follow along step-by-step with our video walk through by scanning

the QR code with your mobile device or by following the product

link: vivo-us.com/products/mount-e-fd70

Instruction Manual

SKU: MOUNT-E-FD70/W

ASSEMBLY VIDEO AVAILABLE:

[email protected]om www.vivo-us.com

309-278-5303

PERSONABLE CUSTOMER SUPPORT

Our friendly product support team is here to help!

DO NOT RETURN ITEM

We’re Here for You!

Missing a Part?

Our customer-minded support team is here for YOU,

Monday-Friday 7am-7pm CST.

We oer immediate assistance with rapid response times

from customer service agents and product techncians to

help you every step of the way!

Monday-Friday

Chat Us:

www.vivo-us.com

Give us a Call:

309-278-5303

Email Us:

[email protected]om

If any parts are received damaged / defective OR you are

missing a part, please reach out to us within 30 days of

product delivery to have it replaced at no cost.

We are happy to replace parts to ensure you have a fully

functioning product

7AM - 7PM

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a qualified

technician. Check carefully to make sure there are no missing

or defective parts. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We

cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

PRE-ASSEMBLY | BEFORE YOU BEGIN

Product Warranty

Returns | Product Didn’t Work Out?

For the most up to date details on your product’s warranty, please visit

the product’s listing on our website or reach out to customer support.

vivo-us.com/products/mount-e-fd70

We oer a hassle-free 30 day return on all products. Contact customer

support at 309-278-5303 or [email protected]om. Please note: For items

ordered in error or no longer needed, the return shipping charges will

be at the buyer’s expense.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS

REQUIRED.

WEIGHT CAPACITY

DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury.

77lbs

(35kg)

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD

STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please

PACKAGE CONTENTS

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

M-G (x8)

Small Spacer

M-E (x4)

M8x50mm Screw

M-A (x4)

M5x14mm Screw

M-B (x4)

M6x14mm Screw

M-C (x4)

M6x30mm Screw

M-F (x4)

Square Washer

M-D (x4)

M8x30mm Screw

Please consult the parts list below and ensure you have everything you need to assemble

your product. If parts are missing or damaged, please contact us.

Phillips Screwdriver

TOOLS NEEDED:

A (x1)

Mount

B(x1)

Center Plate

C(x1)

Celing Template

H(x1)

Remote

D (x2)

Decorative Cover

E (x2)

VESA Bracket

F (x2)

Bracket Rail

G (x1)

AC Adapter

DIFFICULTY LEVEL

Drill Pencil

M-H (x8)

Large Spacer

W-A (x6)

ST6.3x55mm

Screw

W-B (x6)

Concrete Anchor

W-C (x4)

Washer

I(x4)

Cable Tie

J(x2)

Leveling Knob

T-A (x1)

3mm Allen Wrench

S-A (x4)

Set Screw

S-B (x4)

M6x25mm Screw

S-C (x4)

M6 Washer

S-D (x4)

M6 Nut

S-E (x4)

M4x8mm Screw

Wrench

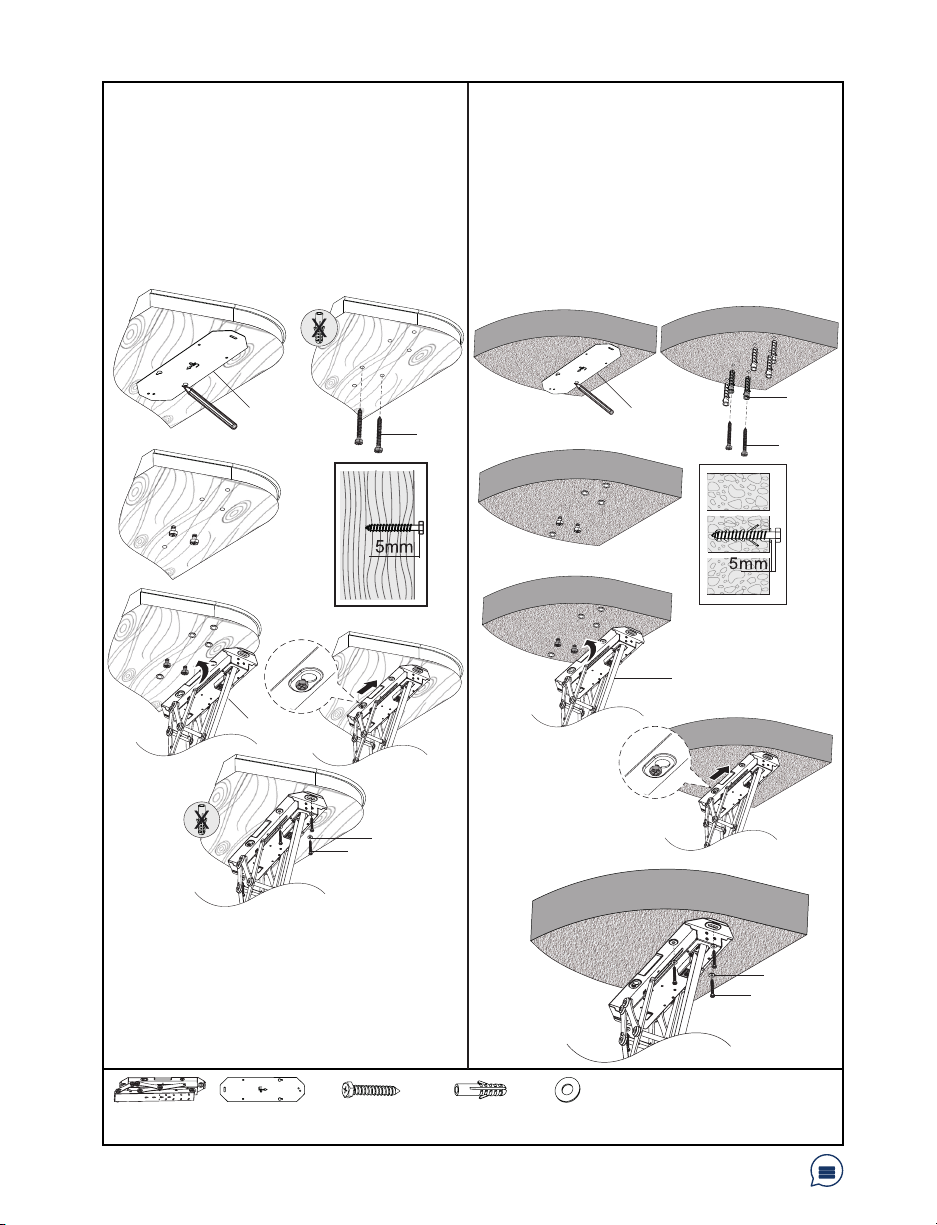

STEP 1: Installing the Mount

OPTION A: Wood Ceiling

Using Ceiling Template (C), mark exact location

of mounting holes. Drill pilot holes 2.2” deep

using a 4.5mm drill bit. Insert two ST6.3x55mm

Screws (W-A), leaving a 5mm gap from ceiling.

Hang Mount (A) so that the screws fit into the

keyhole openings. Slide Mount (A) backward,

then secure using additional ST6.3x55mm

Screws (W-A) with Washers (W-C).

W-A (x6)

ST6.3x55mm Screw

W-B (x6)

Concrete Anchor

Have a question? Give us a quick call / chat!

309-278-5303 or vivo-us.com

ASSEMBLY STEPS

W-C (x4)

Washer

NOTE: If mounting to a wood beam ceiling,

ensure the front and back holes are used

for the main support if mount is in line with

the beam. If perpendicular to the beam, use

keyhole openings for the main support. Do

NOT use included Concrete Anchors (W-B) for

wood or drywall.

OPTION B: Concrete Ceiling

Using Ceiling Template (C), mark exact location

of mounting holes. Drill pilot holes 2.4” deep,

using a 10mm drill bit. Insert six Anchors (W-B),

then tighten two ST6.3x55mm Screws (W-A),

leaving a 5mm gap from ceiling. Hang Mount (A)

so that the screws fit into the keyhole openings.

Slide Mount (A) backward, then secure using

additional ST6.3x55mm Screws (W-A) with

Washers (W-C). Tighten all screws.

C (x1)

Template

A(x1)

Mount

W-A W-A

W-B

W-C

W-A

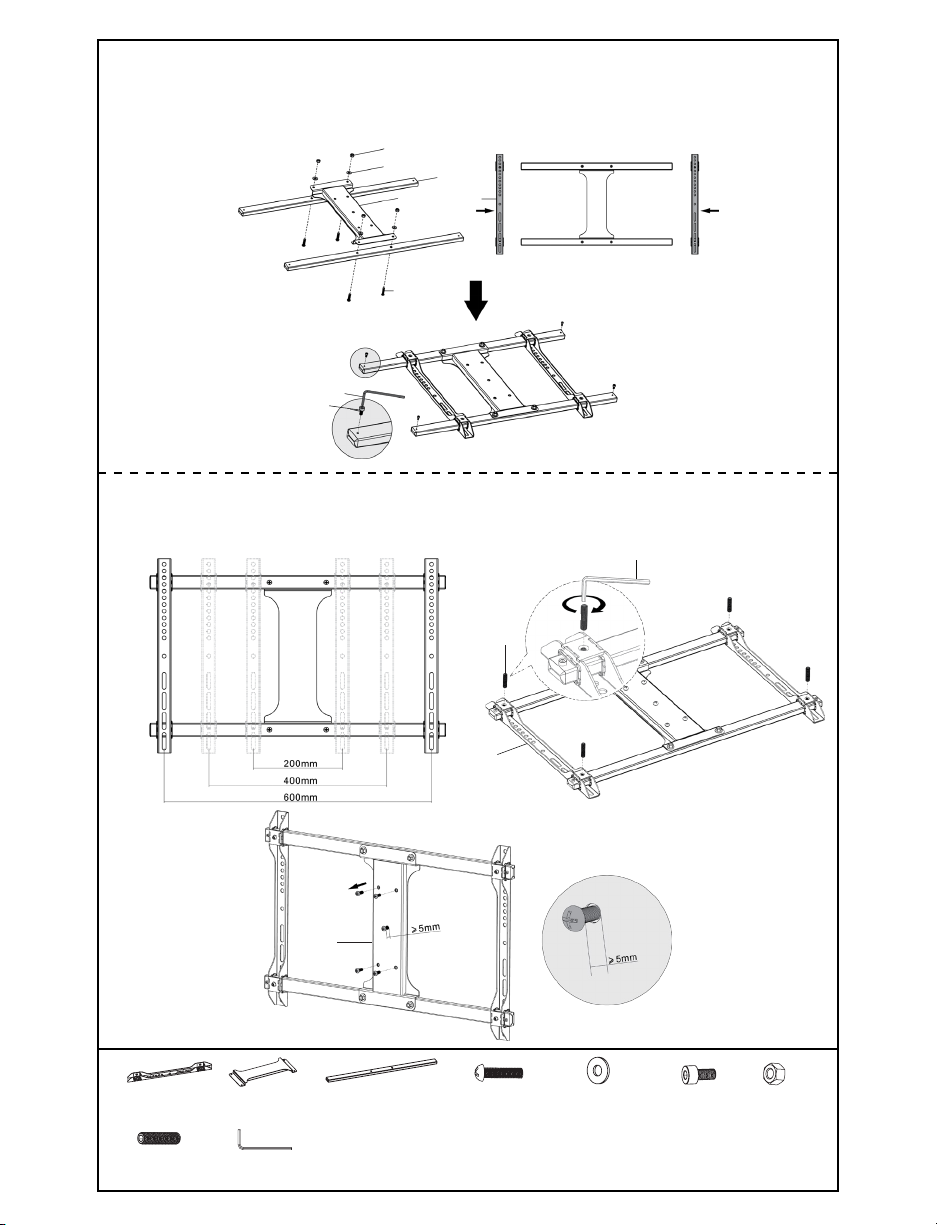

STEP 2: Assembling VESA Components

Assemble Bracket Rails (F) to Center Plate (C) using M6x25mm Screws (S-B), M6 Washers (S-C)

and M6 Nuts (S-D). While holding M6 Nuts (S-D) with a wrench, use a Phillips screwdriver to

tighten M6x25mm Screws (S-B). Slide VESA Brackets (E) onto Bracket Rails (F) and secure using

M4x8m Screws (S-E) and 3mm Allen Wrench (T-A).

S-D

S-C

E (x2)

VESA Bracket

B (x1)

Center Plate

F (x2)

Bracket Rail

S-B (x4)

M6x25mm Screw

S-C (x4)

M6 Washer

S-E (x4)

M4x8mm Screw

T-A (x1)

3mm Allen Wrench

S-D (x4)

M6 Nut

T-A

S-E

Adjust VESA Brackets (E) spacing to match TV mounting holes, and lock in place using Set

Screw (S-A) and 3mm Allen Wrench (T-A). Remove the four pre-installed screws from Center

Plate (B) and loosen the center screw until 5mm of thread is exposed.

S-A (x4)

Set Screw

S-A

S-B

T-A

STEP 3: Mounting VESA Assembly

Have a question? Give us a quick call / chat!

309-278-5303 or vivo-us.com

OPTION A: Flat Back TV

Align the VESA bracket assembly with the mounting holes in the back of the TV screen. Install

assembly to TV using appropriate screws (M-A, M-B) and Square Washers (M-F) according to your

screen’s requirements.

M-A M-B

M-F M-F

OPTION B: Curved/Recessed Back TV

Align the VESA bracket assembly with the mounting holes in the back of the TV screen. Install

assembly to TV using appropriate screws (M-C, M-D, M-E), Square Washers (M-F) and Spacers

(M-G, M-H) according to your screen’s requirements.

M-C

M-D

M-G

M-H

M-F

M-E

M-G

M-H

M-G (x8)

Small Spacer

M-E (x4)

M8x50mm Screw

M-A (x4)

M5x14mm Screw M-B (x4)

M6x14mm Screw

M-C (x4)

M6x30mm Screw

M-F (x4)

Square Washer

M-D (x4)

M8x30mm Screw

M-H (x8)

Large Spacer

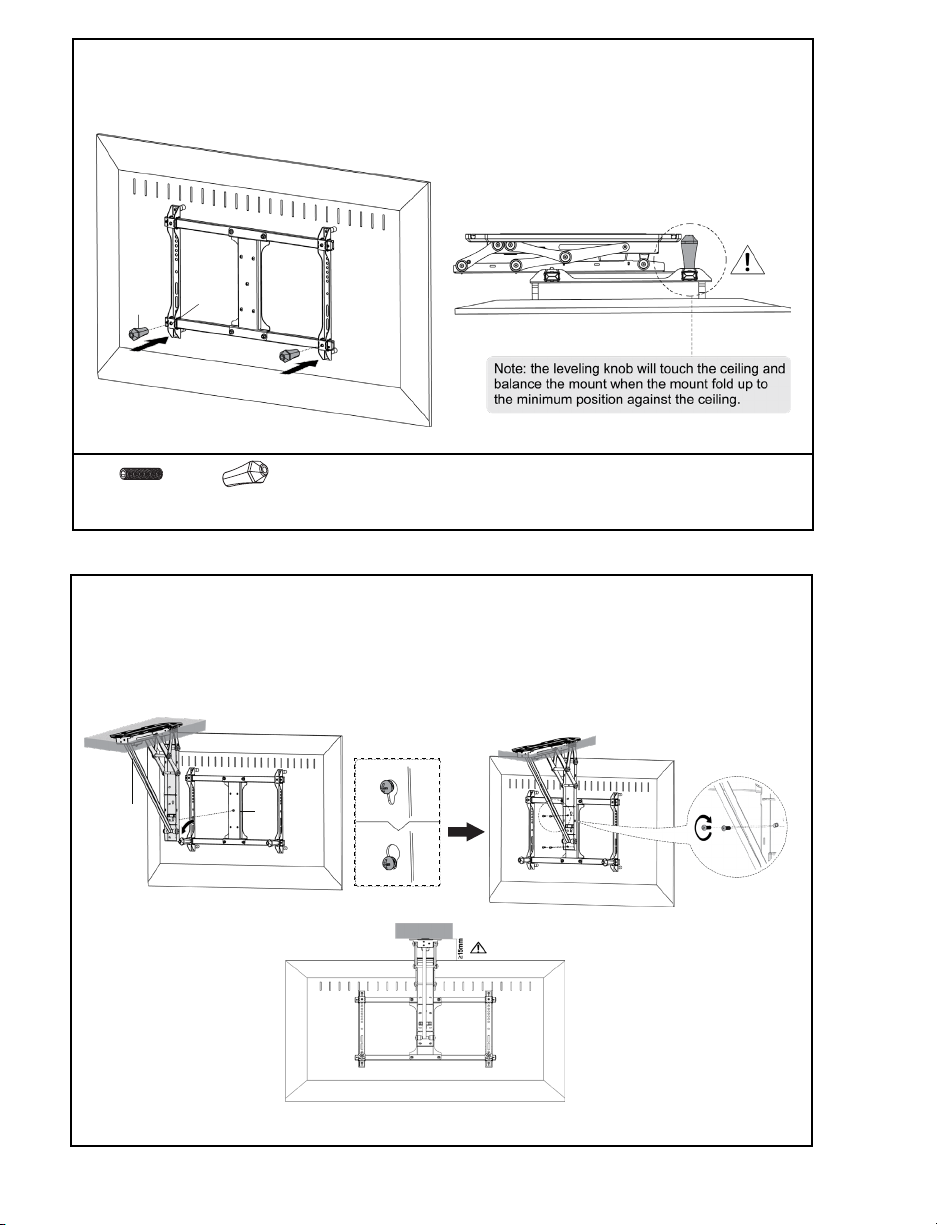

STEP 4: Attach Leveling Knobs (Optional)

STEP 5: Place TV on Mount

Attach Leveling Knobs (J) to the lower two Set Screws (S-A) as shown. This will ensure the TV is

perfectly level with the ceiling when raised.

J(x2)

Leveling Knob

S-A (x4)

Set Screw

Place the TV with VESA bracket assembly on Mount (A) by inserting the center screw on Center

Plate (B) into the keyhole on Mount (A) at the desired height. Secure using previously removed

screws (STEP 2) and tighten with a Phillips screwdriver. Clearance between the ceiling and top

edge of TV should be no less than 15mm when TV is in the fully lowered position.

S-A

Have a question? Give us a quick call / chat!

309-278-5303 or vivo-us.com

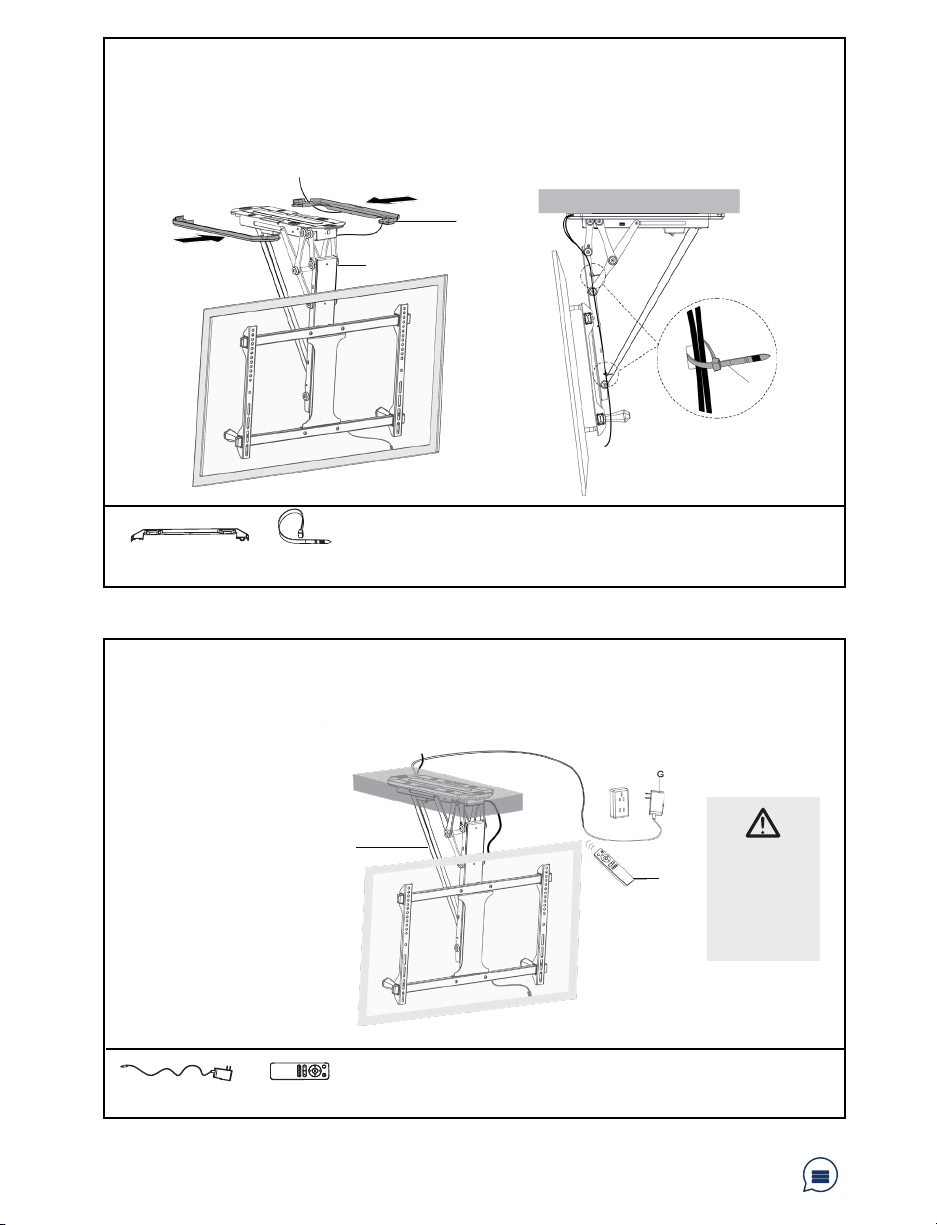

STEP 6: Manage Cables

STEP 7: Connect AC Adapter

Run cables along edge of Mount (A). Allow slack in cables for arm movement. Place Decorative

Covers (D) over cables and snap into place. Next, using Cable Ties (I) to fasten cables to the side

of the arm.

NOTE: Keep cables clear from inside of arm to avoid damage due to pinching.

D (x2)

Decorative Cover

I(x4)

Cable Tie

Plug AC Adapter (G) into Mount (A), and connect to AC outlet. Follow Remote (H) instructions for

operation.

NOTE: Plugging power supply into AC outlet prior to the mount may cause a large spark when

connecting to the mount.

Do not open the

electrical cover.

Never operate

the unit without

a TV installed

H(x1)

Remote

G (x1)

AC Adapter
