Vivo STAND-V155M Bedienungsanleitung
Articulating Arm Single TV Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v155m
SKU: STAND-V155M
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
TOOLS NEEDED
44lbs
(20kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
Base
B (x1)
Top Pole
C (x1)
Bottom Pole
J (x1)
Lower Clamp
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product for
any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot
be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate
use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
N (x1)
Pole Cable Clip
E (x1)
Support Plate
F (x1)
Grommet Plate
G (x1)
Pad
H (x1)
Cover
I (x1)
Clamp Brace
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
D (x1)
Arm
M-A (x4)
M6x14mm
Screw
M-B (x4)
M8x16mm
Screw
M-C (x4)
M6x30mm
Screw
K (x2)
VESA Adapter
Set
M-F (x4)
Small Spacer
M-D (x4)
M8x35mm
Screw
M-E (x4)
M8 Washer
M (x1)
Arm Cable Clip
L (x1)
Arm Clamp
M-G (x4)
Large Spacer
S-A (x2)
M10x63mm
Screw
S-C (x2)
M8x55mm
Screw
S-D (x8)
M6x8mm
Screw
S-E (x2)
M8 Nut
T-A (x1)
4mm Allen
Wrench
T-B (x1)
6mm Allen
Wrench
T-C (x1)
Wrench
S-B (x4)
M6x12mm
Screw
3
ASSEMBLY STEPS
STEP 1 (Option A)
Clamp Installation:
Assemble Clamp Brace (I) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A).
Remove adhesive backing from Pad (G) and place it on the underside of the clamp assembly.
STEP 2 (Option A)
Clamp Installation:
Insert M10x63mm Screws (S-A) into Lower Clamp (J) using 6mm Allen Wrench (T-B). Loosen the screws
on the back of Lower Clamp (J) so that 6mm of threads are exposed using 4mm Allen Wrench (T-A).
Assemble Lower Clamp (J) to Clamp Brace (I) in one of two position as shown below, depending on the
thickness of the desktop. Tighten screws using 4mm Allen Wrench (T-A).
S-A
J
T-B
T-A I
T-A
I
A
S-B T-A
G
4

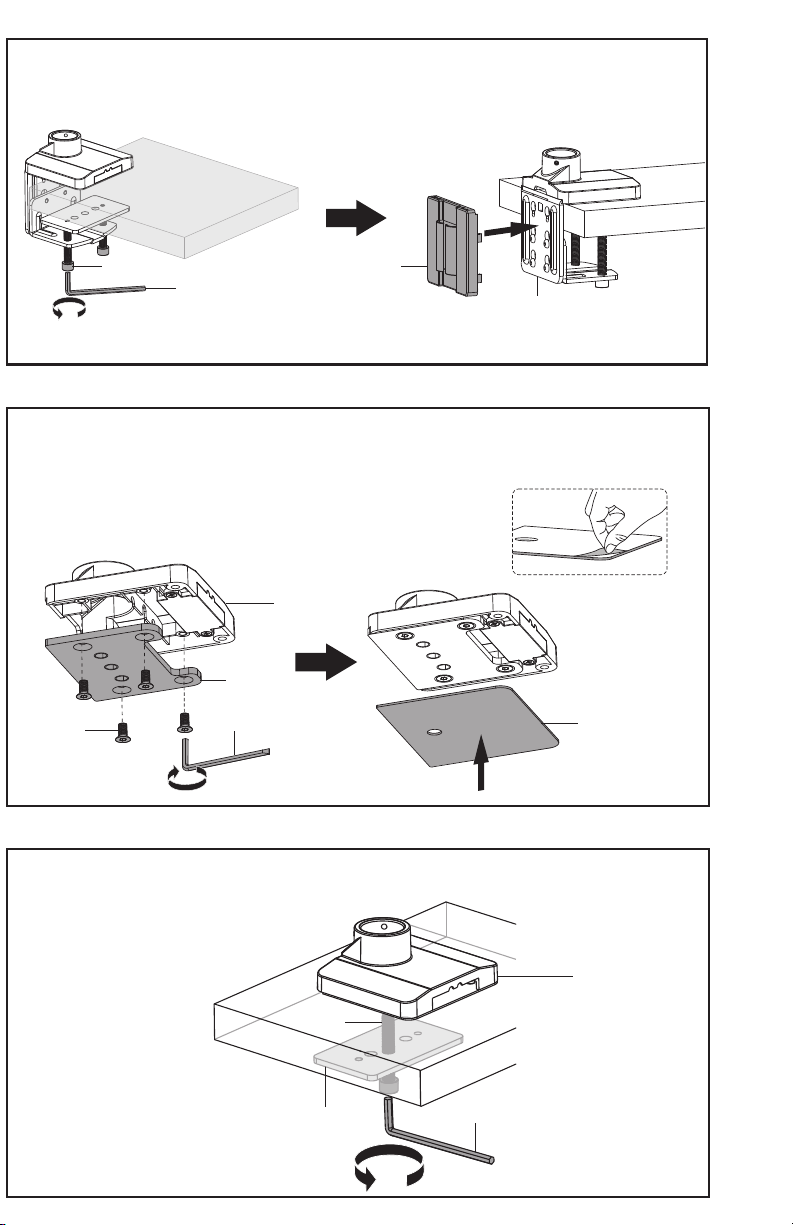

STEP 2 (Option A Continued)
Clamp Installation:
Secure the clamp assembly to the desktop by tightening M10x63mm Screws (S-A) using 6mm Allen
Wrench (T-B). Place Cover (H) over the back of Clamp Brace (I).
STEP 1 (Option B)
Grommet Installation:
Assemble Grommet Plate (F) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A).
Remove adhesive backing from Pad (G) and place it on the underside of the assembly.
STEP 2 (Option B)
Grommet Installation:
Install Base (A) to an existing grommet hole in the desktop using Support Plate (E) with M10x63mm
Screw (S-A) and 6mm Allen Wrench (T-B).
A
E
S-A
T-B
F
A
S-B T-A G
S-A
T-B
H
I
5
STEP 5
Assemble Arm (D) to the pole assembly using Arm Clamp (L) with M8x55mm Screws (S-C) and M8 Nuts
(S-E). Tighten using 6mm Allen Wrench (T-B). Attach Arm Cable Clip (M) to Arm (D).
STEP 3
Remove the nuts on the back of the VESA plate on Arm (D) use Wrench (T-C) and remove the plate.
STEP 4
Thread Bottom Pole (C) into Top Pole (B). Thread the pole assembly onto Base (A) with Pole Cable Clip
(N). Tighten the set screws in the bottom of Base (A) using the flat end of 4mm Allen Wrench (T-A).
D
L
S-C
S-E
T-B M
D
T-C
C
B
N
A
T-A
6
Install VESA Adapter Set (K) to the previously removed VESA Plate using M6x8mm Screws (S-D) in the
appropriate configuration based on your TV’s VESA pattern.
STEP 6
Secure the VESA plate assembly to the back of the TV using Screws (M-A through M-D) with M8 Washers
(M-E). Spacers (M-F, M-G) may be required. Tighten screws using a Phillips screwdriver.
STEP 7
K
S-D
7
STEP 8
Secure the VESA plate assembly to Arm (D) using the previously removed nuts and washers.
Tighten the nuts using Wrench (T-C).
STEP 9
Adjust the tilt using 4mm Allen Wrench (T-A).
STEP 10
Route cables through Arm Cable Clip (M) and Pole Cable Clip (N).
T-A
M
N
DT-C
LAST UPDATED: 07/26/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
