Vivo MOUNT-SPSB3 Bedienungsanleitung
Universal Soundbar Speaker TV Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-spsb3
SKU: MOUNT-SPSB3
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
TOOLS NEEDED
22lbs
(9.97kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
Crossbar
B(x2)
VESA Bracket
C(x2)
Spacer
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
Drill
D(x1)
Le Extension
E (x1)
Right Extension
F (x8)
M6 Nut
G (x2)
M8 Nut
H(x2)
Mounting Bracket
I(x2)
M8x18
J(x1)
Wrench
K (x1)
5mm Allen
Wrench
M-A (x2)
M4x16
M-B (x2)
M5x16
M-C (x4)
M6x16
M-D (x2)
M8x20
M-E (x2)
M6x12
M-F (x2)
M6 Nut
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
STEP 1
Measure the distance between mounting holes on your soundbar.
STEP 2
If the soundbar mounting hole distance is greater than the width of the crossbar (A), attach le
and right extensions (D, E) to ends of crossbar using M6 nuts (F). Attach mounting brackets (H) to
extensions at correct spacing to match soundbar using M6 nuts. Tighten using wrench (J).
X
Y
A
H
F
J
or
X> Y
H
F
J
D
E
Y
A
or
4

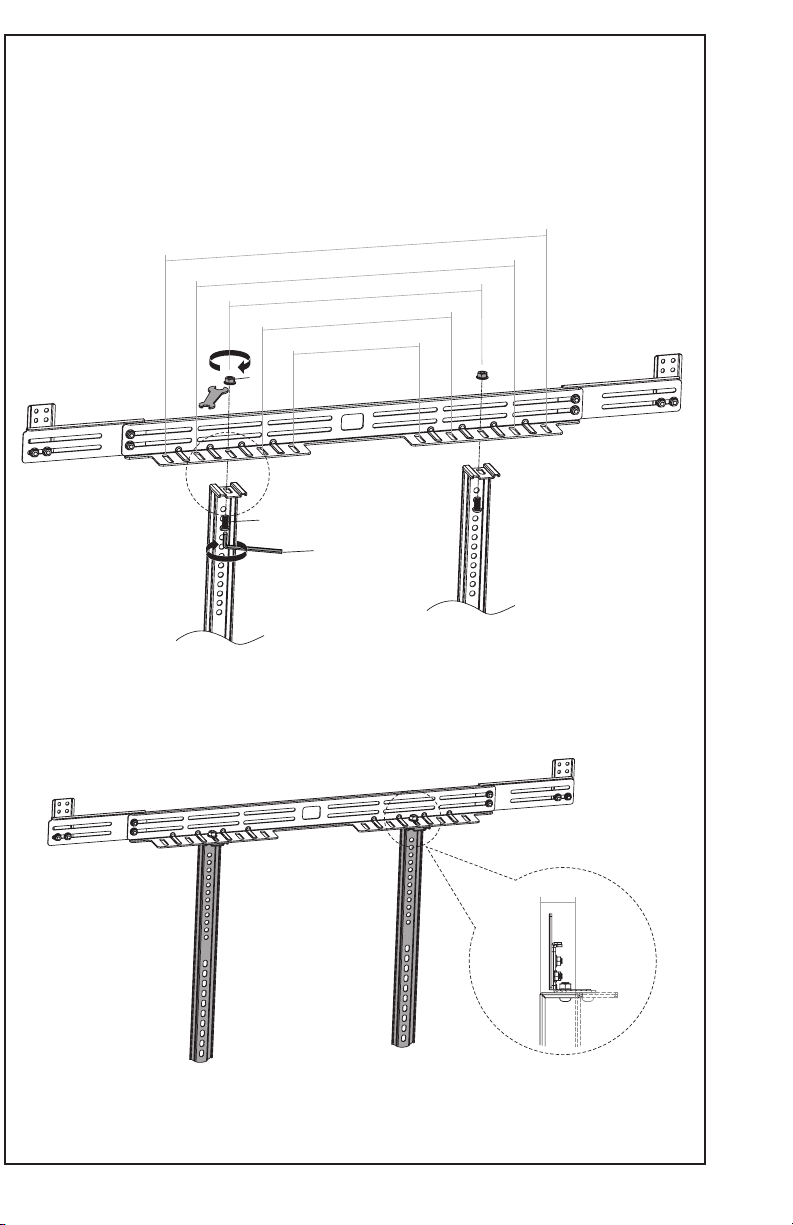

STEP 3
Attach VESA brackets (B) to crossbar at correct spacing to match TV mounting holes using M8 nuts (G)
and M8x18 bolts (I) and tighten with the wrench (J) and Allen wrench (K).
G
I
K
vesa 200
vesa 300
vesa 400
vesa 500
ves a 60 0
42m m
5

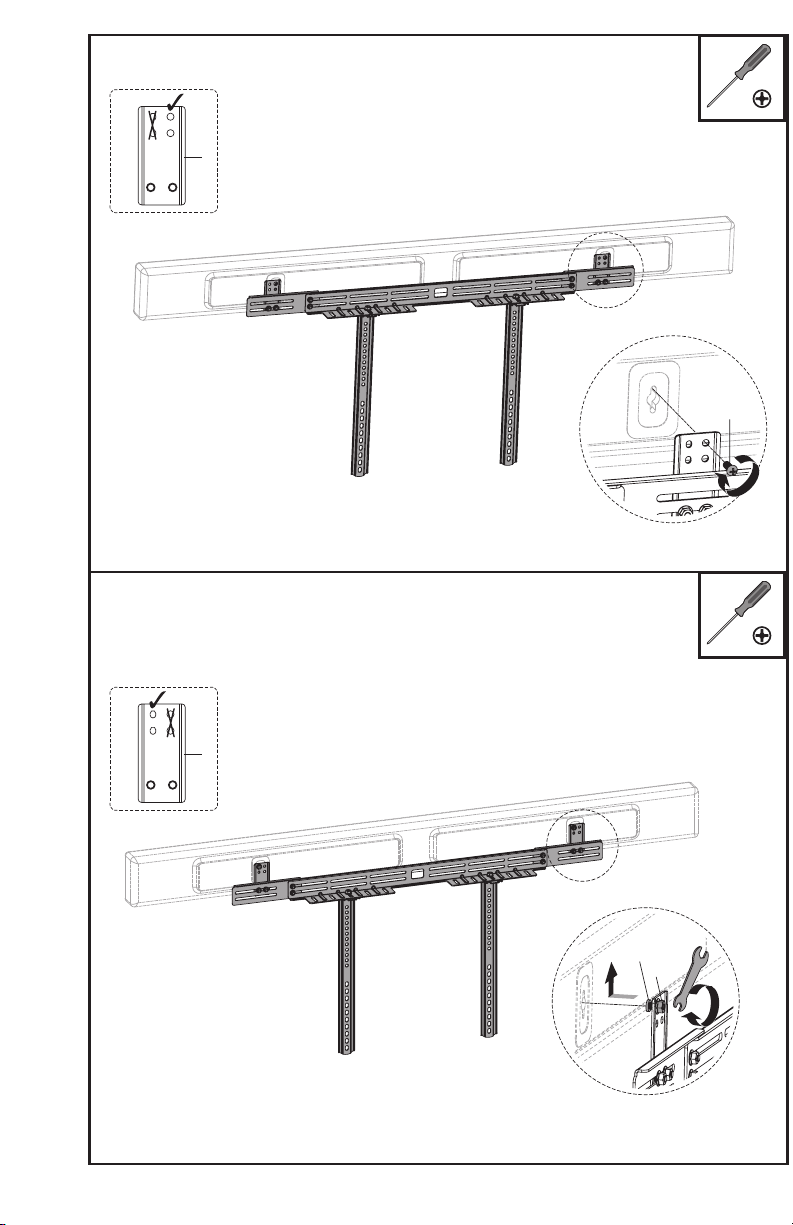

STEP 4
If your soundbar uses slots for mounting, loosely install M6x12 screws (M-E) to assembled
bracket with M6 nuts (M-F). Insert screw heads fully into slots of soundbar, and tighten
nuts with the wrench.
Mount soundbar to assembled bracket using screws (M-A, M-B, M-C) as shown.
M- A
M- B
M- C
H
M- E
M- F
H
6
STEP 5
OPTION A: Free Standing TV
For free standing TV, mount soundbar above TV using bolts (M-C, M-D) in top two VESA
mounting holes on back of TV.
OPTION B: Wall Mounted TV
For wall mounting, set the TV face down on a flat surface. Place soundbar with bracket
over/under TV with mounting holes in bracket aligned with holes in TV. Place spacers (C)
over other two holes in TV, then attach VESA bracket(s) from your wall mount to TV with
soundbar using the hardware included with your wall mount.
C
7

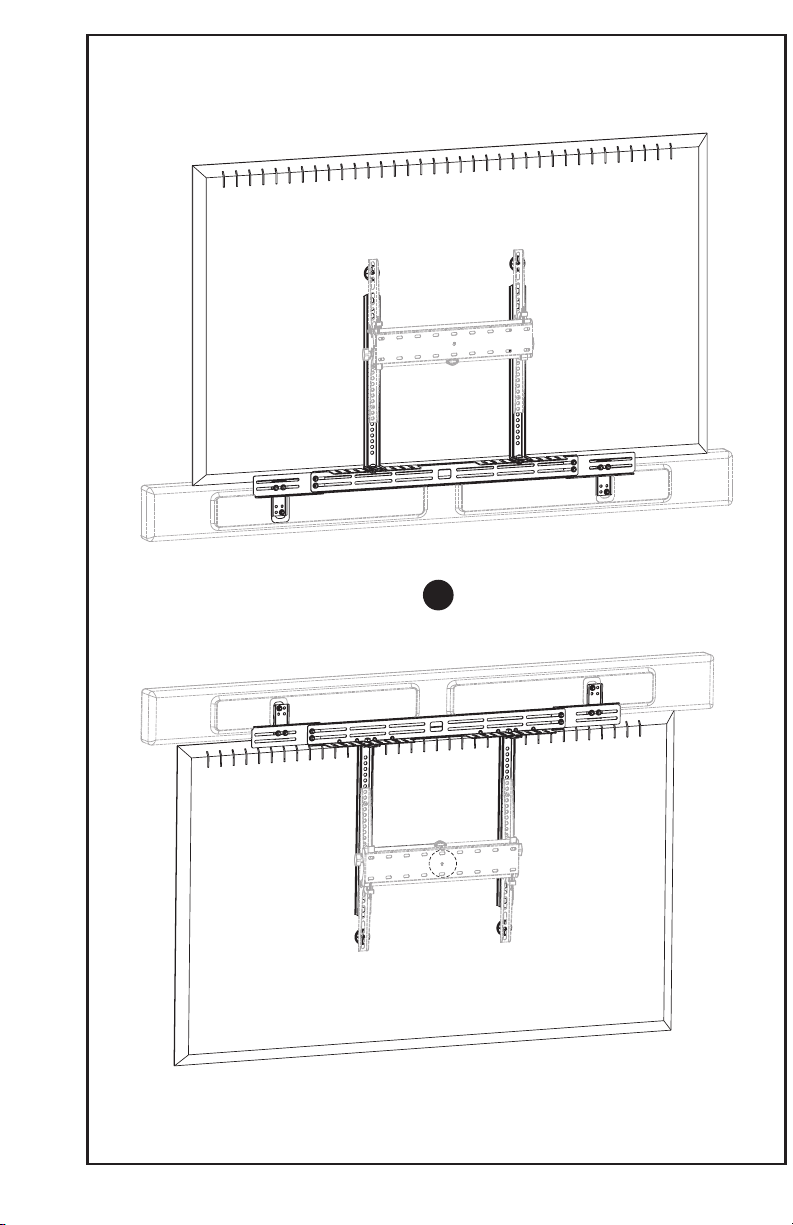

STEP 5 (Continued)
Attach TV with soundbar and VESA brackets to your wall mount.
or
LAST UPDATED: 03/05/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
