Vivo MOUNT VW01 Bedienungsanleitung

T Wall Mount

Instruction Manual

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-Model MOUNT W01

Tool Required

phillips screwdriver

Package Content

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

(x1)

(x2)

(x1)

(x8)

-W A

(x3)

-W B

(x3)

-W C

(x3)

-M A

M4x14 (x4)

-M B

M5x14 (x4)

-M C

M6x14 (x4)

-M D

M8x2 (x4)

-M

D5 (x4)

-M F

D8 (x4)

-M G

D5 (x8)

Aembl( Step

Step 1

Option A Wood Wall Mounting

Option B Concrete/Brick Wall Mounting

Use mount (A) to mark mounting holes on wall where stud is

located. Using a 3/16” bit, drill approximately 2.2” into marked

locations. Secure mount (A) to wall using bolts (W-A) and

washers (W-C).

Use mount (A) to mark mounting holes on wall. Using a 3/8” bit,

drill approximately 2.4” into marked locations. Secure mount (A)

to wall using anchors (W-B) bolts (W-A) and washers (W-C).

1 2

Step 2

Attach plastic cover to mount (A).

Step 3

Attach cable management clip (F) as shown in diagram.

Step 5

After placing TV on a flat surface, mount VESA plate (B) to back

using bolts (M-A, M-B, or M-C) and washers (M-E or M-F).

If bolts are too long, spacers (M-G) may be required.

Step 4

Mount VESA adapters (C) and (D) to VESA plate (B) using bolts

(J) and nuts (I) in the appropriate configuration to match your

televisions mounting holes.

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by improper

mounting, incorrect assembly, or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safet( Warning

Contact u at

Last updated: 04.24.18

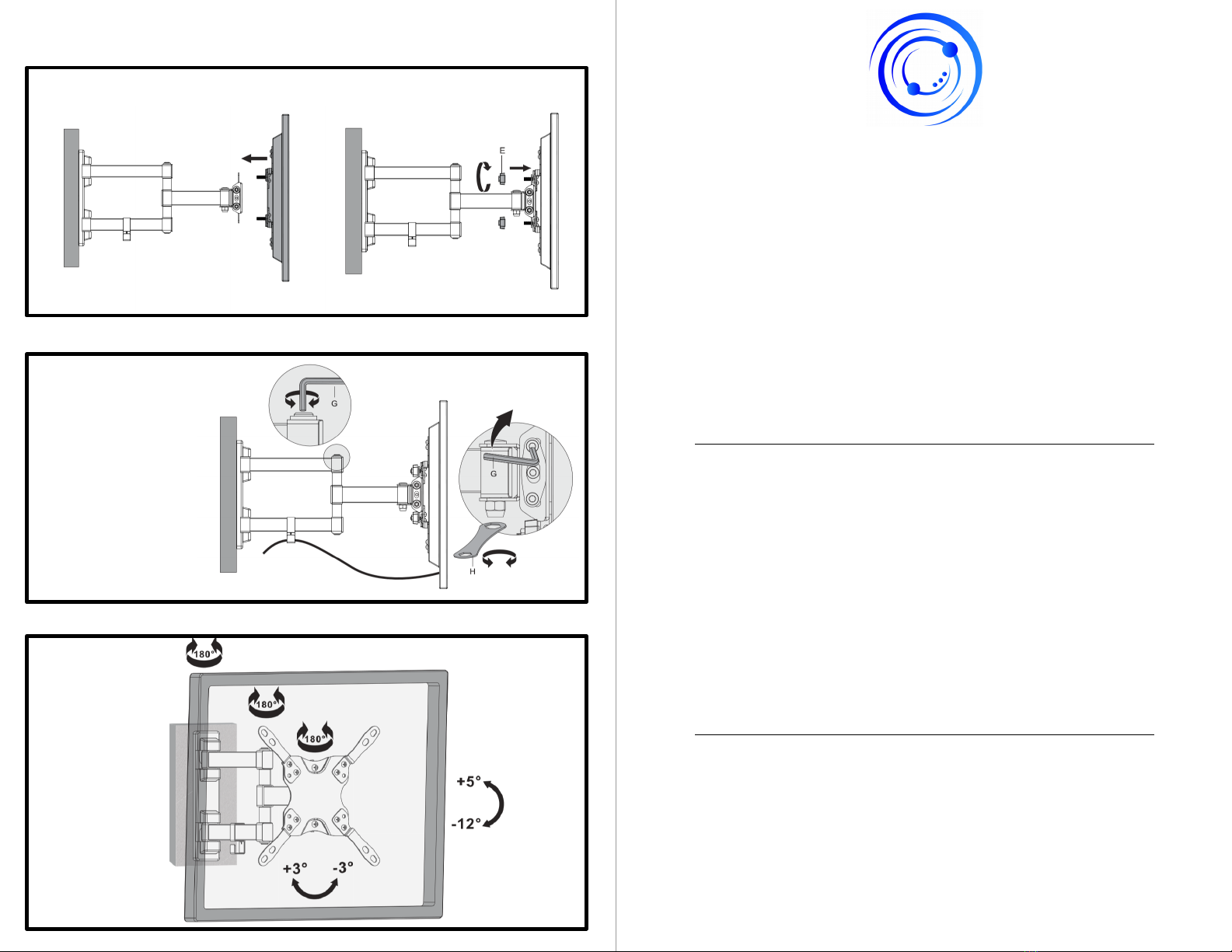

Attach TV to mount (A) using nuts (E) as shown in diagram.

Step 6

Step 7

Adjust mount (A)

using allen key (G)

and wrench (H).

Adjut a Deired
