Vivo MOUNT-VW100T Bedienungsanleitung
TV Wall Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vw100t
SKU: MOUNT-VW100T
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
TOOLS NEEDED
165lbs
(75kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
Drill
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS
A (x1)
Mount
B (x2)
VESA Bracket
C (x2)
Knob
M-A (x4)
M6x14mm
Screw
M-B (x4)
M8x16mm
Screw
M-C (x4)
M6x30mm
Screw
M-D (x4)
M8x35mm
Screw
M-E (x4)
M8 Washer
M-F (x4)
Small Spacer
M-G (x4)
Large Spacer
W-A (x6)
Mounting
Screw
W-B (x6)
Concrete
Anchor
W-C (x6)
Washer
T-A (x1)
Bubble Level
3
ASSEMBLY STEPS
STEP 1
Remove nuts from VESA Brackets (B) and replace with Knobs (C).
B
C
x2
4
STEP 2
OPTION A: Wood Wall
Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where
studs are located. Using a 5/32” bit, drill approximately 2.2” into wall. Use Mounting Screws (W-A) and
Washers (W-C) to secure Mount (A) to the wall.
Use of Bubble Level (T-A)
is recommended.
T-A
A
W-C
W-A
5
STEP 2 (Continued)
OPTION B: Concrete/Brick Wall
Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where
studs are located Using a 3/8” bit, drill approximately 2.4” into wall. Insert Anchors (W-B) into holes
and secure Mount (A) to wall using Mounting Screws (W-A) and Washers (W-C).
T-A
A
Use of Bubble Level (T-A)
is recommended.
W-A
W-C
W-B
6

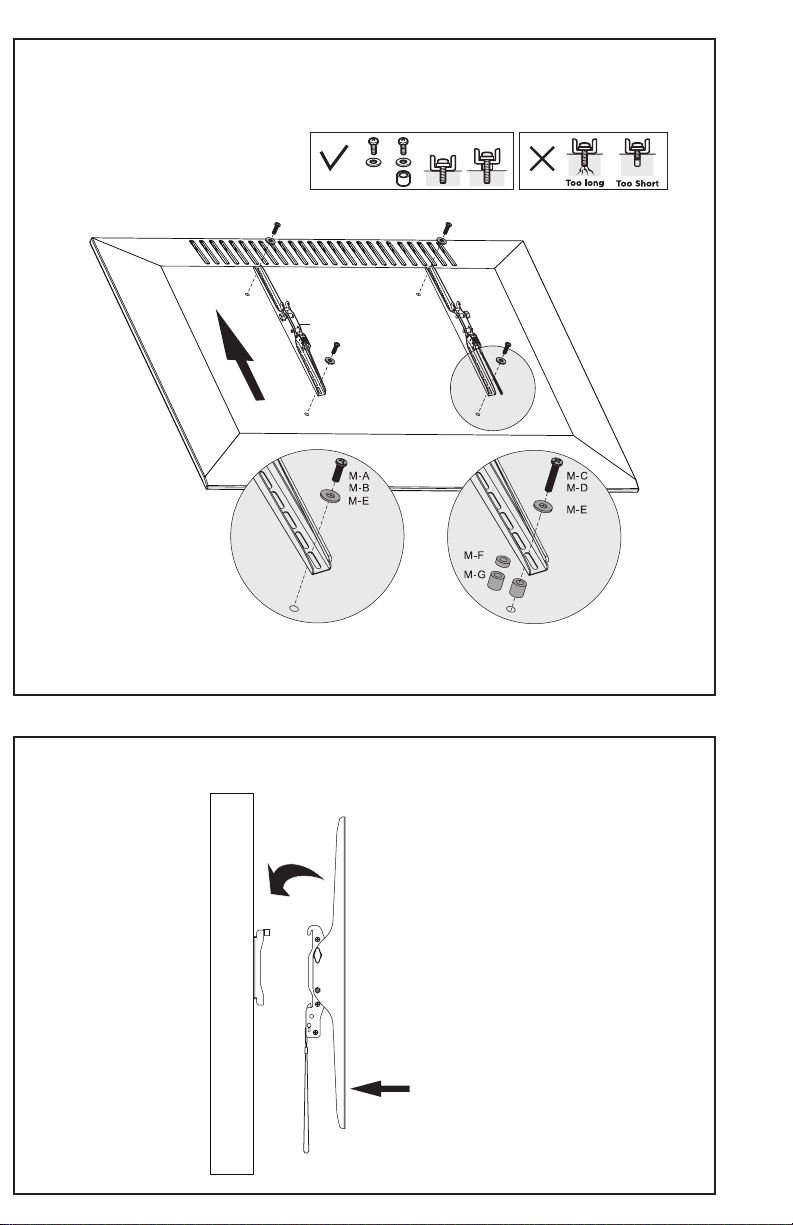

STEP 3
STEP 4
Attach TV to Mount (A) as shown below, making sure bottom of VESA Brackets (B) attached securely.
Mount VESA Brackets (B) to back of TV using appropriate Screws (M-A thru M-D), M8 Washers (M-E),
and a Phillips screwdriver. Spacers (M-F, M-G) are provided if needed. Makes sure straps are towards
the bottom of TV.
B
7
Adjustments
Adjustments
To remove, pull both straps down and li TV o of Mount (A).
TV angle can be adjusted as desired.
+5 °
-10°
LAST UPDATED: 02/10/2023
REV2
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
