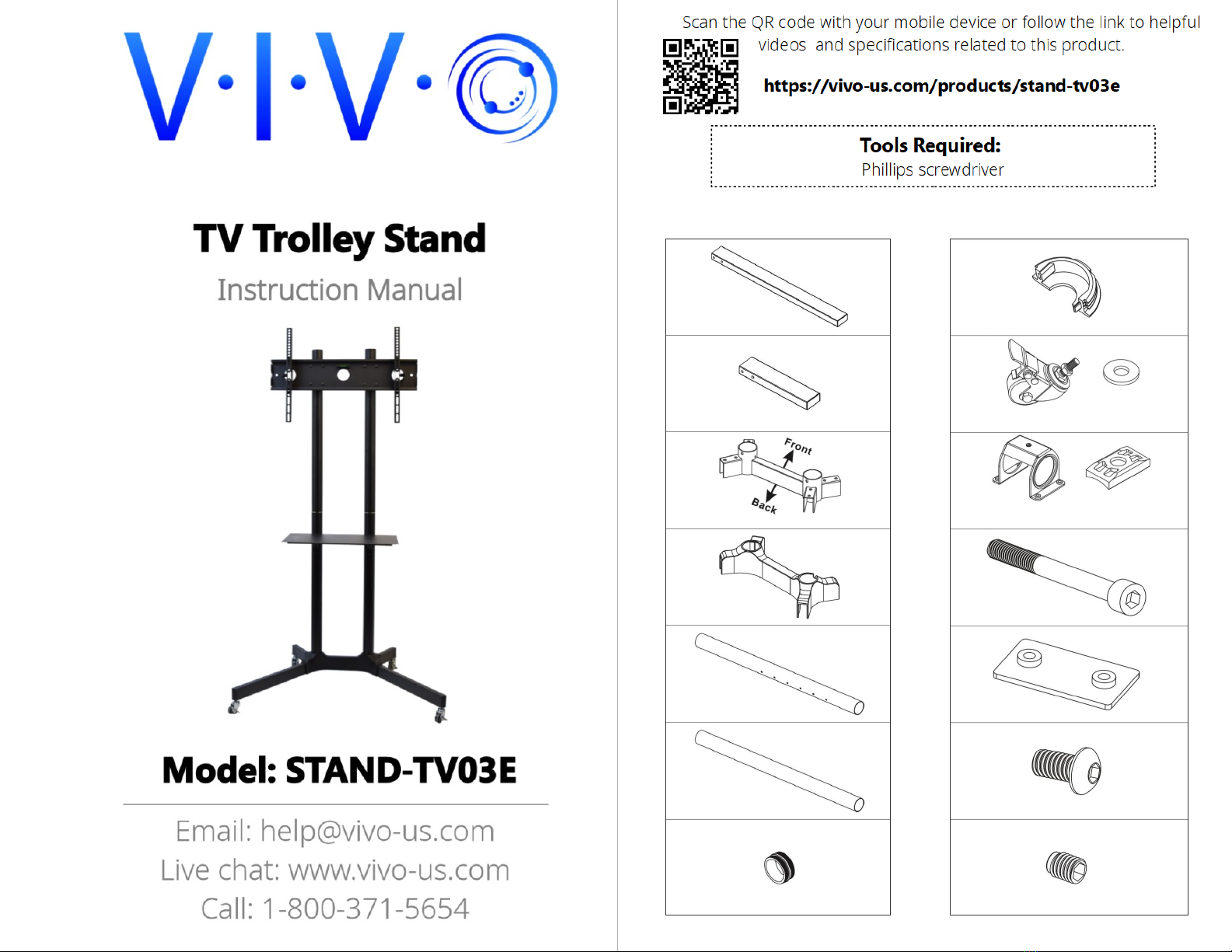

Vivo STAND-TV03E Bedienungsanleitung

Package Contents

- 1 Long

square tube

- 2 Short

square tube

- 3 Tube

connector

- 4 Tube connector

cover

- 5 Pole with shelf

- add on holes

- 6 Pole

without holes

- Pole

connector

QT: 2

QT: 1

QT: 2

- 8 Pole cover

- 9 Wheel & washer

- 10 Square

plate connector & rubber pad

- 11 M6x60

allen head bolt

- 12 M6

socket plate

- 13 M6x10

allen head bolt

- 14 M5x6

grub screw

QT: 4

QT: 2

QT: 8

QT: 4

QT: 14

QT: 2

- 15 Tool kit

- 16 Shelf

- 1 Shelf support

- 18 M4x6 countersink bolt

- 19 Square plate

- 20 TV arm set

- 21 M4x12 bolt M4x30 bolt

QT: 1

QT: 2

QT: 4

QT: 1

QT: 4

- 22 M6x20 bolt M6x35 bolt

- 24 M4 washer

- 25 M6 washer

- 26 M8 washer

- 28 M6/M8 spacer (5mm)

QT: 4

QT: 12

QT: 4

QT: 8

Package Contents (Continued)

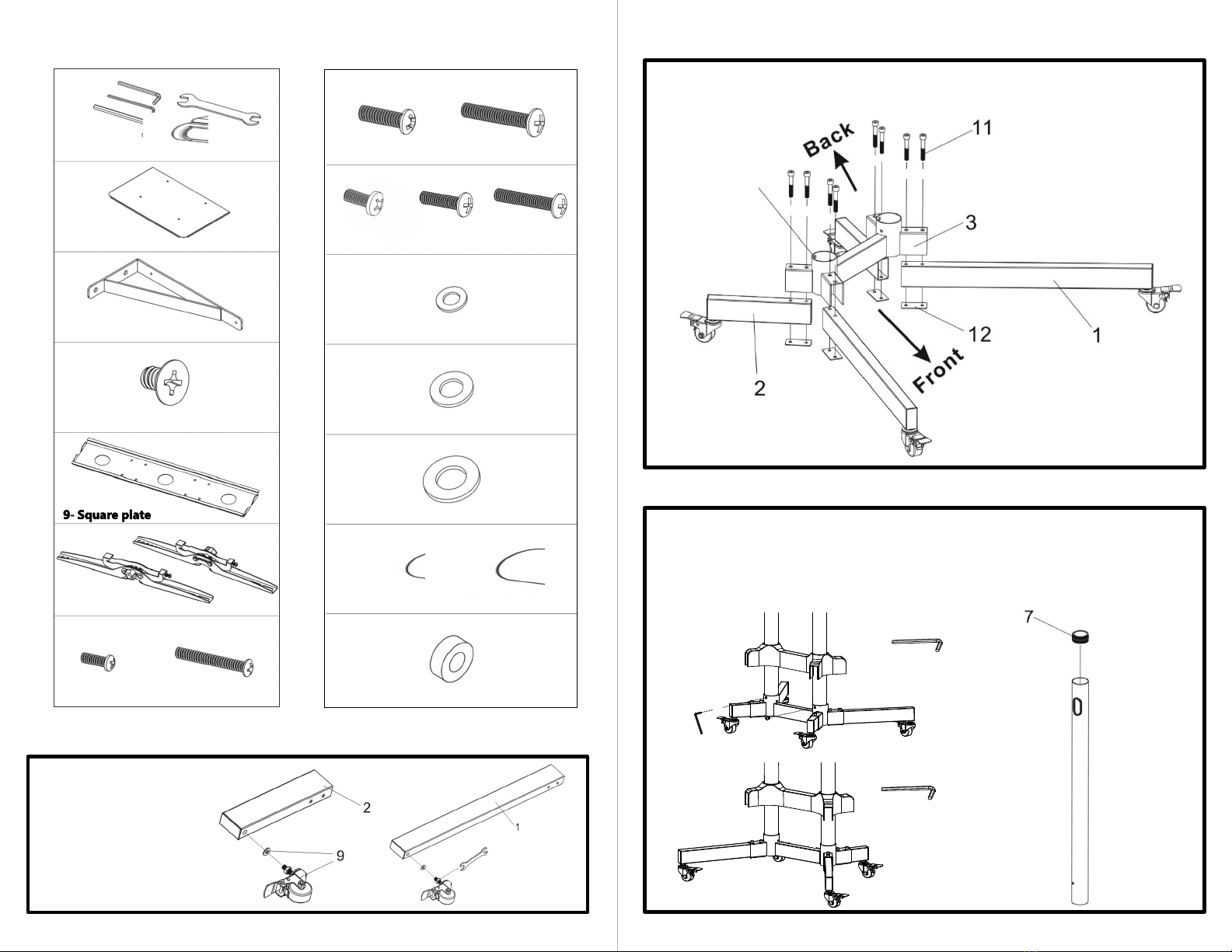

Step 1:

Attach wheels and

washers (9) to the

long and short

square tubing (1,2)

using the provided

wrench (15).

Assembly Steps

- 2 M4 spacer M6/M8 spacer (20mm)

- 23 M8x20 bolt M8x35 bolt M8x45 bolt

Step 2:

Attach the square tubing (1,2) to the tube connector (3) using M x 0 Allen

head bolt (11) and the M socket plate (12).

Step 3:

Attach the base poles (5) to the tube connector (3) using M x10 bolts (13) in

the back and M5x grub screws (14) in the sides. Thread on the pole

connectors (7) to the tops of each base pole (5). Use caution when threading

pole connectors. Threads are very fine and may have sharp edges.

Step 6:

Step :

a: Clip bubble level from tool kit (15)

onto the square plate (19). Adjust the

level of the square plate (19) by

loosening the grub screw in the back of

the square plate connector (10) using

tool kit (15). Tighten grub screws again

once you’ve reached desired height and

level.

b: Secure TV arm set (20) to the

back of your television using bolts

21-23 and washers 24-2 ,

depending on the size of the

mounting holes on the television.

For curved or recessed TVs, a

spacer may be required (27,28).

Attach the TV arm set (20) to the

square plate (19). Tighten the safety

bolts on the bottom of the TV arm

set (20) to secure the television to

the stand.

27, 28 21-23

24-26

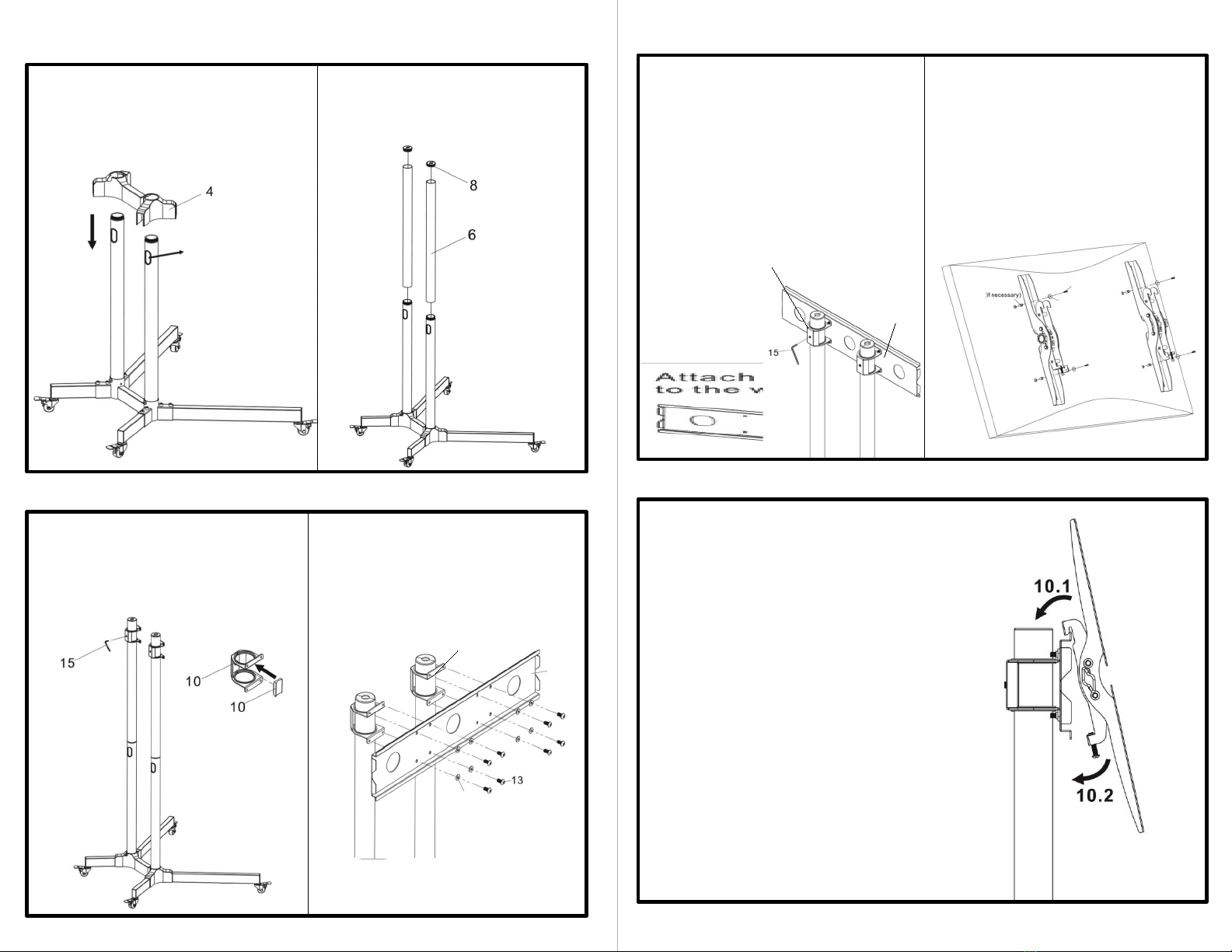

Step 4:

4a: Slide the tube connector cover

(4) over the base poles (5) and fit

over the tube connector (3).

Step 5:

5a: Slide the square plate connectors

and rubber pads (10) over the top of

the poles ( ) and tighten the grub

screw using tool kit (15).

4b: Thread the top poles ( ) to the

pole connectors (7) and insert the

pole covers (8) into the top.

5b: Attach the square plate (19) to

the square plate connectors (10)

with 8 x10 Allen head bolts (13)

and 8 M washers (25) using tool kit

(15).

If you do not understand these directions, or if you have

any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are

no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for

any purpose that is not explicitly specified in this manual.

We cannot be liable for damage or injury caused by

incorrect assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371-5 54

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please

have a fully functional product.

Safety Warning

Last updated: 5/15/2018

Step 8:

Step 9:

8a: If additional leveling and height

adjustment is required after

television is attached, repeat step .

8b: For wire management, cables

can be run through the tops of the

pole covers (8) and down through

the poles.

To attach the shelf (1 ), first attach the shelf supports (17) to the bottom

poles (5) using 4 M x10 Allen head bolts (13). Once secured, attach the shelf

(1 ) to the supports (17) using 4 M4x countersink bolts (18).

Option A

Option B
