Vivotek NR8201 Bedienungsanleitung

EN - 1

English

Power off the Network Video Recorder

as soon as it is found smoking or

smelt unusual.

Contact your distributor when such cases

happen.

Keep the Network Video Recorder

away from water. If the Network

Camera is wet, power off immediately.

Do not place the Network Video

Recorder around the heat sources,

such as television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Video Recorder

away from direct sunlight.

Do not place the Network

Video Recorder in high humid

environments.

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

PowerPoE

StatusHDD

NR8301NetworkVideoRecorder

WAN LAN1 LAN2 LAN3LAN4 LAN5LAN6 LAN7LAN8

PowerPoE

StatusHDD

NR8301NetworkVideo Recorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

PowerPoE

StatusHDD

NR8301NetworkVideo Recorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

PowerPoE

StatusHDD

NR8301NetworkVideoRecorder

Contact your distributor when such cases

happen.

Warning Before Installation

EN - 2

Do not place the Network Video

Recorder on unsteady surfaces.

Do not touch the Network Video

Recorder when it's lightening.

Do not drop the Network Video

Recorder.

Do not insert any object into the

Network Video Recorder, such as

needles.

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6LAN7 LAN8

PowerPoE

StatusHDD

NR8301NetworkVideoRecorder

WAN LAN1 LAN2LAN3 LAN4 LAN5LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301NetworkVideoRecorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301NetworkVideoRecorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

PowerPoE

StatusHDD

NR8301NetworkVideo Recorder

EN - 3

English

Software CD

NR8201 (4CH) or NR8301 (8CH)

Warranty Card

Rack Mount Kit

Quick Installation Guide

Power Cord

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301NetworkVideo Recorder

WAN LAN1 LAN2 LAN3 LAN4

Power PoE

Status HDD

NR8201Network Video Recorder

Package Contents

NR8201:

Rack Mount Ear x 2

Screws x 4 (Black)

Screws x 4 (Grey)

Key x 2

NR8301:

Rack Mount Ear x 2

Screws x 4 (Black)

Screws x 8 (Grey)

Key x 2

NR8201

NR8301

EN - 4

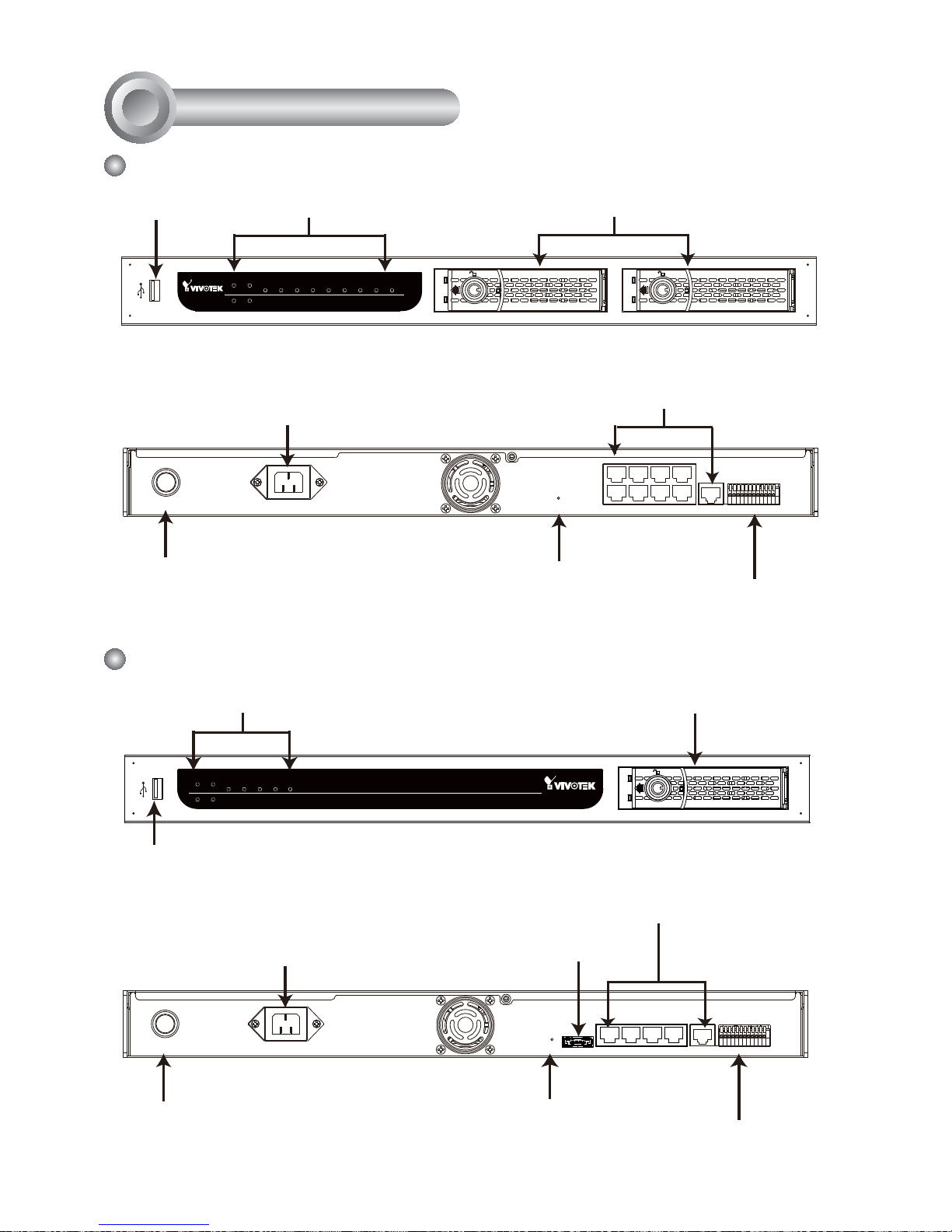

Physical Description

NR8301

NR8201

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

Power PoE

Status HDD

NR8301 Network Video Recorder

123456789101112

WAN

POWER AC IN 100V-240V

LAN8

LAN7

LAN6

LAN5

LAN4

LAN3

LAN2

LAN1

RESET

1 2 3 4 5 6 7 8 9 10 1112

WAN

POWER AC IN 100V-240V LAN7LAN5LAN3LAN1

RESET eSATA

WAN LAN1 LAN2 LAN3 LAN4

Power PoE

Status HDD

NR8201 Network Video Recorder

USB Socket Status Indicator

Power Cord Socket

Recessed Reset Button

Ethernet 10/100 RJ45 Socket x 8 (LAN);

Gigabit Ethernet RJ45 Socket x 1 (WAN)

General I/O Terminal Block

Removable & Lockable Hard Disk Trays x 2

Power Button

Power Cord Socket

Recessed Reset Button

General I/O Terminal Block

Power Button

eSATA Socket

USB Socket

Status Indicator Removable & Lockable Hard Disk Tray x 1

Ethernet 10/100 RJ45 Socket x 4 (LAN);

Gigabit Ethernet RJ45 Socket x 1 (WAN)

EN - 5

English

Before using the Network Video Recorder, please prepare SATA hard disk(s) for recording

video.

1. Make sure the power is off.

2. Secure the supplied rack mount ears if you want to use rack mount installation.

3. Loose the lock of the hard disk as shown below and take out the bracket.

4. Put your hard disk into the bracket, and secure it with the supplied four screws.

5. Loose the lock of the hard disk as shown below and insert your hard disk(s) into the

socket.

6. Use the supplied key to lock the hard disk socket(s) for security concern.

Hardware Installation

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301Network Video Recorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301Network Video Recorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

Power PoE

StatusHDD

NR8301Network Video Recorder

WAN LAN1 LAN2 LAN3 LAN4 LAN5 LAN6 LAN7 LAN8

PowerPoE

StatusHDD

NR8301Network Video Recorder

EN - 6

1. Connect the supplied power cable from the Network Video Recorder to a power outlet.

2. Push the power button to run the Network Video Recorder.

Connect Network Video Recorder to Network Cameras and computer in LAN via LAN

sockets. If the Network Camera is PoE-compliant, it allows transmission of power and data

via single Ethernet cable. (NR8201 supports 4-CH PoE; NR8301 supports 8-CH PoE)

4. If your want to access over the Internet, connect the Network Video Recorder to the In-

ternet via WAN socket.

5. If you have external devices such as sensors and alarms, make connections from gen-

eral I/O terminal block.

123456789101112

WAN

POWER AC IN 100V-240V

LAN8

LAN7

LAN6

LAN5

LAN4

LAN3

LAN2

LAN1

RESET

Activity

Power/MIC

Internet

WAN

LAN

Network Camera

(PoE)

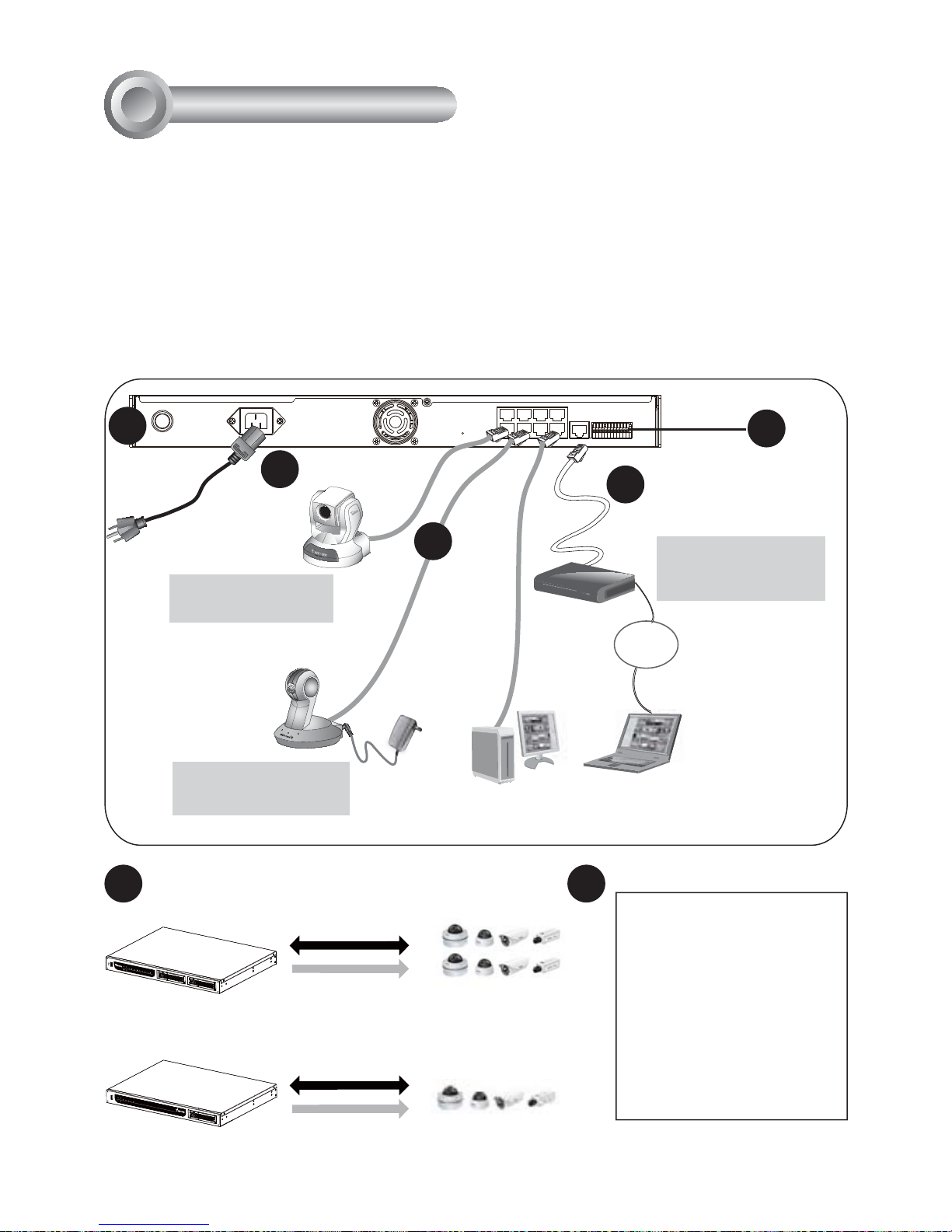

Network Deployment

Network Camera

(without PoE)

1: Power

2: Relay output COM

3: Relay output N.O.

4: Digital Input 1

5: Digital Input 1 Ground

6: Digital Input 2

7: Digital Input 2 Ground

8: Digital Input 3

9: Digital Input 3 Ground

10: Digital Input 4

11: Digital Input 4 Ground

12: Ground

Cable, DSL

Modem, or router

WAN LAN1 LAN2 LAN3 LAN4 LAN5LAN6 LAN7 LAN8

PowerP

StatusHDD

NR8301NetworkVideoRecorder

WAN LAN1 LAN2 LAN3LAN4

PowerPoE

StatusHDD

NR8201NetworkVideo Recorder

NR8301

NR8201

8-CH PoE

Data Transmitting

Power Supply

4-CH PoE

Data Transmitting

Power Supply

EN - 7

English

3. Use the WAN IP address to access the Network Video Recorder from the Internet.

Assigning an IP Address

1. Set up the Network Video Recorder in LAN. When in LAN, the default IP address for the

Network Video Recorder is 192.168.100.1. Directly enter the IP address in the addrees

bar of the web browser. The webpage of the Network Video Recorder will be displayed

for you to conﬁgure the settings.

2. If you want to access over the Internet, please assign a WAN IP address in the

conﬁguration page. There are three ways to get WAN IP address: DHCP (Dynamic IP),

Static IP address, and PPPoE (DSL).

If your network environment is DHCP, you can use VIVOTEK Installation Wizard 2 (IW2)

to get an IP address easily.

(1) Install “Installation Wizard 2” from the Software Utility directory on the software CD.

(2) The program will conduct an analysis of your network environment. After your net-

work is analyzed, please click on the “Next” button to continue the program.

Installation

Wizard 2

0002D107893F

NR8301 0002D107893F

00-02-D1-07-89-3F 192.168.5.131 NR8301

(3) The program will search the VIVOTEK Network Devices on the same LAN.

(4) After searching, the main installer window will pop up. Click on the MAC that match-

es the one labeled on the bottom of your device to connect to the Network Video

Recorder via Internet Explorer.

EN - 8

Note

If you want to record live video and playback the recorded video, you have

to add devices to the Network Video Recorder on the Conﬁguration page.

For further setup, please refer to user's manual on the software CD.

Ready to Use

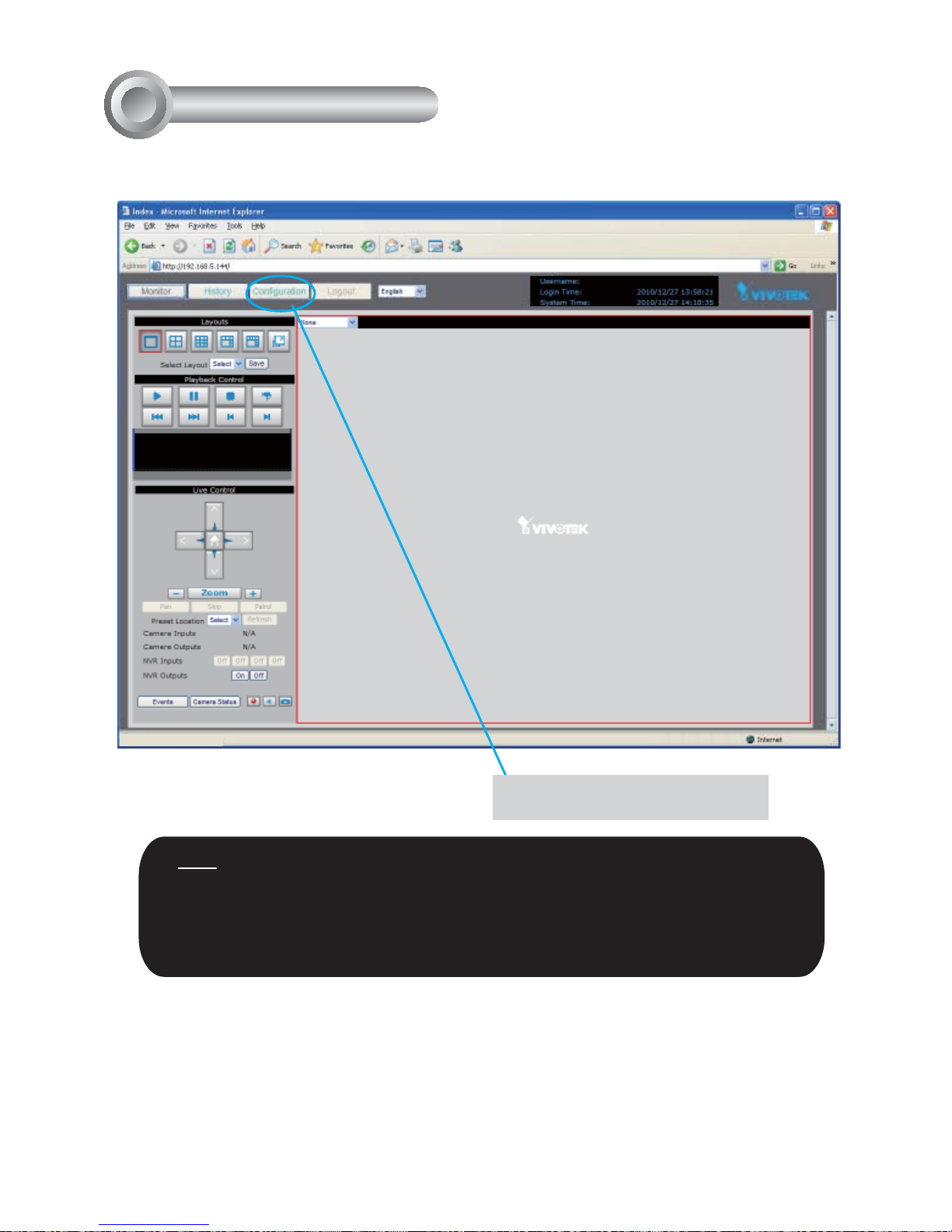

Following is the Homepage of the Network Video Recorder.

Conﬁguration page
