Vivotek FD7130 Bedienungsanleitung

Quick Installation Guide

This guide describes the basic functions of FD7130

All detailed information is described in the user's manual.

FD7130

IP Surveillance

Vandal-proof .Tamper Detection .PoE

English ᖅϛ Рҏᇭ Español Português

ᙏϛ Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Keep the Network Camera

away from water. If the Network

Camera becomes wet, power off

immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user’s manual for

the operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera

in high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN - 3

English

Software CD

FD7130 with an RJ45 or M12 Cable

Quick Installation Guide /

Warranty Card

Screwdriver

Alignment Sticker

Ground Wire / Screws

Liquid Tight Connectors for

RJ45 or M12 Cable

Package Contents

RJ45 M12

RJ45

Silica Gel

EN - 4

Network Camera

Model No: FD7130

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

MAC:0002D107258A

RoHS

Record the MAC address

before installing the camera.

Screw Holes

Physical Description

Inner View

Outer View

Lens

MicroSD/SDHC Card Slot

Reset Button

Status LED

Temperature Alarm

The alarm will be triggered

once the temparature inside the

Network Camera reaches 60°C.

Waterproof Level: IP66

EN - 5

English

123

(D) (B)

(C)

(A)

(E)

Cabling Assembly

Components of the Waterproof

Connector

Screw Nut (C)

Housing (D)

Gasket (E)

Seal (B)

Sealing Nut (A)

RJ45 Cable Dimension (unit: mm)

Prepare an Ethernet cable

and strip part of the sheath.

Insert the housing into the

screw nut.

Insert the seal into the housing.

Insert the stripped Ethernet

cable through the sealing

nut and the housing.

Clamp the cable with

an RJ45 plug.

Push the RJ45 plug into the

housing, then secure the

sealing nut tightly.

Attach the gasket to the front

of the housing.

Assembling Steps

Recommended cable gauge: 24AWG

(0.51 mm)

Connect the Ethernet cable to the RJ45 cable

and secure the connectors tightly.

RJ45 Cable Connector

EN - 6

123

4 5

6 7

Ø4.5mm~Ø6.5mm

(B)

(A) (E)

M12 Cable Connector

Components of the Waterproof

Connector

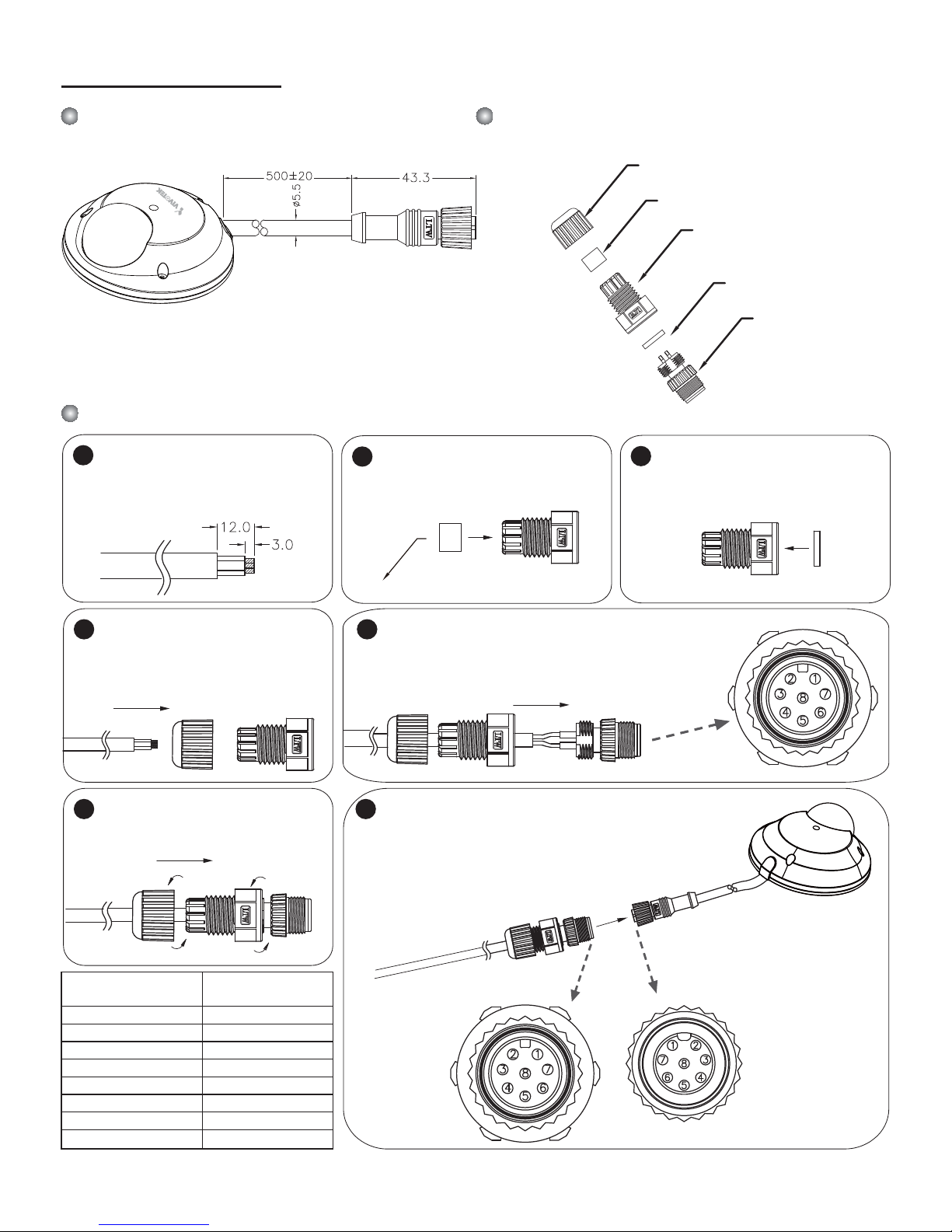

M12 Cable Dimension (unit: mm)

Assembling Steps

Clamp Ring (C)

Gasket (D)

Plastic Nut (E)

Seal (B)

Sealing Nut (A)

Prepare an Ethernet cable

and strip part of the sheath.

Insert the seal into the clamp

ring.

Insert the gasket into the clamp

ring.

Insert the stripped Ethernet

cable through the sealing nut

and the clamp ring.

Follow the pin deﬁnition in the below table

to solder the stripped Ethernet cable to the

plastic nut.

Secure the sealing nut to the

clamp ring tightly.

Follow the pin deﬁnition in the below table

to connect the Ethernet cable to the M12

cable and secure them tightly.

Ethernet Cable /

M12 Cable

Wire Color

1 Orange/White

2 Orange

3 Green/White

4 Blue

5 Blue/White

6 Brown/White

7 Brown

8Green

Ethernet Cable M12 Cable

EN - 7

English

First, use the supplied screwdriver to detach the dome cover from the camera base. Insert your

MicroSD/SDHC Card if necessary.

Then, follow the steps below to install the camera to either the ceiling or the wall:

1. Attach the supplied alignment sticker to the ceiling/wall.

2. Using the 3 screw circles on the sticker, drill 3 pilot holes into the ceiling/wall. Then hammer the

plastic anchors into the holes.

3. This Network Camera can be mounted with the cable routed through the camera base or from

the side of the dome cover. If you want to feed the cable through the ceiling/wall, please also

cut or drill a hole (A) for the cable. If the cable goes through the side of the dome cover, please

remove the rubber stopper (B).

4. Through the 3 holes on the camera base, insert the screws to corresponding holes and secure

the camera base with a screwdriver.

Dome Cover

Hardware Installation

Tamper-proof Screw

Camera Base

Rubber Stopper

Ceiling Mount

EN - 8

Wall Mount

Installing the Ground Wire

As shown in the following ﬁgure, please secure one side of the supplied ground wire to the screw

hole, then route the other side of the ground wire to the ground.

Please secure the screws tightly to

avoid moisture.

EN - 9

English

Network Deployment

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEI VE

PARTITION

12345

PoE Switch

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via

Ethernet cable.

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

PoE Power Injector

(optional)

Non-PoE Switch
