Vivotek FD8133V Bedienungsanleitung

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

FD8133V: 3-axis • ePTZ

FD8134V: IR Illuminators

All specications are subject to change without notice.

P/N:625013701G Rev. 1.1

FD8133V/8134V Fixed Dome

Network Camera

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Replacing or failing to properly

install the waterproof components,

e.g., cables or cable glands, will void

our IP65/66/67 warranty.

EN - 3

English

Software CD

FD8133V or FD8134V

Alignment Sticker

Cable hole

Drill hole

RJ45 Female/Female Coupler /

Screwdriver/ Screws / Clamp Core

Power Adapter

Package Contents

Quick Installation Guide /

Warranty Card

EN - 4

Hardware Installation

Physical Description

Lens IR LEDs (8 units, distance 10m)

(FD8134V only)

Reset Button

General I/O Terminal Block

Status LED

Light Sensor

MicroSD/SDHC

Card Slot

Black Cover

Ethernet 10/100

RJ45 Plug

Power Cord Socket

First, follow the instructions below to remove the dome cover.

Dome Cover

Record the MAC address before

installing the camera.

Network Camera

Model No: FD8134V

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D107258A

EN - 5

English

Cable hole

Drill hole

Cable hole

Drill hole

1. Attach the alignment sticker to the ceilling/wall.

2. Through the two circles on the sticker, drill two pilot holes into the

ceilling/wall.

3. The Network Camera can be mounted with the cable routed

through the ceiling/wall or from the side. If you want to feed the

cable through the ceiling/wall, drill a cable hole A as shown in the

above picture.

4. Hammer the supplied plastic anchors into the holes.

5. Align the two holes on each side of the camera base with the two

plastic anchors on the ceilling/wall, insert the supplied screws to

corresponding holes and secure them with a screwdriver.

Wall Mount

Ceiling Mount

With idiot-proof mechanism design and very compact size, this Network Camera is very

easy for user to install in diverse indoor environment.

Tilt Adjustment Screw

Then remove the black cover as shown below.

EN - 6

General Connection (without PoE)

Network Deployment

+ : Digital input

- : Digital input

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Ethernet Switch

1. If you have external DI devices, make the connection from general I/O terminal block.

2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a

switch.

Use a Category 5 Cross Cable when Network Camera is directly connected to PC.

3. Connect the supplied power cable from the Network Camera to a power outlet.

6. Buckle the supplied clamp core onto the cable to against the EMI radiation.

5 cm

The clamp core should be away

from the device at least 5 cm.

EN - 7

English

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Power over Ethernet (PoE) (FD8134V only)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

PoE Power Injector

(optional)

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a

single Ethernet cable. Follow the below illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

Non-PoE Switch

EN - 8

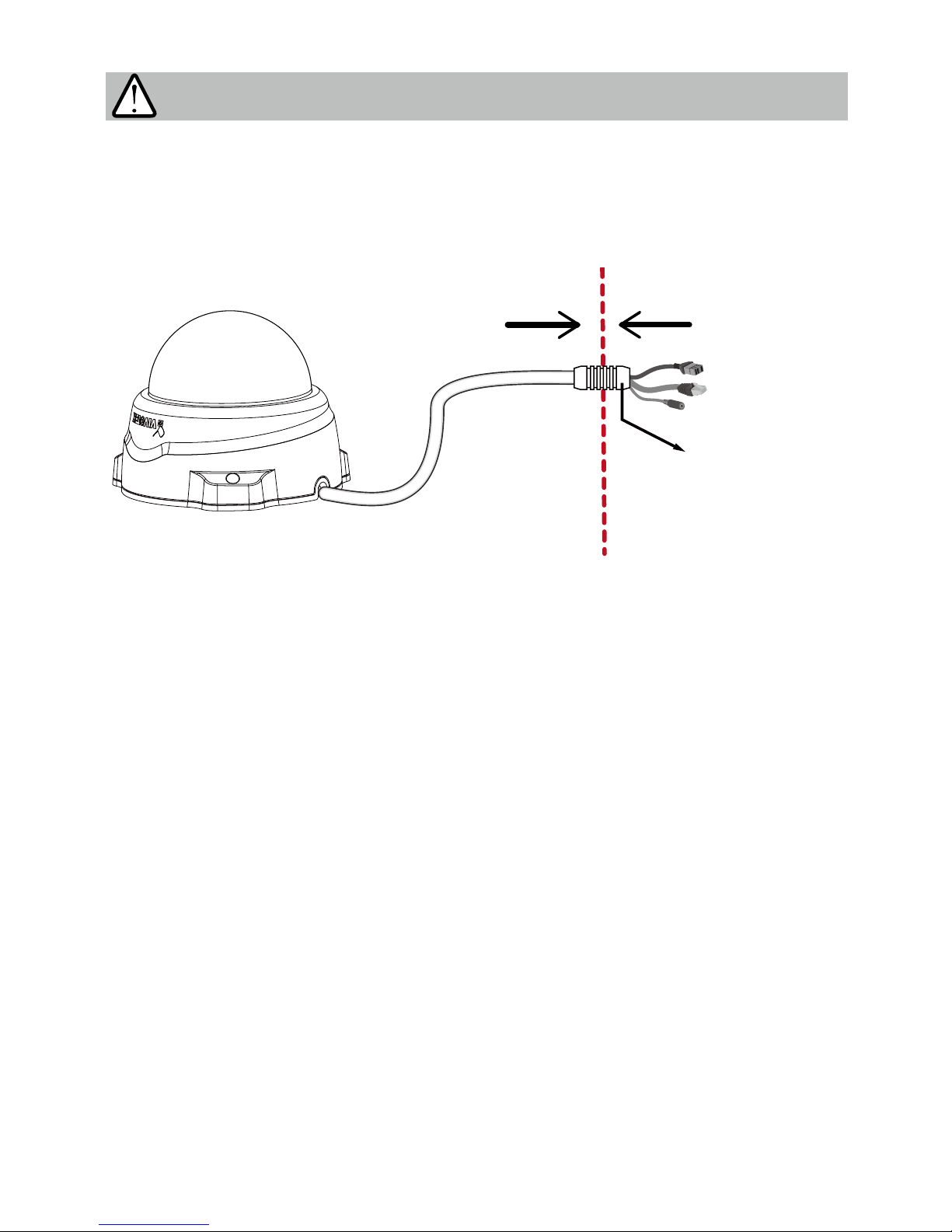

IMPORTANT!

Although the camera and the cable gland on the camera's end are waterproof, the cable

molding at the other end is not waterproof.

Measures should be taken to prevent water from leaking in through the cable-end

molding, such as the use of expanding foam sealant, putties, and so on. Note that the

cable gland on the camera should also be securely fastened to attain its waterproof

functionality.

Waterproof Not Waterproof

Cable Molding

EN - 9

English

Network Camera

Model No: FD8134V

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D107258A

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches the

one labeled on the bottom of your device to connect to the Network Camera via Internet

Explorer.

0002D107258A

00-02-D1-07-25-8A 192.168.5.151 FD8134

Installation

Wizard 2

Assigning an IP Address
