SD8161 Speed Dome
Network Camera
English
VIVOTEK Netherlands B.V.
Busplein 36, 1315KV, Almere, The Netherlands
|T:+31 (0)36 5389 149|F:+31 (0)36 5389 111|E:[email protected]
EN-1
English
Warning Before Installation
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera as soon as
smoke or unusual odors are detected.
Do not touch the Network Camera during
a lightning storm.
Do not disassemble the Network Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects into the
Network Camera.
Do not manually pan and tilt the Network
Camera when the power is on.

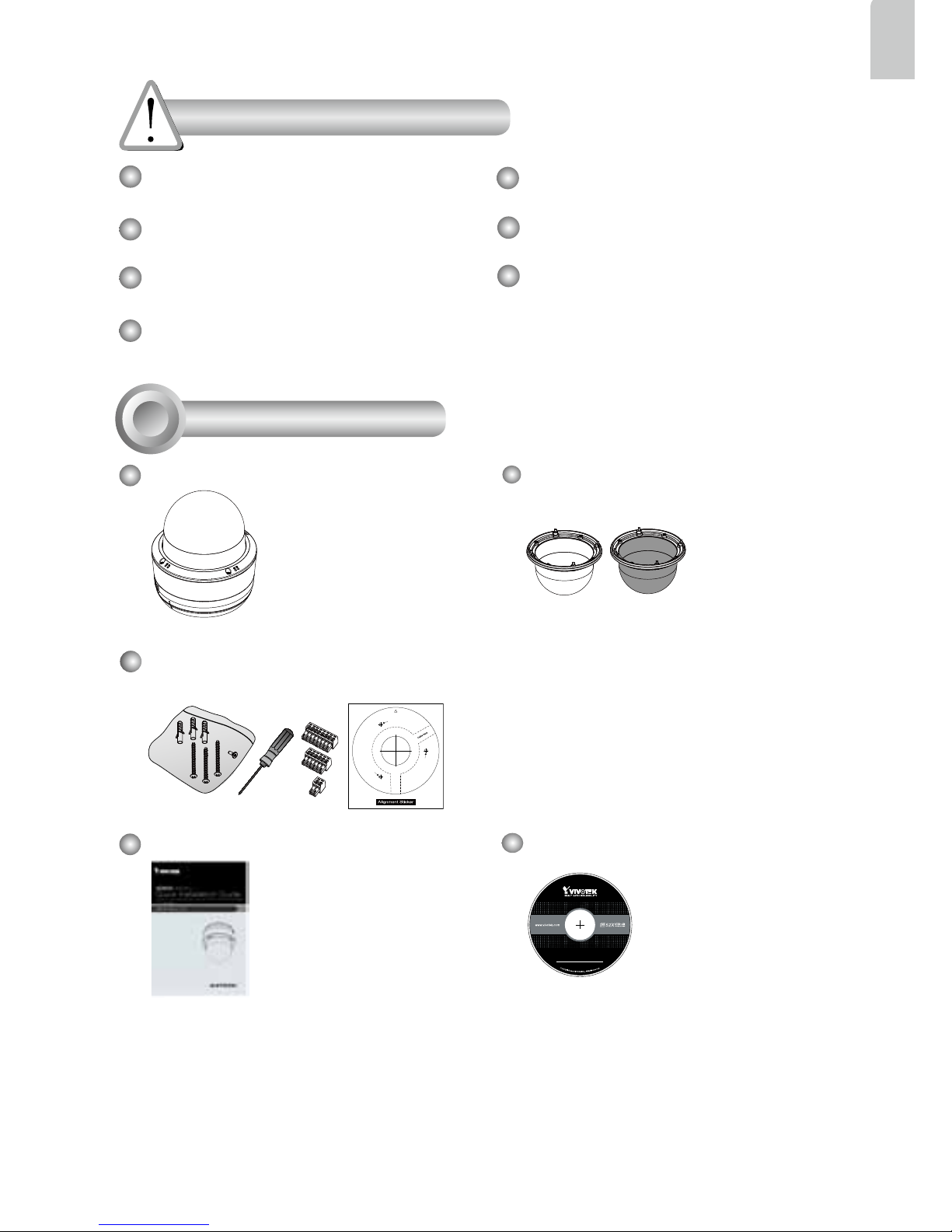

Package Contents
1
5
1
0
0
0
0
2
1
0
G
Software CD
SD8161
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
Cable hole
Cable track
Front
Quick Installation Guide
PC/ABS / Smoked Dome Cover (Sold
separately)
Screws / Alignment Sticker / T25
Stardriver
EN-2
Lens
Outer View
Physical Description
2
Status LED
Network LED
Reset Button
This drawing shows a camera with its dome
cover removed.
M
icro
SD
The MicroSD card slot is accessed by removing
the dome cover using the T25 stardriver.
EN-3
English
The camera weighs 2.2kg. Select a rigid mounting location to prevent vibration to the
camera.
1. Turn and detach the top section.
2. Attach the alignment sticker to the wall. Drill 3 pilot holes into the wall, and drill
another hole for routing cables.
12
1. IO wires are user-supplied.
2. Avoid touching the circuit boards to prevent damage by electro static discharge.
3. Use CAT5e and CAT6 cables only.
NOTE:
Hardware Installation
3
EN-4
5
4
6
4. Hammer in the threaded anchors.
5. Secure the top section to ceiling using the included screws.
6. Pass cables through the pre-drilled hole or the side openings, and then connect to the
camera.
The product is not likely to require connection to an Ethernet network with outside plant
routing, including the campus environments; and the ITE is to be connected only to PoE
networks without routing to the outside plant.
IMPORTANT:
EN-5
English
Mounting the Camera
7
8
9
Alignment Mark
7. Align the camera body with the top section. Align the alignment mark on the camera
with that on the top section. Push the camera up to match the top section.
8. Rotate the camera clockwise.
9. Use the included T25 stardriver to tighten the anti-tamper screw on the side to secure
the connection. Make sure all parts have been securely tightened.
EN-6
Network Deployment
4
1. Connect the Network Camera's Ethernet cable (CAT5e/CAT6) to a PoE Plus switch.
When using a non-PoE switch
Use a PoE Plus power injector (separately purchased) capable of 30W output to connect
between the Network Camera and a non-PoE switch.
Non-PoE Switch
PoE Plus PoE Power
Injector
2. Connect the power wires to an AC 24V power adaptor (user-supplied).
You can connect both power sources for redundancy in power supply.
Power over Ethernet (High Power PoE)
General Connection
AC 24V 3.5A Adapter
(User-supplied)
IEEE 802.3at PoE Switch (30W output)
and / or
EN-7
English
1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the "Next" button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
Assigning IP Address
5
For further setup, please refer to the user's manual on the software CD.
18x
Ready to Use
6
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the
32-channel recording software from the software CD in a deployment consisting of
multiple cameras. For its installation details, please refer to its related documents.
What Is Covered: This warranty covers any hardware defects in materials or
workmanship, with the exceptions stated below.
How Long Coverage Lasts: This warranty lasts for THIRTY-SIX MONTHS from
the date of purchase by the original end-user customer.
What Is Not Covered: This warranty does not cover cosmetic damage or any
other damage or defect caused by abuse, misuse, neglect, use in violation of
instructions, repair by an unauthorized third party, or an act of God. Also, if serial
numbers have been altered, defaced, or removed. Further, consequential and
incidental damages are not recoverable under this warranty.
What VIVOTEK Will Do: VIVOTEK will, in our sole discretion, repair or replace
any product that proves to be defective in material or workmanship. Any repair or
replaced part of the product will receive a THREE-MONTH warranty extension.
How To Get Service: Contact our authorized distributors in your region. Please
check our website (www.vivotek.com) for the information of an authorized
distributor near you.
Your Rights: SOME STATES DO NOT ALLOW EXCLUSION OR LIMITATION
OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE EXCLU-
SION OR LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
1. Proof of the date of purchase is required. In the event you can not render such
document, warranty will commence from the date of manufacture.
2. Cosmetic damage will only be covered by this warranty if such damage has
been existed at the time of purchase.
P/N:627004600G
VIVOTEK INC.
6F, No. 192, Lien-Cheng Rd., Chung-Ho,
Taipei County, Taiwan.
www.vivotek.com
