Vivotek Supreme FD8363 Bedienungsanleitung

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Refer to your user's manual for the

operating temperature.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

Software CD

FD8363

Quick Installation Guide /

Warranty Card

Alignment Sticker /

Ceiling Hole Template Sticker

Mounting Plate

Package Contents

L-type Hex Key Wrench / Dessicant

Bag / DC Connector / Screws / Hex

Nut / Double-sided Tape / AV Cable

Waterproof Connector & Bushing

EN - 2

IR LEDs (8 units, effective up

to 15m)

Physical Description

Inner View

Vari-focal Lens

Tilt Adjustment Screw

Black Cover

1. There is no internal microphone. Connect an external microphone if you need

audio inputs.

2. Use the included AV cable to connect to a camera tester or LCD monitor to begin

initial setup.

Ethernet 10/100

RJ45 Socket

Audio/Video

Out (green)

Microphone In

(pink) General I/O Terminal

Block

Jumpers

Microphone Video Output

Internal

External

NTSC

60Hz

PAL

50Hz

Micro SD/SDHC/SDXC

Card Slot

Reset Button

LCD Monitor/

Camera tester AV Out

Auto Focus Button

Remove the foam pad

EN - 3

English

First, use the included T20 hex key wrench to loosen the four screws and detach the dome cover from

the camera base. Follow the steps below to install the camera either to a ceiling or a wall.

Hardware Installation

Top View

Dome Cover

Dome Cover Retainer

IMPORTANT: Dome cover should be removed because if it should fall during the installation

process, physical injury could occur to your co-workers.

Record the MAC address under the

camera base before installing the

camera.

Replace the side opening cover with the included

side outlet bushing if you want to route cables from

the side of camera. The 1/2" protection conduits

and tubing are separately purchased.

EN - 4

Connect power lines and if you have external devices such as sensors and alarms, make the connection

from the general I/O terminal block.

87654321

Cabling Assembly

Pin Denitions

1 DC 12V-

2 DC 12V+

3 AC24V_2

4 AC24V_1

5 DI- (GND)

6 DI+

7 DO-

8 DO+ (+12V)

For Ethernet

Cable For Power & IO Cables

Top View

Power and IO cables pass through a waterproof connector. The

Ethernet cable should be routed through a rubber seal plug. All

cables are user-supplied.

1. Disassemble the components of the waterproof

connector into parts (A) ~ (F) as shown above.

2. Place the screw nut (E) on the Power and GPIO

opening.

3. Feed the power cables through the waterproof

connector (F --> E --> D --> B --> A) as the

illustration shows. Then connect the power

cables to the power source. Note: There are 8

holes on the seal (D), and the widest holes with

a crack on the side are specic for power cables.

4. If you have external devices such as sensors

and alarms, feed the cables through the

Assembling Steps

Sealing Nut (A)

Housing (B)

Seals (C)

Seal (D)

Screw Nut (E)

Hex Nut (F)

Waterproof Connector (A)

(B)

(D)

(E)

(F)

waterproof connector (F --> E --> D --> B -->

A) as previously described. Refer to the pin

definition to connect them to the general I/O

terminal block. Note: The recommended cable

gauge is 2.0 ~ 2.8 mm.

5. Push the seal (D) into the housing (B).

6. Insert the seals (C) into unused holes on the

seal (D) to avoid moisture.

7. Secure the sealing nut (A) tightly and hex nut

(F) from the bottom of the camera.

The max. load for power output pin 8, 12V DO, is 50mA.

EN - 5

English

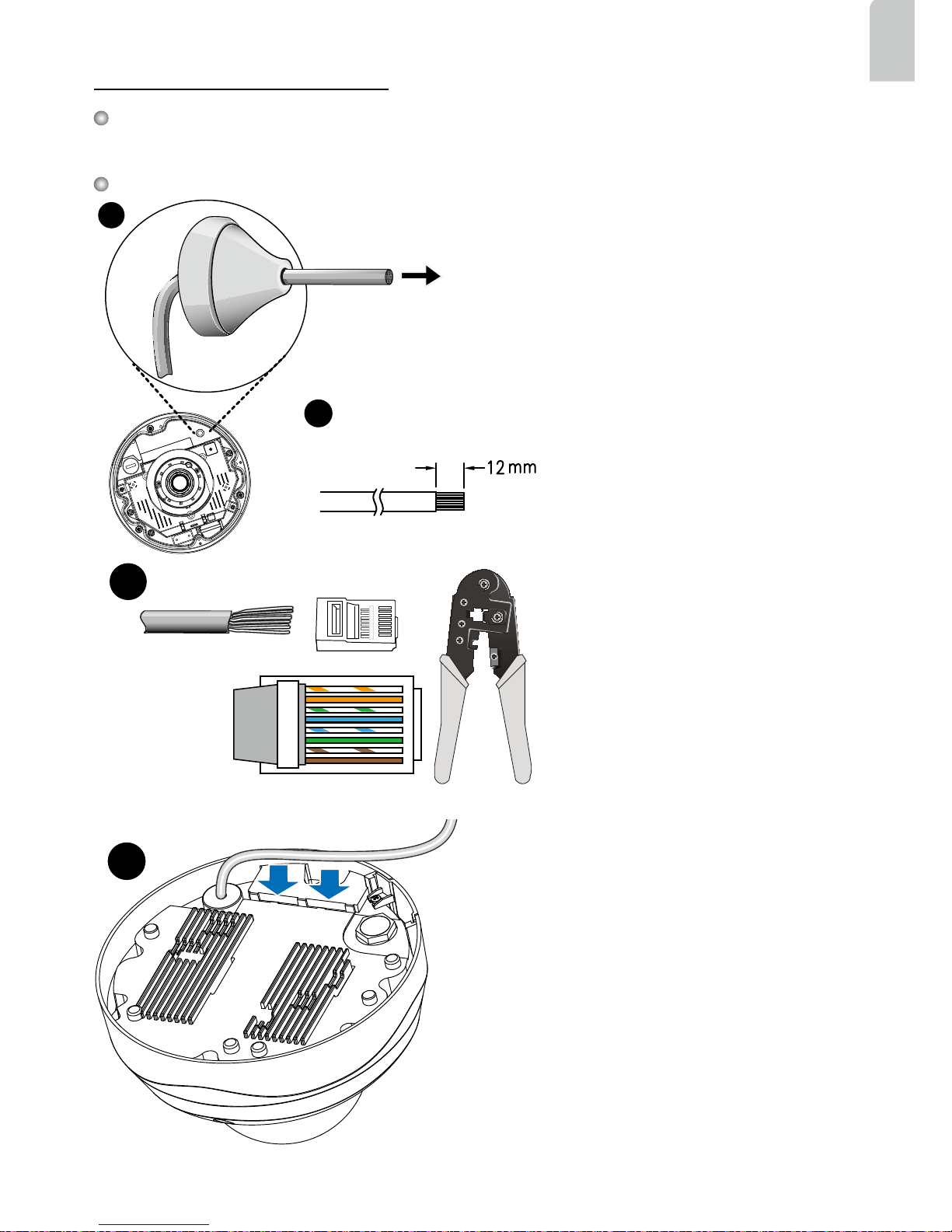

RJ45 Cable Dimension (unit: mm)

2. Strip part of the sheath from the Ethernet

cable.

1. Drill a hole on the rubber seal plug and

insert an Ethernet cable through the

opening.

Rubber Seal

Plug

Assembling Steps

Recommended cable gauge: 24AWG (0.51 mm)

Connecting RJ45 Ethernet Cable

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

3. You will need an RJ45 crimping tool to

attach the Ethernet wires to a connector.

When done, connect the cable to the

camera’s Ethernet RJ45 socket.

4. Press the Ethernet cable into the routing path at

the bottom of the camera so that the cable will not

get in the way when the metal mounting plate is

attached.

EN - 6

Mounting the Camera

1. Attach the supplied alignment sticker to the wall.

2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the

wall. Then hammer the four supplied plastic anchors into the holes.

3. Through three or four holes on the mounting plate, insert the supplied screws into the corresponding

holes and secure the mounting plate with a screwdriver.

4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole B, remove

the side cover using a screwdriver. Secure the camera base to the mounting plate with three supplied

screws.

EN - 7

English

Network Deployment

1. Connect RJ45 Ethernet cable to a switch.

2. Connect the AC cables from the terminal

block as an alternate power source. The IO

cables are user-supplied.

General Connection (without PoE)

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Ethernet

Non-PoE Switch

Pin 1

Pin 2

AC 24V±10%

DC 12V

Pin 4

Pin 3

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Eth-

ernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch

via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

PoE Power Injector

(optional)

Non-PoE Switch

EN - 8

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is analyzed,

please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the

same LAN.

Assigning an IP Address

4. After a brief search, the main installer window will pop up. Double-click on the MAC address that

matches the one printed on the camera label or the S/N number on the package box label to open a

browser management session with the Network Camera.

For further setup, please refer

to the user's manual on the

software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-channel recording

software from the software CD in a deployment consisting of multiple cameras. For its installation

details, please refer to its related documents.

EN - 9

English

Based on the live image retrieved from the camera, adjust the camera lens by doing the following:

To adjust the viewing angle -- 3-axis mechanism design

1. Loosen the tilt adjustment screws and then turn the lens module up or down. Upon completion,

tighten the screw.

2. Turn the lens to adjust the image orientation.

Adjusting the Lens

Horizontal Pan

350°

Lens Horizontal

Pan 350°

Vertical Tilt 65°

Tilt Adjustment

Screws

Focus window

To adjust the zoom factor and focus range

1. The camera comes with a motorized vari-focal lens

module. With a web console, you can enter the

Conguration > Media > Image > Focus page to

tune the image zoom and focus.

2. On this page, you can pull the Zoom and Focus

pointers, set up a Focus window, and use the

Perform auto focus button to automatically obtain

an optimal focus result. You may also manually

fine-tune zoom and focus using the various

functional buttons. Please refer to your User

Manual for more information.

3. You may also push the Auto Focus button on the

camera to obtain the same results especially when

you are using camera tester for onsite adjustment.
