Important Safety Instructions

Explanation of WARNING symbols

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of not isolated dangerous voltage within the

inside of the product that may be sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and servicing instructions in the literature

accompanying the appliance.

Safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with

the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

Important Safety Instructions

10) Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand,

tripod, bracket, or table specified

by the manufacturer, or sold with

the apparatus. When a cart is

used, use caution when moving

the cart/apparatus combination

to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for

long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally,

or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, shall not be placed on the apparatus.

16) The Shock Hazard Marking and Associated Graphical Symbol is

provided on the better panel of unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

Thankyou forpurchasing multi-scan color LCD-TV.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCYINTERFERENCESTATEMENT

WARNING:(FORFCC CERTIFIEDMODELS)

ThisLCD TV hasbeen tested and found compliantwiththe limitsforaClass

Bdigitaldevice,pursuanttopart15 ofthe FCC Rules.Theselimitsare

designed toprovide properprotection againstharmfulinterferencetoa

residentialinstallation.ThisLCD TV generates,uses,and can radiateradio

frequency energy.Harmfulinterferencetoradiocommunication maybe led

asaresultifit‘s notproperlyinstalled and used.However,thereisno

guarantee thatinterferencewill notoccurinaparticularinstallation.If this

LCD TV doescauseseriousinterferencetoradioortelevisionreception,

resetting the LCD TV maydetermine it. Moreover,usersareencouragedto

correctinterferencebydoing one ormoreofthe following:

Reorientorrelocatethe receiving antenna.

Movethe LCD TV and the receiverfurtherawayfromeachother.

Connectthe LCD TV intoan outleton acircuitdifferentfromthattowhich

the receiverisconnected.

Consultyourlocaldealeroran qualified technician.

FCC Warning:

Toassureacontinued FCC compliance,ausermustuseagrounded power

supplycordand the provided shielded video interfacecablewithbonded

ferritecores.Also,anyunauthorized changesormodificationstothisLCD TV

wouldvoidthe user‘s authoritytooperatethisdevice.

Note:If necessary,shielded interfacecablesand ACpowercordmustbe

used tomeetthe emission levellimits.

EMICertification:

The Class Bdigitalapparatusmeetsall requirementsofthe Canadian

Interference-Causing EquipmentRegulation.

Cetappareil numerique de class Brespectetouteslesexigencesdu

Reglementsurlematerielbrouilleurdu Canada.

Operation Instructions

Content

Fisrt Setup........................................................................ 5

Front Panel Control .......................................................... 6

Installation ........................................................................ 7

Remote Control ................................................................ 8

How to uninstall the stand ..............................................9

Using the OSD functions ................................................. 10

-TV mode........................................................................ 10

-Video (Include-YCbCr, AV).............................................14

TV-Frequency table .........................................................16

Technical Information .......................................................18

Safety Precaution ............................................................19

Care and Maintenance....................................................20

FirstStep

Thankyou forpurchasing thisLCD TV ofhigh performance!

ThisLCD TV package comeswith:

PowerCable

UserGuide book

Remotecontrol29 key

Quick Installation

1.ConnectorTVANTANAorCATV

CableorConnectvideocable

Makesurethe LCD TV are

powered OFF.

ConnecttoTVantenna jack or

CATVboxby75-ohmcoaxial

cable.

2.ConnectPowerCord

Connectthe powercordtoa

properlygrounded ACoutlet,

then tothe LCD TV.

3.Power-ONLCD TV

Power-ONthe LCD TV.

4.SettinginputsourceforLCD-

TVfromsource ofremote,

orOSDmenu.

5.InTVmodeyou can autoscan

TVchannelfromOSDindicat

(page 10.)

◆AV Video cable

FrontPanelControl

VolumeDownoradjustdecaease

VolumeUporadjustincrease

Menu KeyOSDON/OFF

Scroll Down

Scroll UP

Enter

PowerLEDindicator

PowerON/OFF switch

Remotecontrolreceiver

1 2 3 4 5 6 7 8 9

Installation

Powerinput(ACinput)

Audiooutput(left/right)

CVBS /S-Video Audioinput(left/right)

YCbCr-Audioinput(left/right)

TVsignalinput

S-Video input

AV Video input

YCbCrsignalinput

ABC D

RemoteControl

Power ON/OFF

Function UP/DOWN

Select and Left/Right

adjust

Source and channel

display

MTSSelect

SwitchTVor CATV

Channel UP/DOWN

adjust

Volume UP/DOWN

adjust

Return to previous

channel

Switch channel

number key

TV Sleep time

setting

Source select

OSDMenu ON/

OFF

Mute ON/OFF

Enter

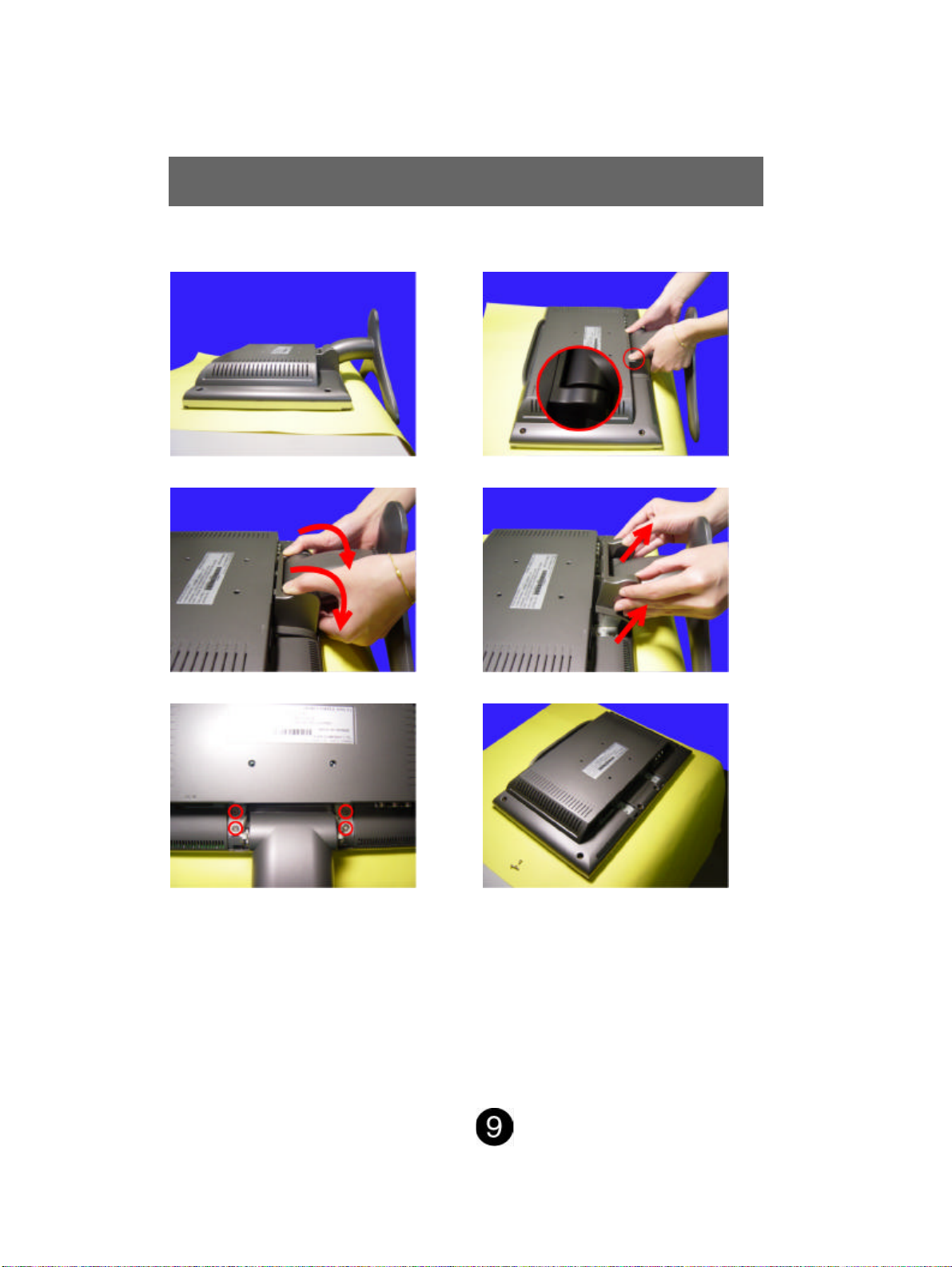

How to uninstall the stand

(for wall-mounting the LCD TV)

Fig.1 Fig.2

Fig.3 Fig.4

Fig.5 Fig.6

1. Pave a piece of fabric on the table, and lay the TV flat on the

table with the front face down (see Fig.1).

2. Press the two concave portions with both your thumbs (see Fig.2).

3.Pull the pivot cover to yourself to detach the cover from the back

panel of the TV (see Fig.3).

4. Remove the pivot cover (see Fig.4).

5. Unscrew the four setscrews (see Fig.5).

6. Remove the stand from the TV (see Fig.6).
