Vollara LAUNDRY PURE 2.0 Bedienungsanleitung

LAUNDRY

PURE2.0

READ MANUAL CAREFULLY FOR PROPER USE AND OPERATION.

COLD WATER LAUNDRY SYSTEM

Made in the USA

2017 Space Technology

Hall of Fame Inductee

CONTENTS

General Information . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

Installation Requirements . . . . . . . . . . . . . . . . . . . 4

Before You Start . . . . . . . . . . . . . . . . . . . . . . . . 5

Removing Cover . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation of Wall Anchors or Screws . . . . . . . . . . . . . 6

Reinstall the Cover . . . . . . . . . . . . . . . . . . . . . . . 7

Hose Installation . . . . . . . . . . . . . . . . . . . . . . . 7-8

Connecting the Power Adapter. . . . . . . . . . . . . . . . . 8

System Set Up . . . . . . . . . . . . . . . . . . . . . . . . . 9

Changing the ActivePure Cell Assembly . . . . . . . . . . . . 10

Before Washing Clothes . . . . . . . . . . . . . . . . . . . . 11

Using Your LaundryPure 2.0 . . . . . . . . . . . . . . . . . . 11

Washers Requiring Hot & Cold Water. . . . . . . . . . . . . .12

Temp. Control & External Water Tap . . . . . . . . . . . . . . 13

Status Indications . . . . . . . . . . . . . . . . . . . . . . . 13

Frequently Asked Questions . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 15-16

Warranty Information . . . . . . . . . . . . . . . . . . . . . 17

PRODUCT OVERVIEW

LaundryPure 2.0 is designed to work in conjunction with your washing

machine, using cold water and our proprietary ActivePure®Technology to

clean clothes. As your washer begins to ll, LaundryPure 2.0 will turn on.

LaundryPure 2.0 is equipped with an internal leak sensor.

There’s a smart new approach to laundry that’s based on earth-friendly

science and technology. LaundryPure 2.0, designed and made in America,

eliminates the need for hot water, detergents, fabric softeners and

bleaches, thereby allowing it to pay for itself over and over again.

LaundryPure 2.0 is easy to install. It is intended to work with residential

clothes washers and is for use by anyone interested in an economical,

earth-friendly alternative to the typical detergents and chemicals currently

available, without modifying existing appliances, electrical systems, or

plumbing.

LaundryPure 2.0 uses a variation of the technology originally developed

for use in the International Space Station and is recognized as a Certied

Space Technology by the Space Foundation.

FILL IN AND SAVE

The location of the serial number is on the back panel of the water

unit, below the water line connection. Write it here and retain for

future reference.

Model No. ___________________________________________________________

Serial No. ___________________________________________________________

Date of Purchase _____________________________________________________

Vollara Distributor ____________________________________________________

_____________________________________________________________________

Distributor’s Oce Phone No. _________________________________________

_____________________________________________________________________

Distributor’s Oce Address ___________________________________________

_____________________________________________________________________

SPECIFICATIONS

AC/DC Adapter:

• AC in: 100 - 240V ~ 50/60 Hz .45A

• DC out: 12V

Power Consumption:

• .4W AC (standby mode)

• 1.3W AC operating

Dynamic Water Pressure:

• Minimum 20 psi to 60 psi / 1.37 ~4.13 bar

Water Temperature:

• Use cold water only (do not use hot water)

Operating Environment:

• 50˚F - 100˚F ( 10˚C - 37.8˚C)

• Humidity 40% ~ 85%

Dimensions:

• 17.3” x 5.19” x 3.69”

• 43.94cm x 13.48cm x 9.37cm

Weight:

• 4.3 lbs

• 1.95 kg

GENERAL INFORMATION

Read this manual in its entirety prior to installing or using your LaundryPure 2.0.

• For indoor use only

• Do not operate unit with cover removed

• Disconnect all power before servicing

• Do not use an extension cord or other adapter with this appliance

• This appliance is not recommended for use with high sediment content water; if your water has

a high sediment content, consult a water ltration expert for available options

• Maximum dynamic water inlet pressure is 60 psi

• Use the new hose included with the unit, when connecting the LaundryPure 2.0 to your

washing machine; you should also replace any washing machine hose that is more than

3 years old

• Do not clean the cover of your LaundryPure 2.0 with harsh chemicals, abrasives, or cleansers;

to clean, use a soft cloth dampened with water

• LaundryPure 2.0 is designed for normal residential use only; use in a commercial or

non-residential setting may damage the unit and will void your warranty

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY PRECAUTIONS

• To prevent unnecessary risk of re, electrical shock, or personal injury, all wiring must be done

in accordance with the National Electrical Code ANSI/FNPA, No. 70 - Latest Revision and local

codes and ordinances in the USA. For Electrical Codes outside the USA, consult your local

regulatory agency for the latest codes and ordinances. It is the personal responsibility and

obligation of the appliance owner to provide adequate electrical service for this appliance.

We have provided important

safety warnings in this manual

and on your appliance. Always

read and obey all safety

messages.

Safety warnings in this manual

are dened as follows:

WARNING:

Electrical shock hazard.

You can be killed or seriously

injured if you don’t follow

instructions.

CAUTION:

Damage to your appliance or

the surrounding area can occur

if you don’t follow instructions.

DANGER:

Death or serious injury can occur

if instructions are not followed

immediately.

NOTE:

This information is included to

aid in installation and use of this

appliance.

NOTE: Your LaundryPure 2.0 Unit was factory tested. It is normal for some residual

water to still remain in the unit as a result of these tests.

Water treated by your LaundryPure 2.0 unit is intended for clothes washing only and is NOT

approved for any internal consumption such as drinking, bathing, brushing teeth, etc. DO NOT

drink, ingest, or internally consume the water from your LaundryPure 2.0 unit or washing

machine. DO NOT provide water from your LaundryPure 2.0 to your pets or other animals.

CAUTION:

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS

100 - 240 Volt 50/60 Hz 5 AMP (minimum) Fuse or Circuit Breaker.

LaundryPure 2.0 is equipped with an AC to DC power supply.

WATER REQUIREMENTS

A dynamic water pressure greater than 20 psi / 1.37 bar and less than 60

psi / 4.13 bar is required to correctly operate your LaundryPure 2.0.

See Cautions below.

WATER

OUTLET

WATER

INLET

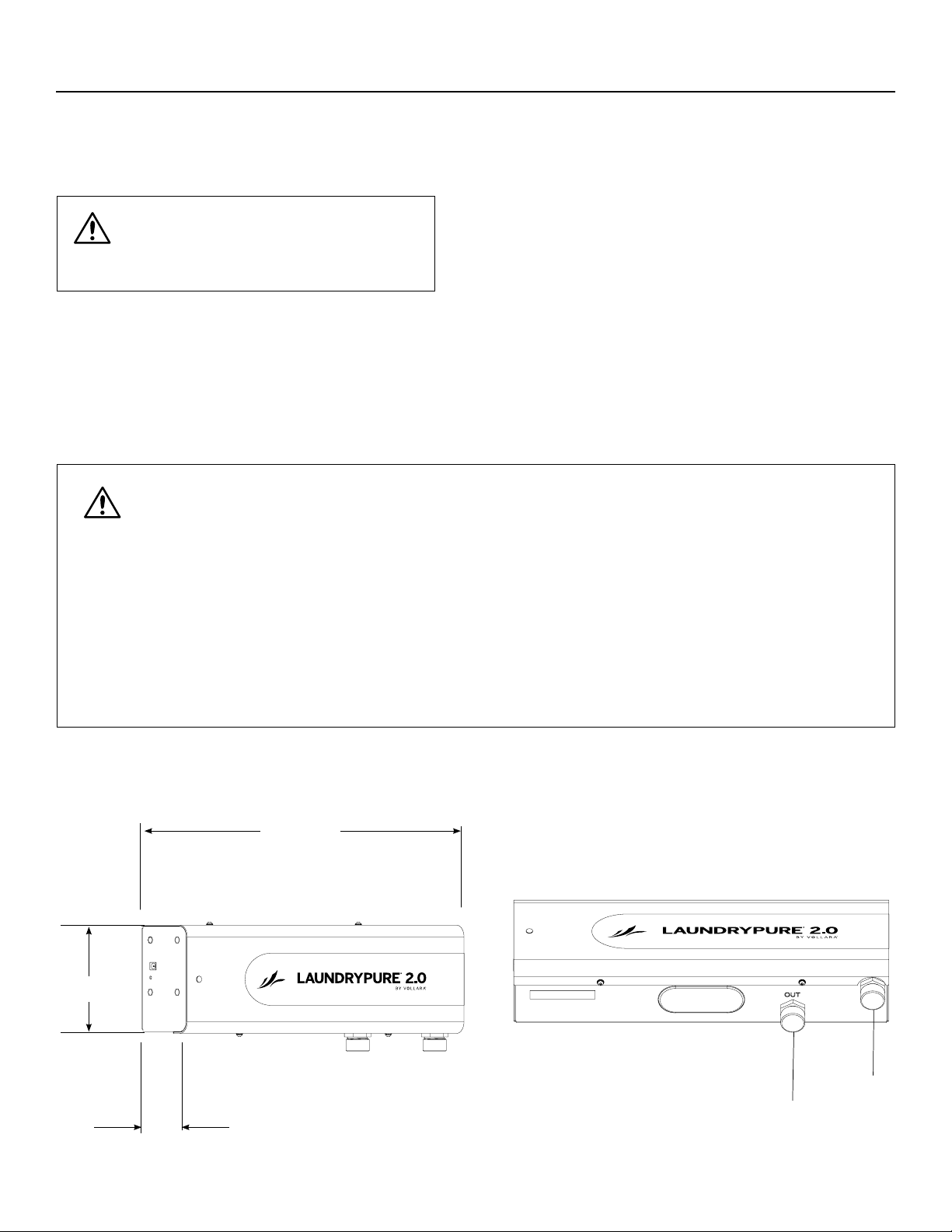

INSTALLATION REQUIREMENTS

17.3” (43.94 cm)

5.19” (13.48 cm)

3.69” (9.37 cvm)

Incoming water pressure must be greater than 20 psi / 1.37 bar. If

your household water pressure is greater than 60 psi / 4.13 bar, you

must install an in-line pressure reducer before installing LaundryPure

2.0. Failure to follow these instructions may result in water leakage,

property damage, personal injury, and may void your warranty.

Water pressure of 20 psi / 1.37 bar to 60 psi / 4.13 bar is required to

correctly operate your LaundryPure 2.0. Low water pressure may

prevent your unit from operating properly and/or cause a failure in

your washing machine’s water valve.

The washer’s water valve may also not shut o completely. Check

the documentation supplied with your washing machine for exact

specications. Your washing machine and cold water faucet must be

within 4 feet of the right side of the unit to use the inlet hose provided

with your LaundryPure 2.0.

TO AVOID THE POSSIBILITY OF WATER DAMAGE, SHOULD A

HOSE LEAK, ALWAYS HAVE FAUCETS ACCESSIBLE AND TURN

OFF FAUCETS WHEN WASHER IS NOT IN USE. DO NOT USE WITH

A CARBON FILTER.

CAUTION:

NEVER USE AN EXTENSION CORD.

CAUTION:

LOCATION CONSIDERATIONS

The LaundryPure 2.0 must never be installed in areas where water

may freeze since the unit will always maintain some water in the unit,

the water valve, and hose areas. This can cause damage to internal

components. It is also recommended to avoid installation in areas of

high humidity, as it can eect the operation of the unit.

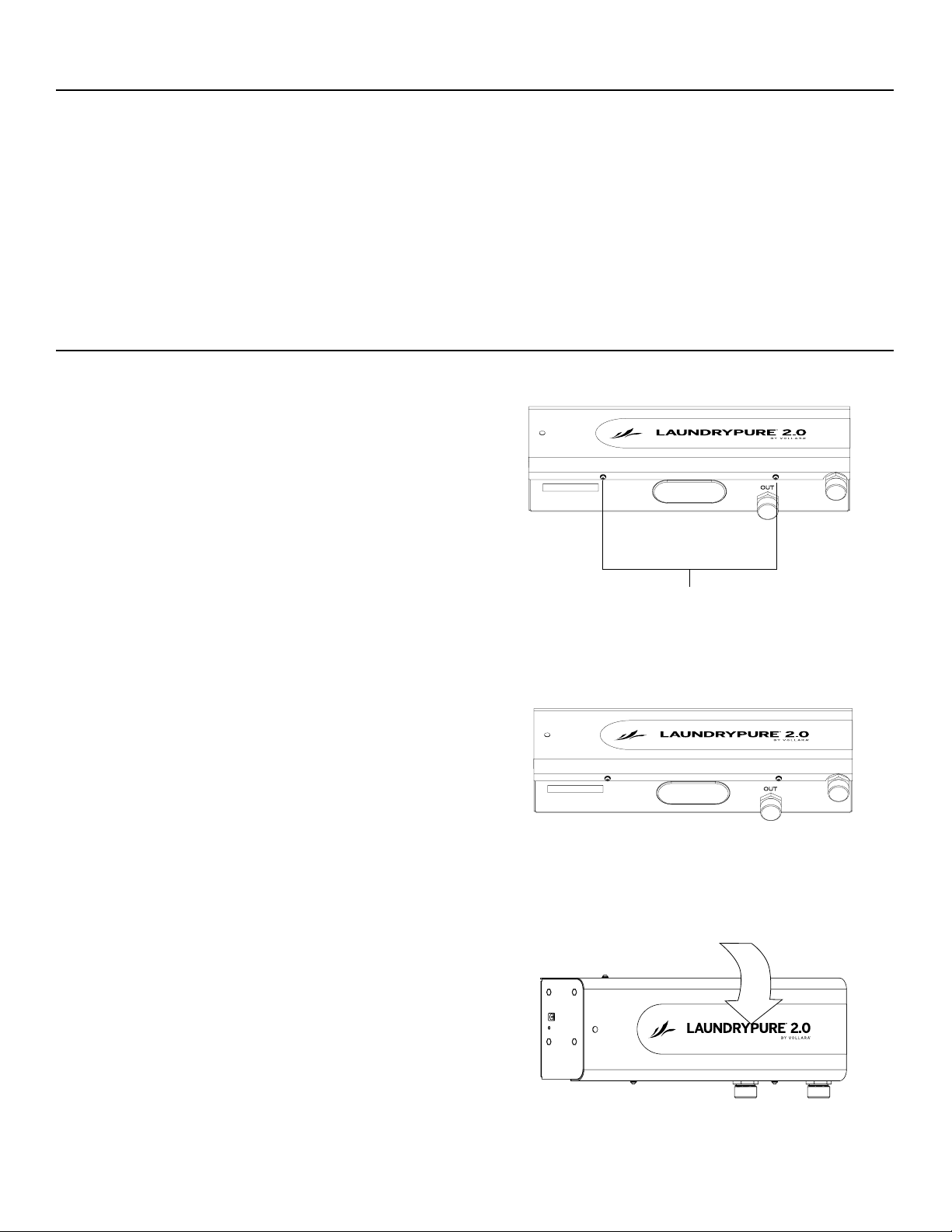

BEFORE YOU START

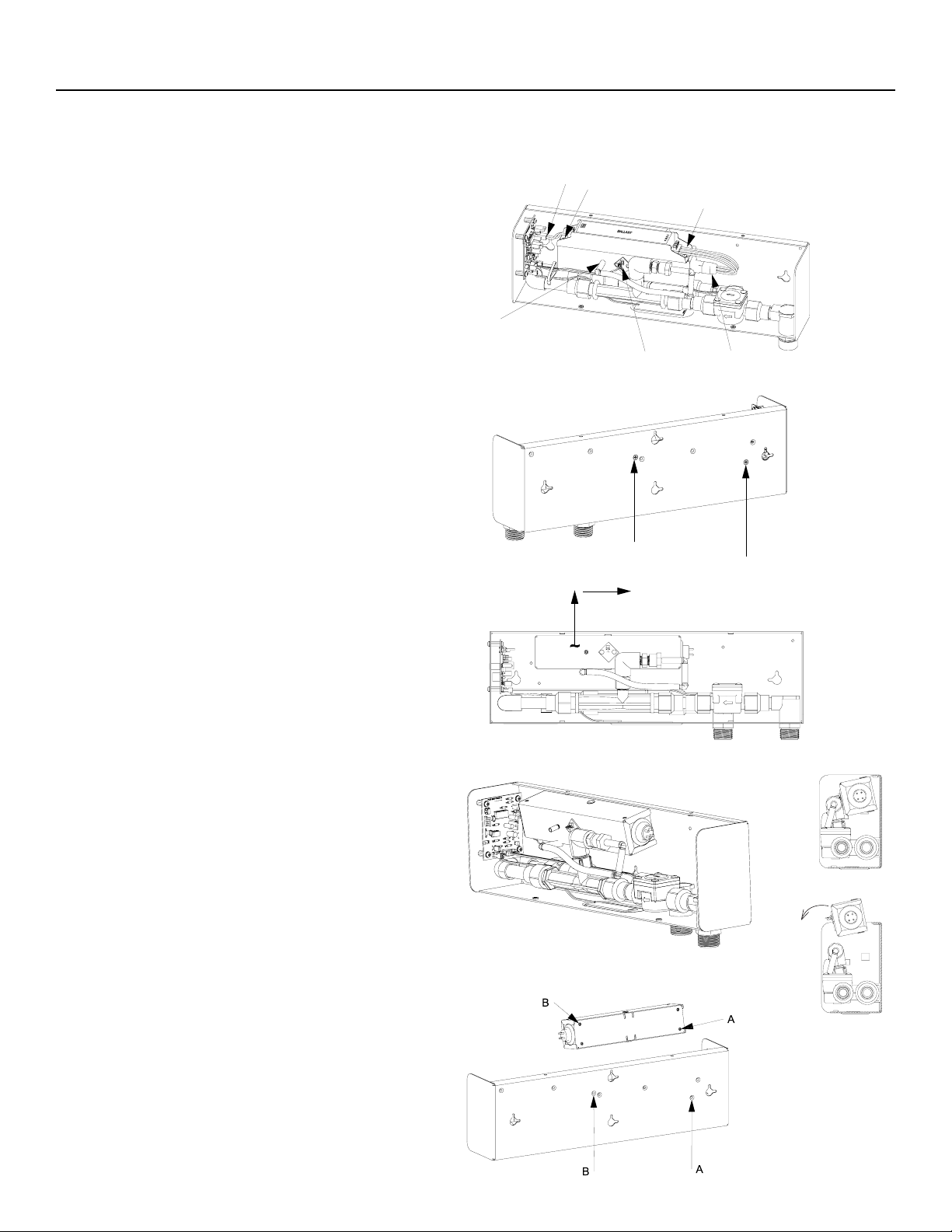

REMOVING COVER

• Remove your new LaundryPure 2.0 from its packaging

• Inspect the unit for any signs of shipping damage

NOTE: Your LaundryPure 2.0 unit was factory tested. It is normal for some residual water to still remain in the unit as a result of these tests.

Screws

1. Remove the two (2) cover screws located

on the bottom of the unit.

2. Remove the two (2) screws (not shown) along

the top of the LaundryPure 2.0.

3. To remove the cover, pull the top away from the

unit, then lift o the cover.

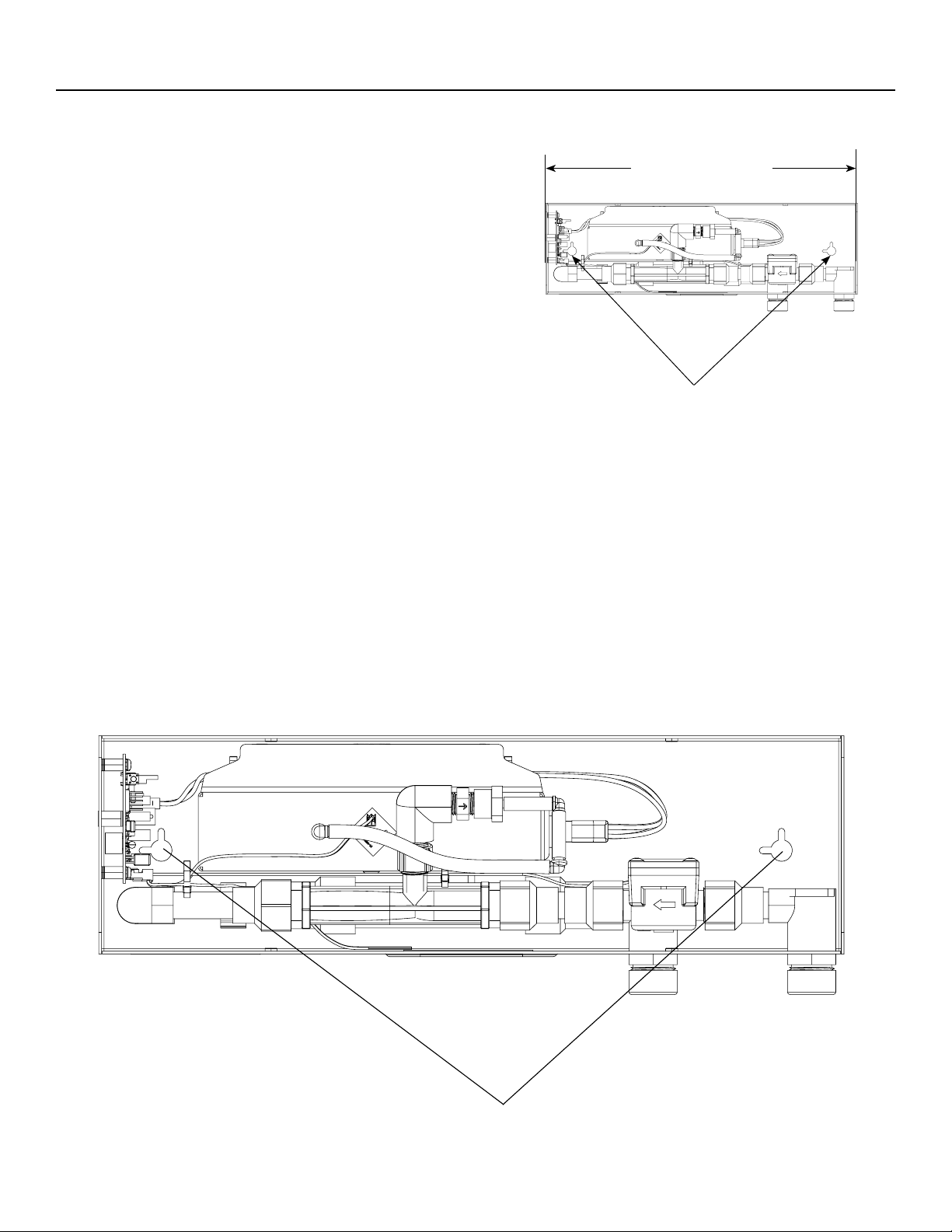

INSTALLATION OF WALL ANCHORS OR SCREWS

A. If using supplied wall anchors, drill two 3/16” (4.76 mm) diameter

holes. Place two wall anchors into the wall. Install two supplied screws

and tighten until almost all the way in.

B. If mounting to wall studs, drill two 3/32” (2.381 mm) diameter holes

approximately 1” (25.4 mm) deep. Install two supplied screws and

tighten until almost all the way in.

17.3” (43.94 cm)

Keyholes

NOTE: Washing machine and cold water faucet must

be within 4 feet (1.21 m) of the right side of unit.

1. Place the LaundryPure 2.0 to the wall and mark the appropriate

keyholes with a pencil.

Screws (not shown)

2. Position the keyholes of the LaundryPure 2.0 onto the screws

(not shown). Finish tightening screws enough to securely

mount unit, but still allowing it to be removed from wall.

Remove unit from wall.

NOTE: The provided hardware kit contains adhesive backed rubber

spacers to be placed on back of unit to provide additional

clearance from wall if needed for hose installation or the use

of ActiveClean Port. (Page 12)

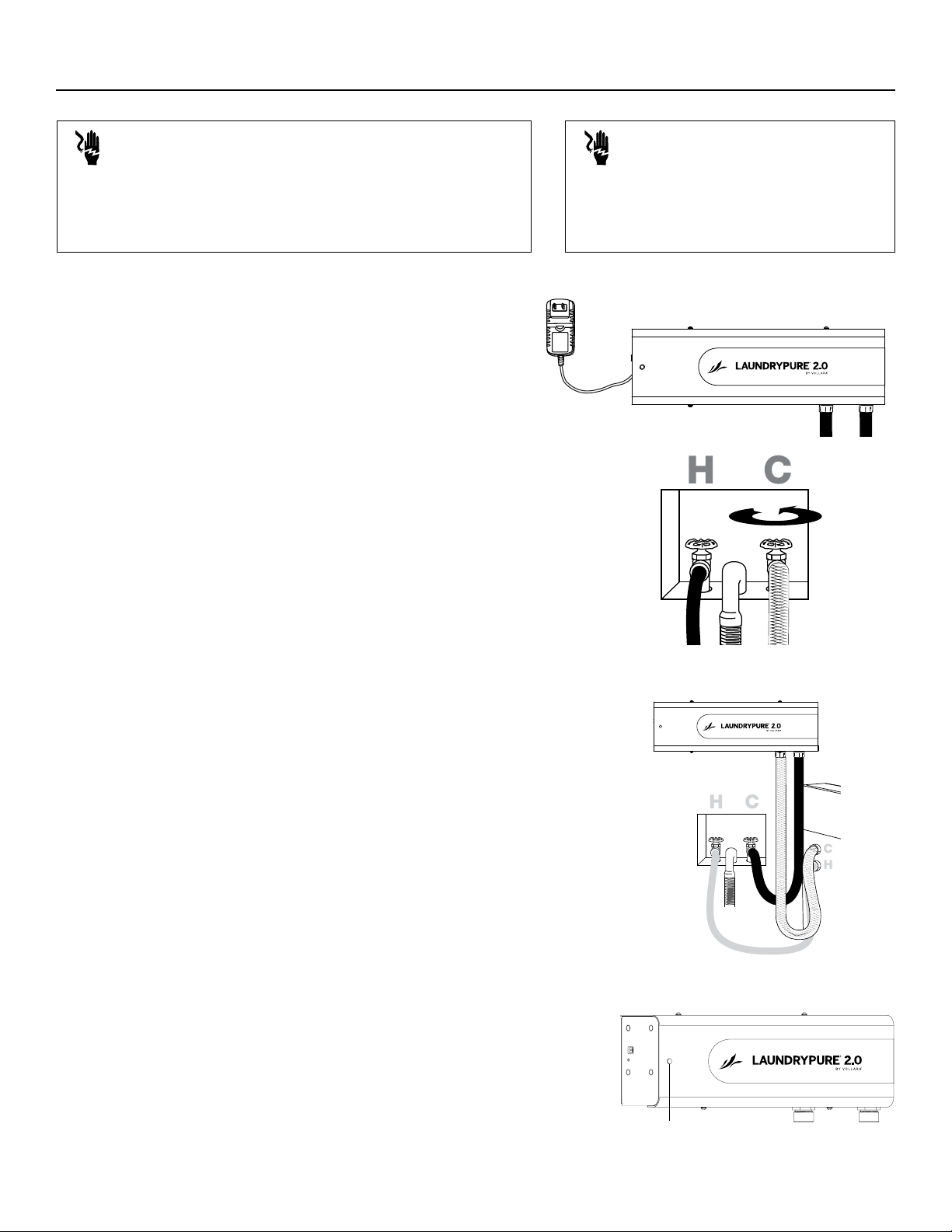

1. Turn the cold water o by shutting o the cold water faucet.

NOTE: To help prevent water spray when disconnecting hoses, you can

relieve pressure in the water line by momentarily starting your

washing machine.

NOTE: To ease hose installation and prevent cross threading, connect hose

prior to mounting unit on wall.

NOTE: Remove the two black caps from the hose connections

before installing hoses.

2. Remove the cold water hose from the cold water inlet

on the back of your washing machine. Leave hot water

hose attached.

When connecting hoses to your LaundryPure 2.0 start by hand tightening the hose

connector(s). Using adjustable pliers, nish tightening hose connector(s). Do not

remove or disconnect the hot water line from your washing machine or water valve.

CAUTION:

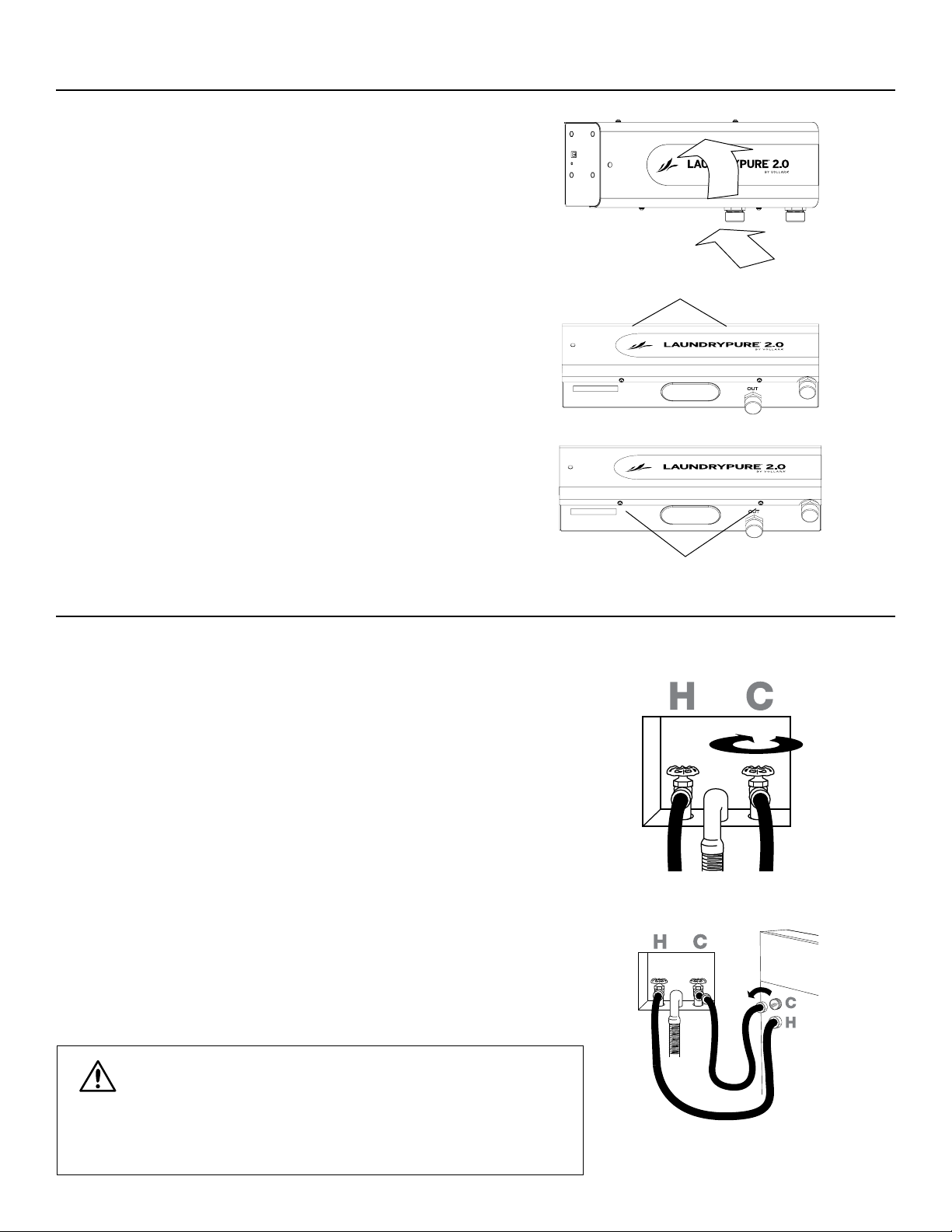

1. Return the LaundryPure 2.0 cover to its original position, tting the bottom

in place and tipping upward.

2. Secure with two (2) screws (not shown) along the top edge.

3. Put the two (2) remaining screws along the bottom edge and tighten.

REINSTALL THE COVER

HOSE INSTALLATION

Screws

CONNECTING POWER ADAPTER

1. Insert the provided power cord into the POWER IN socket located on the side of the unit.

Do not use any AC/DC adapter other than the one supplied with your LaundryPure 2.0 or Vollara replacement AC/DC

adapter (item#: 49873-US). Failure to follow these instructions may void your warranty and/or result in damage to your

unit, re, or electrical shock.

CAUTION:

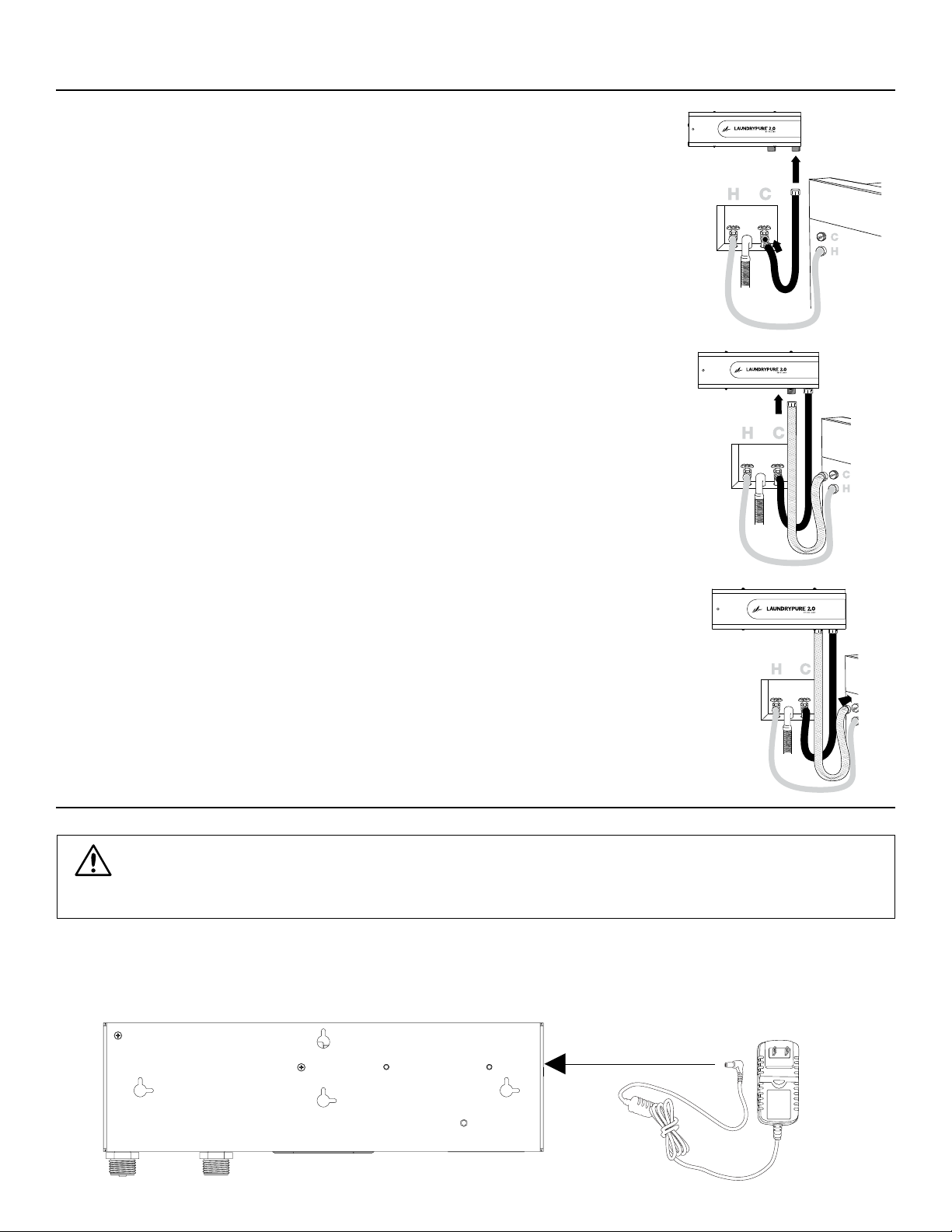

HOSE INSTALLATION CONTINUED

3. Connect the hose from the cold water inlet on your washing

machine to the INLET connection on your LaundryPure 2.0.

5. Finally, connect the new hose to the cold water inlet on your washing machine.

4. Connect the new hose provided with your LaundryPure 2.0 to the water

OUTLET connector on your LaundryPure 2.0 unit.

NOTE: To ease hose installation and prevent cross threading,

connect hoses prior to mounting unit on wall.

NOTE: If your existing hose is more than 3 years old, we recommend that you replace

it with the optional stainless steel hose (item#: 49701-US).

NOTE: Do not plug the adapter into the wall socket until installation is complete. See page 9.

SYSTEM SET UP

4. Start your washer. The status light should

illuminate blue after a few seconds.

NOTE: Your LaundryPure 2.0 will automatically turn

on and o as your washing machine starts, and stops.

Electrical Shock Hazard. When working with electrical connections, the

appliance and surrounding area should be clean and dry of any standing water.

Failure to follow these instructions can result in death, re, or electrical shock.

Electrical Shock Hazard. Do no use an extension cord.

Failure to follow these instructions can result in death,

re, or electrical shock.

WARNING: WARNING:

1. Plug power cord into the wall outlet of your

home’s electrical power system. See page 4 for

electrical requirements.

Status Indicator Lights

2. Turn on the cold water valve.

3. Check all hoses to ensure no water

is leaking. Tighten if necessary.

CHANGING THE ACTIVEPURE CELL ASSEMBLY S/N 49919

1. Unplug from power source and remove cover (see page 5)

2. Remove unit from wall

3. Remove tubing at cell (Figure 1)

4. Unplug photo sensor at cell (Figure 1)

5. Unplug wire harness from bulb (Figure 1)

6. Remove 2 ballast screws (Figure 1)

7. Unplug ballast from PCB (Figure 1)

8. Remove 2 cell screws at back (Figure 2)

9. Slide ActivePure Cell up slightly and to the right (Figure 3)

10. Tilt cell forward and slide up and out; may require pulling very

slightly on plumbing – use extreme caution – do no break

plumbing connections. (Figures 4, 4a, 4b)

11. Replace with new ActivePure Cell (S/N 49919) and remount to

base (Figure 5)

NOTE: Two holes, A and B, are used to install new ActivePure Cell

12. Assemble unit and mount on wall (Follow steps 9 - 1)

NOTE: The ActivePure Cell Assembly requires replacement at approx. 9,000 hours of use. The LED will ash periodically (visual chirp) to notify that

cell replacement is required. The UV bulb will NOT be turned on again until the cell has been replaced.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 4a

Figure 4b

Inhaltsverzeichnis

Sprachen:

Andere vollara Waschmaschine Handbücher

vollara

vollara LAUNDRY PURE Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

LAUNDRY JET

LAUNDRY JET Plus Bedienungsanleitung

LG WKGX301H A Series Bedienungsanleitung

Kenmore

Kenmore Kenmore 27" Wide LAUNDRY CENTER Washer -... Bedienungsanleitung

LG WK X30 Series Bedienungsanleitung

Frigidaire

Frigidaire GLEH164DS1 Administratorhandbuch

Frigidaire

Frigidaire GLEH1642DS0 Administratorhandbuch

AEG

AEG LAVATHERM 65280AC Bedienungsanleitung

Samsung

Samsung WF0500NXWG Bedienungsanleitung

Whirlpool

Whirlpool WVP5000SQ0 Bedienungsanleitung

Whirlpool

Whirlpool XVP8600TB0 Bedienungsanleitung

Frigidaire

Frigidaire MEX731CFS2 Bedienungsanleitung

GE Spacemaker WSM2700 Bedienungsanleitung

GE Spacemaker WSM2780 Bedienungsanleitung

Asko

Asko Washer/Dryer Combination Laundry System Bedienungsanleitung

Aerus

Aerus LAUNDRY PRO Bedienungsanleitung

Frigidaire

Frigidaire FLCE752CAW Betriebsanleitung

Mustee

Mustee UTILATUB 17F Bedienungsanleitung

Whirlpool

Whirlpool XVP9000TA0 Bedienungsanleitung

vollara LAUNDRY PURE 2.0 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken
