Instruction No Version Part. No.
9950065 1.0
Radio with large and normal front
D3902464
5
5
Instruction No Version Part. No.
9950065 1.0
Radio with large and normal front
D3902464
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 1 / 7

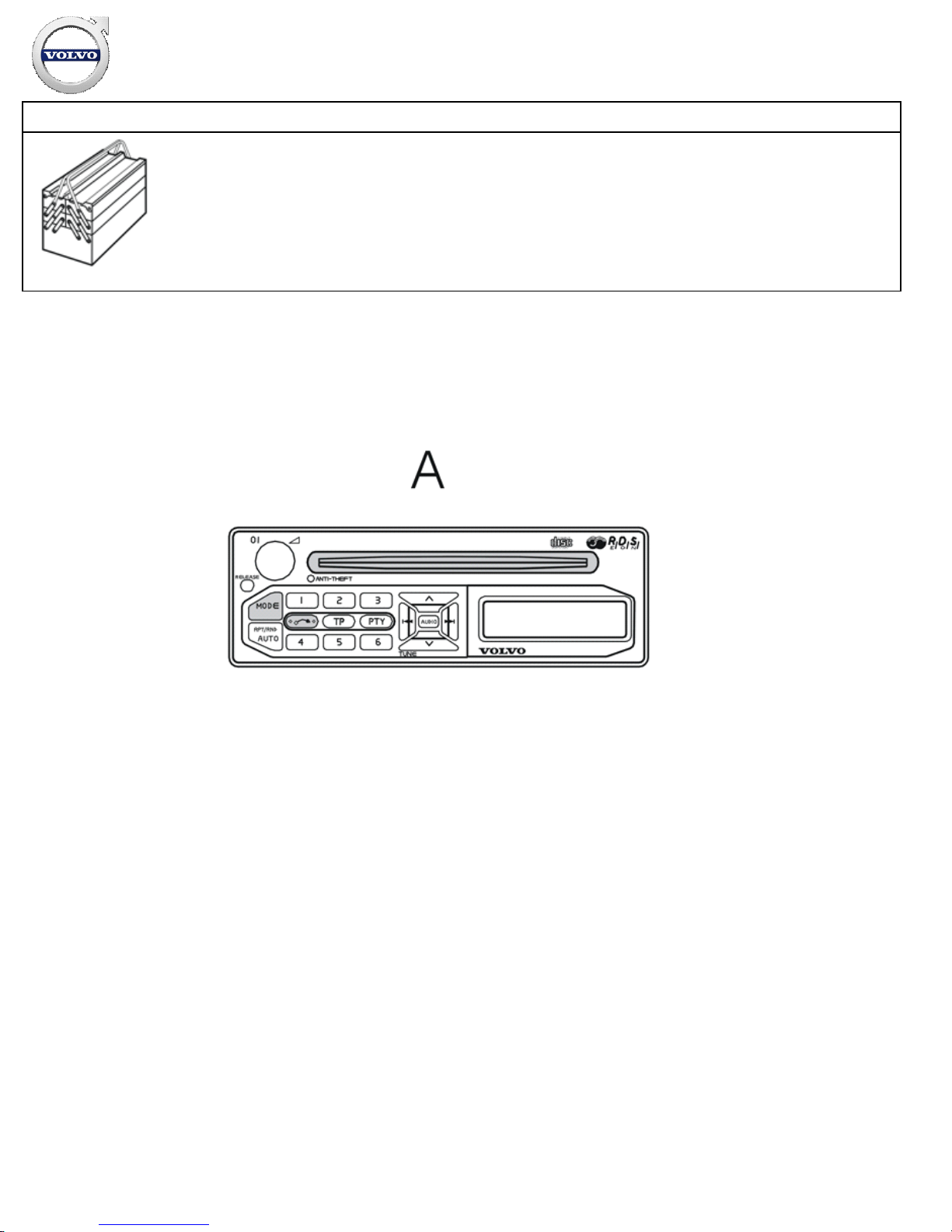

Equipment
A0000162
M3903098
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 2 / 7
M3903099
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 3 / 7
M3903100
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 4 / 7
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!

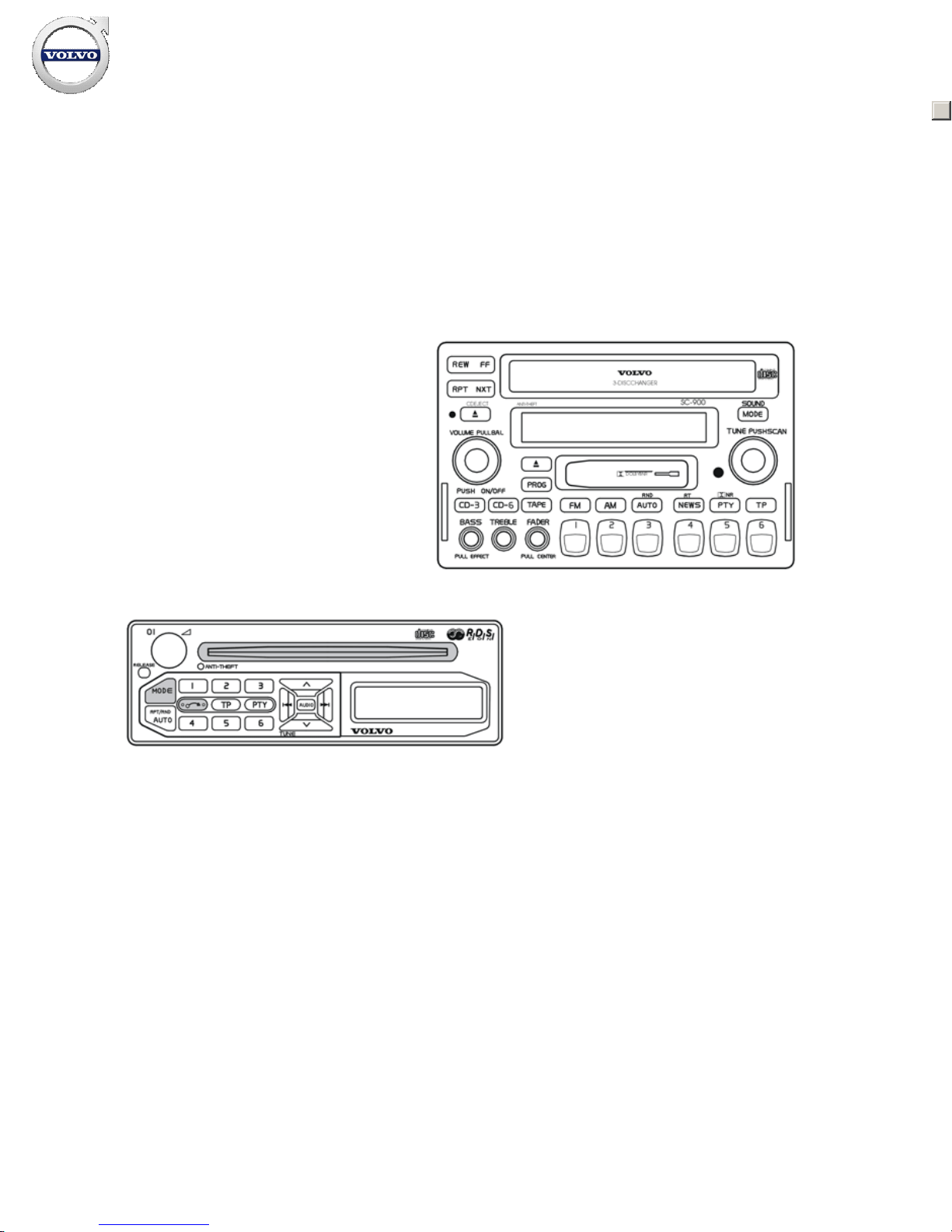

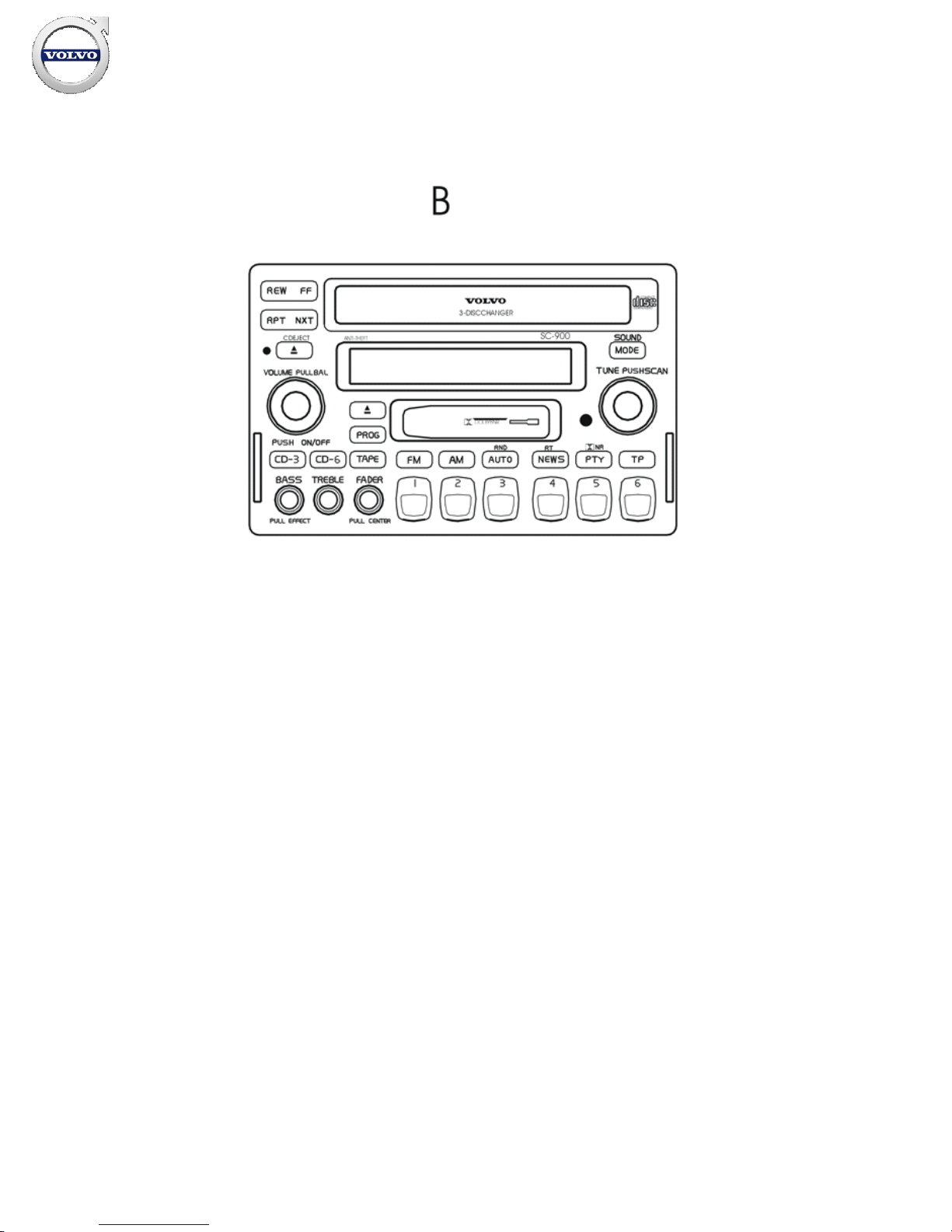

Kit illustration A shows a radio with a small front. Kit
illustration B shows a radio with a large front.
1
D8502417

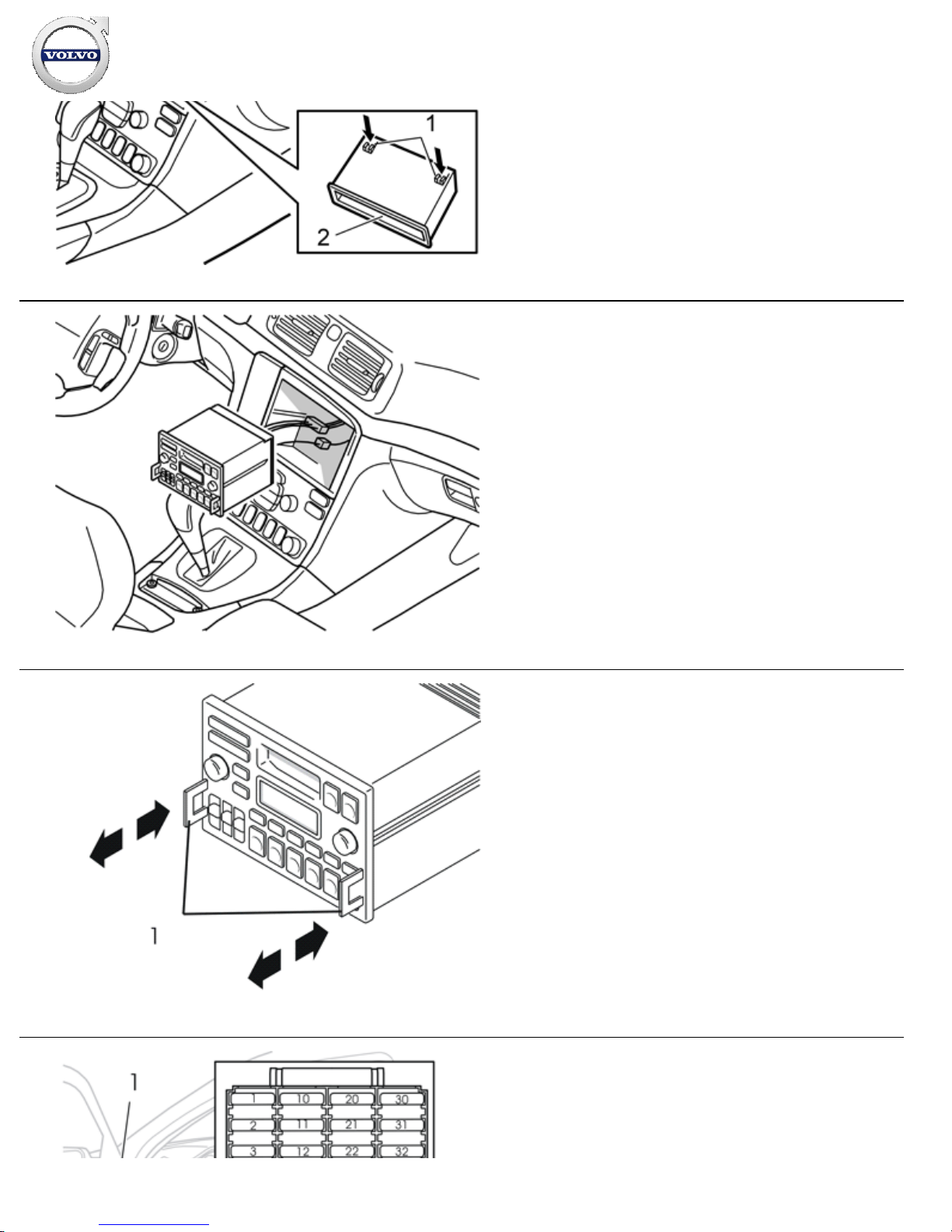

Remove the cover (1).
2Applies only to large fronted radios
Insert a hand. Press up the catches (1) in the lower compartment
(2). Remove the compartment.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 5 / 7
D8502583
3
D8502584
Pull the wiring out of the radio tray.
Connect the adapter cable from the kit between the radio and
existing cable.
Connect the antenna cable and any other wiring.
4
A3902180
Pull out the latch handles (1) fully.
Slide the radio into the compartment.
Press in the latch handles to lock the radio into place.
5Applies to cars which have not previously had a radio
installed.

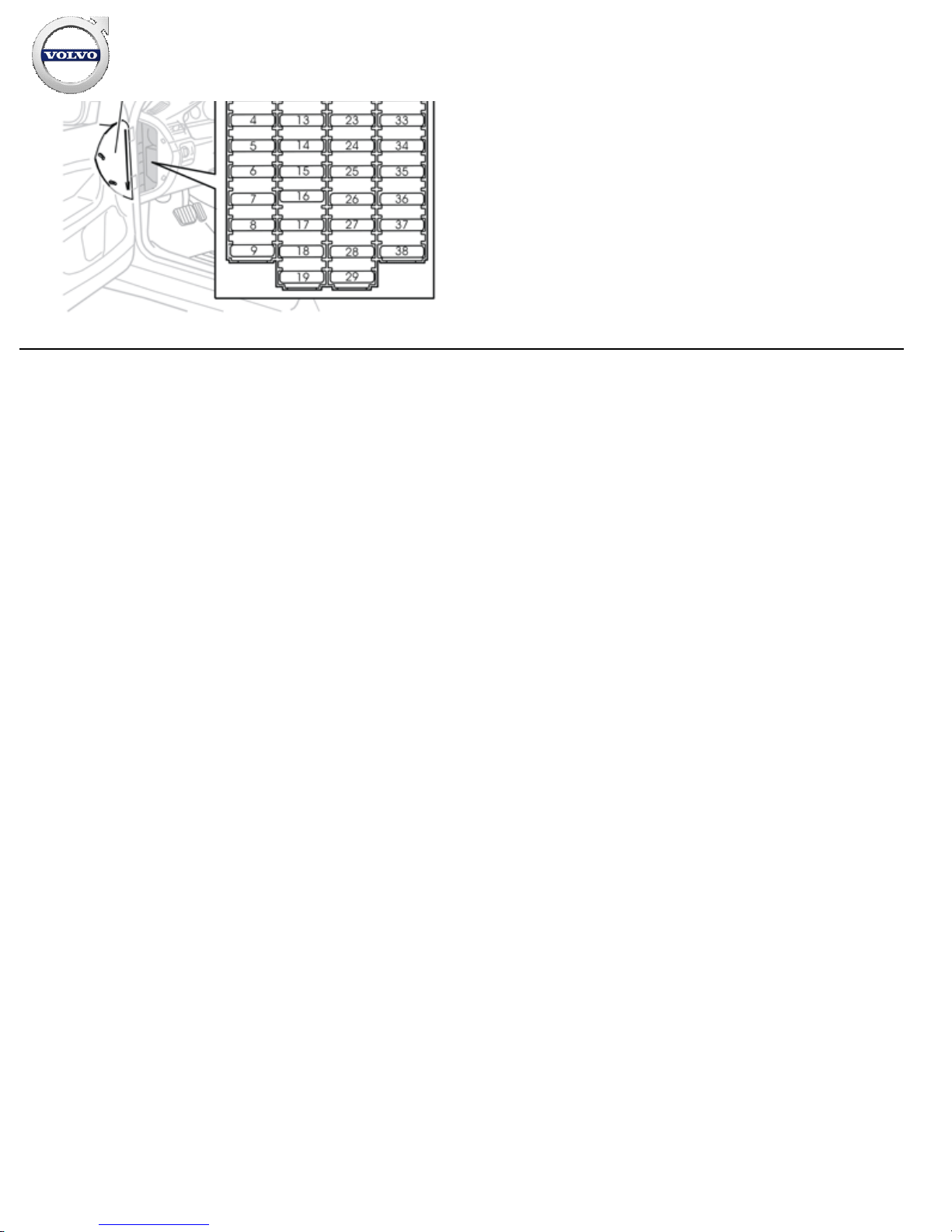

Remove the cover (1) from the fuse holder.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 6 / 7
D3701622
Install a 5 A fuse in socket number 15. Install a 20 A fuse in
socket number 16.
Reinstall the cover on the fuse holder.
Program the software using VCT 2000 according to the service
information in VIDA.
Enter the radio code.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation Radio with large and normal front
-
9950065
-
V1.0
Page 7 / 7
