VORON SWITCHWIRE Bedienungsanleitung
1
WWW.VORONDESIGN.COM
VERSION 2021-05-23
SWITCHWIRE ASSEMBLY MANUAL
We build space shuttles with gardening tools
so anyone can have a space shuttle of their own.
VORON
2
WWW.VORONDESIGN.COM
INTRODUCTION
Before you begin on your journey, a word of caution.
In the comfort of your own home you are about to assemble a robot. This
machine can maim, burn, and electrocute you if you are not careful. Please
do not become the rst VORON fatality. There is no special Reddit air for that.
Please, read the entire manual before you start assembly. As you begin wrenching,
please check our Discord channels for any tips and questions that may halt your progress.
Most of all, good luck!
THE VORON TEAM
3
WWW.VORONDESIGN.COM
TABLE OF CONTENTS
Introduction
Hardware
Frame
Y Axis
Skirts
X&Z Axis
X Carriage
AfterBurner
Electronics & Panels
Final Touches
04
06
08
18
32
38
52
68
84
100
4
WWW.VORONDESIGN.COM
INTRODUCTION
PART PRINTING GUIDELINES
The Voron Team has provided the following print guidelines for you to follow in order to have the best chance at
success with your parts. There are often questions about substituting materials or changing printing standards, but
we recommend you follow these.
3D PRINTING PROCESS
Fused Deposition Modeling (FDM)
MATERIAL
ABS
LAYER HEIGHT
Recommended: 0.2mm
EXTRUSION WIDTH
Recommended: Forced 0.4mm
INFILL TYPE
Grid, Gyroid, Honeycomb, Triangle or Cubic
INFILL PERCENTAGE
Recommended: 40%
WALL COUNT
Recommended: 4
SOLID TOP/BOTTOM LAYERS
Recommended: 5
PRINT IT FORWARD (PIF)
Often times our community members have issues printing ABS will bootstrap themselves into a VORON using
our Print It Forward program. This is a service where approved members with VORON printers can make you a
functional set of parts to get your own machine up and running.
Check Discord if you have any interest in having someone help you out.
5
WWW.VORONDESIGN.COM
INTRODUCTION
HOW TO GET HELP
If you need assistance with your build, we’re here to help. Head on over to our Discord group and post
your questions. This is our primary medium to help VORON Users and we have a great community that
can help you out if you get stuck.
https://discord.gg/voron
THIS IS JUST A REFERENCE
This manual is designed to be a simple reference manual. Building a Voron can be a complex endeavour
and for that reason we recommend downloading the CAD les off our Github repository if there are
sections you need clarication on. It can be sometimes be easier to follow along when you have the
whole assembly in front of you.
https://github.com/vorondesign
6
WWW.VORONDESIGN.COM
BUTTON HEAD CAP SCREW (BHCS)
Metric fastener with a domed shape
head and hex drive. Most commonly
found in locations where M5 fasteners
are used.
ISO 7380-1
SOCKET HEAD CAP SCREW (SHCS)
Metric fastener with a cylindrical head
and hex drive. The most common
fastener used on the Voron.
ISO 4762
HEX NUT
Hex nuts couple with bolts to create a
tight, secure joint. You’ll see these used in
both M3 and M5 variants throughout this
guide.
ISO 4032
SHIM
Not to be confused with stamped
washers. These are used in all M5 call-out
locations in this manual.
DIN 988
FLAT HEAD COUNTERSUNK SCREW (FHCS)
Metric fastener with a cone shaped head and
a at top.
ISO 10642
PULLEY
GT2 pulley used on the motion system
of the Voron.
HARDWARE
7
WWW.VORONDESIGN.COM
HARDWARE

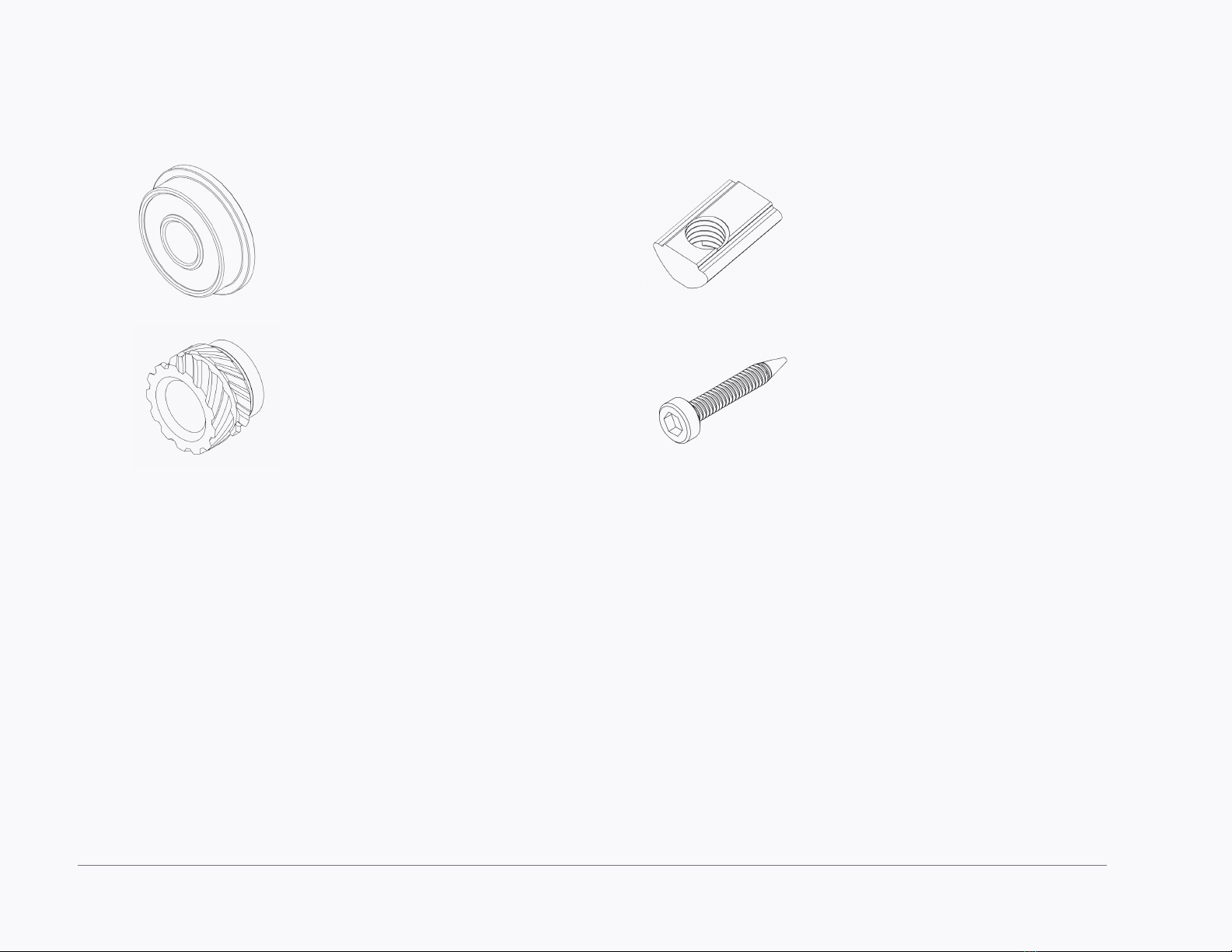

HEAT SET INSERT
Heat inserts with a soldering tip so that
they melt the plastic when installed.
As the plastic cools, it solidies around
the knurls and ridges on the insert for
excellent resistance to both torque and
pull-out.
F695 BEARING
A ball bearing with a ange used in
various gantry locations.
POST INSTALL T-SLOT NUT
Nut that can be inserted into the slot of
an aluminium prole. Used in
both M3 and M5 variants throughout this
guide.
SELF TAPPING SCREW
Fastener with a pronounced thread
prole that is screwed directly into
plastic.
8
WWW.VORONDESIGN.COM
FRAME
9
WWW.VORONDESIGN.COM
GETTING EXTRUSIONS TOGETHER
Separate the extrusions you’re going
to need for this section of the build.
We’ve laid out all the parts you should
have and highlighted the ones that will
be used in the following sections.
EXTRUSIONS
10
WWW.VORONDESIGN.COM
FRAME
M8x16 BHCS
BLIND JOINT BASICS
Blind Joints provide a cost effective and rigid
assembly method. The head of the BHCS is
slid into the channel of another extrusion and
securely fastened through a small access hole
in the other extrusion.
