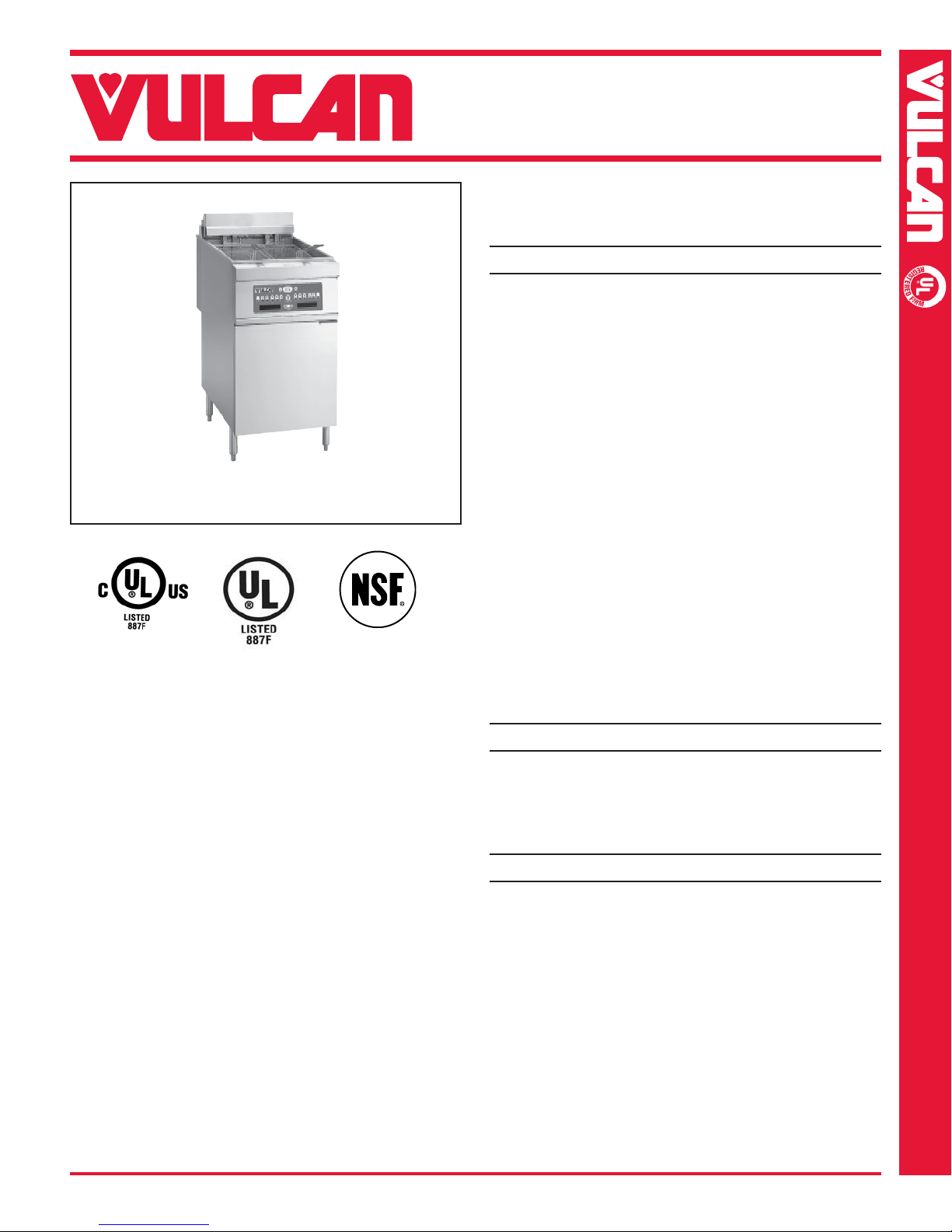

1ER85 SERIES

FREE STANDING ELECTRIC FRYERS

MODELS: 1ER85 SERIES FREE STANDING ELECTRIC FRYER

SPECIFICATIONS:

Electric deep fat fryer, Vulcan-Hart Model No. (1ER85D)

(1ER85C). Cabinet is stainless steel with four 6" adjustable

legs. 16 gauge stainless steel fry tank holds 85 lbs. of frying

compound. 11/4" full port ball type drain valve. 24 KW low watt

density ribbon style heating elements. Both solid state (D)

and programmable computer (C) temperature controls are

adjustable from 200 to 390F and include 3 melt cycle and

high limit control. Twin fry baskets. Power supply is 208 volt,

60 Hz, 3 phase.

Overall dimensions: 21"w x 34 1/8"d x 411/16"h. Working height

is 361/4".

NSF listed. CSA design certified.

SPECIFY VOLTAGE WHEN ORDERING.



1ER85D Solid state controls



1ER85C Programmable computer controls

STANDARD FEATURES



Stainless steel front and sides.



Four 6" adjustable legs.



16 gauge stainless steel fry tank, 85 lb. capacity.



Twelve year limited fry tank warranty.



11/4" full port ball type drain valve.



24 KW low watt density ribbon style heating elements.



Three fat melt modes.



High limit control.



Twin fry baskets with plastic coated handles.



One year limited parts and labor warranty.

CONTROLS:

1ER85D Solid state digital read temperature control. Accurate

temperature control 200F to 390F within +/- 2.

Multiple fat melt modes, fast recovery, boil out mode

and two countdown timers.

1ER85C Computer control digital read temperature control.

Accurate temperature control 200F to 390F within

+/- 2. Multiple fat melt modes, fast recovery and

boil out mode. Ten programmable product keys

and ten countdown timers. Secondary and ad-

vanced programming options.

OPTIONS

480 volt, 3 phase. (Separate 120 volt, 20 amp electric

supply required.)

Second year extended limited parts and labor warranty.

ACCESSORIES

Set of foru 6" adjustable casters (2 locking).

Extra set of twin fry baskets - 91/4"w x 151/4"d x 6"h

Large single fry basket - 183/4"w x 151/4"d x 6"h

Tri-baskets - 51/2"w x 151/4"d x 6"h

Tank cover.

Flanged feet.

Model 1ER85C

MODELS: 1ER85 SERIES FREE STANDING ELECTRIC FRYER

VULCAN-HART COmpANy, p.O. BOX 696, LOUISVILLE, Ky 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specifications without notice.

F-32901 (6-07)

1ER85 SERIES

FREE STANDING ELECTRIC FRYERS

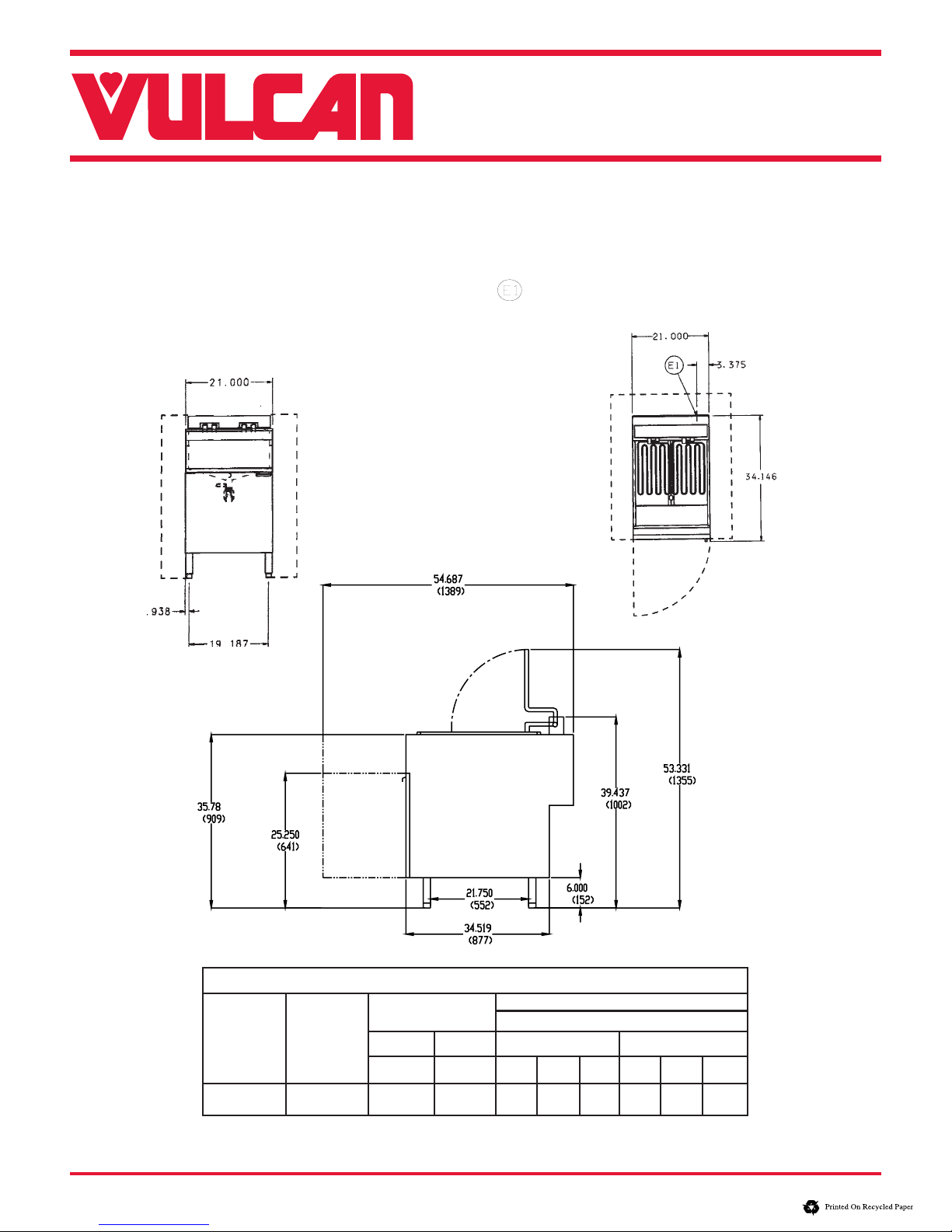

TOP VIEW

FRONT VIEW

SIDE VIEW

IMPORTANT:

1. An adequate ventilation system required for commercial

cooking equipment. Information may be obtained by writing

to the National Fire Protection Association, Batterymarch

Park, Quincy, MA 02269. When writing refer to NFPA No. 96.

2. All models require a 6" clearance at both sides and rear

adjacent to combustible construction.

3. This appliance is manufactured for commercial installation

only and not intended for domestic/household installation.

ELECTRICAL CHARACTERISTICS

3 PH LOADING NOMINAL AMPS PER LINE WIRE

TOTAL KW PER PHASE 3 PHASE

MODEL KW 208 480V 208 VOLT 480 VOLT

NO. CONN. X-Y X-Z X Y Z X Y Z

1ER85 24 8 8 67 67 67 29 29 29

Electrical Connection

4. All models require a 16" (407 mm) minimum clearance to

adjacent open top burner units.

5. This appliance is manufactured for commercial installation

only and is not intended for home use.

SERVICE CONNECTIONS:

120 volt, 60 Hz, 1 phase electrical connection (filter pump).

SIDE VIEW
