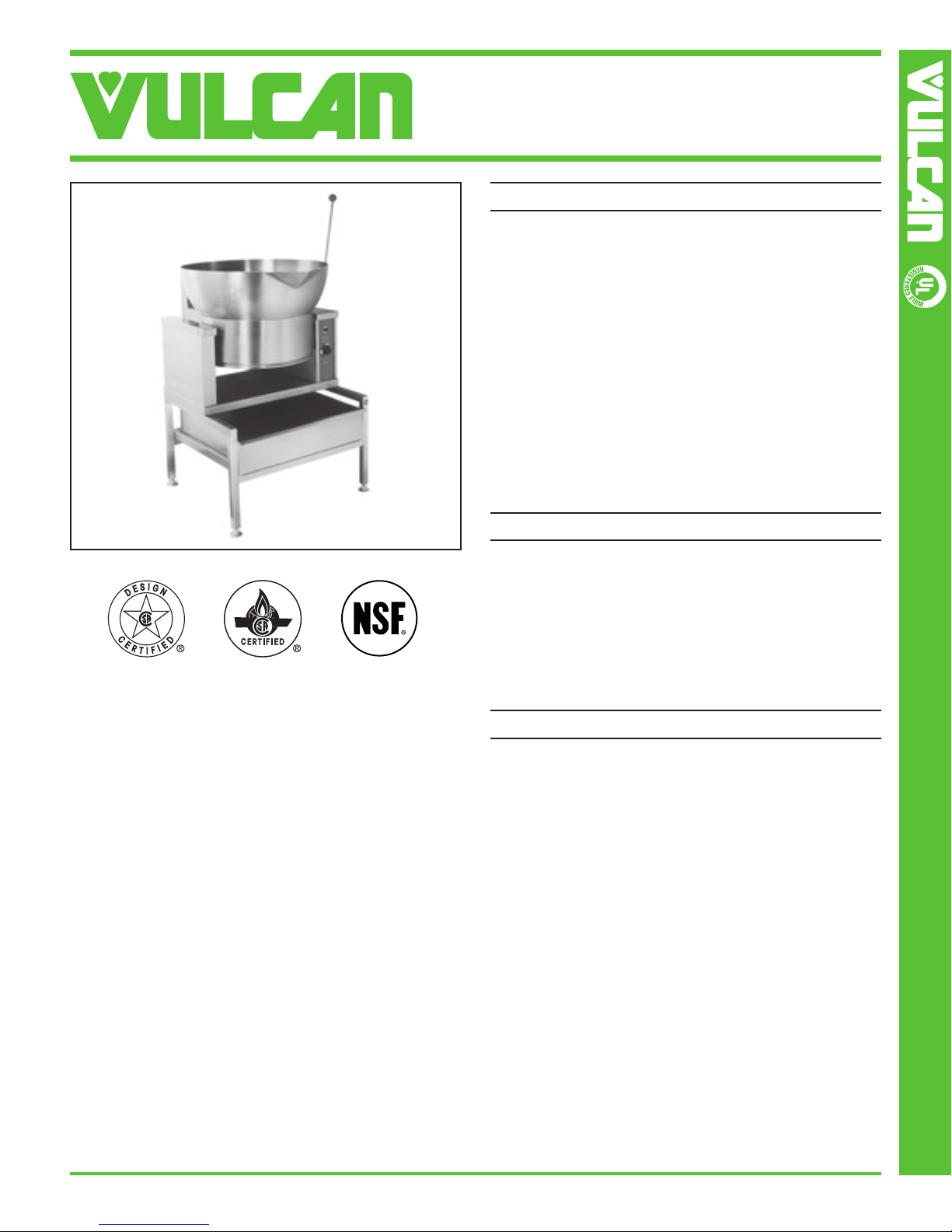

SPECIFICATIONS:

Round gas tilting braising pan, Vulcan-Hart Model

No. VGCTS16. Stainless steel front and sides. 10 gauge

polished stainless steel pan body with coved interior corners.

Stainless steel 3/8" clad cooking surface. Formed pouring lip.

The pan pivots on trunnions. Pan can be fully tilted.

30,000 BTU/hr. stainless steel round burner with electronic

ignition system. Burners shut off when pan is tilted 5°. Faucet

bracket. Controls include a solid state thermostat adjustable

from 100° to 450°F. Mounted on a stand with sliding drain pan.

Requires a 120 volt, 60 Hz, 1 phase control circuit, 3 amps total

draw.

Exterior dimensions: 291/4"w x 297/8"d x 431/4" overall height;

with handle 591/4"h.

CSA design certified. NSF listed.

MODEL VGCTS16

ROUND GAS TILTING BRAISING PAN

MODEL: VGCTS16 Round Gas Tilting Braising Pan

STANDARD FEATURES

■Stainless steel front and sides. 10 gauge polished stainless

steel pan body with coved interior corners.

■Stainless steel 3/8" clad cooking surface. Formed pouring

lip.

■The pan pivots on trunnions. Pan can be fully tilted.

■30,000 BTU/hr. stainless steel round burner with electronic

ignition system. Burners shut off when pan is tilted 5°.

■Faucet bracket.

■Controls include a solid state thermostat adjustable from

100° to 450°F. Mounted on a stand with sliding drain pan.

■Requires a 120 volt, 60 Hz, 1 phase control circuit, 5 amp

total draw. Furnished with cord and plug.

■One year limited parts and labor warranty.

OPTIONS

■■Etched gallon markings.

■■Pour lip strainer.

■■Correction facility package:

- Control cover (lock by others).

- Security type tamper resistant fasteners with tack welds.

■■Second year extended limited parts and labor warranty.

ACCESSORIES

■■12" swing faucet, single temperature.

■■12" swing faucet, dual temperature.

■■18" swing faucet, single temperature.

■■18" swing faucet, dual temperature.

■■Steaming pan insert rack to hold 12" x 20" food pans.

■■Lift off cover.

Printed On Recycled Paper

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specifications without notice.

F-32278 (10-03)

MODEL VGCTS16

ROUND GAS TILTING BRAISING PAN

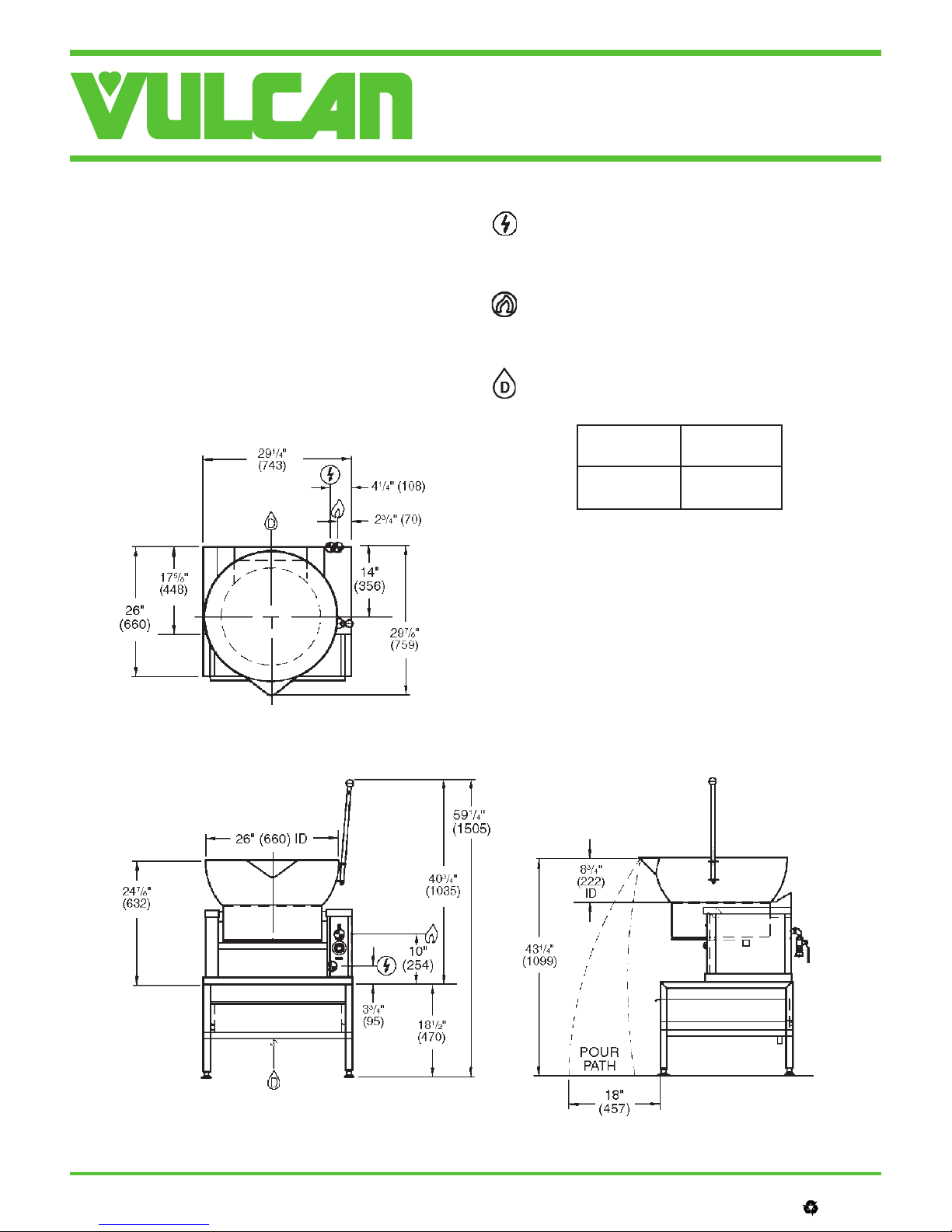

SERVICE CONNECTIONS:

Electrical Connection: Unless otherwise specified, Field

Wire Connection to be 120 volts, 60 Hz, single phase with

grounding wire. Furnished with 6' cord with 3 prong plug.

Maximum amps 2.0.

Gas Connection: Supply gas through 1/2" pipe with pres-

sure of approx. 7" W.C. For propane use 11" W.C. pres-

sure. A gas shut-off valve is installed in supply piping

convenient to appliance.

Drain: 11/4" (32 mm).

IMPORTANT:

1. An adequate ventilation system is required for commercial cooking

equipment. Information may be obtained by writing to the National

Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

When writing refer to NFPA No. 96.

2. These units are manufactured for installation in accordance with

ANSZ223.1a (latest edition), National Fuel Gas Code. Copies may be

obtained from the American Gas Association, 1515 Wilson Blvd.,

Arlington, VA 22209.

3. This appliance must be installed with a 3" clearance at sides and a 6"

clearance at rear adjacent to combustible and non-combustible

construction.

4. This appliance is manufactured for commercial installation only and

is not intended for home use.

BRIMFUL 4 OZ

CAPACITY PORTIONS

16 gallons 512

60 liters
