Vulcan-Hart MG12 Bedienungsanleitung

Item # __________________________

C.S.I. Section 11420

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

A2780

ISO9001

Vulcan-Hart Co.

F-32197 (10-03)

MG12 SERIES

MODULAR GAS RESTAURANT RANGE

SPECIFICATIONS:

12" modular gas restaurant range Vulcan-Hart Model No.

MG12. Two 26,000 BTU/hr. cast burners with lift-off heads.

52,000 BTU/hr. total input. Two 12" x 12" heavy cast top grates

with aeration bowls. Full width crumb drawer. Stainless steel

front, front top, sides and flue riser. 4" adjustable legs. Gas

pressure regulator. Gas supply to be (natural) (propane).

Exterior dimensions: 12"w x 293/4"d x 111/2"h.

CSA design certified. NSF listed.

SPECIFY TYPE OF GAS WHEN ORDERING.

STANDARD FEATURES

■Stainless steel front, front top, sides and riser.

■Two 26,000 BTU/hr. open burners. Pilot for every burner.

■Lift-off anti clog open burner heads.

■Open top removable grate section is cast in one piece with

the burner spillover bowl. Grate size 12" x 12".

■Full width pull out crumb tray under the burners.

■Full width stainless steel panel behind controls.

■4" adjustable nickel plated legs, shipped attached.

■Cool to the touch control knobs.

■Pressure regulator.

■One year limited parts and labor warranty.

OPTIONS

■■Second year extended limited parts and labor warranty.

TOP OPTIONS

■■Even Heat Hot Top Sections

• 20,000 BTU/hr. input per section.

• 12" x 24" cast iron top sections.

• Substitute for open top burners.

• Corrugated heat absorbing ribs on under side of casting.

• Use for larger stock pots.

■■Step-Up Burners

• Rear burners elevated 4".

ACCESSORIES

■■3/4" x 4 ft. flexible gas hose with quick disconnect and

restraining device.

MODEL: MG12 SERIES

Modular Gas Restaurant Range

Printed On Recycled Paper

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specifications without notice.

F-32197 (10-03)

Top View

4" Raised Rear Burner Side View

Side View

Rear View

Front View

MG12 SERIES

MODULAR GAS RESTAURANT RANGE

IMPORTANT

1. A pressure regulator sized for this unit is included. Natural

Gas 3.7" W.C. Propane Gas 10.0" W.C.

2. An adequate ventilation system is required for Commercial

Cooking Equipment. Information may be obtained by writing

to the National Fire Protection Association, Batterymarch

Park, Quincy, MA 02269. When writing refer to NFPA No. 96.

3. These units are manufactured for installation in accordance

with ANSZ223.1a (latest edition), National Fuel Gas Code.

Copies may be obtained from American Gas Association,

1515 Wilson Blvd., Arlington, VA 22209.

NOTE: This appliance must be installed with a 6" clearance at

both sides and the rear adjacent to combustible construction.

Not intended for domestic household installation.

Andere Handbücher für MG12

Andere Vulcan-Hart Reichweite Handbücher

Vulcan-Hart

Vulcan-Hart Vulcan VSP100 Handbuch

Vulcan-Hart

Vulcan-Hart G260 Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart GHX45 Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart VG260 Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart E36LC SERIES Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart GH30 Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart G481L Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart HDR V series Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart G24S-2FT12T Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart G481L Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart 36-S-36G-N Bedienungsanleitung

Vulcan-Hart

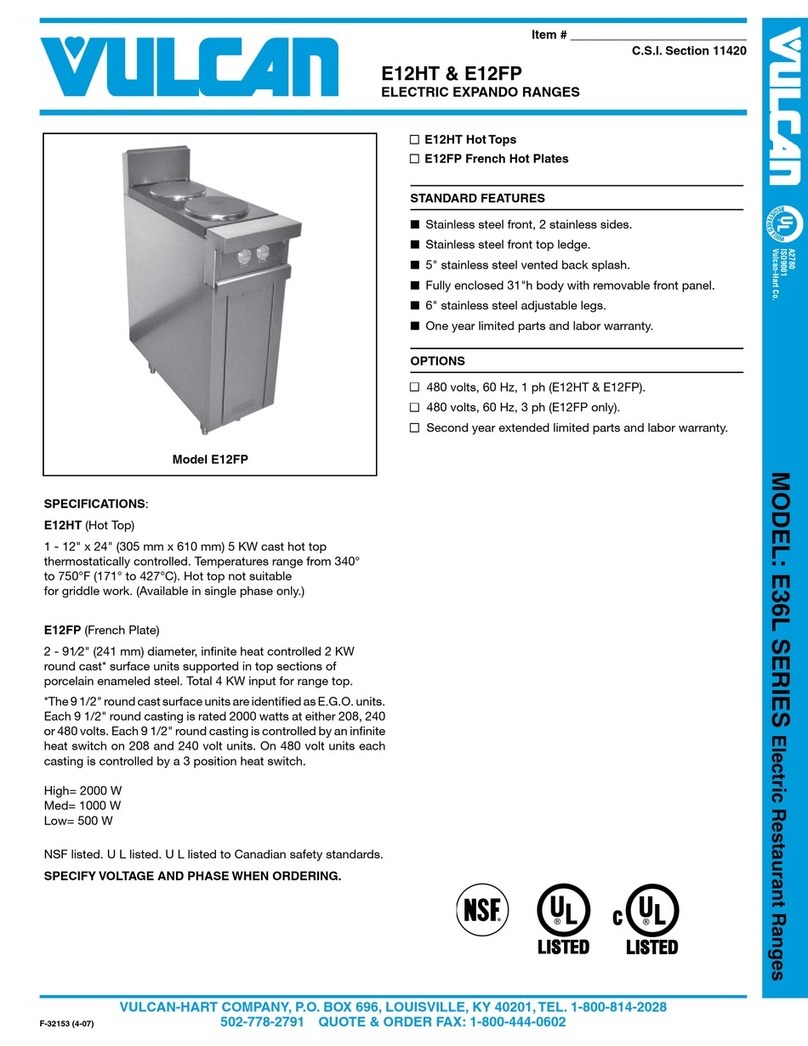

Vulcan-Hart E12FP Bedienungsanleitung
