INSTALLATION AND USER’S MANUAL
VULX FUSION BARBEQUE TABLE
You’ve just acquired a VULX branded product.
This product has been manufactured with care and submitted to many control tests,
certifying it to CE EN 498 et EN 1860-1 standards.
Please read this manual carefully to use and maintain your VULX FUSION barbeque
table safely and correctly.
Please keep this installations and user’s manual safely.
CONTENT
1. GENERAL SAFETY INSTRUCTIONS
2. ASSEMBLY
2.1. GAS SYSTEM
2.2. FROM GAS TO WOOD AND BACK
2.3. FROM HIGH BAR TO COFFEE TABLE, AND BACK
3. USE
4. COOKING
5. MAINTENANCE
6. GAS SPECIFICATIONS
7. WARRANTY
8. ACCESSORIES
1. GENERAL SAFETY INSTRUCTIONS
Before use, check that no part or element of the VULX barbeque table is deformed
damaged or unscrewed.
Before use, check that no part or element of the VULX FUSION barbeque table is
deformed damaged or unscrewed.
•Only for use outside
•Consult the instructions before using
•CAUTION: Accessible parts can be very hot. Keep away from
young children
•This device must be kept away from flammable materials during
use
•Do not move the device when using
•Close the gas valve after use
•Do not modify the device
•Do not close the ventilation openings of the gas cylinder’s slot
•The propane gas cylinder must be replaced when necessary
(away from any source of fire)
•Do not use in enclosed spaces!
•WARNING! This barbecue will become very hot. Do not move
during use.
•Never spray with water to extinguish the flame!
WARNING! Do not use alcohol or gasoline to ignite or reactivate the
fire! Only use firelighters that comply with EN 1860-3 standard!
WARNING! Do not leave the barbecue accessible to children and pets.
2. ASSEMBLY
Please observe the installation instructions.
The VULX FUSION barbeque table must be installed on a horizontal and
stable support, before use.
NECESSARY TOOLS
2 wrenches size 13 (fork, ring or pipe wrenches)
1 screwing device or screwdriver
Fixation of wheels and feet on barbeque table with 100 cm high base
Carefully lay down your VULX, then fix on the bottom plate, door side, the 2 wheels
with 8 M8x20 screws and 8 M8 fastening nut. Then adjust the height of the 2
adjustable feet at 12,5 cm.
Fixation of table plate
Arrange the 3 elements of the table plate on the supports considering the same
spacing between the tray and the cooking plate.
Then fix the 3 parts of the table plate with the provided 24 screws and 24 washers, in
the inserts.
CAUTION: ALWAYS USE 1 WASHER PER SCREW
Screw on gently with a screwdriver or a screwing device (speed 1).

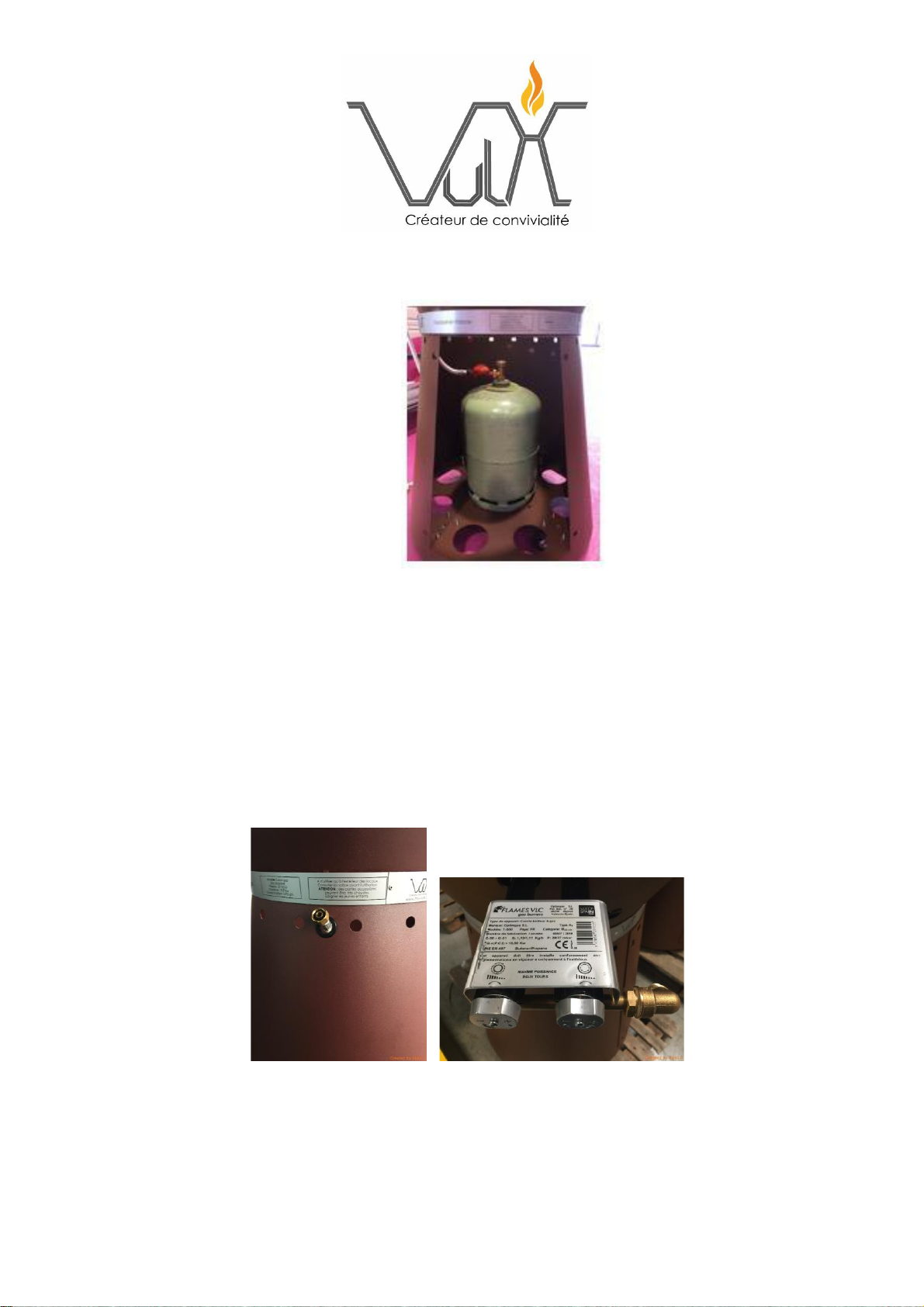

2.1. GAS SYSTEM
Gas cylinder installation
Please use only a gas cylinder of PROPANE NF gas.
Please only use a regulator, in compliance with the current European standards and
compatible with your LP gas cylinder.
Place the gas cylinder in the centre of the base of your VULX MAGMA barbeque table.
Place the gas cylinder in the center of the base of your VULX FUSION barbeque table.
Gas flexible hose installation
Use a flexible propan gas hose complying with the NF standard to connect the device
to the gas cylinder with a minimum length of 80 cm, which will be connected to the
burner by a standard ½ "nut and to the regulator 37 mbar with a standard
20x150mm nut.
Pass the flexible hose through the hole placed under the burner control panel and
route it to the gas cylinder location.
Please respect the gas hose replacement order as stipulated by the NF standard
about that hose.
2.2. FROM WOOD SYSTEM TO GAS SYSTEM AND BACK
Gas system disassembly:
Remove the central part of the stainless-steel cooking plate, then the outer part.
Unscrew the 2 thumbscrews from the firewall plates, which surround the gas burner
tubes at the control buttons.
Unscrew the gas hose at the burner, and then retract it at the hole.
Then, remove gas burner by extracting it from the VULX FUSION barbeque table.
Let the gas bowl, and then install the wood bowl in the gas bowl, and the outside of
the stainless-steel cooking plate.
CAUTION!
ALWAYS REMOVE THE GAS CYLINDER LOCATED IN THE BASE,
BEFORE USING THE VULX FUSION BARBEQUE TABLE IN WOOD OPERATION!
To switch from wood use to gas use, follow these instructions in reverse.
2-3- FROM HIGH BAR TO COFFEE TABLE, AND BACK
Remove the cooking plate and the wood or gas system (see chapter 2-2)
Unscrew the 3 thumbscrews connecting the upper part of the lower part.
Remove the top part with the base plate, and then lay it on the other base (high bar
or coffee table).
Then screw in the 3 thumbscrews and reinstall the combustion system and the
cooking plate.
