WAGO 750 Series Bedienungsanleitung

Fieldbus Independent

I/O Modules

2 AI DC ±10 V, Differential

Measurement Input

750-479

Manual

Version 1.0.4

ii • General

WAGO-I/O-SYSTEM 750

I/O Modules

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27

D-32423 Minden

Phone: +49 (0) 571/8 87 – 0

Fax: +49 (0) 571/8 87 – 1 69

E-Mail: [email protected]

Web: http://www.wago.com

Technical Support

Phone: +49 (0) 571/8 87 – 5 55

Fax: +49 (0) 571/8 87 – 85 55

E-Mail: [email protected]

Every conceivable measure has been taken to ensure the correctness and com-

pleteness of this documentation. However, as errors can never be fully ex-

cluded, we would appreciate any information or ideas at any time.

E-Mail: [email protected]

We wish to point out that the software and hardware terms as well as the

trademarks of companies used and/or mentioned in the present manual are

generally trademark or patent protected.

Content • iii

WAGO-I/O-SYSTEM 750

I/O Modules

Content

1Important Comments .................................................................................4

1.1 Legal Principles........................................................................................4

1.1.1 Copyright ............................................................................................. 4

1.1.2 Personnel Qualification .......................................................................4

1.1.3 Intended Use ........................................................................................ 4

1.2 Symbols.................................................................................................... 5

1.3 Number Notation......................................................................................5

1.4 Safety Notes .............................................................................................6

1.5 Scope ........................................................................................................6

2I/O Modules .................................................................................................7

2.1 Analog Input Modules..............................................................................7

2.1.1 750-479 [2 AI DC ±10 V, Differential Measurement Input]...............7

2.1.1.1 View................................................................................................7

2.1.1.2 Description......................................................................................7

2.1.1.3 Display Elements ............................................................................8

2.1.1.4 Schematic Diagram......................................................................... 9

2.1.1.5 Technical Data .............................................................................. 10

2.1.1.6 Process Image ...............................................................................11

2.1.2 750-479/000-001 [2 AI DC ±10 V Differential Measurement

Input/Sync] ........................................................................................13

2.1.2.1 View..............................................................................................13

2.1.2.2 Description....................................................................................13

2.1.2.3 Display Elements ..........................................................................14

2.1.2.4 Schematic Diagram....................................................................... 15

2.1.2.5 Technical Data .............................................................................. 16

2.1.2.6 Process Image ...............................................................................18

4 • Important Comments

Legal Principles

WAGO-I/O-SYSTEM 750

I/O Modules

1 Important Comments

To ensure fast installation and start-up of the units described in this manual,

we strongly recommend that the following information and explanations are

carefully read and abided by.

1.1 Legal Principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations

contained therein. Any use of this manual which infringes the copyright

provisions stipulated herein, is not permitted. Reproduction, translation and

electronic and photo-technical archiving and amendments require the written

consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will

entail the right of claims for damages.

WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform

modifications allowed by technical progress. In case of grant of a patent or

legal protection of utility patents all rights are reserved by WAGO

Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always

named without referring to patent rights. The existence of such rights can

therefore not be ruled out.

1.1.2 Personnel Qualification

The use of the product detailed in this manual is exclusively geared to

specialists having qualifications in PLC programming, electrical specialists or

persons instructed by electrical specialists who are also familiar with the valid

standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability

resulting from improper action and damage to WAGO products and third party

products due to non-observance of the information contained in this manual.

1.1.3 Intended Use

For each individual application, the components supplied are to work with a

dedicated hardware and software configuration. Modifications are only

permitted within the framework of the possibilities documented in the

manuals. All other changes to the hardware and/or software and the non-

conforming use of the components entail the exclusion of liability on part of

WAGO Kontakttechnik GmbH & Co. KG.

Please direct any requirements pertaining to a modified and/or new hardware

or software configuration directly to WAGO Kontakttechnik GmbH & Co.

KG.

Important Comments • 5

Symbols

WAGO-I/O-SYSTEM 750

I/O Modules

1.2 Symbols

Danger

Always abide by this information to protect persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Attention

Marginal conditions must always be observed to ensure smooth operation.

ESD (Electrostatic Discharge)

Warning of damage to the components by electrostatic discharge. Observe

the precautionary measure for handling components at risk.

Note

Routines or advice for efficient use of the device and software optimization.

More information

References on additional literature, manuals, data sheets and INTERNET

pages

1.3 Number Notation

Number Code Example Note

Decimal 100 normal notation

Hexadecimal 0x64 C notation

Binary '100'

'0110.0100'

Within ',

Nibble separated with dots

6 • Important Comments

Safety Notes

WAGO-I/O-SYSTEM 750

I/O Modules

1.4 Safety Notes

Warning

Switch off the system prior to working on bus modules!

In the event of deformed contacts, the module in question is to be replaced, as

its functionality can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and

insulating properties. Belonging to this group of materials is: e.g. aerosols,

silicones, triglycerides (found in some hand creams).

If it cannot be ruled out that these materials appear in the component

environment, then additional measures are to be taken:

- installation of the components into an appropriate enclosure

- handling of the components only with clean tools and materials.

Attention

Cleaning of soiled contacts may only be done with ethyl alcohol and leather

cloths. Thereby, the ESD information is to be regarded.

Do not use any contact spray. The spray may impair the functioning of the

contact area.

The WAGO-I/O-SYSTEM 750 and its components are an open system. It

must only be assembled in housings, cabinets or in electrical operation

rooms. Access must only be given via a key or tool to authorized qualified

personnel.

The relevant valid and applicable standards and guidelines concerning the

installation of switch boxes are to be observed.

ESD (Electrostatic Discharge)

The modules are equipped with electronic components that may be destroyed

by electrostatic discharge. When handling the modules, ensure that the

environment (persons, workplace and packing) is well grounded. Avoid

touching conductive components, e.g. gold contacts.

1.5 Scope

This manual describes the Analog Input Module 750-479

2 AI DC ±10 V, Differential Measurement Input of the modular WAGO-I/O-

SYSTEM 750.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

750-479 [2 AI DC ±10 V, Differential Measurement Input] • 7

View

WAGO-I/O-SYSTEM 750

I/O Modules

2 I/O Modules

2.1 Analog Input Modules

2.1.1 750-479 [2 AI DC ±10 V, Differential Measurement Input]

2-Channel Analog Input Module DC ±10 V,

differential measurement input

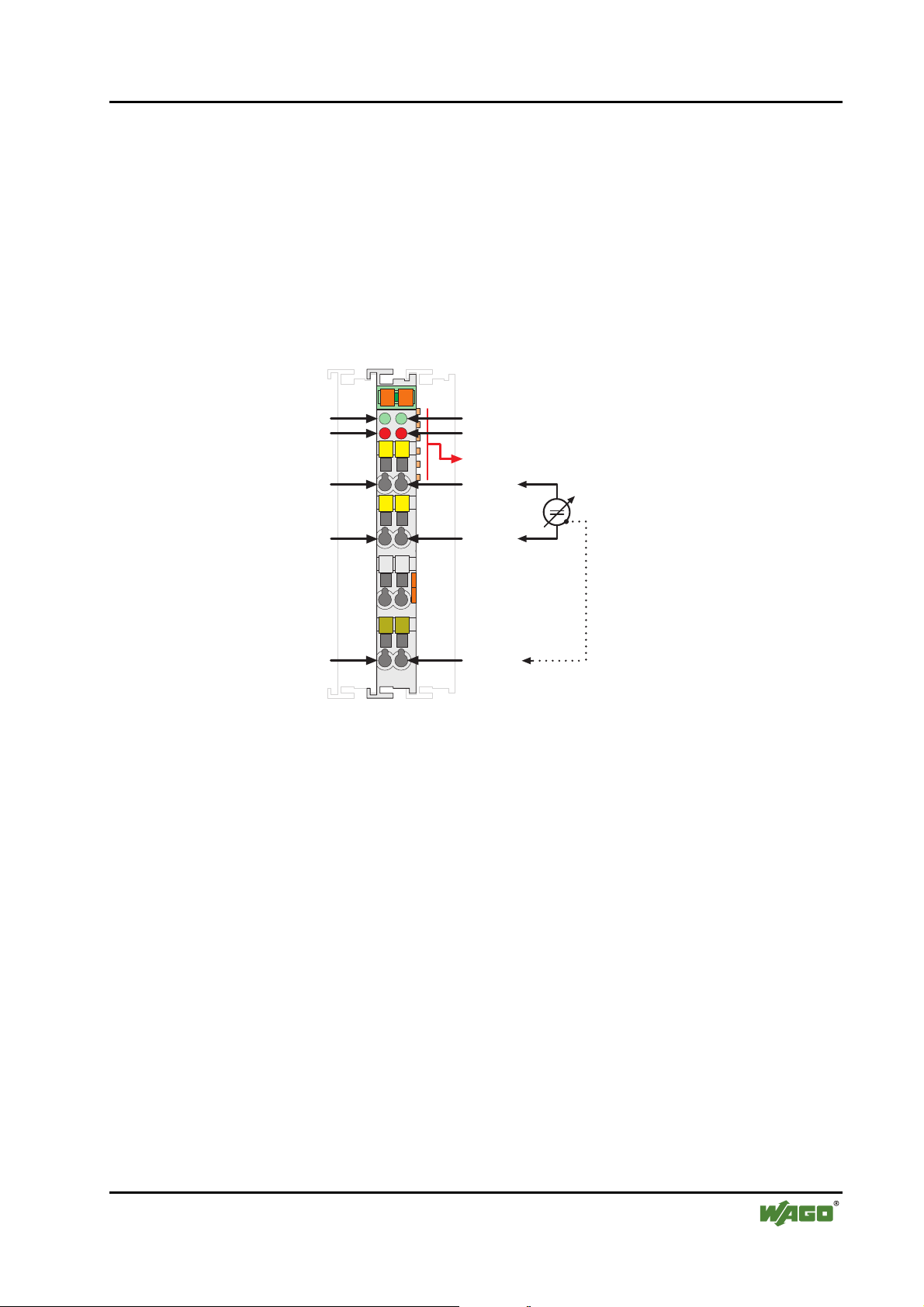

2.1.1.1 View

+E1 +E2

13 14

-E1 -E2

750-479

+AI 2

Data contacts

Function AI 2

-AI 2

Function AI 1

+AI 1

-AI 1

Error AI 2

Error AI 1

Shield

(screen)

Shield

(screen)

Fig. 2.1.1-1: View g047900e

2.1.1.2 Description

This analog input module receives signals with standardized values of ±10 V.

The module has two differential input channels and can receive differential

signals via the connections +AI 1 and -AI 1 or +AI 2 and -AI 2.

The Shield (screen) is directly connected to the DIN rail. A capacitive

connection is made automatically when snapped onto the DIN rail.

The input signal of each channel is electrically isolated and will be transmitted

with a resolution of 14 bits(13 bits + sign bit).

The operational readiness and trouble-free internal data bus communication of

the channels are indicated via a green Function LED. Overrange or underflow

of the measuring range is indicated via a red error LED.

Any configuration of the input modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

The voltage supply is done via system voltage.

8 • 750-479 [2 AI DC ±10 V, Differential Measurement Input]

Display Elements

WAGO-I/O-SYSTEM 750

I/O Modules

Attention

This module has no power contacts. For field supply to downstream I/O

modules, a supply module will be needed.

The analog input module 750-479 can be used with all couplers/controllers of

the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323,

-324 and -327).

2.1.1.3 Display Elements

LED Channel Designation State Function

off

No operational readiness or the

internal data bus communication

is interrupted

green

Function

AI 1

Operational readiness and

trouble-free internal data bus

communication

off Normal operation

red

Error

AI 1 on Overrange/underflow of the

admissible measuring range

off

No operational readiness or the

internal data bus communication

is interrupted

green

Function

AI 2

Operational readiness and

trouble-free internal data bus

communication

off Normal operation

13 14

Fig. 2.1.1-2: Display

Elements g041802x

red

Error

AI 2 on Overrange/underflow of the

admissible measuring range

750-479 [2 AI DC ±10 V, Differential Measurement Input] • 9

Schematic Diagram

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.4 Schematic Diagram

Shield

(screen)

+AI 1 +AI 2

-AI 2

-AI 1

+Al

-AI

270pF 270pF

DLogic

Function

Error

Shield

(screen)

750-479

Fig. 2.1.1-3: Schematic diagram g0479001e

10 • 750-479 [2 AI DC ±10 V, Differential Measurement Input]

Technical Data

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.5 Technical Data

Module Specific Data

Number of outputs 2, electrically isolated from each other

Measured-value acquisition time synchronous

Voltage supply via system voltage DC/DC

Current consumption typ. (internal) 80 mA

Signal voltage ±10 V

Overrange/

measuring range underflow

status byte and LED

Input filter low pass first order, fG = 5 kHz

Internal resistance 1 MΩ

Resolution of the A/D converter 14 bit

Monotonicity without missing codes yes

Resolution of the measured value 13 bit + sign bit

Value of a LSB

(Least Significant Bit)

1.2 mV

Measuring error 25 °C ≤±0.05% of the full scale value

Temperature coefficient < ±0.01%/K of the full scale value

Measuring error ≤0.4 % over whole temperature range

≤0.1 % of upper range value (non-linearity)

Crosstalk attenuation ≥80 db

Sampling time of repetition 1 ms

Sampling delay (module) 1 ms

Sampling delay (channel/channel) ≤1 µs

Sampling duration ≤5 µs

Method of conversion SAR (Successive Approximation Register)

Operating mode continuously sampling (preset)

Protection RC circuit

Admissible continuous overload 230 V

Voltage resistance DC 500V (channel/channel or channel/system)

Bit width 2 x 16 bits data

2 x 8 bits control/status (option)

DimensionsW x H* x L

* from upper edge of 35 DIN rail

12 mm x 64 mm x 100 mm

Weight ca. 55 g

Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)

EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)

EMC-Emission of interference (CE) acc. to EN 50081-1 (93)

Andere Handbücher für 750 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere WAGO E/A-System Handbücher

WAGO

WAGO I/O SYSTEM 750 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750-666/000-003 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750 Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750 Series Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 752 Bedienungsanleitung

WAGO

WAGO I/O SYSTEM 750 Bedienungsanleitung

WAGO

WAGO 8FDI 24V PROFIsafe 750-662/000-004 Bedienungsanleitung

WAGO

WAGO LONWORKS 750-319 Bedienungsanleitung

WAGO

WAGO I/O SYSTEM 750 Bedienungsanleitung

WAGO

WAGO 750-481/003-000 Bedienungsanleitung

WAGO

WAGO 750-585 Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 752 Bedienungsanleitung

WAGO

WAGO 750-491 Bedienungsanleitung

WAGO

WAGO 750-650 Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750 XTR Series Bedienungsanleitung

WAGO

WAGO I/O SYSTEM 750 Bedienungsanleitung

WAGO

WAGO PFC100 Merkblatt

WAGO

WAGO WAGO-I/O-SYSTEM 750 XTR Series Bedienungsanleitung

WAGO

WAGO Automation WAGO-I/O-SYSTEM 750 Bedienungsanleitung

WAGO

WAGO I/O System 750 XTR 750-495/040-010 Bedienungsanleitung

WAGO

WAGO 750-563 Bedienungsanleitung

WAGO

WAGO I/O SYSTEM 750 Bedienungsanleitung

WAGO

WAGO 750-1423 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750 Bedienungsanleitung

Beliebte E/A-System Handbücher anderer Marken

Teknim

Teknim TWM-1887 Bedienungsanleitung

Intelligent Appliance

Intelligent Appliance IA-2662-E Bedienungsanleitung

BERGHOF

BERGHOF ECC DIO 16/16 Bedienungsanleitung

Advantech

Advantech PCM-27J3AU Installations- und Betriebshandbuch

Festo

Festo CP-E08-M12-CL Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Bedienungsanleitung

Hitachi

Hitachi HX-RIO3 Series Bedienungsanleitung

NUUO

NUUO SCB-A08 Bedienungsanleitung

M-system

M-system R3Y-RS8 Bedienungsanleitung

jablotron

jablotron JB-110N Bedienungsanleitung

Omron

Omron SYSMAC C200H Bedienungsanleitung

DOLD

DOLD SAFEMASTER M Bedienungsanleitung

ABB

ABB OPT-MF-001 Bedienungsanleitung

Omron

Omron SYSMAC C2000H Bedienungsanleitung

Helmholz

Helmholz TB20 Bedienungsanleitung

ICP DAS USA

ICP DAS USA tM-AD2 Bedienungsanleitung

Automationdirect.com

Automationdirect.com DL305 Bedienungsanleitung

Contec

Contec PIO-16L(PCI)H Bedienungsanleitung
