WAGO I/O SYSTEM 750 Bedienungsanleitung

Fieldbus Independent

I/O Modules

4 DI DC 24 V 3.0 ms, Low-Side

Switching

750-408

Manual

Version 1.0.4

ii • General

WAGO-I/O-SYSTEM 750

I/O Modules

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27

D-32423 Minden

Phone: +49 (0) 571/8 87 – 0

Fax: +49 (0) 571/8 87 – 1 69

E-Mail: [email protected]

Web: http://www.wago.com

Technical Support

Phone: +49 (0) 571/8 87 – 5 55

Fax: +49 (0) 571/8 87 – 85 55

E-Mail: [email protected]

Every conceivable measure has been taken to ensure the correctness and com-

pleteness of this documentation. However, as errors can never be fully ex-

cluded, we would appreciate any information or ideas at any time.

E-Mail: [email protected]

We wish to point out that the software and hardware terms as well as the

trademarks of companies used and/or mentioned in the present manual are

generally trademark or patent protected.

Content • iii

WAGO-I/O-SYSTEM 750

I/O Modules

CONTENT

1Important Comments ................................................................................. 4

1.1 Legal Principles........................................................................................4

1.1.1 Copyright............................................................................................. 4

1.1.2 Personnel Qualification .......................................................................4

1.1.3 Intended Use ........................................................................................4

1.2 Symbols....................................................................................................5

1.3 Number Notation......................................................................................5

1.4 Safety Notes .............................................................................................6

1.5 Scope ........................................................................................................6

2I/O Modules ................................................................................................. 7

2.1 Digital Input Modules ..............................................................................7

2.1.1 750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching].......................7

2.1.1.1 View................................................................................................7

2.1.1.2 Description......................................................................................8

2.1.1.3 Display Elements ............................................................................9

2.1.1.4 Schematic Diagram.........................................................................9

2.1.1.5 Technical Data ..............................................................................10

2.1.1.6 Process Image ...............................................................................11

4 • Important Comments

Legal Principles

WAGO-I/O-SYSTEM 750

I/O Modules

1 Important Comments

To ensure fast installation and start-up of the units described in this manual,

we strongly recommend that the following information and explanations are

carefully read and abided by.

1.1 Legal Principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations

contained therein. Any use of this manual which infringes the copyright

provisions stipulated herein, is not permitted. Reproduction, translation and

electronic and photo-technical archiving and amendments require the written

consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will

entail the right of claims for damages.

WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform

modifications allowed by technical progress. In case of grant of a patent or

legal protection of utility patents all rights are reserved by WAGO

Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always

named without referring to patent rights. The existence of such rights can

therefore not be ruled out.

1.1.2 Personnel Qualification

The use of the product detailed in this manual is exclusively geared to

specialists having qualifications in PLC programming, electrical specialists or

persons instructed by electrical specialists who are also familiar with the valid

standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability

resulting from improper action and damage to WAGO products and third party

products due to non-observance of the information contained in this manual.

1.1.3 Intended Use

For each individual application, the components supplied are to work with a

dedicated hardware and software configuration. Modifications are only

permitted within the framework of the possibilities documented in the

manuals. All other changes to the hardware and/or software and the non-

conforming use of the components entail the exclusion of liability on part of

WAGO Kontakttechnik GmbH & Co. KG.

Please direct any requirements pertaining to a modified and/or new hardware

or software configuration directly to WAGO Kontakttechnik GmbH & Co.

KG.

Important Comments • 5

Symbols

WAGO-I/O-SYSTEM 750

I/O Modules

1.2 Symbols

Danger

Always abide by this information to protect persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Attention

Marginal conditions must always be observed to ensure smooth operation.

ESD (Electrostatic Discharge)

Warning of damage to the components by electrostatic discharge. Observe

the precautionary measure for handling components at risk.

Note

Routines or advice for efficient use of the device and software optimization.

More information

References on additional literature, manuals, data sheets and INTERNET

pages

1.3 Number Notation

Number Code Example Note

Decimal 100 normal notation

Hexadecimal 0x64 C notation

Binary '100'

'0110.0100'

Within ',

Nibble separated with dots

6 • Important Comments

Safety Notes

WAGO-I/O-SYSTEM 750

I/O Modules

1.4 Safety Notes

Warning

Switch off the system prior to working on bus modules!

In the event of deformed contacts, the module in question is to be replaced, as

its functionality can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and

insulating properties. Belonging to this group of materials is: e.g. aerosols,

silicones, triglycerides (found in some hand creams).

If it cannot be ruled out that these materials appear in the component

environment, then additional measures are to be taken:

- installation of the components into an appropriate enclosure

- handling of the components only with clean tools and materials.

Attention

Cleaning of soiled contacts may only be done with ethyl alcohol and leather

cloths. Thereby, the ESD information is to be regarded.

Do not use any contact spray. The spray may impair the functioning of the

contact area.

The WAGO-I/O-SYSTEM 750 and its components are an open system. It

must only be assembled in housings, cabinets or in electrical operation

rooms. Access must only be given via a key or tool to authorized qualified

personnel.

The relevant valid and applicable standards and guidelines concerning the

installation of switch boxes are to be observed.

ESD (Electrostatic Discharge)

The modules are equipped with electronic components that may be destroyed

by electrostatic discharge. When handling the modules, ensure that the

environment (persons, workplace and packing) is well grounded. Avoid

touching conductive components, e.g. gold contacts.

1.5 Scope

This manual describes the Digital Input Module 750-408

4 DI DC 24 V 3.0 ms, Low-Side Switching of the modular WAGO-I/O-

SYSTEM 750.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching] • 7

View

WAGO-I/O-SYSTEM 750

I/O Modules

2 I/O Modules

2.1 Digital Input Modules

2.1.1 750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching]

4- Channel Digital Input Module DC 24 V 3.0ms,

2- or 3- conductor connection; low-side switching

2.1.1.1 View

13 14

15 16

13 14

DI 2

Power jumper contacts

Data contacts

DI 4

DI 2

Status

24V

DI 4

DI 3

DI 1

Status

DI 1

DI 3

750-408

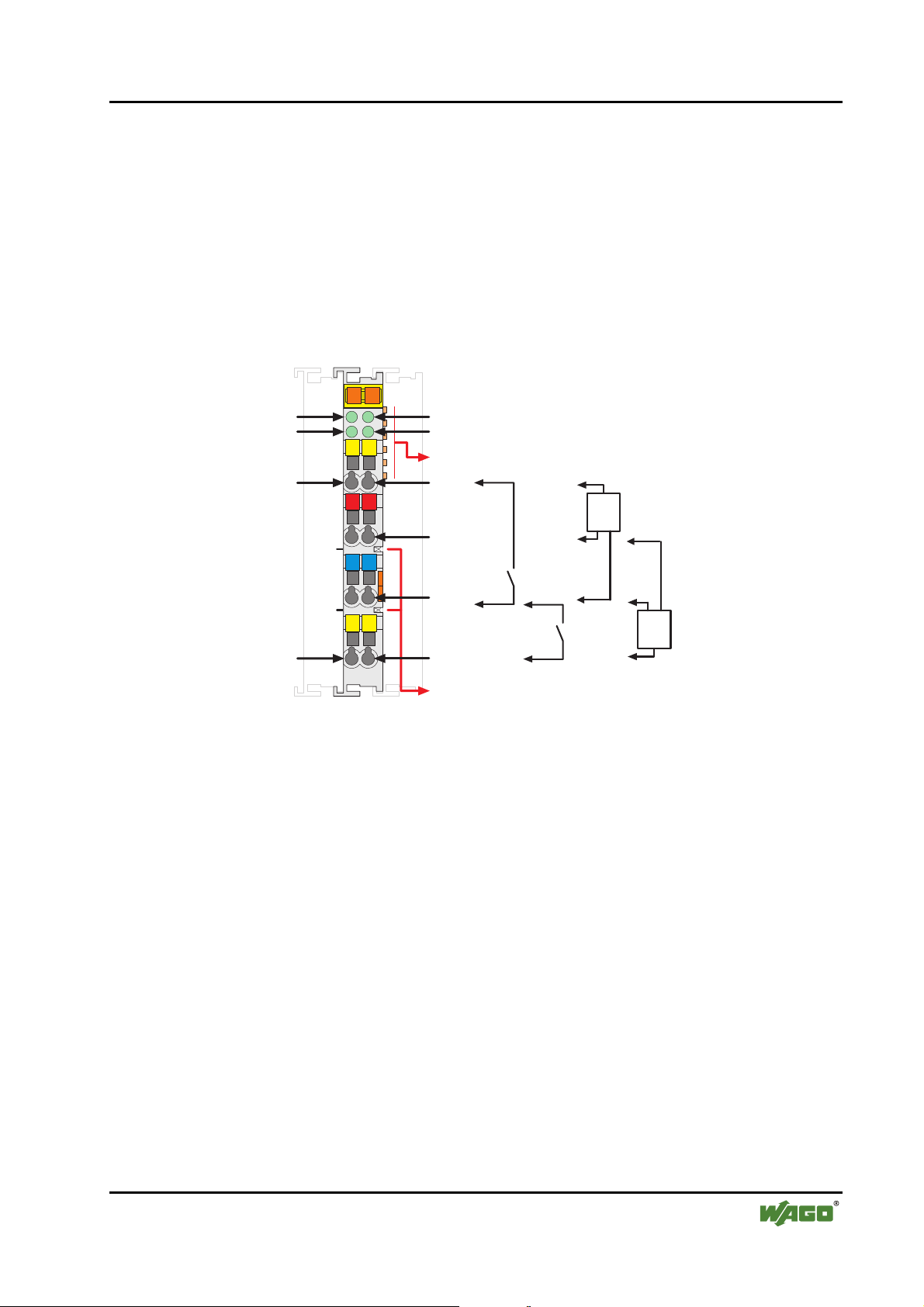

Fig. 2.1.1-1: View g040800e

8 • 750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching]

Description

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.2 Description

The digital input module 750-408 receives control signals from digital field

devices (sensors, switches, etc.).

The module is a 2- to 3-conductor device and has 4 input channels. Two

sensors may be directly connected to the module.

As an example, two 3-conductor sensors can be directly connected using

connection 24V, 0V and signal input DI1 or DI2. The connection of more

sensors to signal inputs DI3 and DI4 requires a field side connection module

(750-614) for 24V and for 0V, if need be.

The module is low-side switching, which means that the status of the input

channels is "high" if the input channels switch to 0V.

Each input module has an RC noise rejection filter with a time constant of

3.0 ms.

The status of the input channels is indicated via status LEDs.

An optocoupler is used for electrical isolation between the bus and the field

side.

Any configuration of the input modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

The field side supply voltage of 24 V for the input module is derived from

adjacent I/O modules or from a supply module.The supply voltage for the

field side is made automatically through the individual I/O modules by means

of power jumper contacts.

Warning

The maximum current of the internal power jumper contacts is 10 A. When

configuring the system it is important not to exceed the maximum/sum

current. However, if such a case should occur, another supply module must be

added.

The digital input module 750-408 can be used with all couplers/controllers of

the WAGO-I/O-SYSTEM 750.

750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching] • 9

Display Elements

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.3 Display Elements

LED Channel Designation Status Function

off Input DI 1: Signal voltage (0)A

green

1 Status

DI 1 on Input DI 1: Signal voltage (1)

off Input DI 2: Signal voltage (0)C

green

2 Status

DI 2 on Input DI 2: Signal voltage (1)

off Input DI 3: Signal voltage (0)B

green

3 Status

DI 3 on Input DI 3: Signal voltage (1)

off Input DI 4: Signal voltage (0)

13 14

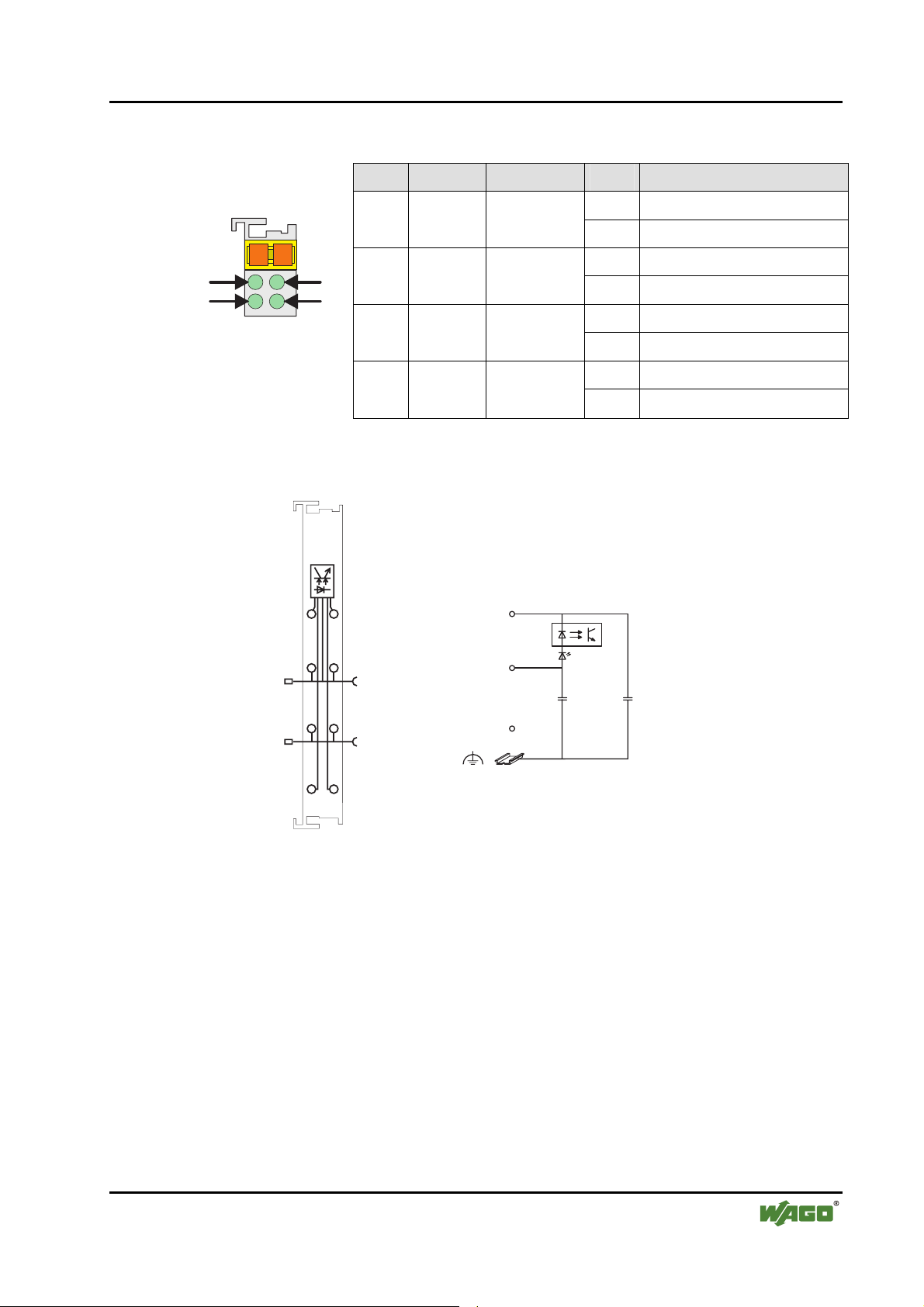

Fig. 2.1.1-2: Display

Elements g041402x

green

4 Status

DI 4 on Input DI 4: Signal voltage (1)

2.1.1.4 Schematic Diagram

DI 1 DI 2

24V

10nF10nF

DI 3 DI 4

24V

750-408

Fig. 2.1.1-3: Schematic Diagram g040801e

10 • 750-408 [4 DI DC 24 V 3.0 ms, Low-Side Switching]

Technical Data

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.5 Technical Data

Inputs

Number of inputs 4

Input voltage -3 V ... UV

Signal voltage (0) DC (UV- 5 V) ... UV

Signal voltage (1) DC -3 V ... (UV- 15 V)

Input current typ. (per channel) 7 mA

Input filter 3.0 ms

Deceleration time with the transition

from 1 to 0 typ.

3.0 ms

Deceleration time with the transition

from 0 to 1 typ.

4.0 ms

Module Specific Data

Power supply via system voltage internal bus (5 V) and power

jumper contacts field side power supply (24 V)

Current consumption (internal) max. 5 mA

Voltage via power jumper contacts UVDC 24 V (-15 % ... +20 %)

Isolation 500 V (System / Field)

Internal bit width 4 bit

Dimensions W x H* x L

* from upper edge of 35 DIN rail

12 mm x 64 mm x 100 mm

Weight ca. 50 g

Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)

EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)

EMC-Emission of interference (CE) acc. to EN 50081-1 (93)

Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)

CULUS (UL508)

CULUS (UL1604) Class I Div2 ABCD T4A

KEMA II 3 G EEx nA II T4

Conformity Marking

More Information

Detailed references to the approvals are listed in the document "Overview

Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM

ELECTRONICC Tools and Docs (Item-No.: 0888-0412)

or in the internet under:

www.wago.com !Documentation !WAGO-I/O-SYSTEM 750 !

System Description

Andere Handbücher für I/O SYSTEM 750

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere WAGO E/A-System Handbücher

WAGO

WAGO WAGO-I/O-SYSTEM 750 XTR Series Bedienungsanleitung

WAGO

WAGO 750 Series Bedienungsanleitung

WAGO

WAGO 750-556 Bedienungsanleitung

WAGO

WAGO Modular IO System INTERBUS S Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750 XTR Series Bedienungsanleitung

WAGO

WAGO 750-462 Series Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750-424 Bedienungsanleitung

WAGO

WAGO 750-454 Bedienungsanleitung

WAGO

WAGO WAGO-I/O-IPC-C6 Bedienungsanleitung

WAGO

WAGO 750-464 Bedienungsanleitung

WAGO

WAGO 750-433 Bedienungsanleitung

WAGO

WAGO 750 Series Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750 Series Bedienungsanleitung

WAGO

WAGO LONWORKS 750-319 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750 Stücklistenhandbuch

WAGO

WAGO I/O SYSTEM 750 750-833 Bedienungsanleitung

WAGO

WAGO 750-626/040-000 Bedienungsanleitung

WAGO

WAGO 750-402 Bedienungsanleitung

WAGO

WAGO 750 Series Benutzerhandbuch

WAGO

WAGO 750-8207 Bedienungsanleitung

WAGO

WAGO I/O System 750 750-622 Bedienungsanleitung

WAGO

WAGO WAGO-I/O-SYSTEM 750 XTR Series Bedienungsanleitung

WAGO

WAGO PFC100 Merkblatt

Beliebte E/A-System Handbücher anderer Marken

Teknim

Teknim TWM-1887 Bedienungsanleitung

Intelligent Appliance

Intelligent Appliance IA-2662-E Bedienungsanleitung

BERGHOF

BERGHOF ECC DIO 16/16 Bedienungsanleitung

Advantech

Advantech PCM-27J3AU Installations- und Betriebshandbuch

Festo

Festo CP-E08-M12-CL Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Bedienungsanleitung

Hitachi

Hitachi HX-RIO3 Series Bedienungsanleitung

NUUO

NUUO SCB-A08 Bedienungsanleitung

M-system

M-system R3Y-RS8 Bedienungsanleitung

jablotron

jablotron JB-110N Bedienungsanleitung

Omron

Omron SYSMAC C200H Bedienungsanleitung

DOLD

DOLD SAFEMASTER M Bedienungsanleitung

ABB

ABB OPT-MF-001 Bedienungsanleitung

Omron

Omron SYSMAC C2000H Bedienungsanleitung

Helmholz

Helmholz TB20 Bedienungsanleitung

ICP DAS USA

ICP DAS USA tM-AD2 Bedienungsanleitung

Automationdirect.com

Automationdirect.com DL305 Bedienungsanleitung

Contec

Contec PIO-16L(PCI)H Bedienungsanleitung
