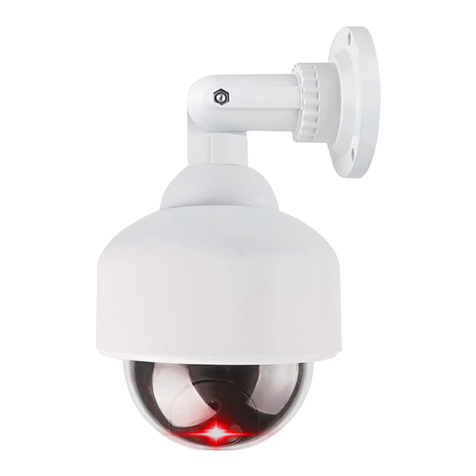

Wali DOW-1 Bedienungsanleitung
2
Supplied Parts List
Anchor
C (x3)
Dummy Camera
A (x1)
M4x20 Bolt
B (x3)
35mm
(1.4 )"
ø 6mm
(ø 1/4")
25mm
(0.9 )"
ø 3mm
(ø 3/25")
X
Option A Wood Stud
Option B Concrete/Brick Wall
2
C
B
Step 1
Step 2
Step 3
180°
360°
Open the cap and insert 2 pcs AA batteries. (Batteries not included)
Put the cap back. Loosen the screw and rotate to the preferred angle, then tighten the screw.
Drill holes at the marked positions. Place the Dummy Camera Aover the marked
screw locations. Insert Screws Binto the mounting holes and tighten using a
screwdriver.
Drill holes at the marked positions. Insert the Anchors Cinto the mounting holes. Place
the Dummy Camera Aover the marked screw locations. Insert Screws Binto the mounting
holes and tighten using a screwdriver.
B
A
A
A
If you have any questions,please contact us.
We support the technology that brings your home to life.
We offer high quality products, professional customer service,
and extensive technical support.
www.walielectric.com
