WalimeXPro Dalight 250 Bedienungsanleitung

Copy of Instruction Manual

Daylight 250 with Softbox 40 x 60 cm

WALSER GmbH & Co.KG

Gewerbering 26

86666 Burgheim

Tel. +49 84 32 / 9489-0

Fax. +49 84 32 / 9489 - 8333

eMail: [email protected]e

www.foto-walser.de

EN - Made in Germany, ES - Fabricado en Alemania, IT - Fabbricato in Germania

Content

1. How to understand the instruction manual .................................. 4

1.1 Markings on the device .....................................................................4

1.2 Markings in the manual .....................................................................4

2. Important safety notes ................................................................. 5

3. Unpack and check the device ........................................................ 8

4. Overview about the parts ............................................................. 9

5. Quick start guide ........................................................................... 9

6. Preparation for operation ........................................................... 10

6.1Mount on tripod (optional) .............................................................10

6.2 Mount softbox .................................................................................10

6.3Screw in and out of lamp.................................................................11

6.4Connect to power supply.................................................................11

7. Operation of the device .............................................................. 12

7.1 Adjust tilt angle................................................................................12

7.2 Switch on and off of the device and the lamp…………..………………...12

8. Transportation and storage......................................................... 12

9. Solve problems ........................................................................... 13

10. Maintenance............................................................................... 13

10.1 Continuous inspections ...................................................................13

10.2 Cleaning ...........................................................................................14

10.3 Change lamp ....................................................................................15

11. Accessories and options .............................................................. 15

12. Spare parts.................................................................................. 15

13. Disposal and environment protection ......................................... 15

14. Technical specifications............................................................... 16

Thank you very much for your confidence. We wish you much pleasure and

success with your new device.

The walimex pro Daylight 250 with Softbox 40 x 60 cm is a powerful,

energy-saving continuous light, which is especially developed for ambitious

beginners and professional users in film and studio photography.

The main features of your device as follows:

stable light with constant colour temperature

tiltable and rotatable socket, which fits on every common lamp tripod

very lightweight

softbox approx. 40 x 60 cm

reduced heat development through cold light source

Please read these instructions carefully before using your device for

the first time. It includes everything you need to know to avoid

physical injuries and damages.

Please pay attention to all safety notes in this instruction manual.

Please keep this manual safe. In case of selling or leaving the device

to other persons, please don´t forget to hand this manual over as

well.

1. How to understand the instruction manual

1.1 Markings on the device

This marking mean, that your device meets the safety

requirements of all relevant European Directives.

This marking mean, that your device should be disposed in

the local disposal points.

1.2 Markings in the manual

Marking

Meaning

Indicates the handling and consequences of safety

notes.

WARNING

Indicates a hazardous situation, which, if not

avoided, could result in a serious injury or death.

CAUTION

Indicates a hazardous situation, which, if not

avoided, may result in minor or moderate injury.

ADVICE:

Indicates potentially physical damages and other

important information in connection with your

device.

2. Important safety notes

WARNING

Risk of eye injury

The optical radiation of the lamp could blind your eyes and lead to

afterimages, if persons and animals look into the lamp directly. This could

lead to injuries. Please avoid persons and animals looking into the flash

directly.

WARNING

Danger of crashing, entrapment and fire through the falling down of the

device

The weight of the device is 1kg.

Make sure, that the device is always positioned tilt and skid resistant

and stored securely.

Keep out of reach of children and animal. They could overturn the

device.

Avoid placing cables, where they can be tripped over. The device

could be overturned.

WARNING

Danger of electric shock, burn hazard

Please note, that the device is still connected with the supply voltage

even if it is switched off. Just after disconnecting the device from the

power supply through pulling out the power cable, the device is actually

de-energized.

Switch off your device when it is not in use.

Switch off your device before mounting and maintenance and

disconnect from power supply.

Protect your device against unintended switching-on.

Unplug the power cord, if the flash is not in use for a long time.

WARNING

Danger of electric shock, fire through short-circuit

A short-circuit could be caused through defect cables and through

humidity or moisture. A short-circuit can warm up the conductors, so that

there isolation will melt or even melt thoroughly. This could lead to fire.

Please just use the original cables, which are included in delivery.

They are aligned for your device and guarantee the necessary safety

for you and your device.

Don´t operate the device with wet hand or feet.

Operate the device only in dry rooms.

Don´t operate the device outdoors.

Please only follow this instruction manual for cleaning the device.

Make sure, that cables and conductors won´t be damaged. Damages

could be caused through heat impact, chemical influence or through

mechanical impacts as rubbing, bending, tearing, rolling over or

nibbling animals.

Prevent your device for falling-off.

In case of falling-off, please let an electrician check the device before

switching on again.

If your device should be damaged or defect or if you notice a burning

smell:

Disconnect the power supply by pulling out the power cord

immediately. Never operate your device with damaged housing,

damaged reflector, defect lamps or damaged power cord. Don´t open

the device. Never repair the device on your own. The device should

only be repaired by electricians.

Please follow this instruction manual for maintaining your device.

Please just use spare parts, which are conform to the required

specifications.

See Technical Specifications.

WARNING

Fire danger through overheating

The accessories can overheat, if it does not comply with the necessary

specifications.

The device itself, accessories and easily inflammable materials in close

distance could catch fire.

Please just use accessories and spare parts, which are conform to the

required specifications.

See Technical Specifications.

Lamps, which are damaged or deformed through heat, should be

exchanged immediately.

Remove easily inflammable materials, which are in close distance to

the device.

CAUTION

Danger of burning on hot parts

The lamp could heat up up to 40°C.

Don´t touch the parts during operation and cooling down.

Please cool down your device completely before starting any

mounting or maintenance arrangements.

WARNING

Danger of cutting and splitting through breaking lamps,

possible discolouration on the lamps

Lamps can break and split, when they fall down.

Even small residues of skin oil on the lamps could lead, due to the high

heat impact, to the splitting of the lamp. Broken glass could hurt eyes and

skin.

Please handle the lamps with care to avoid bursting.

Don´t touch the lamps with bare hands. Just touch the lamp at the

plastic socket or wear clean cotton gloves or use a clean cloth.

Avoid touching the flash tube accidentally when mounting or

changing accessories.

Please just use lamps, which comply to EN 60357 Page 3155.

3. Unpack and check the device

1. Please unpack your device carefully.

2. Please check, if the delivery is complete.

1 Daylight 250 with softbox

o1 Lamp

o1 Front Diffuser

o1 Carrying Bag

1 Instruction Manual in German and English.

3. Please check, if the delivery is undamaged.

ADVICE: If the delivery should be uncomplete or damaged, please

contact info@foto-walser.de or our service hotline with the telephone

number +49 84 32 / 9489-0.

4. Overview about the parts

Softbox

Lamp

Fastening Screw for tilt angle

Fastening Screw for lamp tripod

On/Off Tappet Switch

Power Cord

Front Diffuser

5. Quick start guide

ADVICE:

The detailed instruction for the following operations can be found in the

respective chapters in this instruction manual.

Keep the sequences of the following operation steps when using the device

for the first time to avoid damages on the device.

WARNING

Please note the safety notes in the respective chapters throughout

operation.

Mount the device on tripod (optional).

Mount softbox.

Screw in lamp.

Adjust tilt angle.

Connect to power supply.

Switch the lamp on and off.

6. Preparation for operation

6.1 Mount on tripod (optional)

ADVICE:

Please note the user information of the tripod manufacturer.

WARNING

Select a tripod of suitable weight and dimensions. See Technical

Specifications.

Make sure, that the tripod with the mounted device has a tilt and skid

resistant stand.

1. Loose locking knurl.

2. Mount the device on the tripod.

3. Tighten locking knurl.

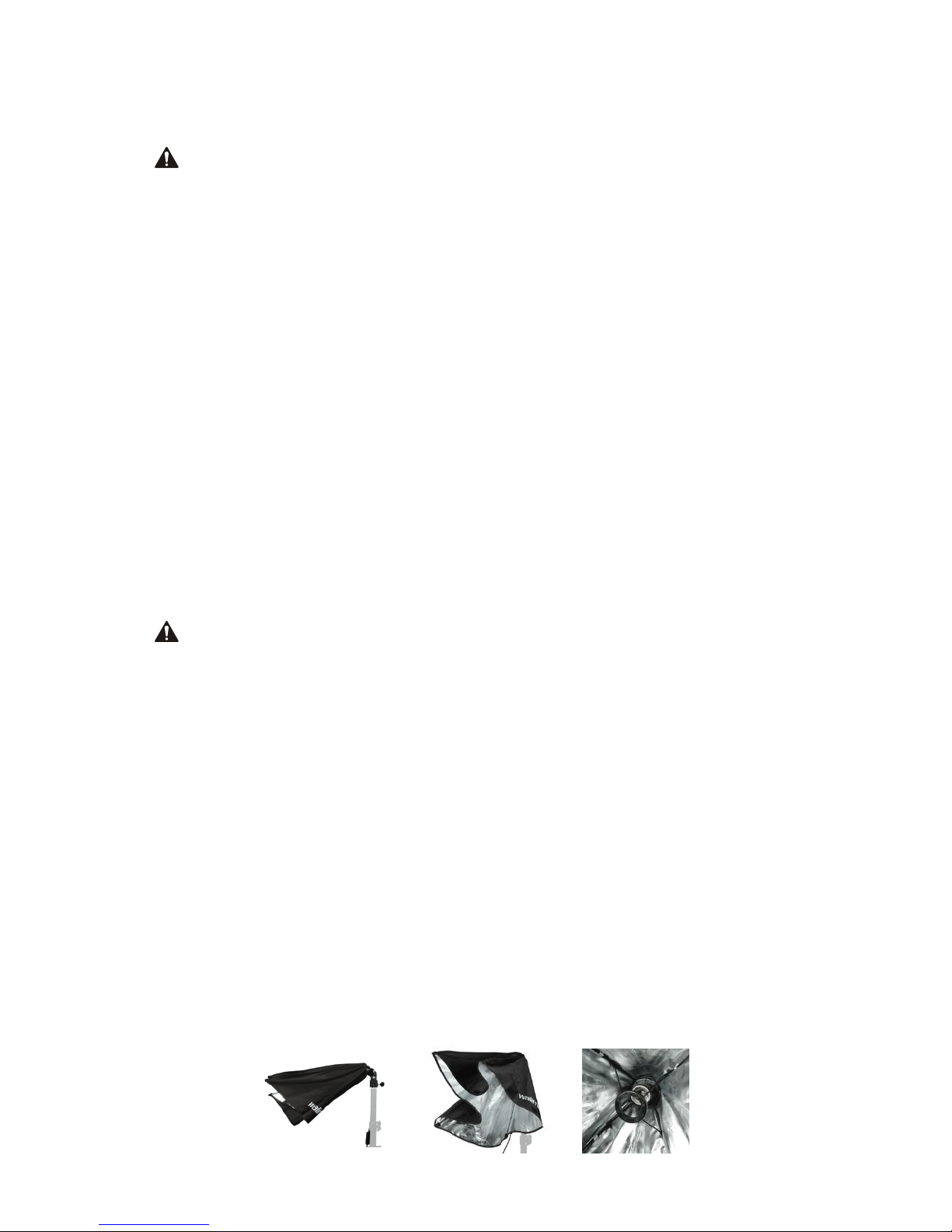

6.2 Mount softbox

You can span the softbox just like an umbrella. You just have to push the

inner ring of the softbox up to the lamp socket until it snaps into place. The

front diffuser can be attached at the front of the softbox after inserting the

lamp.
