User Manual

1. Preparation

Check your Package

·Camera * 1

·Cable * 1

·Power Supply * 1

·Antenna * 1

·CD with software

·and Manual * 1

·Bracket * 1

·Screw * 1 set

Connection (Figure 1)

1) Connect power of the camera

2) Use the cable connect camera to router

3) If the blue light of the equipment is blink, means camera already connect to

Internet successfully.

Make sure the internet connection is OK.

Network connection

Figure 1

2. First time Use

At first, run program on the CD, then it will install software .Open the

program on your PC ( picture 2).

http:// www.wansview.com

Figure 2

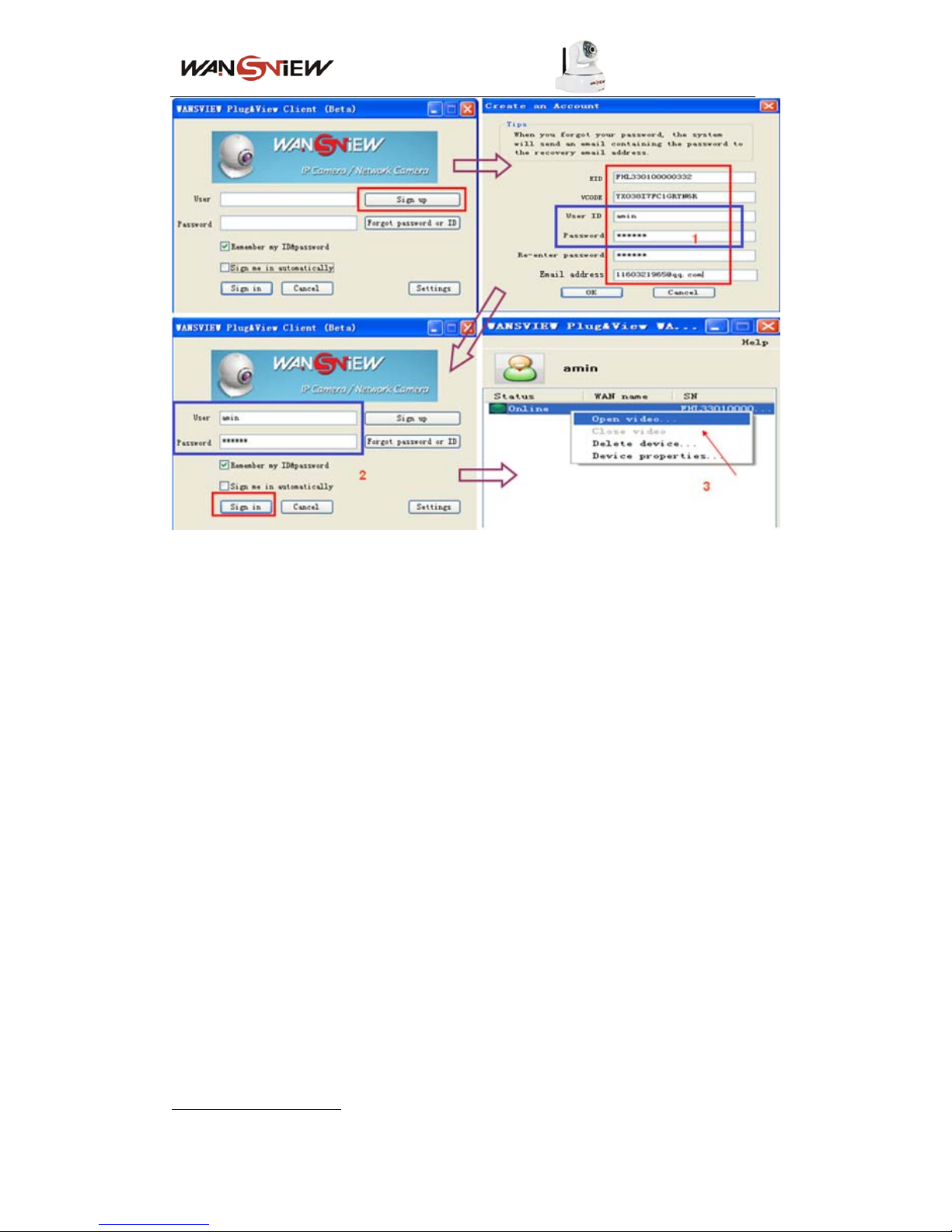

Step 1:

Open the software plug&play, then click “Sign up “, it will show the “Create an Account”

windows, fill in the information, then click OK.

Device SN: you can find it from bottom of the camera

Validation Code: you can find it from bottom of the camera

User ID: your own ID, any Characters from a-z or any numbers ,which will be used for log

in the software always.

Password: your own password, any Characters from a-z or any numbers, which will be

used for log in the software always.

Re-enter password: copy above password again

Recovery E-mail address: this e-mail for you to get your user name and password back

if you forget about it

Step 2:

fill in here (blue part),then click sign in .

Step 3:

View the Camera :choose the camera you want to view , then Click the right mouse,

select ”open video “ or double click camera to view ,it will show the windows as figure 3 .

http:// www.wansview.com

Figure 3

3. Advanced Settings

Step 1 : Open “Plug&Play” software , then click “settings”

Step 2 : Click “Refresh”,the camera in LAN will show it here .

Step 3 : Choose the camera you want to setting

Step 4: Click “Device Properties”

Step 5: Windows will pop up ask for the user name and password, default use name is

admin, password is 123456. Then click Ok .

Picture 4

http:// www.wansview.com

Wireless settings

You can do “WIFI settings” in the Property Dialog windows, please refer to the picture 5,

the steps as following:

1) Click “Enable Wi-Fi” for open wireless function, click the “OK”, then restart your

device

2) Re Enter to the WIFI setting page , click “search Wi-Fi” button

3) Search the WIFI signal

4) Select the WIFI you want to join

5) Click “Select” button

6) Fill in the WIFI encryption password;

7) Click “Apply” to save your settings;

8) Click” Ok” to exit the setup screen

Picture 5

Note: After success finish wireless settings, unplug the power and plug again to

restart the camera, the wireless function will take effective.

http:// www.wansview.com

4. IPhone Visit

1) Please go to App Store

2) Search for wansview

3) Then choose wansview-plug＆play

4) Choose the software to install.

5) Click “Install”.

6) Input your Apple ID password .

7) Waiting for software install.

8) After finish , you can open the software

9) Input the user name and password, then log in , you can view the camera by

your Iphone .

http:// www.wansview.com

Picture 6

5. Others

If you forget the user name and password, or because of the other settings which can’t let

the camera work, you can try to restore to factory default setting, steps as below:

1) Unplug the power of camera

2) Press the “Reset” button on the bottom of camera and holding press ,then plug in

power again;

3) After Camera switched on , keep press the “Reset” button for 3 seconds and

then release;

4) Camera will automatically restore to factory setting after start, the start time is

around 2 minutes

5) Do not disconnect the camera during this time, or the above operation will

in-effect or user must repeat the above process again.
