Waterous Floto-Pump Installationsanleitung

FLOTO-PUMP

Operation and Maintenance

Form Number: F-2856 Issue Date: Sept 26, 2018

Revision Date: Mar 25, 2019

Waterous Company • 125 Hardman Avenue South • South Saint Paul, MN 55075 • (651) 450-5000

www.waterousco.com

Table of Contents

Safety 3

Safety Precautions 3

Safety and Instructional Decals 5

Carbon Monoxide Warning 5

Hot Surface Warning 5

Sound Level Warning 5

Introduction 6

Using this Document 6

Viewing the Document Electronically 6

Printing the Document 6

Locating the Serial Number 6

Product Overview 7

System Overview 7

Top Side Components 8

Engine Components 10

Bottom Side Components 12

Operation 14

Initial Operation 14

Preparing for the Operation 14

Operating Tips 14

Fueling the Pump 15

Connecting a Hose to the Pump 16

Starting and Stopping the Pump 17

Operating the Pump 18

Maintenance 19

Adjusting the Carburetor 19

Adjusting the Throttle Float 20

Preparing the FLOTO-PUMP for Short Term Storage 21

Preparing the FLOTO-PUMP for Long Term Storage 22

Service Parts 24

Engine, Replacement Assemblies, and Repair Kits 24

 25

Float and Fuel System Components—Standard FLOTO-PUMP 26

Exhaust and Air System Components—Standard FLOTO-PUMP 28

Pump and Impeller Components—Standard FLOTO-PUMP 30

Float and Fuel System Components—High Pressure FLOTO-PUMP 32

Exhaust and Air System Components—High Pressure FLOTO-PUMP 34

Pump and Impeller Components—High Pressure FLOTO-PUMP 36

Troubleshooting 38

Warranty 40

3 |40

       

Safety Precautions

• Read and understand all the associated documentation before you operate

the equipment.

• Read and understand all the notices and safety precautions.

• Be aware that these instructions are only guidelines and are not meant to be



operating, or maintaining the equipment.

• Do not install the equipment if you are not familiar with the tools and skills

needed to safely perform the required procedures—proper installation is the

responsibility of the purchaser.

• Do not operate the equipment when safety guards are removed.

• Do not modify the equipment.

• Regularly check for leaks, worn, or deteriorated parts.

•

•Keep clear of moving

parts when the equipment

is operating.

Rotating parts can cause

severe injury or death.

Moving Parts

Do not touch the surface

during operation––allow

it to cool after operating.

Hot surface can burn you.

Hot Surface

•

Do not operate if the water

temperature exceeds

160ºF (71ºC).

Hot liquid can scald you.

Hot Liquid

•

4 |40

Safety Precautions

Never operate the engine

in an enclosed space.

Carbon monoxide gas will

kill you.

Carbon Monoxide

•

NOTICE

Before Operation

• Read and understand all

the instructions provided.

• Check all fluid levels

and replenish if necessary.

• Remove the all shipping

plugs and install the

operation plugs or caps.

NOTICE

Modifying the equipment

can damage components

and void your warranty.

•

Do not modify the system

or any of its components.

•

Modification

CAUTION

High sound levels will

cause hearing loss.

•

Wear hearing protection

when operating this

equipment.

•

Hearing Loss

5 |40

Safety and Instructional Decals

Locate and review the condition of the safety decals. Replace any decals that are damaged or missing.

Carbon Monoxide Warning

Hot Surface Warning

Sound Level Warning

6 |40

Use this document to install and operate your Waterous equipment. Understand

the following conditions before continuing with the document:

• The instructions may refer to options or equipment that you may not have

purchased with your system.

• The illustrations in this document are intended to convey concepts. Do not

use the illustrations to determine physical attributes, placement, or

proportion.

• The equipment described in this document is intended to be operated by a

person or persons with the basic knowledge of operating similar equipment.

This document is divided into the following sections:



This section describes general precautions and alert symbols that are in this

document.



This section is an overview of the document.



This section describes the components that make-up the system.



This section describes the equipment operation.



This section describes the equipment maintenance.



This section describes the equipment service parts.



This section describes troubleshoot the equipment.



This section describes the equipment warranty.

Using this Document

Use the guidelines below when viewing this document.

Viewing the Document Electronically

• View this document in landscape orientation.

• Use the table of contents to navigate directly to that section.

• Text with this appearance is linked to a reference.

Printing the Document

• The document is viewed the best when printed in color.

• The print on both sides and  features can provide the

best results.

• Use a 3-ring binder to store the document.

Locating the Serial Number

Locate and record the model and serial number of the equipment in your

application. Have this information available when you call Waterous.

Model number- Date-

7 |40

System Overview

The FLOTO-PUMP

®system allows you to pump from open bodies of water like ponds, lakes, or swimming pools. The system is available with a variety of hose

connections. The pump is also available as a normal and high pressure system.

8 |40

Top Side Components

1 2

9 |40

Top Side Components

Feature Description

1On/off switch This enables the pump to start and stops the pump when operating.

2Handle This is used to transport the pump.

3 Pull handle This starts the engine.

4 Fuel cap with vent This seals the fuel tank and has a vent that is closed for transportation and opened for operation.

5Fuel tank This contains the fuel.

6Pump discharge This is where the hose connects to the pump.

7Handle This is used to transport the pump.

8Float This provides buoyancy for the pump.

10 |40

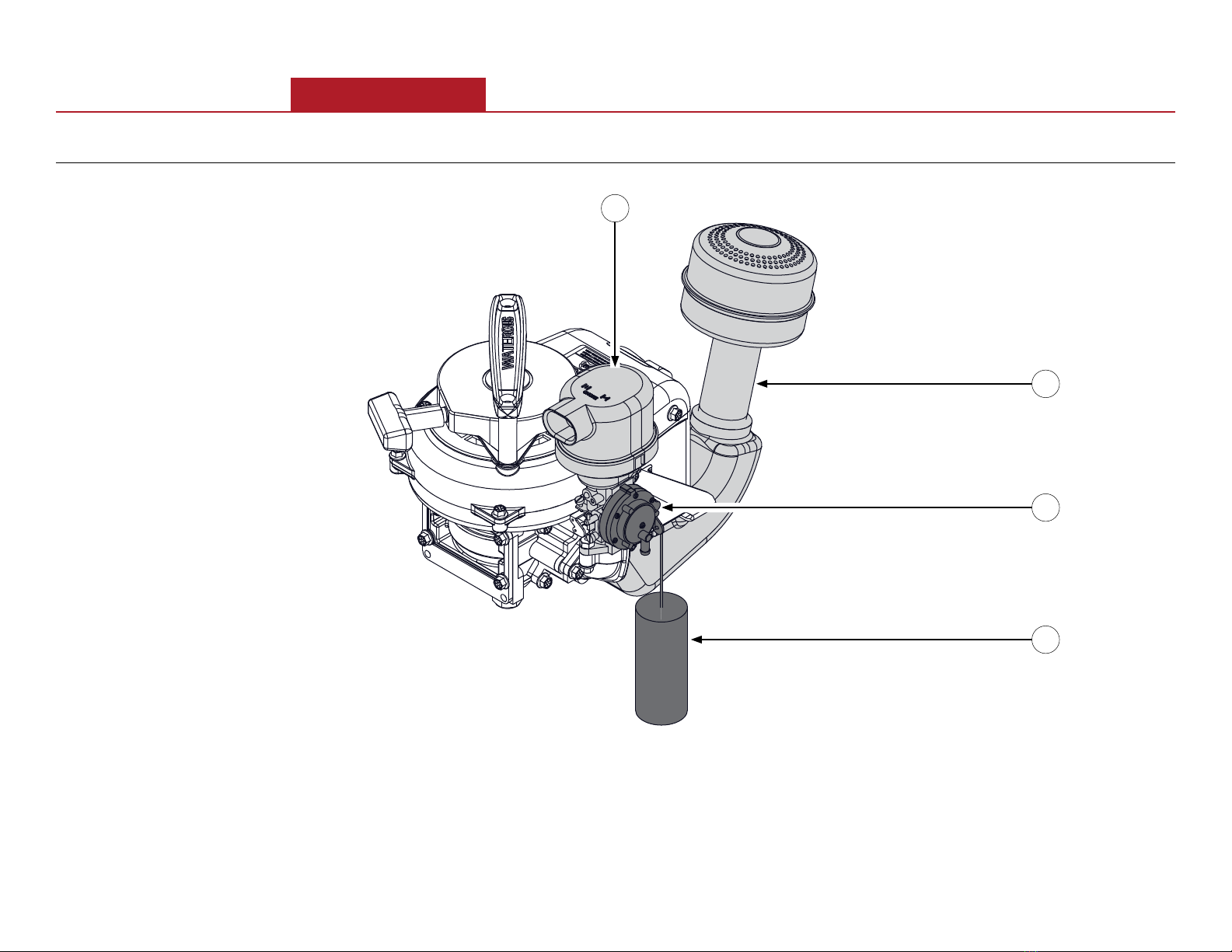

Engine Components
