W-10KHD Automotive Two Column Lift
www.derekweaver.com
817-560-9510
Revised 9/19/2018
Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation
Contents
Specifications. . . . . . . . . . . . . 4
Installation Requirement . . . . . . . 6
Installation Steps . . . . . . . . . . . 8
Test Run . . . . . . . . . . . . . . .37
Operation Instructions. . . . . . . . .39
Maintenance Schedule. . . . . . . . .40
Trouble Shooting . . . . . . . . . . .41
Exploded View . . . . . . . . . . . .42
W-10KHD Parts List . . . . . . . . . 45
Warranty . . . . . . . . . . . . . . .50
Specifications 4
W-10KHD
Specifications
Clear-Floor Direct-Drive Model Features
Model W-10KHD
• Direct drive hydraulic cylinder design, minimizes the lift wear parts and
breakdown ratio
• Dual hydraulic cylinders, designed and made on ANSI standards, utilizing
NOK oil seal in cylinder
• Self- lubricating UHMW Polyethylene sliders and bronze bush
• Single-point safety release with dual safety design
• Clear-floor design, provides non-obstructed floor use
• Overhead safety shut-off device prevents vehicle damage
• Standard adjustable heights accommodates variety of ceiling heights
Fig. 1
Specifications 5
W-10KHD
Model W-10KHD Specifications
Model Style Lifting
Capacity Lifting
Time Lifting Height Overall Height Overall
Width
Width
Between
columns
Minimum
Pad
Height Motor
W-10KHD Clear-floor
Direct drive 4.5 T
10,000 lbs 55S 1842-2112mm
72 1/2”–83 1/8” 3635/3735mm
143 1/8”/ 147” 3492mm
137 1/2” 2800mm
110 1/4” 90 mm
3 1/2” 3.0HP
Arm Swings View For Model W-10KHD
Fig. 2
Installation Requirement 6
W-10KHD
Installation Requirement

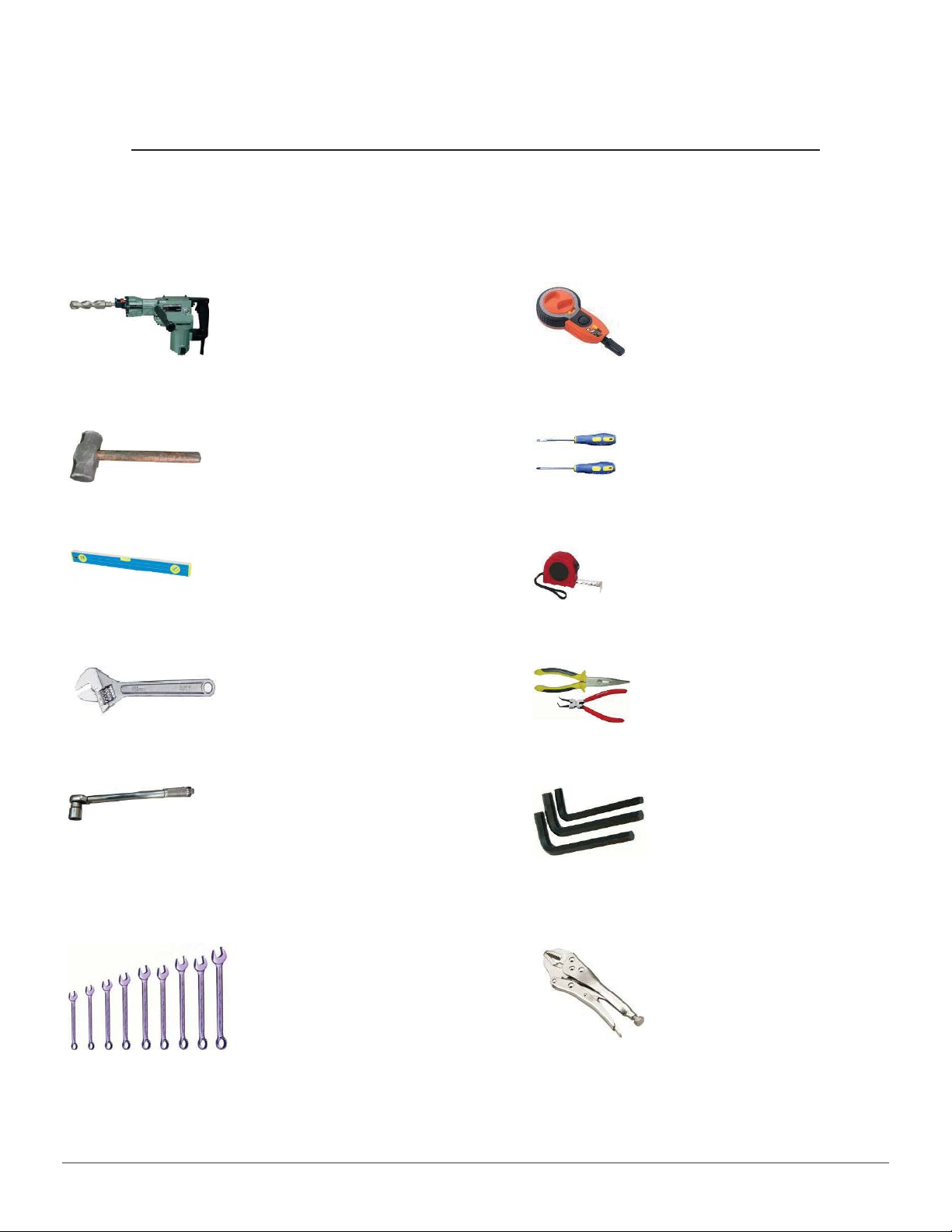

Tools Required
Rotary Hammer Drill (3/4in bit) Carpenter’s Chalk
Hammer Screw Drivers
4 Foot Level Tape Measure (25ft)
Crescent Wrench (12”) Pliers
Ratchet & Socket (28mm) Allen Head Wrench (3mm, 5mm, 8mm)
Wrench set (mm)
(10#, 13#, 14#, 15#, 17#, 19#, 24#, 27#, 30#) Vise Grips
Fig. 3
Installation Requirement 7
W-10KHD
Concrete Specifications
Concrete specifications must be followed accordingly.
Failure to do so may result in lift and/or vehicle falling.
1. Concrete must have 4 inches minimum and must be totally cured before lift
installation.
2. Concrete must be in good condition and must have a test strength 3,000psi
minimum.
3. Floors must be level with no cracks or holes.
Fig. 4
Power Supply
220 volt single phase motor on a 30 amp breaker with minimum of 10 gauge
wire. Operating voltage range is 208v-230v.
4”
Installation Steps 8
W-10KHD
Installation Steps
A. Location of installation
Check and ensure the installation location (concrete, layout, space size etc.) is
suitable for lift installation.
B. Use a carpenter’s chalk line to establish
installation layout of base plate
Fig. 5
C. Check the parts before assembly
1. Packaged lift and hydraulic power unit.
Fig. 6
Chalk Line
137.5 in
Installation Steps 9
W-10KHD
2. Move the lift aside with a fork lift or hoist, and open the outer packing carefully.
Fig. 7
3. Remove the top connecting assembly and parts box.
Fig. 8
4. Lift the upper column with a fork lift or hoist and loosen the bolts on the
upper package stand. Remove the upper column and take out the parts in the
bottom column.
Fig. 9
Shipment
Parts list
Serial No.
Top Connecting Assembly
Parts box
Installation Steps 10
W-10KHD
5. Lift the lower column with a fork lift or hoist, remove the package stand.
Remove the lower column and remove the parts in the inner column.
Fig. 10
6. Move aside the parts and check the parts according to the shipment parts list.
Fig. 11 100
