WeBoost DRIVE X OTR FLEET Bedienungsanleitung

Installation Guide

Cell Signal Booster For Fleet Trucks

DRIVE X OTR FLEET

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com 866.294.1660

______

Index

Package Contents 1

STEP 1: Select Mounting Location 2

STEP 2: Assemble The Antenna 3

STEP 3: Mount Outside Antenna 5

STEP 4: Mount Inside Antenna 7

STEP 5: Wiring The Power Supply To Vehicle Battery 8

STEP 6: Connect Coax Cables To Booster 9

STEP 7: Connect Power Supply To Booster 10

Light Patterns 11

Troubleshooting 12

Safety Guidelines 13

Speciﬁcations 14

Warranty 15

DRIVE X OTR FLEET CELL SIGNAL BOOSTER 1

________

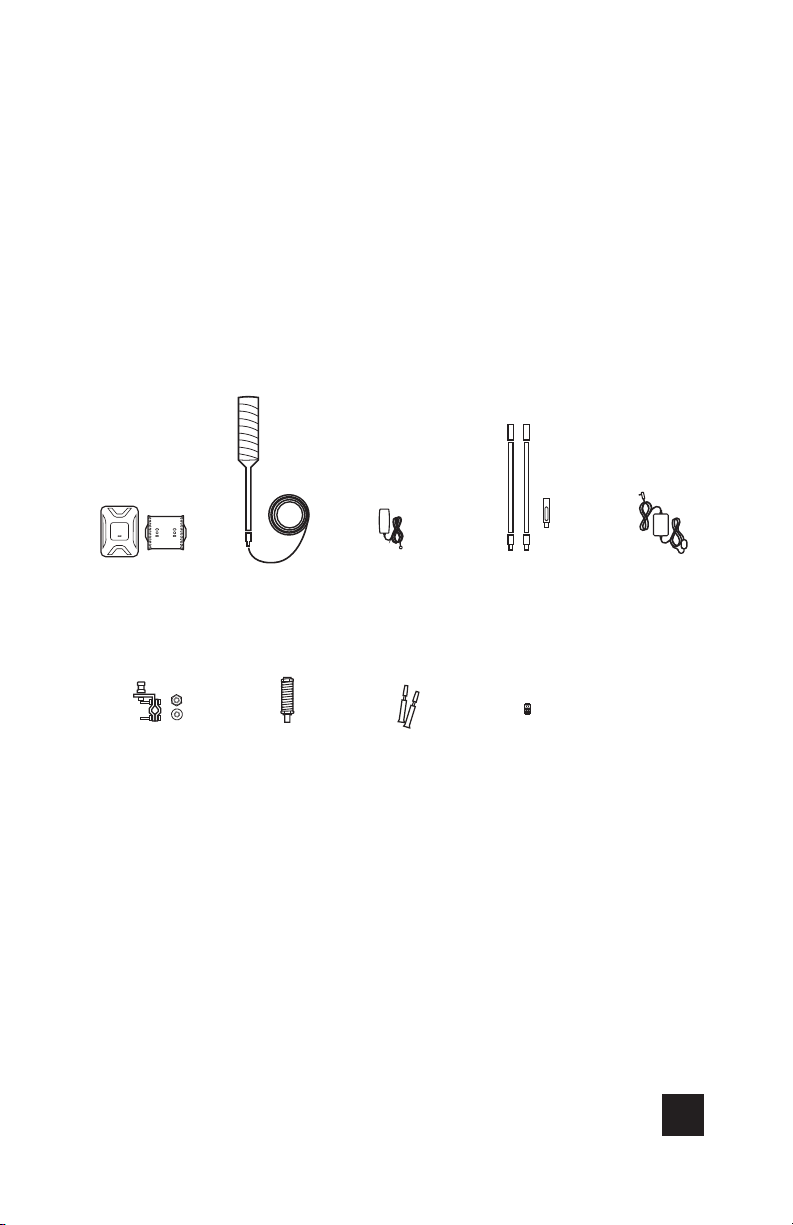

Package

Contents

Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

Mast Extensions

& Side Exit Adapter

3-Way Antenna

Mount

Antenna

Spring

Thread

Lock

Cable

Adapter

2CELL SIGNAL BOOSTER DRIVE X OTR FLEET

______

Step 1: Select Mounting

Location

Depending on the type of truck, there may be built-in antenna

mounting points. If the vehicle does not have built-in mounting

points, the antenna includes a three-way mount that will work

on vehicles with mirror rails. The antenna will also work with

third party CB antenna mounts.

Select mounting location on vehicle. The antenna can be

mounted in any CB mount or antenna mounting point on the

vehicle. For best performance mount the antenna above the

metal cab (it does not need to be above cab wind deﬂector).

Typical Antenna

Mounting Points

NOTE: Mount at least 12 inches from any other antennas. Free of obstructions.

NOTE: If the vehicle is using two CB antennas co-phase wiring, removing one

antenna will cause reduced performance of the remaining CB antenna.

DRIVE X OTR FLEET CELL SIGNAL BOOSTER 3

______

Step 2: Assemble The

Antenna

Mast

Extension

Mast

Extension

Mast

Extension

Antenna

Side Exit

Adapter

cable

from antenna

OTR

Antenna

Once you have determined the

best location for the antenna

and have determined if Mast

Extensions are needed, insert

cable through mast.

If using Mast Extension(s) add

thread locker (provided) to thread

point(s). Screw into place.

Add thread locker (provided) to

thread point and screw on the

Side Exit Adapter.

NOTE: Mast Extensions may not be

needed depending on your mounting

point.

NOTE: Be sure the antenna is the correct

height before applying thread locker.

NOTE: When adding the side exit adapter

hold the antenna vertically and screw the

adapter from the bottom up. This reduces

cable twisting.

4CELL SIGNAL BOOSTER DRIVE X OTR FLEET

______

(STEP 2 cont.)

NOTE: The included spring should

only be used on shorter masts

variations.

17”

32”

45”

OTR

Antenna

Mast

Extension

Antenna Spring

(can be used

optionally)

(Antenna Spring

should not be used

on this length)

Antenna Spring

(can be used

optionally)

run cable through

Mast Extension

Mast

Extension

Side

Exit Adapter

run cable through

Mast Extension

DRIVE X OTR FLEET CELL SIGNAL BOOSTER 5

______

Step 3: Mount Outside

Antenna

3-Way

Antenna Mount

mirror rail

or bird perch mount

side exit

adapter

mast

The cable is strong enough

that it may be shut in most

vehicle doors without

damaging the cable.

Top of Mirror Mirror ArmUpper Side

3-Way Mount

on bird perch

These are some typical antenna mounting points. If the vehicle

does not have built-in mounting points, a three-way mount is

included that will work on vehicles with mirror rails.

6CELL SIGNAL BOOSTER DRIVE X OTR FLEET

______

(STEP 3 cont.)

Side Exit Adapter must

be used with Spring

Add thread lock on

all threads with tube

provided

Remove nut &

plastic washer

Mount disc washer with

lip in the DOWN position

Fasten nut with lip in

the UP position

Remove bolt &

plastic washer

If installing with the Spring, disassemble and reassemble the

3-Way Mount as shown below.

Disassemble

Reassemble

Spring

Side Exit

Adapter

DRIVE X OTR FLEET CELL SIGNAL BOOSTER

______

Step 4: Mount Inside Antenna

Identify a place to mount the In-Vehicle Antenna, either on the

side of the seat or on the dash and mount. The location should

be at least 18 inches but no more than 36 inches from where

the cellular device will be used. Use the Velcro® adhesive

strip/adhesive strip provided and attach to desired location.

In-Vehicle

Antenna

In-Vehicle

Antenna

Velcro®

8CELL SIGNAL BOOSTER DRIVE X OTR FLEET

Before connecting the power supply, disconnect the vehicle battery

leads to avoid any electrical shocks during installation.

Locate a place where cables are already running through the ﬁrewall

(rear wall of engine bay) to the inside of the cabin.

Locate the same ﬁrewall hole from inside of the vehicle cabin.

Route the power cables of the power supply from the inside of the

vehicle cabin out through ﬁrewall hole.

Note: The cables must be routed inside to outside since the power

supply brick won’t ﬁt through the ﬁrewall holes. The power supply

brick should remain inside the vehicle cabin.

Connect the positive lead of the power supply (lead with red tape)

to the disconnected positive (+) lead of the battery (not the positive

terminal on the battery itself).

Connect the negative lead of the power supply (lead without tape)

to the disconnected negative (-) lead of the battery (not the negative

terminal on the battery itself).

Connect the positive (+) lead back to the vehicle battery.

Connect the negative (-) lead back to the vehicle battery.

Use steps below as a draft/template of the general install of

the power supply.

______

Step 5: Wiring The Power

Supply To Vehicle Battery

NOTE: Having the power supply directly connected to the battery may

drain the battery’s life. Please review the vehicle’s owner’s manual for more

information. Adding a “fuse tap” may be another solution. A “fuse tap” is an

electrical part that functions as a power splitter and is meant to be installed

in the car’s fuse box, making the amp shut o when the vehicle’s ignition

switch is turned o.

IMPORTANT: Power supply must be wired to fuse.
