LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as
manufactured is free from defects in materials and workmanship. For a period of
two (2) years from date of purchase by the original consumer purchaser, we will re-
pair or replace, at our option, without charge for parts or labor incurred in replacing
parts, any part which we find to be defective due to materials or workmanship. This
Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components,
battery (except as noted below) or components parts thereof. Please refer to the
applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or at-
tachment are the responsibility of the purchaser. Transportation charges for any
parts submitted for replacement under this warranty must be paid by the pur-
chaser unless such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without
charge to you, any battery which we find to be defective in manufacture, during
the first ninety (90) days of ownership. After ninety (90) days, we will exchange
the Battery, charging you 1/12 of the price of a new Battery for each full month
from the date of the original sale. Battery must be maintained in accordance with
the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is
limited to 45 days from the date of original purchase.
5. This Warranty applies only to products which have been properly assembled,
adjusted, operated, and maintained in accordance with the instructions furnished.
This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to
normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, nor-
mal wear, normal adjustments, standard hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to
an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, contact:
giving the model number, serial number and date of purchase of your product and
the name and address of the authorized dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME
TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.
Some areas do not allow the limitation of consequential damages or limitations
of how long an implied Warranty may last, so the above limitations or exclusions
may not apply to you. This Warranty gives you specific legal rights, and you may
have other rights which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the
Magnuson-Moss Act of 1975.
In Canada contact:
Weed Eater
Customer Service Department
5855 Terry Fox Way
Mississauga, Ontario L5V 3E4
Weed Eater
Customer Service Department
9335 Harris Corners Parkway
Charlotte, NC 28269 USA
REPAIR PARTS MANUAL
MODEL NO. 96142009401
Rotary Lawn Mower
For Parts and Service or Technical Assistance, call 1-800-487-5951
532 44 07-68 Rev. 2 05.31.12 BY Printed in U.S.A.
NOTE: Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
2

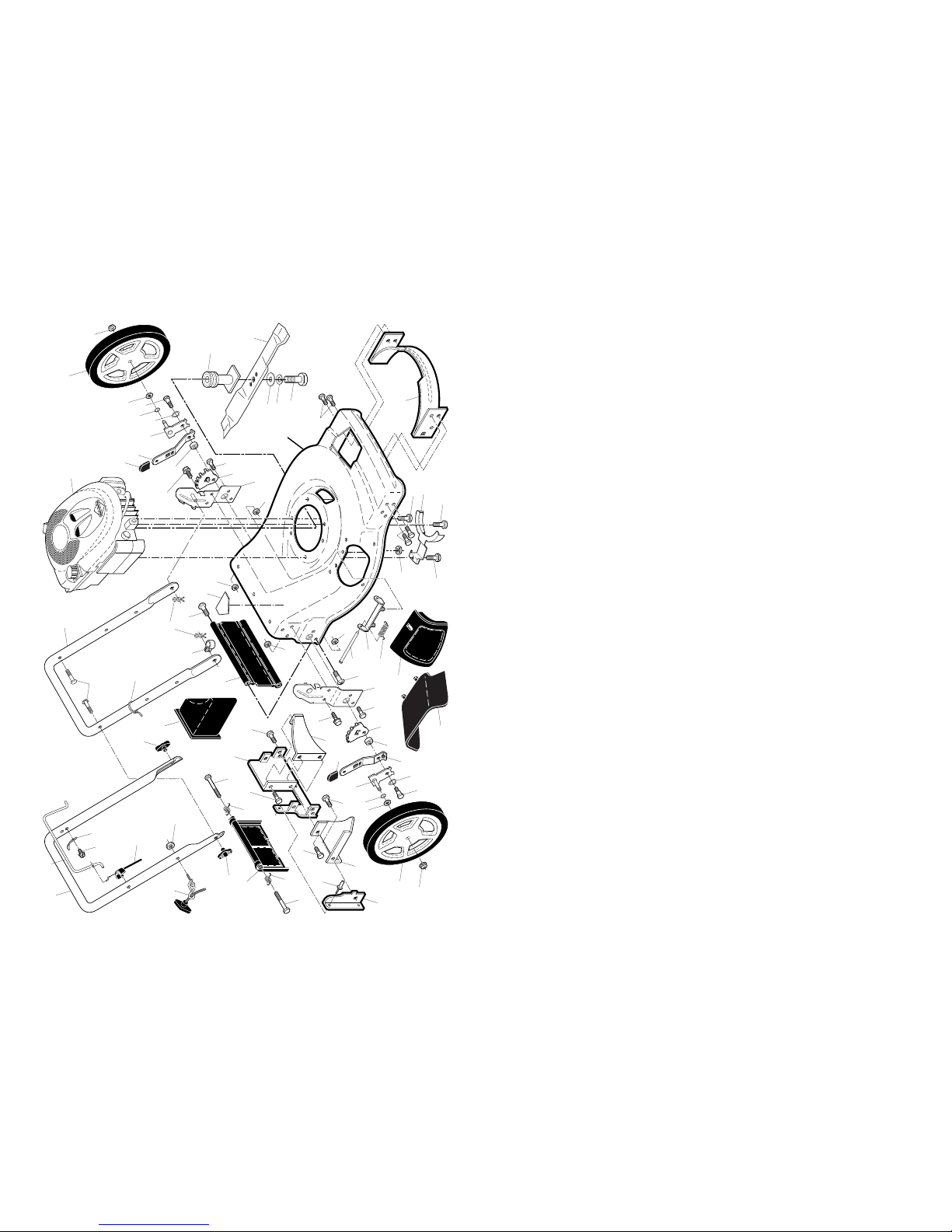

WEED EATER ROTARY LAWN MOWER - MODEL NO. 961420094 (MFG. ID. NO. 96142009401)
4
5
9
10
11
12
12 12
14
15
16
17
20
21
24
25
26
26
27
28 29
30
31
32
33
34 35
36
37
38
39
4060 42
44
45
51
52
53
54
55
55
56
56
57
58
59
60
35
65
25
27
28
29
30
31
32
34
37
54
65
69
1
3
6
6
7
8
2
19 18
41
41
41
43
53
71
46
47
48
49
50
55
55
64
7
SERVICE NOTES
6
SERVICE NOTES
3
WEED EATER ROTARY LAWN MOWER - MODEL NO. 961420094 (MFG. ID. NO. 96142009401)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
27 532 40 31-67 Wheel & Tire Assembly, Rear
28 532 17 47-19 Bolt, Shoulder 3/8-16 x 1
29 532 40 16-30 Washer, Curved, Cylindrical
30 532 40 65-82 Axle Arm Assembly
31 532 70 10-37 Selector Knob
32 532 40 98-89 Selector Spring
33 532 19 60-53 Mulcher Door
34 532 40 16-29 Spacer
35 532 41 06-26 Wheel Adjusting Bracket
36 532 17 57-35 Hinge Bracket Assembly
37 532 42 88-67 Screw, Sems, Thread Cutting
5/16-18 x 3/4
38 532 40 30-73 Discharge Deflector
39 532 19 71-50 Handle Bracket Assembly, LH
40 532 19 71-51 Handle Bracket Assembly, RH
41 532 15 04-06 Screw, Hex Head, Threaded,
Rolled 3/8-16 x 1-1/8
42 532 19 30-00 Spring, Torsion
43 873 80 04-00 Nut, Hex, Nylock
44 532 43 77-13 Kit, Housing (Includes Key
Numbers 14, 15 and 51)
45 532 17 56-50 Rod, Hinge
46 532 42 12-48 Blade Adapter / Pulley
47 532 40 67-13 Blade, 22"
48 532 85 10-74 Washer, Hardened
49 532 85 02-63 Washer, Helical
KEY PART
NO. NO. DESCRIPTION
1 532 42 79-75 Upper Handle
2 532 18 35-67 Engine Zone Control Cable
3 532 12 51-62 Bracket, Upstop
4 532 16 66-49 Mulcher Plug
5 532 06 64-26 Wire Tie
6 532 19 19-38 Handle Knob
7 532 75 06-34 Screw
8 532 42 77-39 Control Bar
9 532 40 84-92 Rear Door Assembly
10 532 12 84-15 Pop Rivet
11 532 15 00-50 Screw, Self-Tapping
#10-24 x 5/8
12 817 06 04-10 Screw, Hex Head, Sems
1/4-20 x 1/2
14 532 19 70-76 Back Plate
15 532 41 13-34 Side Baffle
16 532 17 71-33 Discharge Baffle
17 532 14 89-41 Rear Baffle
18 532 13 20-04 Keps Locknut 1/4-20
19 532 19 47-88 Rope Guide
20 532 41 31-60 Rear Skirt
21 532 40 54-21 Spring, Rear Door, LH
24 532 40 54-23 Spring, Rear Door, RH
25 532 40 91-49 Nut, Hex, Flanged
26 532 18 41-93 Bolt, Rear Door
KEY PART
NO. NO. DESCRIPTION
50 532 85 10-84 Screw, Machine, Hex Head
3/8-24 x 1-3/8 Grade 8
51 532 17 00-31 Kit, Front Baffle
(Includes Key Number 53)
52 532 40 47-63 Danger Decal
53 817 60 04-06 Screw, Type TT 1/4-20
54 532 08 83-48 Washer, Flat
55 873 93 06-00 Locknut, Hex 3/8-16
56 532 08 86-52 Hinge Screw 1/4-20 x 1-1/4
57 532 05 17-93 Hairpin Cotter
58 532 15 50-44 Lower Handle
59 532 19 15-74 Handle Bolt
60 874 76 06-12 Bolt, Hex Head 3/8-16 x 3/4
61 873 93 06-00 Locknut, Hex 3/8-16
64 - - - Engine, Briggs & Stratton,
Model Number 126T02-1527-
B1 (For engine service and
replacement parts, call Briggs
& Stratton at 1-800-233-3723)
65 532 19 74-80 O-Ring
69 532 19 79-91 Clip, Cable
71 532 43 50-59 Belt Keeper
- - 532 40 47-64 Warning Decal (not shown)
- - 532 19 37-33 Operator’s Manual, English
- - 532 19 37-43 Operator’s Manual, Spanish
KEY PART
NO. NO. DESCRIPTION
4

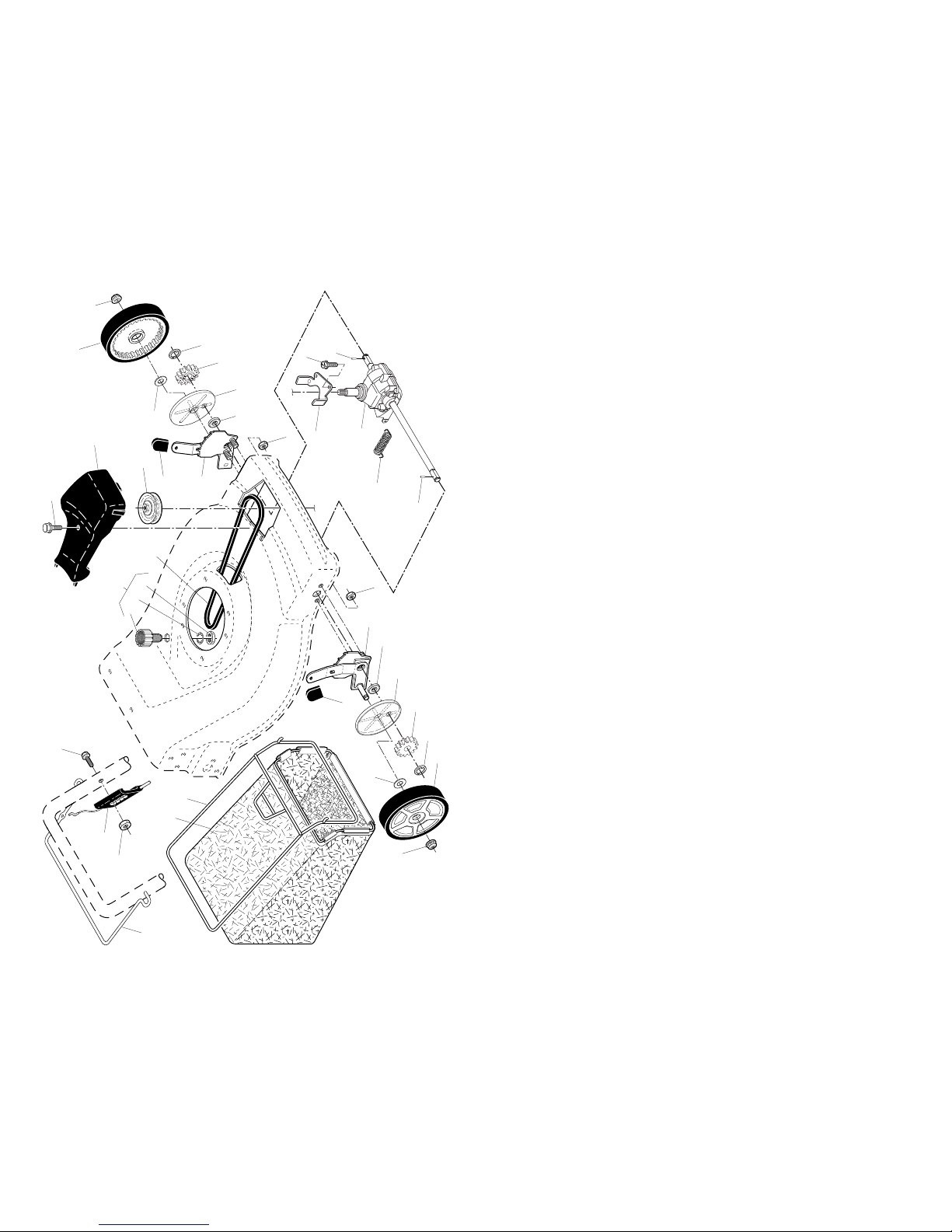

WEED EATER ROTARY LAWN MOWER - MODEL NO. 961420094 (MFG. ID. NO. 96142009401)
54
57
27
33
28
32
35
15
80
81 82 83
15
26
25
36
40
7
6
4
1
18
18
16
17
13
14
11
29
11
29
38
38
41
12
16
17
13
14
12
5
WEED EATER ROTARY LAWN MOWER - MODEL NO. 961420094 (MFG. ID. NO. 96142009401)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 40 78-16 Drive Control Assembly
(Includes Cable)
4 532 19 96-87 Screw, Hex Washer Head
6 532 19 84-53 Bar, Drive Control
7 532 19 17-30 Nut, Hex, Flangelock
11 532 19 79-86 Wheel & Tire Assembly, Front
12 812 00 00-58 E-Ring
13 532 40 38-49 Pinion
14 532 18 94-03 Dust Cover
15 532 40 48-45 Pawl, Drive
16 532 06 77-25 Washer, Flat 3/8
17 532 42 18-36 Bearing Assembly
18 532 70 10-37 Selector Knob
25 532 41 16-63 Belt Keeper
26 532 16 34-09 Screw, Hi-Lo Thread #12 x 5/8
27 532 17 52-62 Screw, Pan Head, Self-Tapping
#10-24 x 2-3/4
28 532 19 60-56 Drive Cover
29 532 40 91-48 Locknut, Hex
32 532 19 40-18 Drive Pulley
33 532 19 68-57 V-Belt
35 532 43 84-85 Kit, Wheel Adjuster, LH
(Includes Knob and Bearing)
36 532 40 48-34 Gear Case Assembly, Complete
38 873 80 04-00 Locknut 1/4-20
40 532 40 65-58 Spring
41 532 43 84-86 Kit, Wheel Adjuster, RH
(Includes Knob and Bearing)
54 532 44 07-55 Grassbag Assembly
57 532 41 19-52 Frame, Grassbag
80 532 42 11-14 Water Washout Assembly
81 532 41 97-35 Fitting, Hose, Water Washout
82 532 41 55-85 Washer, Lock, Internal Tooth
83 532 41 55-86 Locknut, Hex, with O-Ring
