Weider Pro 145 Bedienungsanleitung

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

direct assistance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

¨145

145

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal (Under Seat)

Model No. WEBE09900

Serial No.

Write the serial number in the

space above for future reference.

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

USERÕS MANUAL

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

USING THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Table of Contents

The decal shown at the right has

been placed on the weight bench.

If a decal is missing, or if it is not

legible, please call our Customer

Service Department toll-free at

1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain

Time, to order a replacement

decal. Apply the replacement decal

to the location shown.

Warning Decal Placement

1. Read all instructions in this manual before

using the weight bench.

2. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

3. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

4. Use the weight bench only as described in

this manual.

5. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

6. Inspect and tighten all parts each time you

use the weight bench. Replace any worn

parts immediately.

7. Keep children under the age of 12 and pets

away from the weight bench at all times.

8. Always be sure there is an equal amount of

weight on each end of your barbell (not

included) when you are using it. When

adding or removing weights, always keep

some weight on both ends of the barbell to

prevent the barbell from tipping.

9. Do not use a barbell that is longer than six

feet with the weight bench.

10. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

11. Keep hands and feet away from moving parts.

12. Always wear athletic shoes for foot protec-

tion while exercising.

13. The weight bench does not include weights.

The weight bench is designed to support a

maximum of 460 pounds, including the user,

a weight bar, and weights. Do not place more

that 210 pounds, including a weight bar and

weights, on the weight rests. Do not place

more than 130 pounds on the leg lever.

14. Make sure that the adjustment knobs are

inserted completely and tightened into the

uprights before beginning any exercise.

15. When adjusting the position of the backrest,

make sure that the adjustment pin is inserted

through both adjustment tubes and that the

pin clip is attached (see page 10).

16. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

17. Always exercise with a partner. When you

are performing bench press exercises, your

partner should stand behind you to catch the

barbell if you cannot complete a repetition.

18. When you put weight on the weight rests,

make sure you put at least ten pounds on the

leg lever to balance the weight bench.

Important Precautions

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

Backrest

Weight Rest

Upright

Adjustment Knob

Seat

Adjustment Tubes

Leg Lever

Weight Tube

Thank you for selecting the WEIDER¨PRO 145 weight

bench. The versatile WEIDER¨PRO 145 weight bench

is designed to be used with your own weight set (not

included) to develop every major muscle group of the

body. Whether your goal is a shapely figure, dramatic

muscle size and strength, or a healthier cardiovascular

system, the WEIDER¨PRO 145 will help you to

achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER¨PRO 145 weight bench. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

WEBE09900. The serial number can be found on a

decal attached to the weight bench (see the front

cover of this manual).

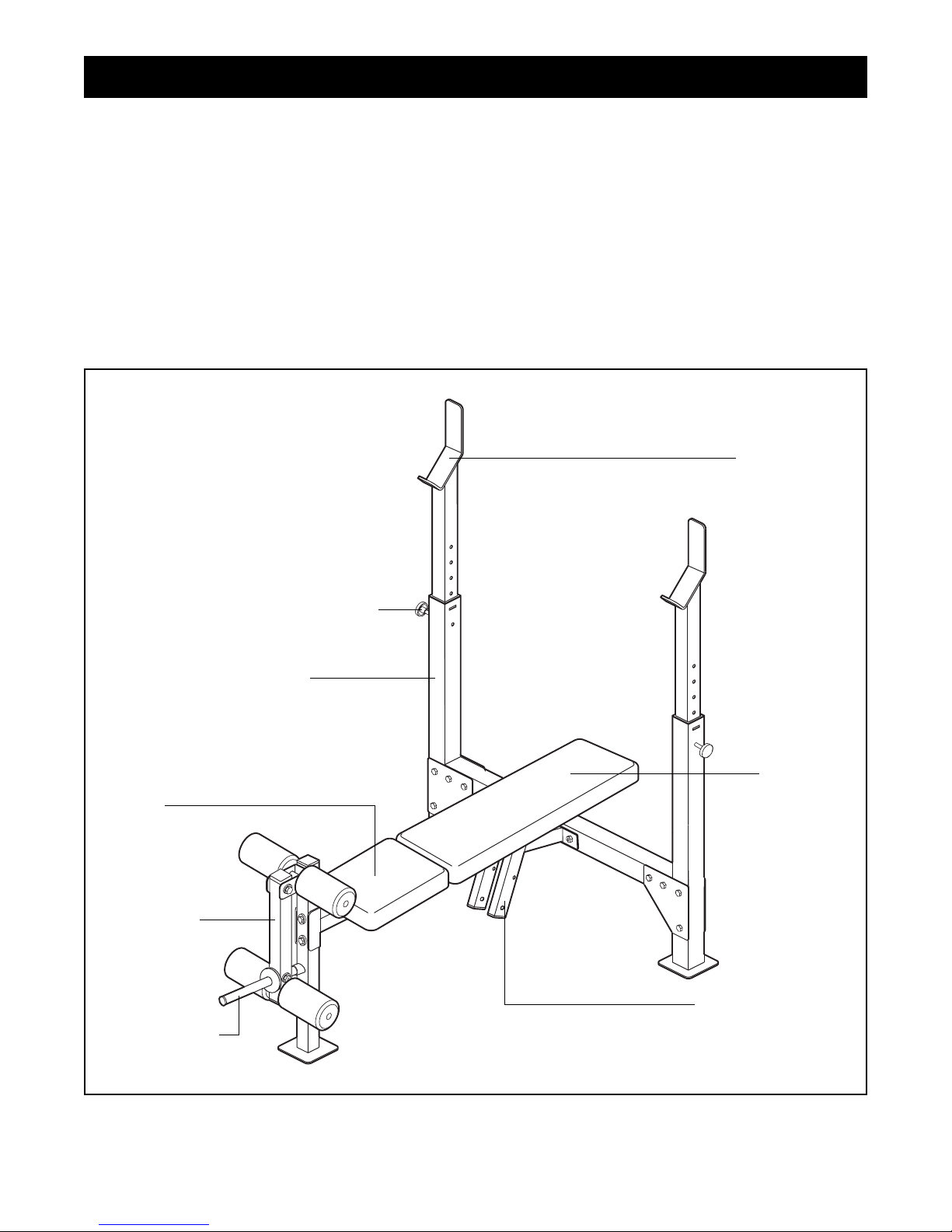

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Before You Begin

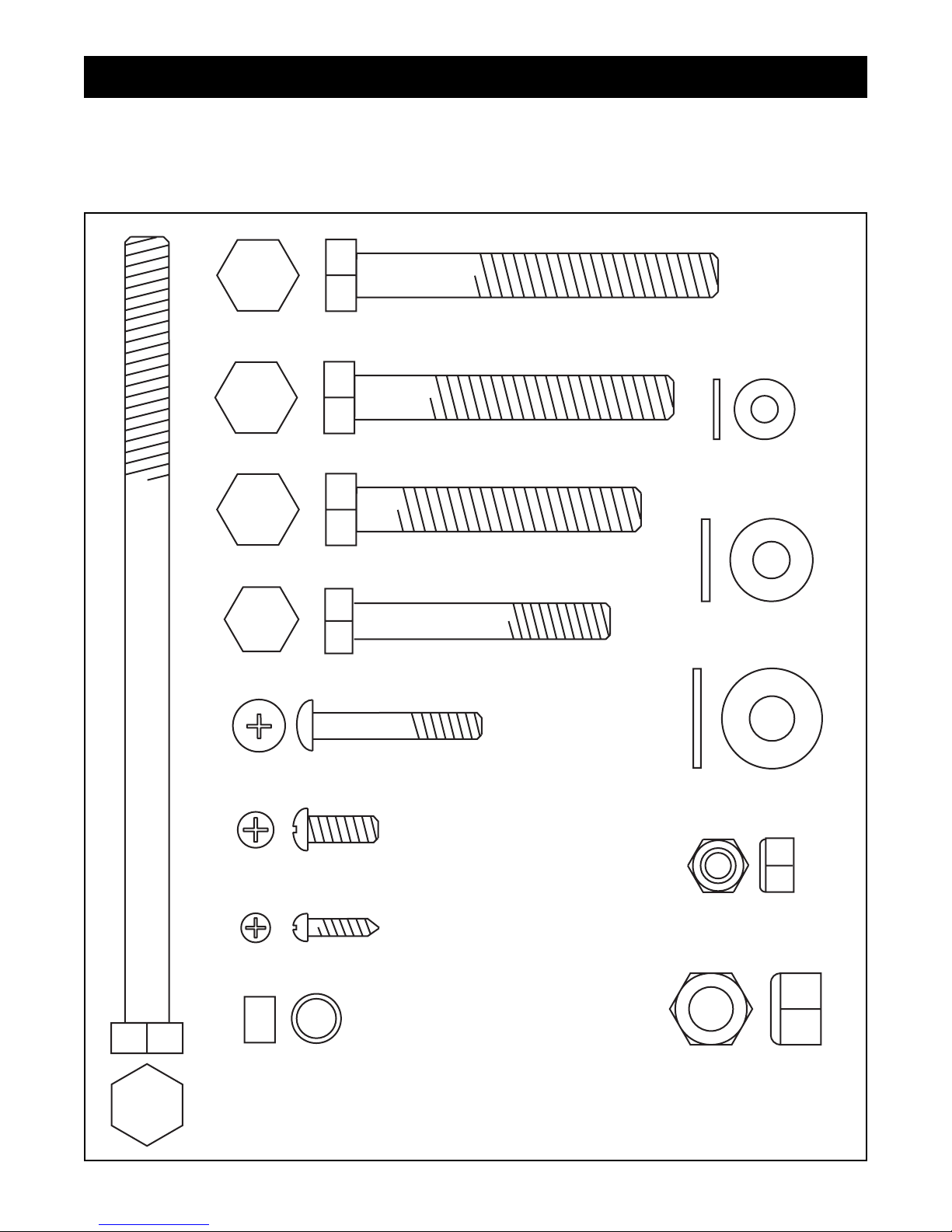

This chart is provided to help you identify the small parts used in assembly. The number in parentheses below

each part refers to the key number of the part. The second number refers to the quantity needed for assembly.

Important: Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in

the parts bags, check to see if it has been pre-assembled.

M10 x 81mm Bolt (35)Ñ10

M8 x 58mm Bolt (39)Ñ1

Spacer (37)Ð1

M6 x 16mm Screw (15)Ñ4

M6 x 38mm Screw (16)Ñ4

M10 x 178mm Bolt (17)Ñ1

M10 x 65mm Bolt (18)Ñ2

M4 x 16mm Screw (34)Ñ4

M8 Nylon Locknut (13)Ñ1

M8 Washer (38)Ñ2

M10 Nylon Locknut (19)Ñ14

M6 Washer (25)Ñ4

M10 Washer (24)Ñ4

M10 x 72mm Bolt (14)Ñ1

Part Identification Chart

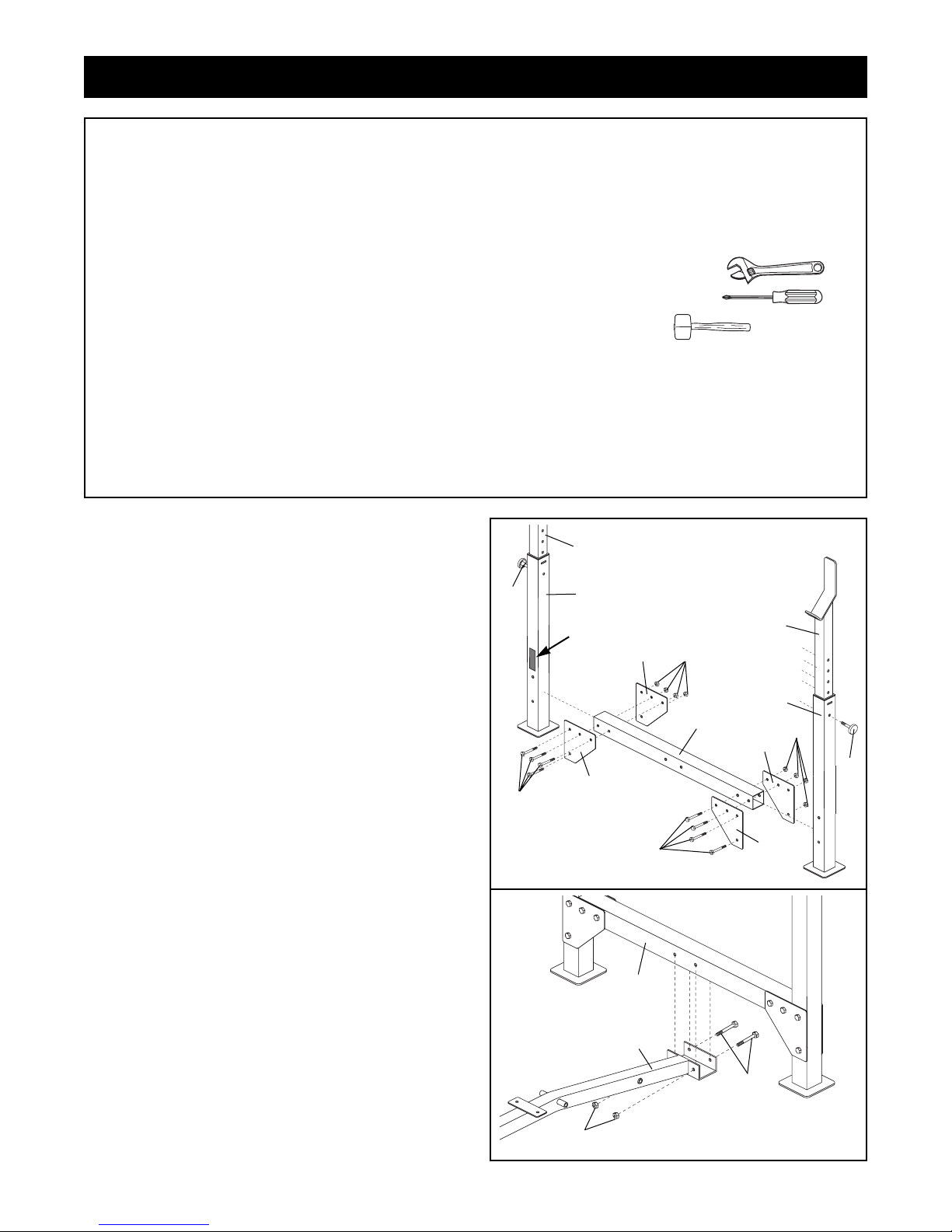

1. Before assembling this weight bench, be sure

that you have read and understand the infor-

mation in the box above.

The help of another person is recommended for

assembly.

Position the Crossbar (3) as shown. Attach the

Crossbar to each Upright Base (7) with four M10

x 81mm Bolts (35), a Support Plate (20), and four

M10 Nylon Locknuts (19). Note the position of

the warning decal and make sure the Upright

Bases are oriented exactly as shown.

Slide the Uprights (1) into the Upright Bases (7)

and secure them at the desired height with two

M10 x 67mm Adjustment Knobs (30).

2. While another person holds the Crossbar (3),

attach the Frame (2) to the Crossbar with two

M10 x 81mm Bolts (35) and two M10 Nylon

Locknuts (19).

Before beginning assembly, carefully read the

following information and instructions:

¥ Place all parts of the weight bench in a cleared

area and remove the packing materials; do not

dispose of the packing materials until assembly

is completed.

¥ Read each assembly step before you begin.

¥ For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART on the previous page. Note: Some

small parts may have been pre-attached for ship-

ping purposes. If a part is not in the parts bag,

check to see if it has been pre-attached.

¥ Tighten all parts as you assemble them, unless

instructed to do otherwise.

¥ As you assemble the weight bench, make sure

that all parts are oriented as shown in the draw-

ings.

THE FOLLOWING TOOLS (NOT INCLUDED)

ARE REQUIRED FOR ASSEMBLY:

¥ Two (2) adjustable wrenches

¥ One (1) phillips screwdriver

¥ One (1) rubber mallet

¥ Lubricant, such as grease or petroleum jelly,

and soapy water will also be needed.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches, or a set of ratchet wrenches.

Warning

Decal

Assembly

3. Tap a 45mm Square Inner Cap (21) into the Front

Leg (8) as shown. Attach the Front Leg to the

Frame (2) with two M10 x 65mm Bolts (18), two

M10 Washers (24), and two M10 Nylon Locknuts

(19).

4. Tap two 45mm Square Inner Caps (21) into the

Leg Lever (4) as shown.

Tap a 1Ó Round Inner Cap (23) into the indicated

end of the Weight Tube (33). Insert the Weight

Tube into the Leg Lever (4). Make sure the

Weight Tube is angled up so that weights will

not slide off. Press the 1Ó Angled Cap (29) onto

the other end of the Weight Tube.

5. Lubricate the M10 x 72mm Bolt (14). Attach the

Leg Lever (4) to the Front Leg (8) with the Bolt

and an M10 Nylon Locknut (19). Do not overtight-

en the Nylon Locknut; the Leg Lever must be

able to pivot freely.

Attach the Spacer (37) to the Leg Lever (4) with

the M8 x 58mm Bolt (39), two M8 Washers (38),

and an M8 Nylon Locknut (13). Note: The Spacer

will fit tightly inside the Leg Lever.

6. Press four 1Ó Square Inner Caps (12) into the

Backrest Tubes (5, 26). Press two 1Ó x 2Ó Inner

Caps (36) into the adjustment tubes.

With the wide end of the Backrest (6) positioned

as shown, attach the Backrest Tubes (5, 26) to

the Backrest with four M6 x 38mm Screws (16)

and four M6 Washers (25). Note: The Backrest

Tubes and the Backrest must be oriented

exactly as shown.

24 2

14ÐLubricate

Adjustment

Tubes

Wide

End

7. Lubricate the M10 x 178mm Bolt (17). Attach the

Backrest Tubes (5, 42) to the Frame (2) with the

Bolt, two M10 Washers (24), and an M10 Nylon

Locknut (19).

Secure the Backrest (6) to the Frame (2) with the

Adjustment Pin (32) through one of the three sets

of holes in the adjustment tubes. Secure the

Adjustment Pin with the Pin Clip (27).

Make sure the Adjustment Pin (32) is com-

pletely inserted through both holes in the

adjustment tubes.

8. With the wide end of the Seat (11) positioned as

shown, attach the Seat to the brackets on the

Frame (2) with four M6 x 16mm Screws (15).

19 27

17ÑLubricate

Adjustment

Tubes

Wide

End

9. Tap two 3/4Ó Round Inner Caps (9) into each Pad

Tube (10). Insert the Pad Tubes into the holes in

the Leg Lever (4) and the Front Leg (8). Slide two

Foam Pads (22) onto each Pad Tube.

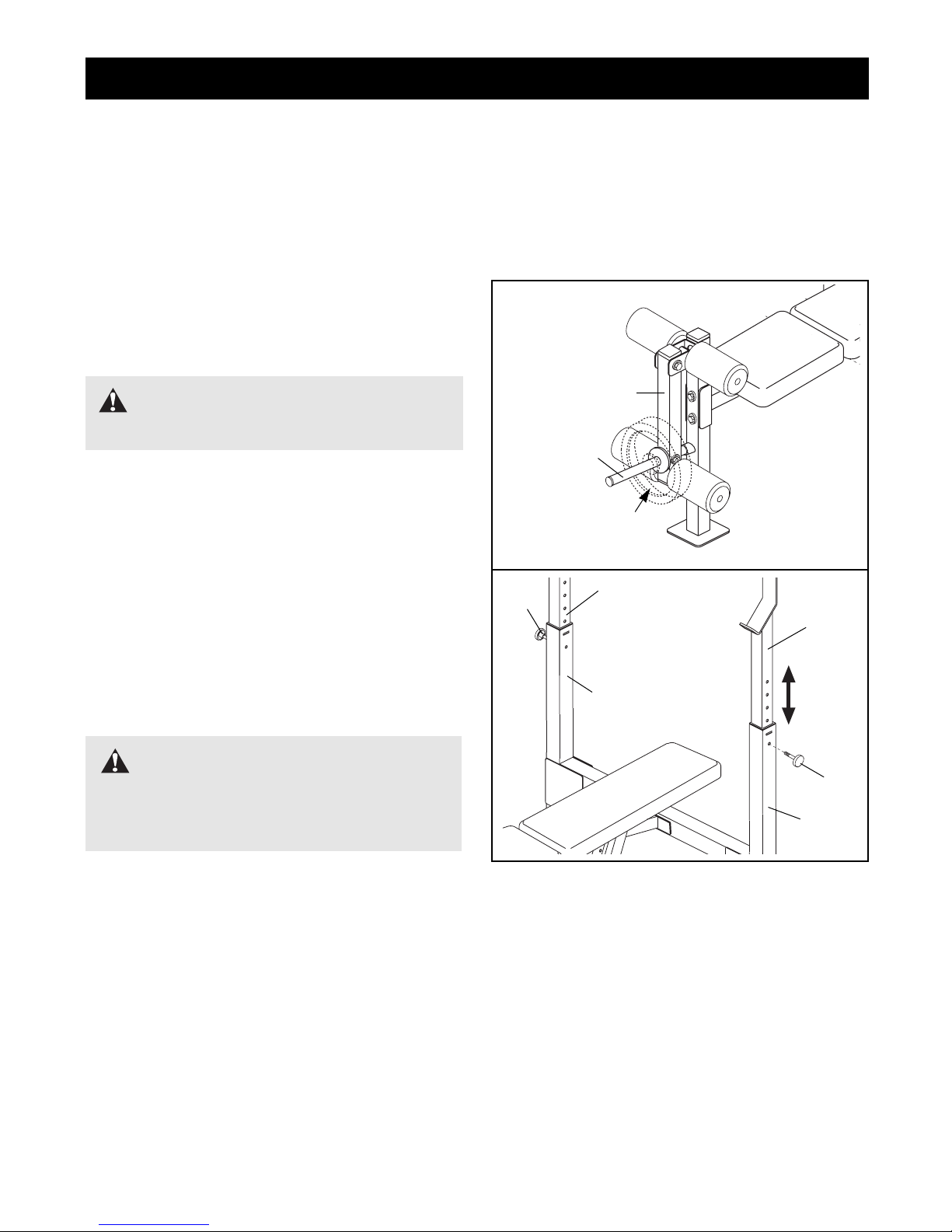

10. Make sure that all parts are properly tightened before you use the weight bench. The use of all

remaining parts will be explained in USING THE WEIGHT BENCH on pages 9 and 10.

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 11 for important exercise information

and refer to the accompanying exercise poster to see the correct form for several exercises. Refer also to the

exercise information accompanying your weight set (not included) for additional exercises.

Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The

weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

Using the Weight Bench

ATTACHING WEIGHTS TO THE LEG LEVER

To use the Leg Lever (4), slide the desired weights

(not included) onto the Weight Tube (33).

ADJUSTING THE UPRIGHTS

The Uprights (1) can be adjusted to five heights for

different exercises. To adjust the height, remove the

M10 x 67mm Adjustment Knobs (30) from both

Uprights and Upright Bases (7). Slide the Uprights to

the desired position and re-insert the Adjustment

Knobs.

Weight

WARNING: Do not place more

than 130 pounds on the leg lever.

WARNING: Always set both

uprights at the same height. Make sure that

the adjustment knobs are inserted completely

and tightened into the uprights.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a decline position, a

level position, or either of two incline positions. To

adjust the Backrest to the decline position, remove

the Adjustment Pin (32) and lower the Backrest until it

rests directly on the Crossbar (3). Re-insert the

Adjustment Pin and secure it with the Pin Clip (43).

To adjust the Backrest (6) to the level position, insert

the Adjustment Pin (32) through the top set of holes,

and secure it with the Pin Clip (43).

To adjust the Backrest (6) to an incline position, insert

the Adjustment Pin (32) as shown through one of the

lower two sets of holes in the backrest adjustment

tubes. Secure the Adjustment Pin with the Pin Clip

(43).

Adjustment Tubes

WARNING: When adjusting the

position of the seat, make sure that the

adjustment pin is inserted through both

adjustment tubes.

Inhaltsverzeichnis

Andere Weider Heim-Fitnessstudio Handbücher

Weider

Weider Pro 290 wc bench Benutzerhandbuch

Weider

Weider Platinum Plus WESY7974.0 Bedienungsanleitung

Weider

Weider Pro 2250 Bedienungsanleitung

Weider

Weider WESY3924.2 Bedienungsanleitung

Weider

Weider Pro 120 Bench Bedienungsanleitung

Weider

Weider WESY39200 Bedienungsanleitung

Weider

Weider WESY37530 Bedienungsanleitung

Weider

Weider Club 290 Power Tower Bench Bedienungsanleitung

Weider

Weider Crossbow By 2000x Bedienungsanleitung

Weider

Weider Muscle 131 Bedienungsanleitung

Weider

Weider B150 Gym Bedienungsanleitung

Weider

Weider E8002 Bedienungsanleitung

Weider

Weider Pro 125 Bench Bedienungsanleitung

Weider

Weider Pro 9635 Bedienungsanleitung

Weider

Weider WESY78732 Bedienungsanleitung

Weider

Weider WESY5984.1 Bedienungsanleitung

Weider

Weider PRO XT75 Bedienungsanleitung

Weider

Weider Cross Bow Advantage 831.153960 Bedienungsanleitung

Weider

Weider Pro power Stack 831.159832 Bedienungsanleitung

Weider

Weider Flex Ctx 60 Bedienungsanleitung

Weider

Weider WEBE13011 Bedienungsanleitung

Weider

Weider 831.159820 Bedienungsanleitung

Weider

Weider WESY19002 Bedienungsanleitung

Weider

Weider WESY85310 Bedienungsanleitung

Beliebte Heim-Fitnessstudio Handbücher anderer Marken

Horizon Fitness

Horizon Fitness OXFORD 6 Bedienungsanleitung

Energetics

Energetics Multi Trainer 5.1 Bedienungsanleitung

Matrix

Matrix MG-PL Series Bedienungsanleitung

Reebok

Reebok Tbr2i Bedienungs- und Wartungshandbuch

Pure Fitness

Pure Fitness 8526HE Bedienungsanleitung

Bowflex

Bowflex Sport 001-6961 Bedienungsanleitung

NordicTrack

NordicTrack E8200 Competition Bench Kurzanleitung

Body Solid

Body Solid GHYP-345 Bedienungsanleitung

Evo

Evo TAHOE 5105 Bedienungsanleitung

cardiobull

cardiobull RA17 Bedienungsanleitung

ParaBody

ParaBody 40 Bedienungsanleitung

JLL

JLL Ventus Pro Air Power Bedienungsanleitung

Trojan

Trojan Colorado 370 Bedienungsanleitung

Octane Fitness

Octane Fitness xRide xR650 Bedienungsanleitung

Precor

Precor Discovery Series Bedienungsanleitung

Insportline

Insportline RW600 Bedienungsanleitung

Stamina

Stamina 55-1532 Bedienungsanleitung

Tunturi

Tunturi R25 Bedienungsanleitung
