Wenger 040A149 Bedienungsanleitung
Assembly Instructions
Universal Tablet Stand
Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General .........................................2
Manufacturer .....................................2
Intended Use .....................................2
Warranty ........................................2
Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Universal Tablet Mount Adjustment ....................6
Frame Adapters for Larger Tablets ....................8
Note: Please read and understand these instructions before assembling or setting up.
Note: If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2018 Printed in USA 2018-07 Part #040A148-04
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
2
Important User Information
Required Tools
The following tools are required for assembly:
• Plastic or Wood Mallet
• 5/32” (4 mm) Hex Wrench
• Phillips Screwdriver
• Pliers
General
Copyright © 2018 by Wenger Corporation
All rights reserved. No part of the contents of this manual may be reproduced, copied, or transmitted in any form
or by any means including graphic, electronic, or mechanical methods or photocopying, recording, or information
storage and retrieval systems without the written permission of the publisher, unless it is for the purchaser’s
personal use.
Printed and bound in the United States of America.
The information in this manual is subject to change without notice and does not represent a commitment on the
part of Wenger Corporation. Wenger Corporation does not assume any responsibility for any errors that may
appear in these instructions.
In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct,
indirect, special, incidental, or consequential damages resulting from the use or defect of these instructions.
The manufacturer reserves the right to change this product at any time.
The information in this document is not intended to cover all possible conditions and situations that might occur.
The end user must exercise caution and common sense when assembling or installing Wenger Corporation
products. If any questions or problems arise, call the Wenger Corporation at (800) 4WENGER (493-6437)
or +1-507-455-4100 worldwide.
Manufacturer
The Universal Tablet Stand is manufactured by:
Wenger Corporation
555 Park Drive
Owatonna, MN 55060
(800) 4WENGER (493-6437) • +1 (507) 455-4100
wengercorp.com
Intended Use
· This product is intended for indoor use in normal ambient temperature and humidity conditions —
it must not be exposed to prolonged outside weather conditions.
· This product is intended to be assembled only as described in these instructions.
Warranty
This product is guaranteed free of defects in materials and workmanship for ve full years from date of
shipment. A full warranty statement is available upon request.
3

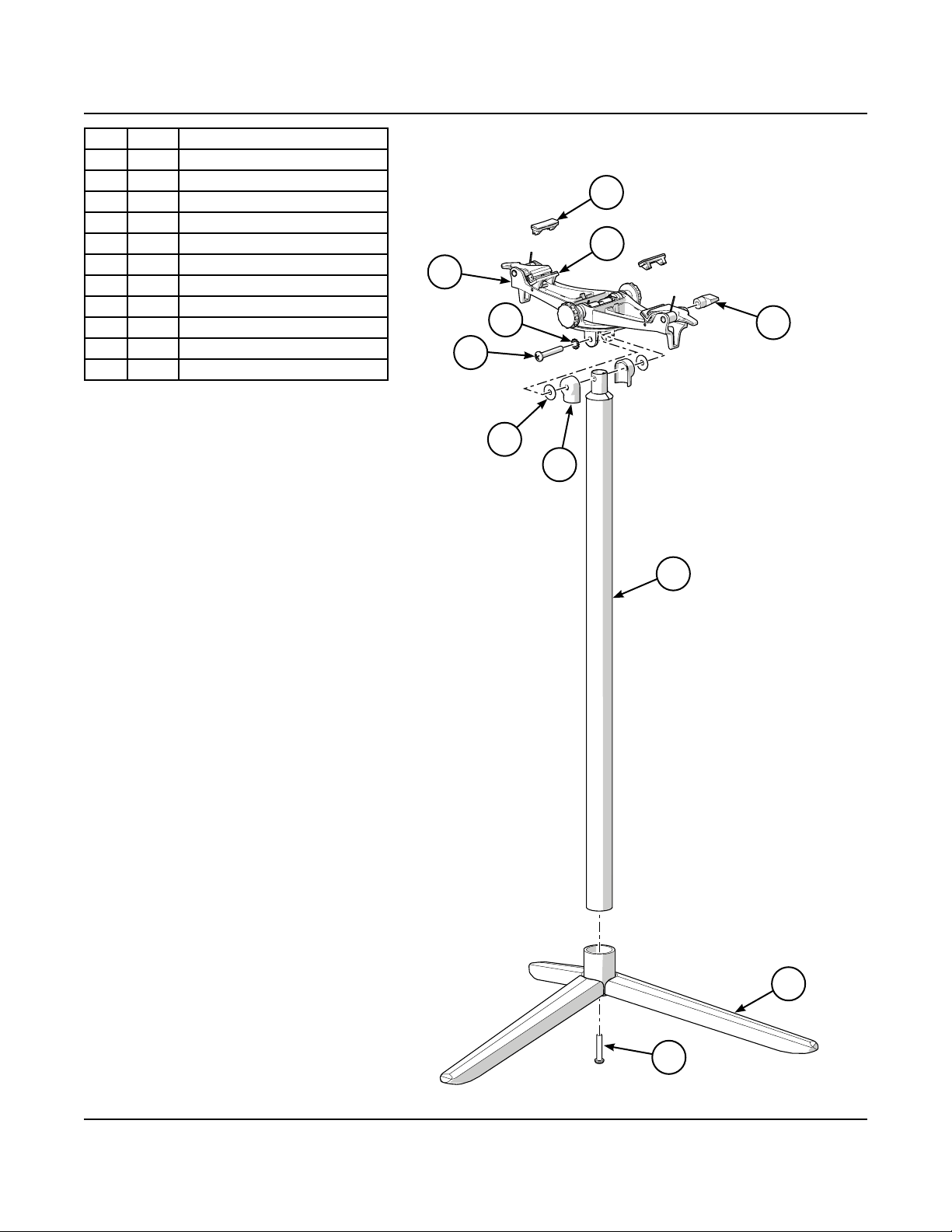

Item Qty Description
1 1 Base Assembly
21 Slider Assembly
31 Socket Screw, 1/4-20 x 1.25”
4 2 Pivot Hub Half
51 Universal Tablet Mount
61 Pan Head Screw, 1-1/2”
7 1 Locking Washer
8 2 Rubber Washer
9 1 T-Knob
10 2Small Frame Adapter
11 2Large Frame Adapter
Parts List
2
3
1
4
9
6
5
10
11
7
8
4

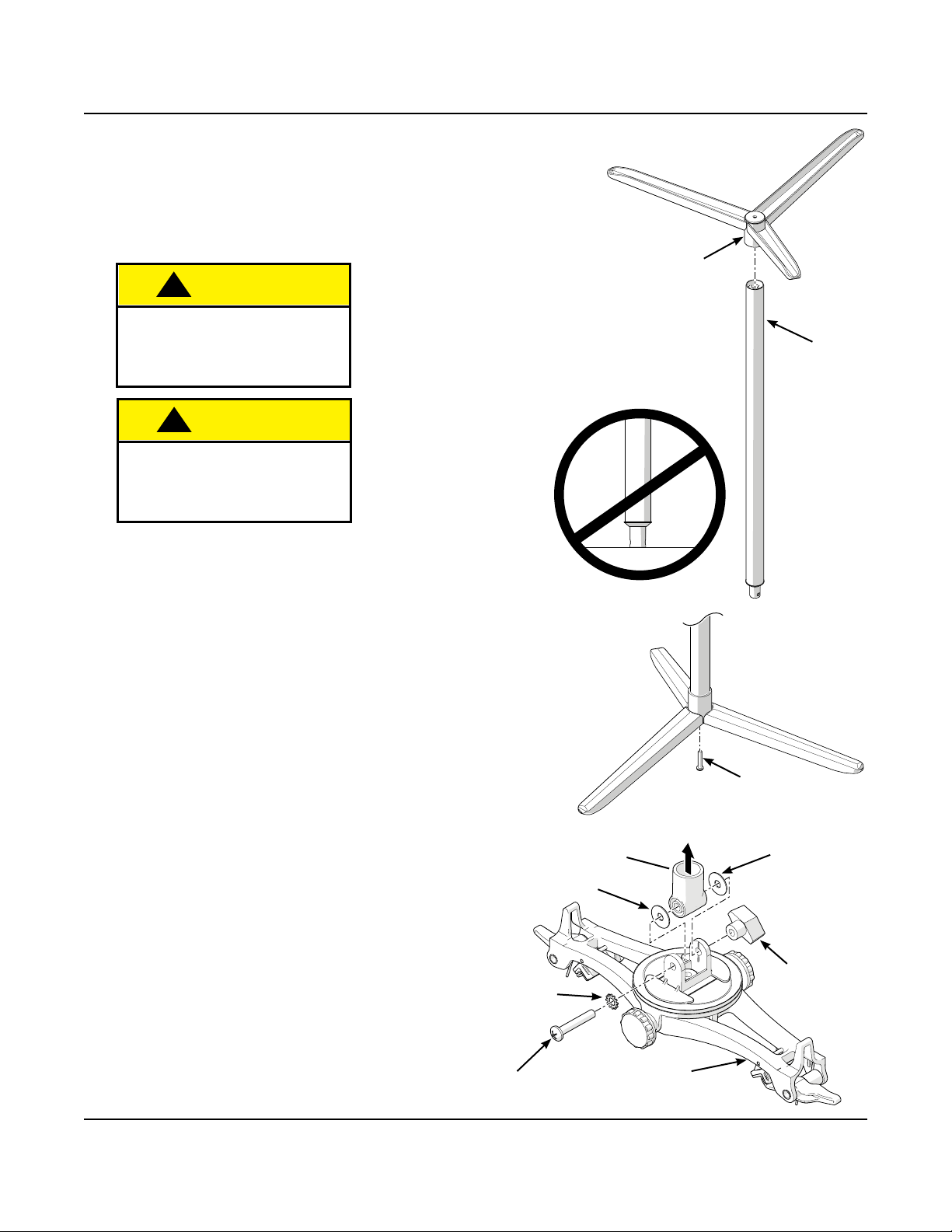

1. Push the Slider Assembly (#2) into the Base Assembly (#1).
The Base Assembly may be tapped with a plastic or
wood mallet until the Slider Assembly is ush with the
bottom of the Base Assembly.
Hold the Slider Assembly up from the ground and do not
allow it to strike the ground while tapping the Base Assembly
or it could be damaged.
2. Attach the Base Assembly to the Slider Assembly using a
1/4-20 x 1.25” Socket Screw (#3).
Tighten the Socket Screw using a 5/32” (4mm) hex key wrench
until the Slider Assembly no longer rotates inside of the
Base Assembly.
3. From the Universal Tablet Mount (#5):
a. Remove the 1-1/2" Pan Head Screw (#6),
Locking Washer (#7), Rubber Washers (#8),
T-Knob (#9) and set them aside for later use.
b. Remove and discard the 5/8-27 UNF Adapter.
Assembly
Base
Assembly
(#1)
Slider
Assembly
(#2)
1/4-20 x 1.25”
Socket Screw
(#3)
Do Not Allow the Inner Tube
to Strike the Ground
Do not allow the Inner Tube
to strike the ground.
Damage to the components
could occur.
!CAUTION
Do not force the Slider
Assembly into the Base
Assembly. Damage to the
components could occur.
!CAUTION
Discard
Adapter
T-Knob
(#9)
1-1/2”
Pan Head Screw
(#6)
Locking Washer
(#7)
Universal
Tablet Mount
(#5)
Rubber Washer
(#8)
Rubber Washer
(#8)
5

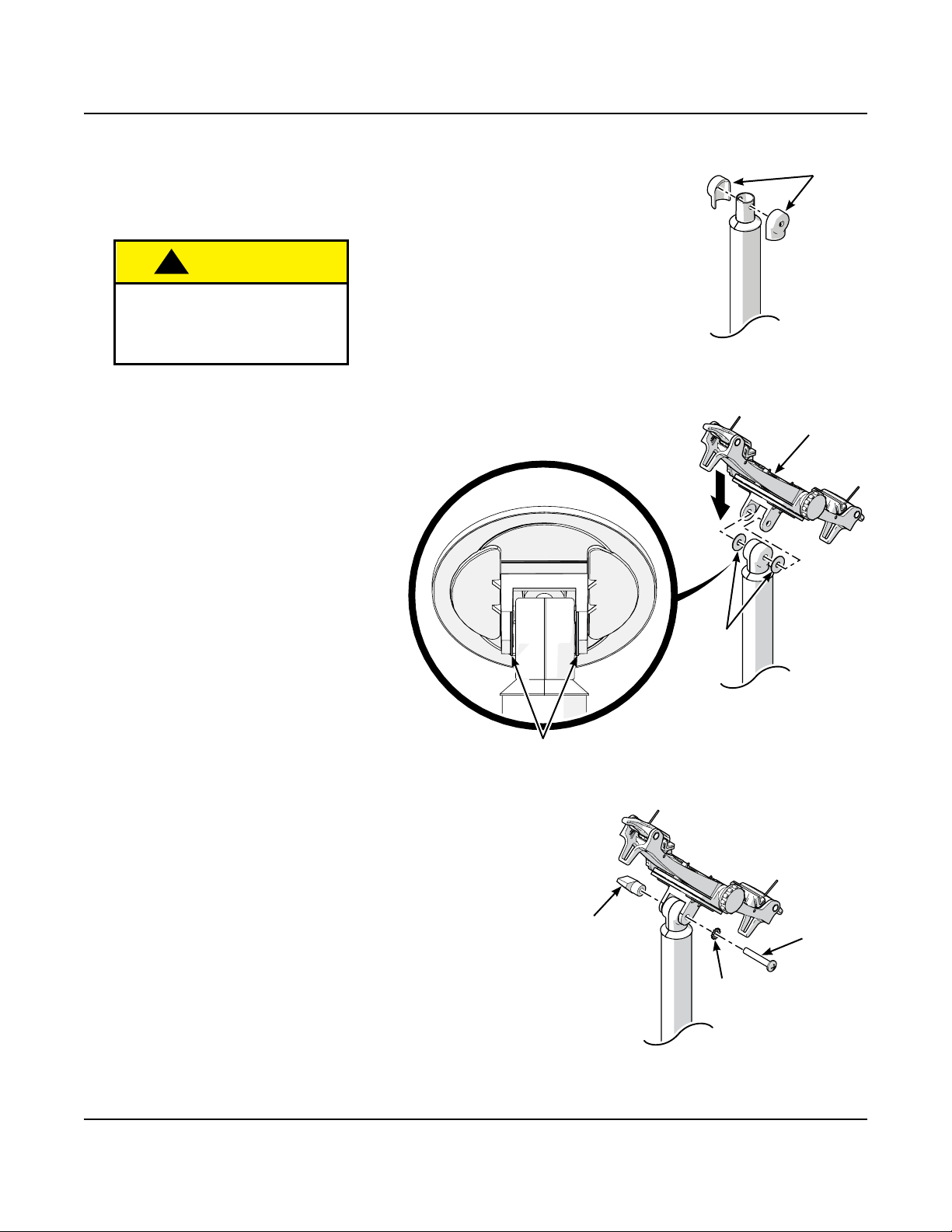

4. Align the hole in each Pivot Hub Half (#4) with the holes of the inner tube of the Slider Assembly.
If adjustment is needed, insert an allen wrench through the holes
at the end of the inner tube and use as a handle to extend the tube.
A pliers may also be used to grasp the wall of the inner tube to aid
in extending it.
5. Place a Rubber Washer (#8) each side of the Pivot Hub Halves.
Slide the Universal Tablet Mount (#5)
to t onto the Pivot Hub and
Rubber Washers.
6. Attach the Universal Tablet Mount to the Pivot Hub with a
1-1/2” Pan Head Screw (#6), Locking Washer (#7)
and T-Knob (#9).
These can be adjusted to control the pivot tension
as necessary.
Assembly (continued)
Pivot Hub
Halves
(#4)
Universal
Tablet Mount
(#5)
T-Knob
(#9)
1-1/2”
Pan Head
Screw
(#6)
Rubber
Washer
(#8)
Rubber Washers t between the
Tablet Mount and Pivot Hub
Locking
Washer
(#7)
Be sure not to distort the
shape of the inner tube
with a pliers. Damage to the
components could occur.
!CAUTION
6

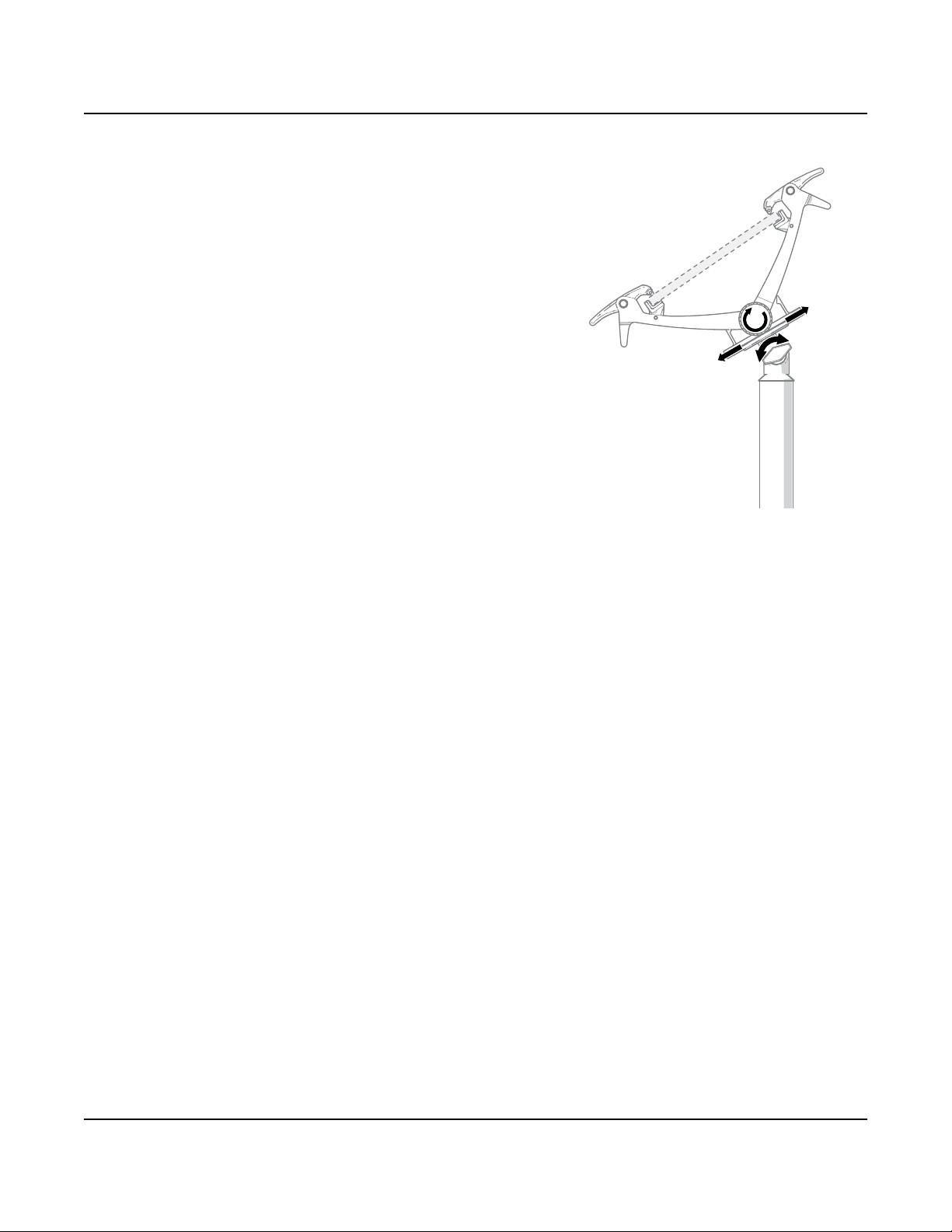

Universal Tablet Mount Adjustment
Use the Tablet Stand with care.
1. Rotate the Universal Mount so that one arm is up and the other is down.
The rotation tension can be adjusted by loosening or tightening the T-Knob.
2. Loosen the side knobs to release the adjustable mount arms.
Squeeze open the clamp on the lower arm and insert the tablet.
3. Move the upper arm into place and clamp the other side of the tablet.
Operation
T-Knob
7
4. Inspect the insertion to make sure the pivot feet and clamps are rmly contacting the tablet.
Tighten the knobs to secure the installation.
5. Adjust the swivel mount base 360° for optimal viewings.
Operation (continued)
8
Operation (continued)
Frame Adapters for Larger Tablets
If a tablet is too large to t in the Small Frame Adapters (#10), replace them with Large Frame Adapters (#11).
1. Remove both Small Frame Adapters using a at screwdriver to pry them from the Pivot Bar.
2. Push the Large Frame Adapters onto the Pivot Bars.
Small Frame
Adapters
(#10)
Large Frame
Adapters
(#11)
Pivot
Bar
Pivot
Bar
