WESTERSTRAND QUARTZ CLOCK Bedienungsanleitung

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 1 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

MAINS OPERATED

QUARTZ CLOCK

TECHNICAL MANUAL

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 2 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

General

The Quartz-clock is an analogue clock with a built-in high accuracy quartz crystal as a time base. The clock can control up

to 3 slave movements connected to a special slave output. Supply voltage is 230 VAC.

If the clock has option External setting device the buttons is located outside clock cover.

Installation

1. Connect 230V 50 Hz according to the connection diagram.

2. Put Slide switch, on movement, in ON-position

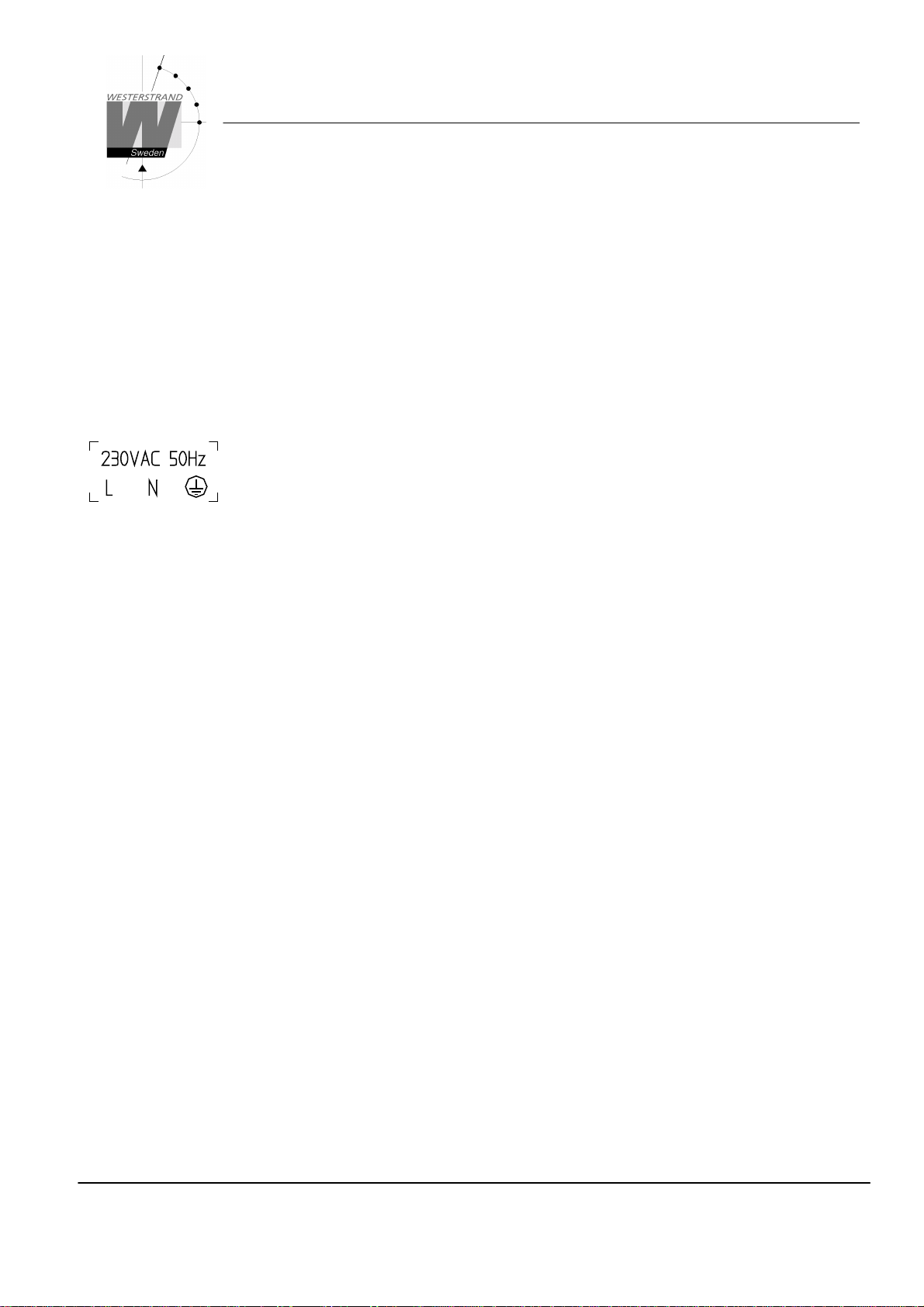

Connection diagram 230V/50Hz:

Synchronisation

Use setting buttons located on movement or if option External setting device:

1. Press (external) START/STOP button, to stop the clock.

2. Press (external) RAPID button, to set the hands some minutes ahead of correct time.

3. When correct time = time of hands; Press (external) START/STOP button.

During a power failure the clock is stopped.

If option, running reserve is mounted, the clock will continue to work during the power failure.

Technical data

Connection cable (mains) 3-wire

Connection voltage 230V 50Hz

Crystal frequency 4.194304Mhz

Accuracy within 0.1 s / 24h (at 20EC)

1s / 24h (-20 to +50 EC)

Temperature range -20EC to +50EC

Options

Running reserve art. no. 113195-00.

Lithium battery mounted inside the movement.

12 hours running reserve. Battery life approx. 10 years.

External setting

device. art. no. 113198-00.

External buttons (IP-65) for setting clock.

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 3 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

113100-00

Maximum dial size: 400 mm.

113101-00

Maximal storlek på urtavlan: 900 mm. Maximal storlek på minut visare: 410 mm.

SLAVE 230 V AC

OUTPUT NL

FOR EXTERNAL BUTTON

RAPID

FOR EXTERNAL BUTTON

START/STOP

RAPID

START/STOP

OFF

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 4 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

113101-00

Maximum dial size: 900 mm. , Maximum size of minute hand: 410 mm.

113101-02

Förlängd axel. Maximal storlek på urtavlan: 900 mm. Maximal storlek på minutvisaren: 410 mm.

230 V AC

OFF

START/STOP

RAPID

7.5

SLAVE

OUTPUT

RAPID

START/STOP

FOR EXTERNAL BUTTON

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 5 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

113101-02

Maximum dial size 900 mm, max. minute hand 410 mm, with extended shaft for background illumination.

Inkopplingsritning för slavurverk

SLAVE 230 V AC

OUTPUT NL

FOR EXTERNAL BUTTON

RAPID

FOR EXTERNAL BUTTON

START/STOPP

RAPID

START/STOP

OFF

INPUT

SLAVE

FOR EXTERNAL BUTTON

230 V AC

FOR EXTERNAL BUTTON

RAPID

SLAVE

OUTPUT L

START/STOP

OFF

START/STOP

RAPID

Document: 1574en02.doc

INTELLIGENT CLOCKS Author: TAn

Date: 03-09-16

Page: 6 of 6

WESTERSTRAND URFABRIK AB

P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se

SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se

Connection of slave movement.

SLAVE 230 V AC

OUTPUT NL

FOR EXTERNAL BUTTON

RAPID

FOR EXTERNAL BUTTON

START/STOP

RAPID

START/STOP

OFF

INPUT

SLAVE
